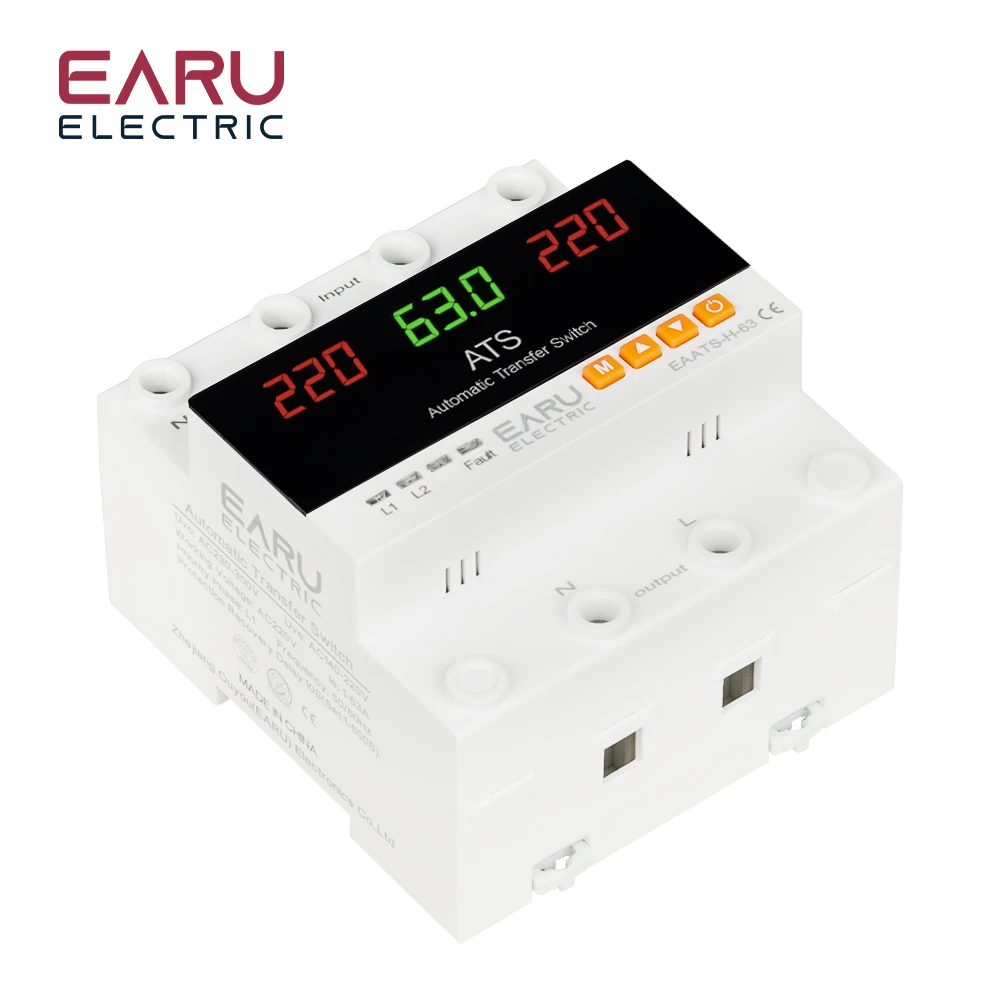

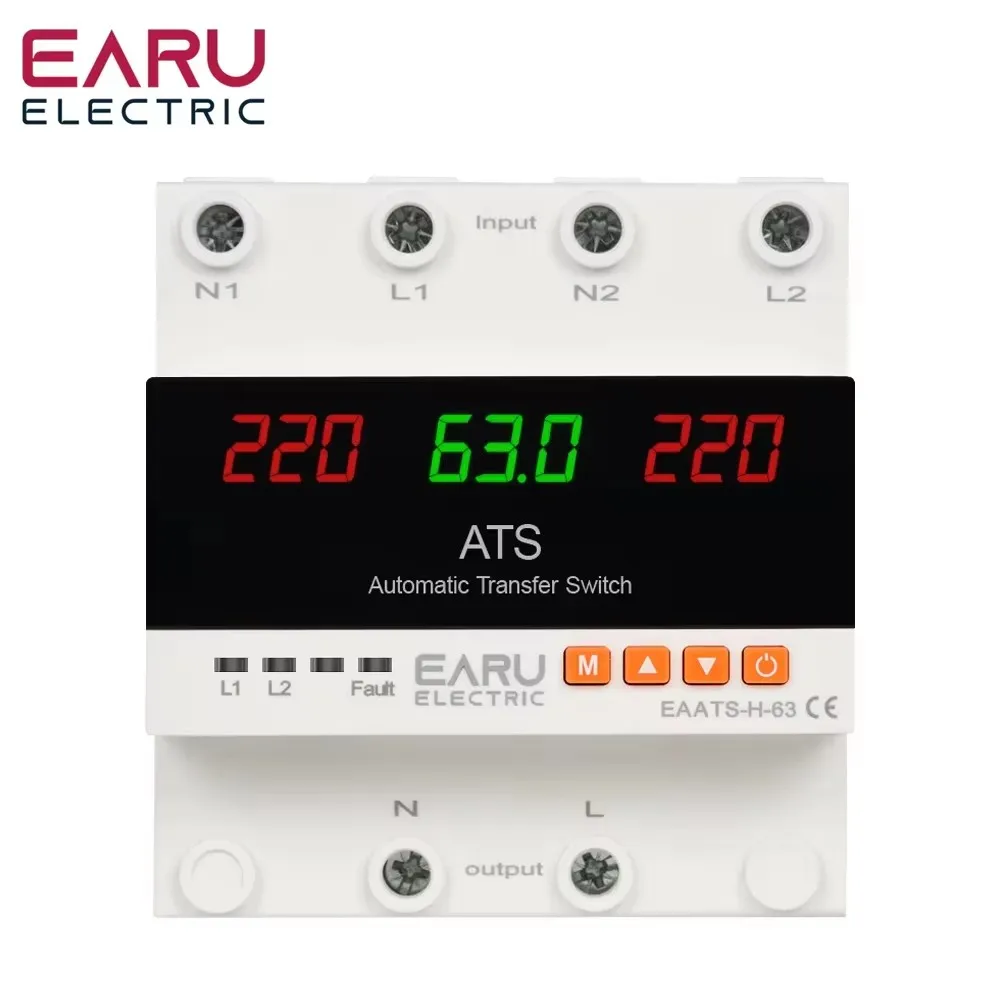

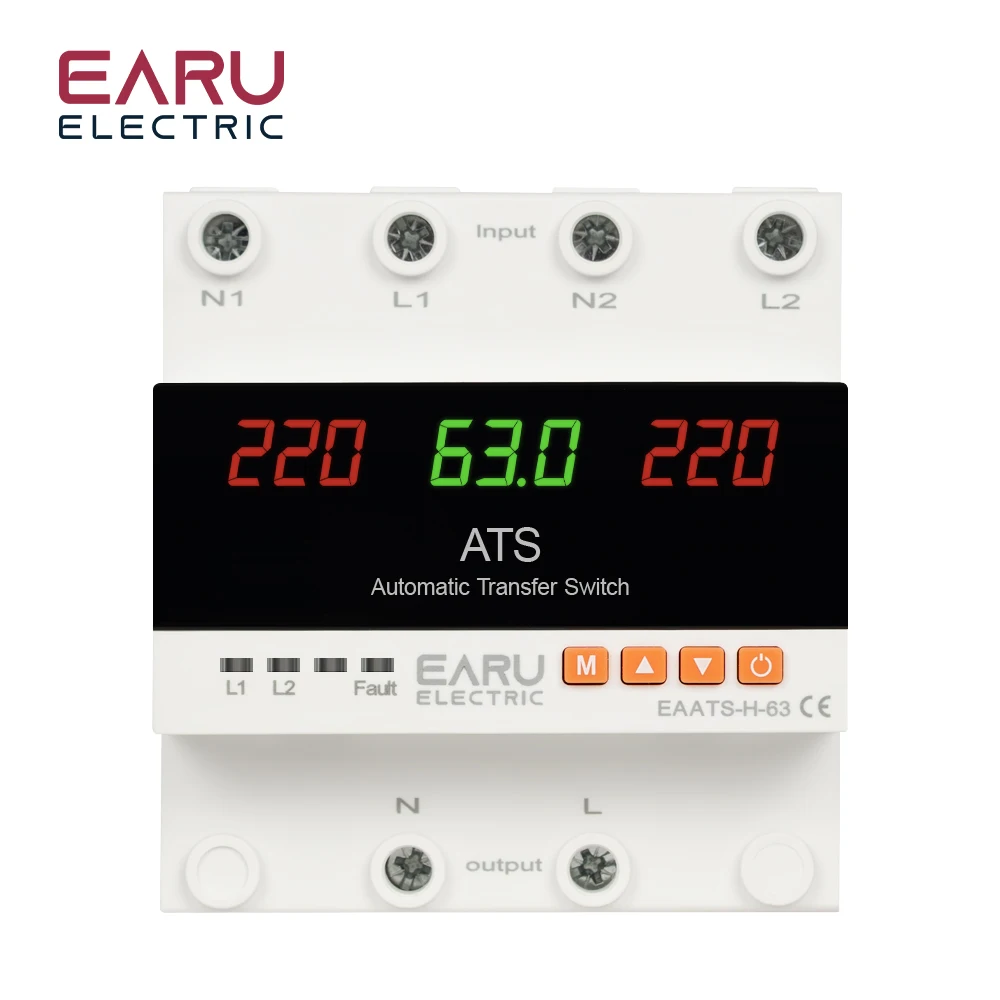

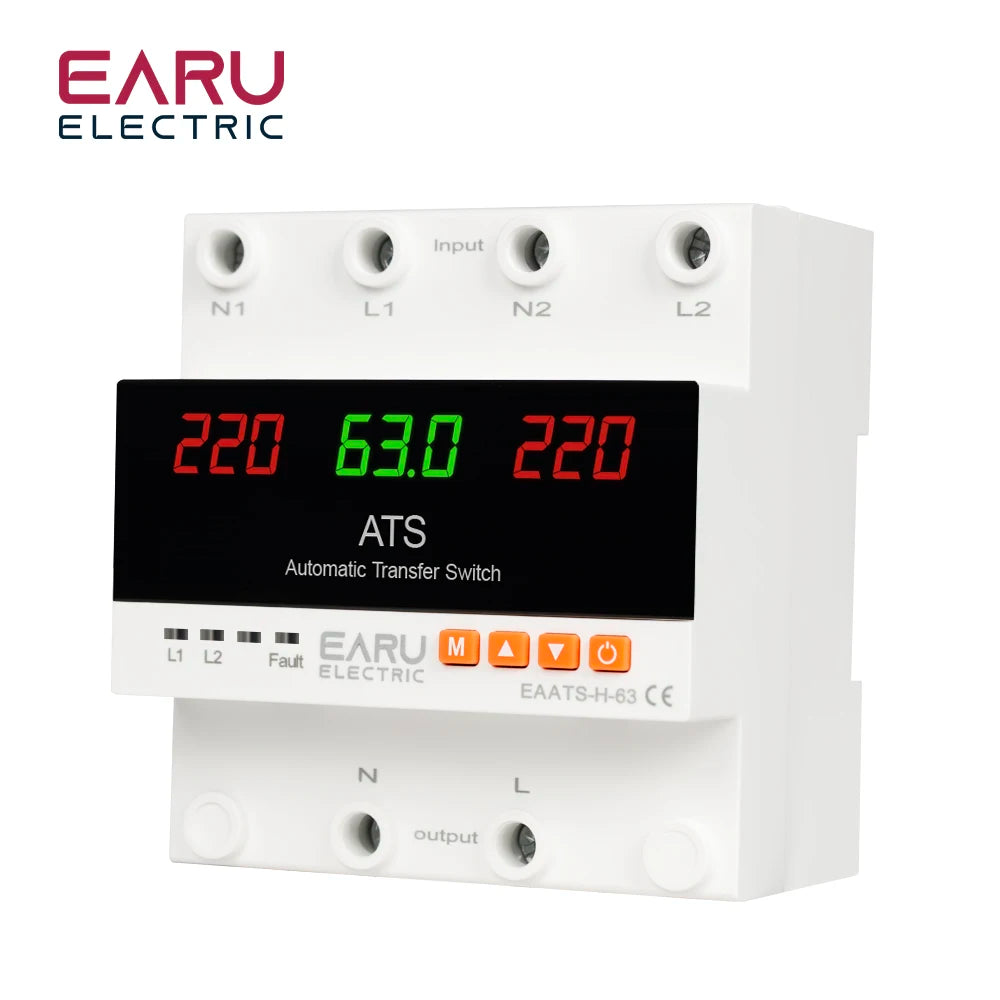

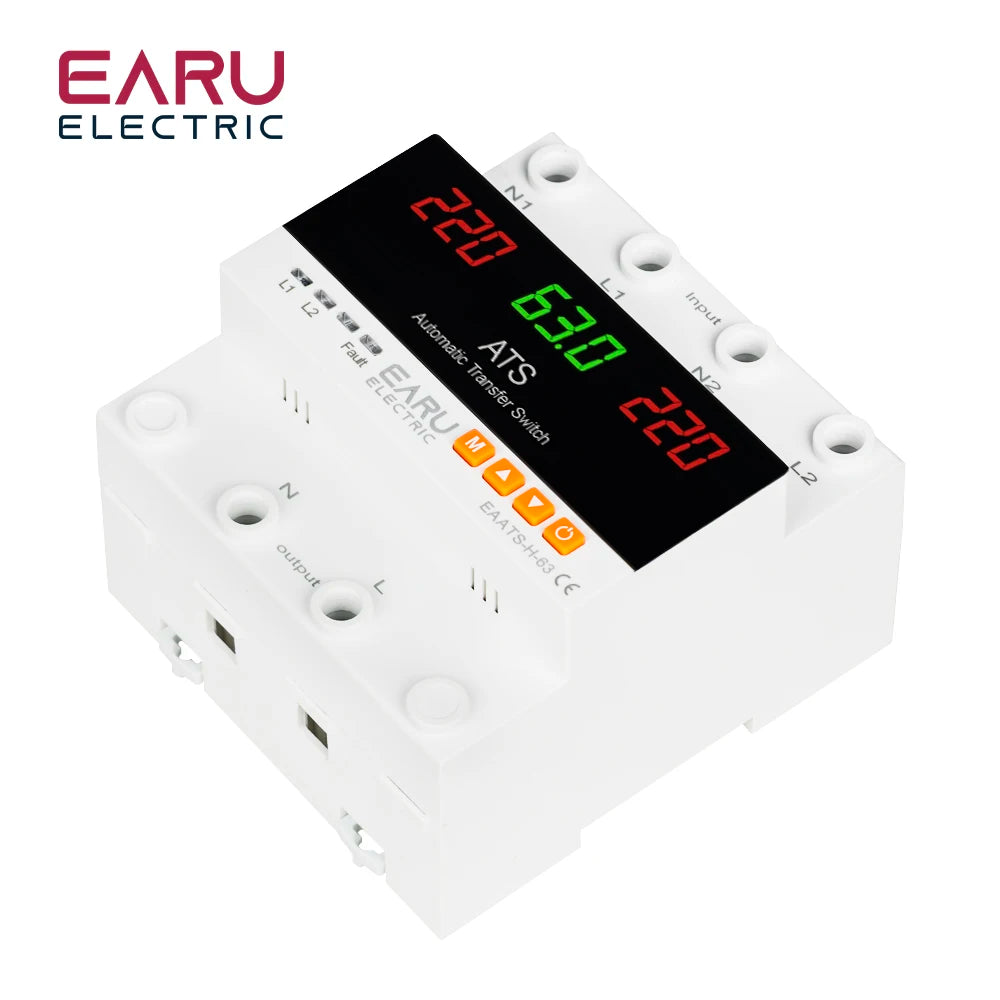

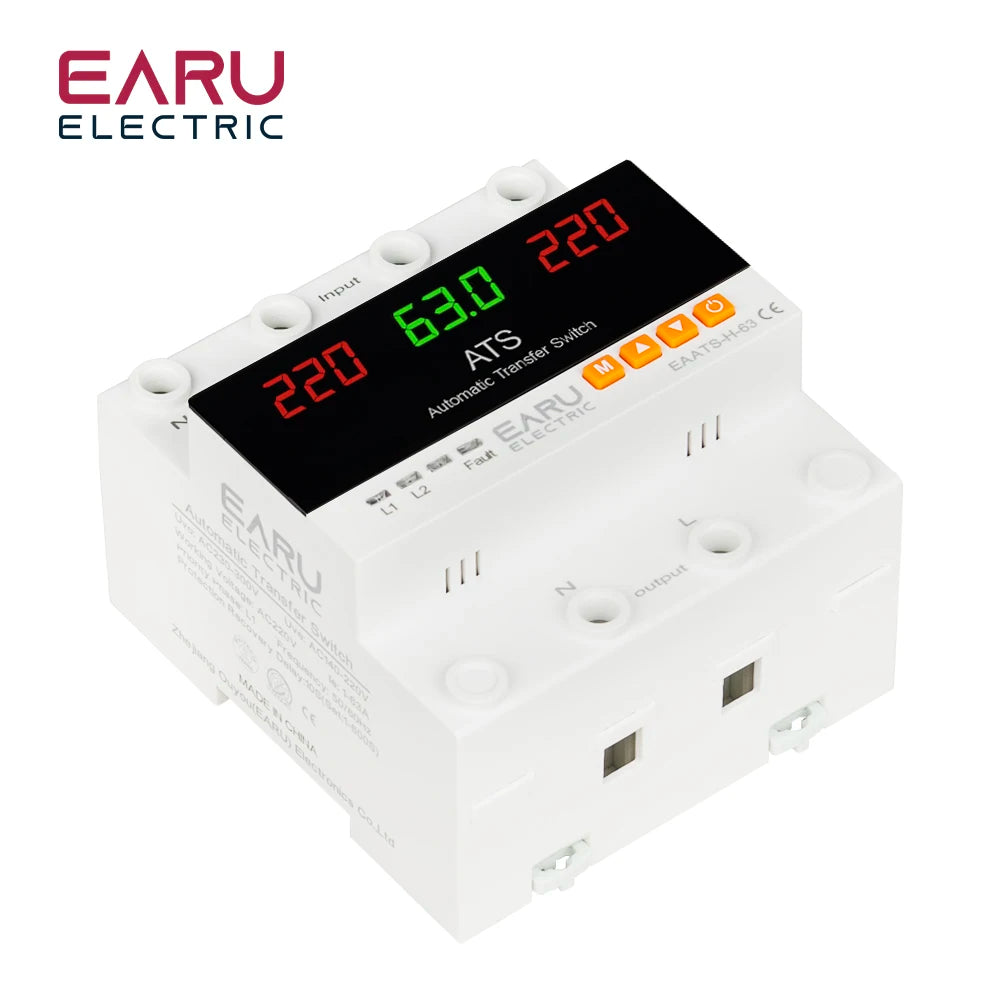

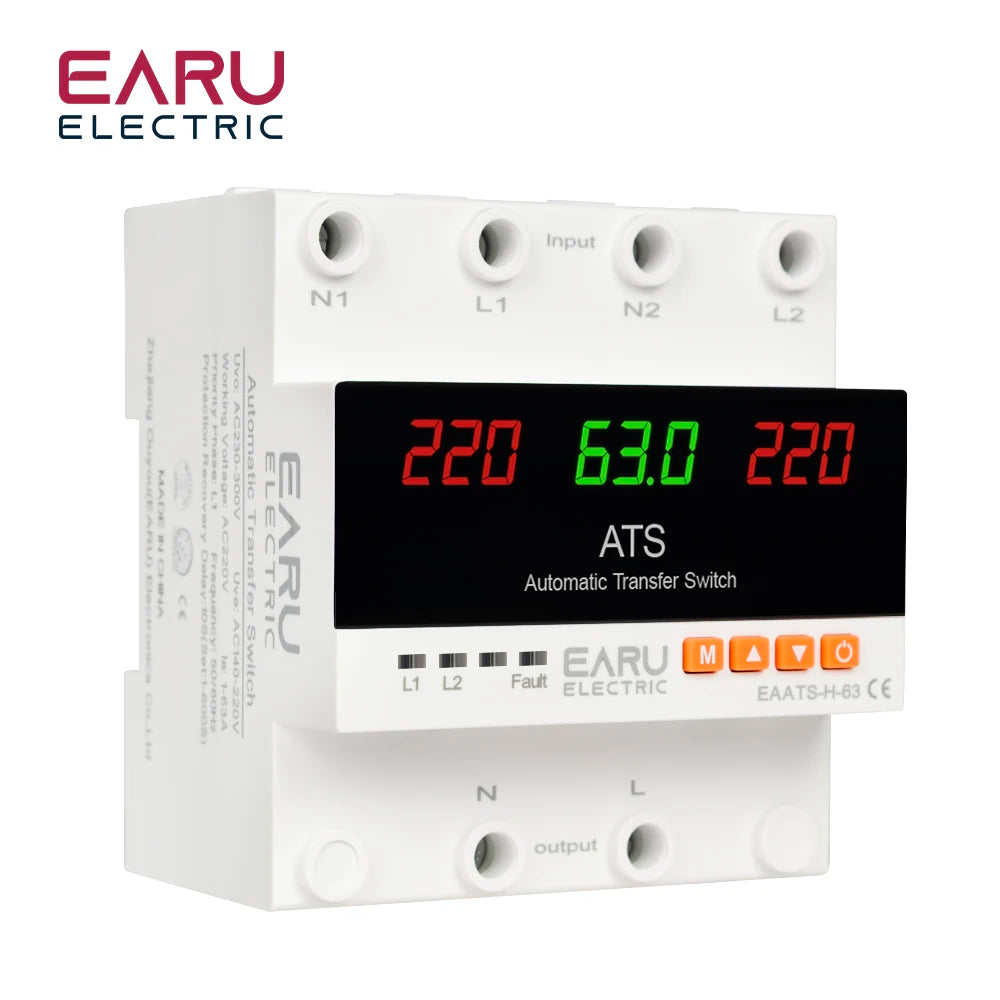

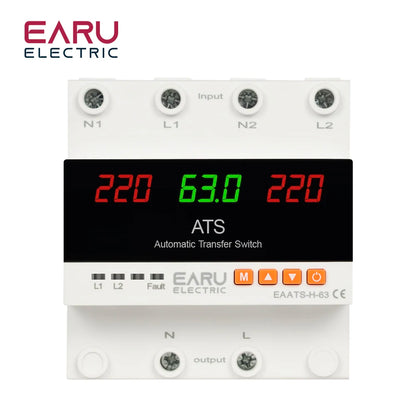

63A 100A 220V ATS Adjustable Over Under Voltage Current Protector Dual Power Conversion Automatic Transfer Switch Monitor Relay
63A 100A 220V ATS Adjustable Over Under Voltage Current Protector Dual Power Conversion Automatic Transfer Switch Monitor Relay
Couldn't load pickup availability
SPECIFICATIONS
Ambient temperature: -25℃~+50℃
Auto-reclosing delay(Ton): 1-600s
Brand Name: EARU
Certification: CE
Choice: yes
High-concerned chemical: None
Is Smart Device: No
Max. operating current: 63A/80A/100A
Max. operating phase voltage: 350V
Model Number: EAATS-H
Origin: Mainland China
Overvoltage trip delay: 0.1s;≥350V: 0.02s
Permissable relative humidity: ≤50% at 40℃(without condensation)
Pollution degree: 3
Rated Voltage: 220V
Rated frequency: 50/60Hz
Rated operating current: 63A/80A/100A
Rated supply voltage: AC2*220V/110V(N1-L1/N2-L2)
Return delay to priority phase: 1-600s
Storage temperature: -25℃~+55℃
Supply terminals: N1,L1,N2,L2
Switch delay to reserve phases: <0.2s
Type: Mini,Voltage relay
Umax setting range: 230-300V 110-300V
Umin setting range: 140-220V 80-220V
Undervoltage trip delay: 0.1s;≥350V: 0.02s
Voltage accuracy: <1%
Voltage hysteresis: 5V
is_customized: Yes
semi_Choice: yes
Product Description

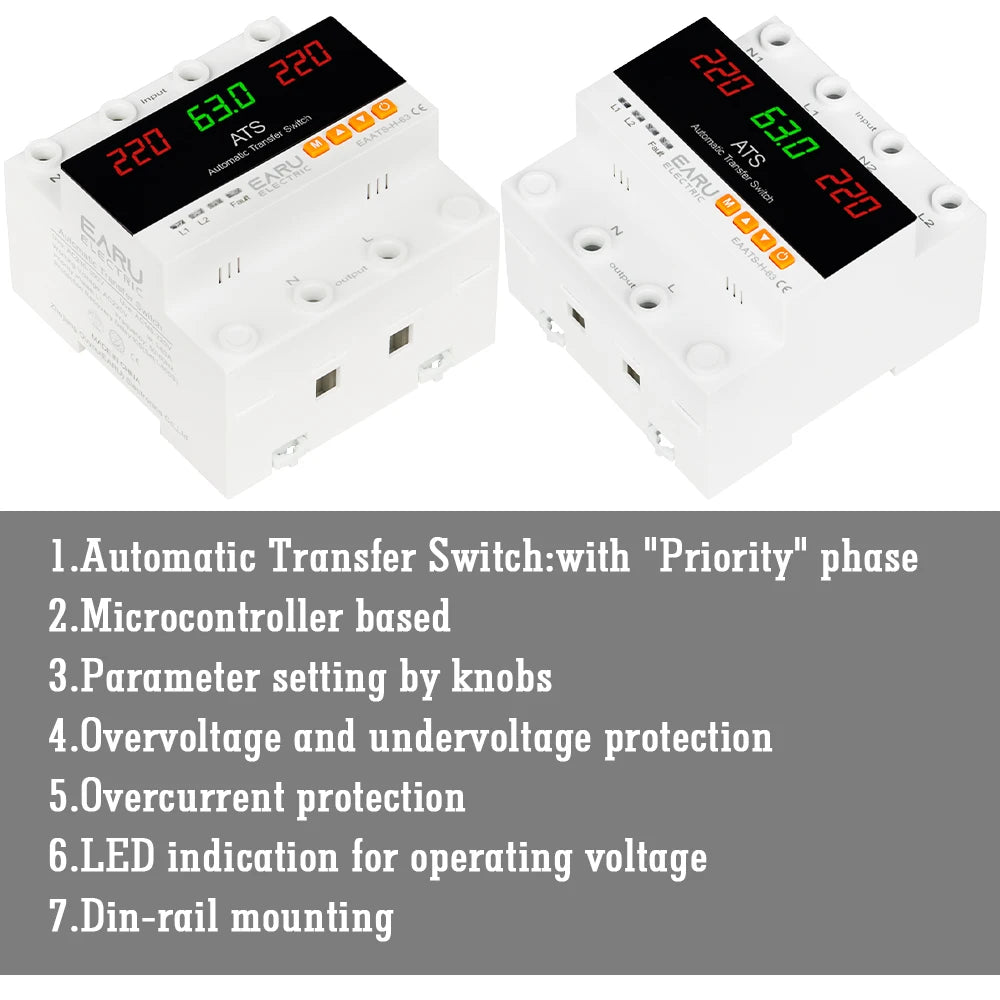

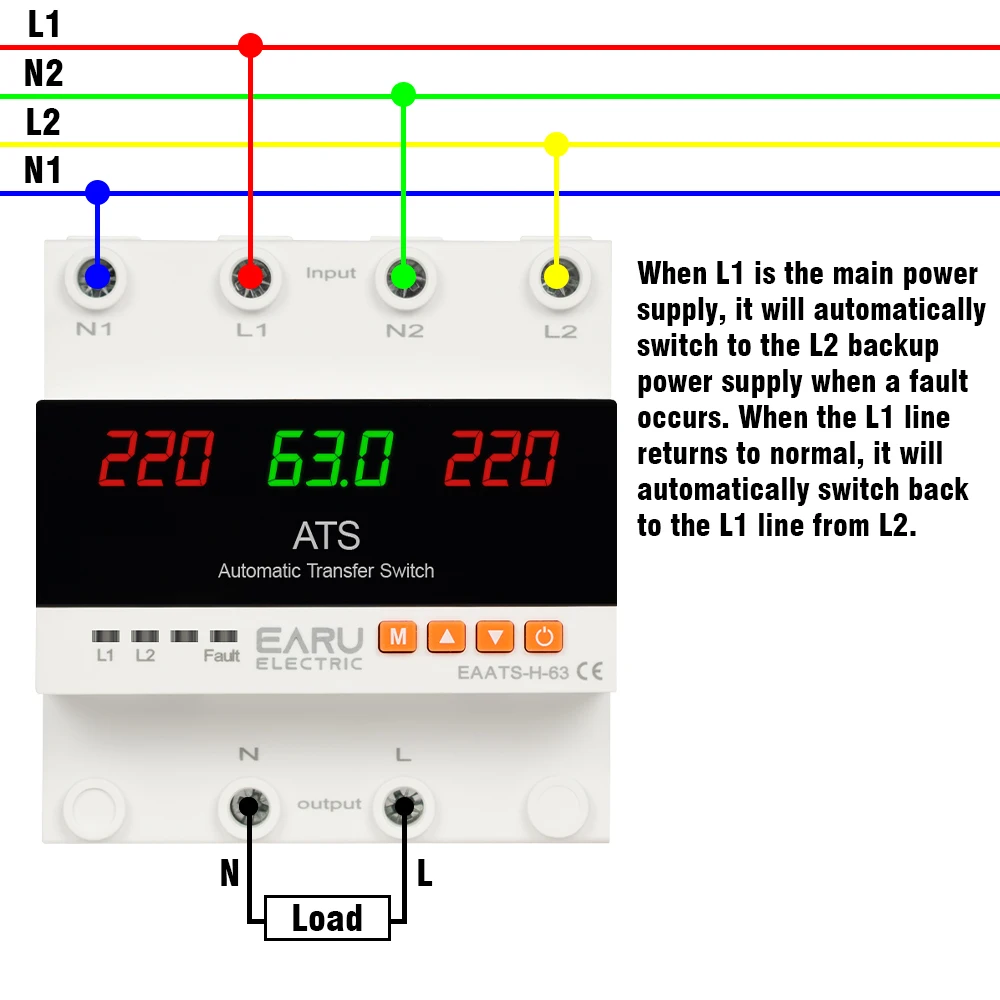

1.Automatic Transfer Switch:with "Priority" phase
2.Microcontroller based

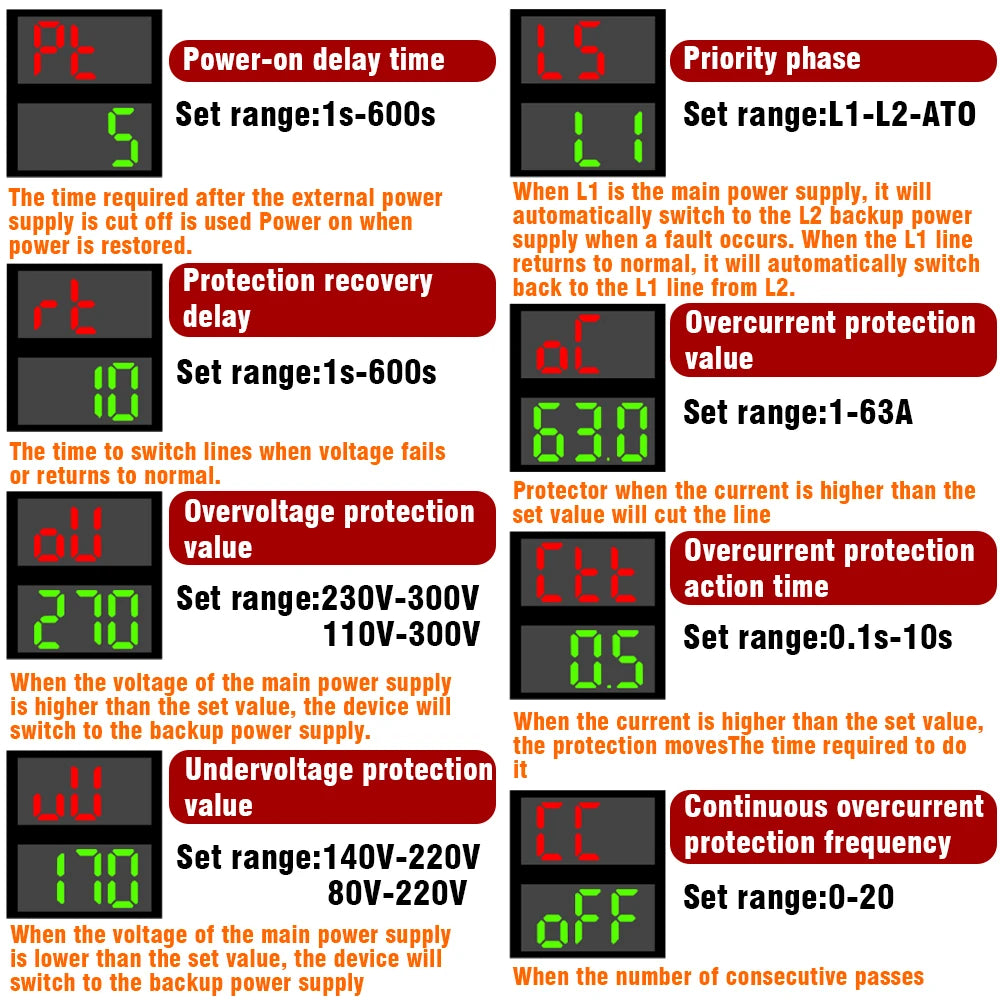

3.Parameter setting by knobs
4.Overvoltage and undervoltage protection

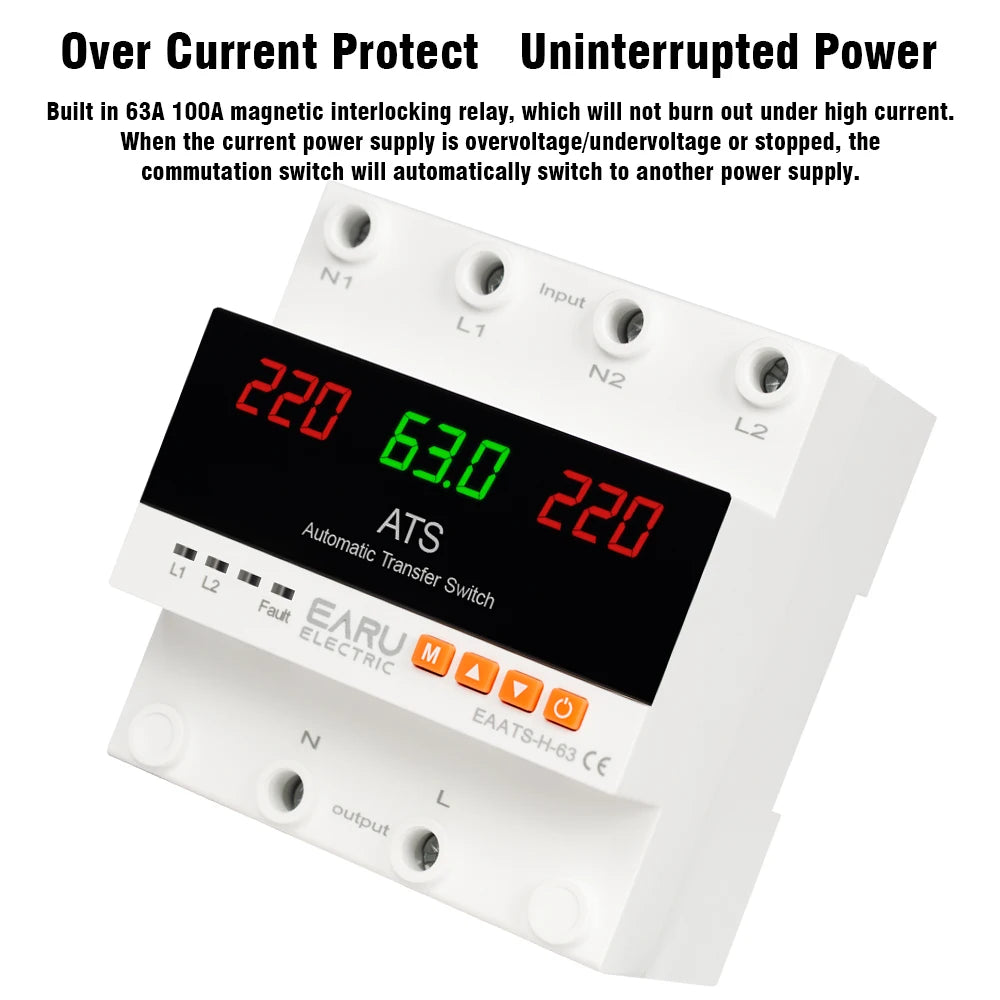

5.Overcurrent protection

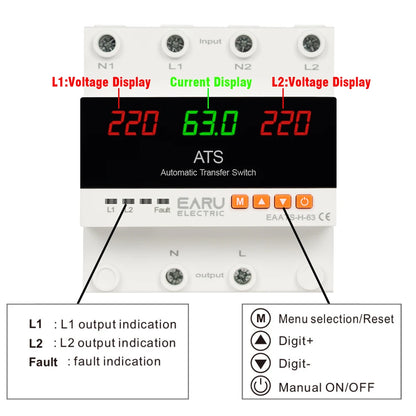

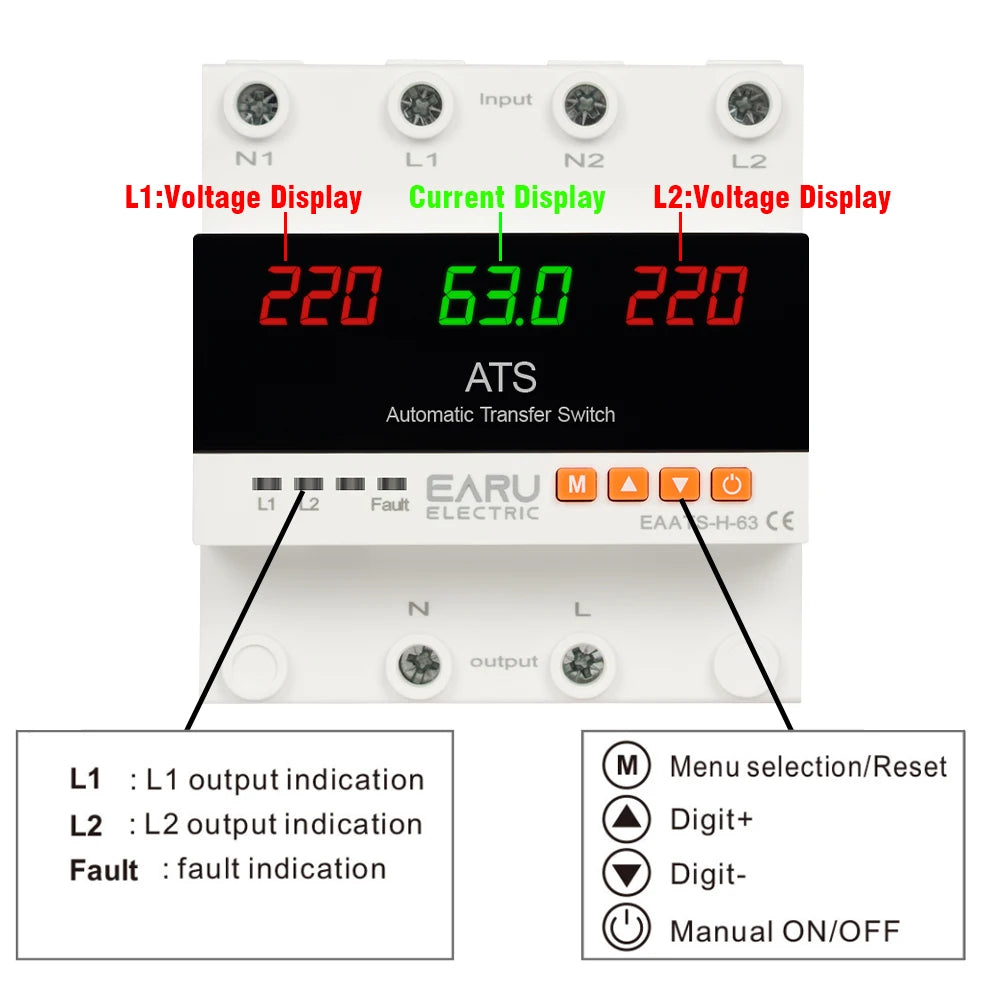

6.LED indication for operating voltage

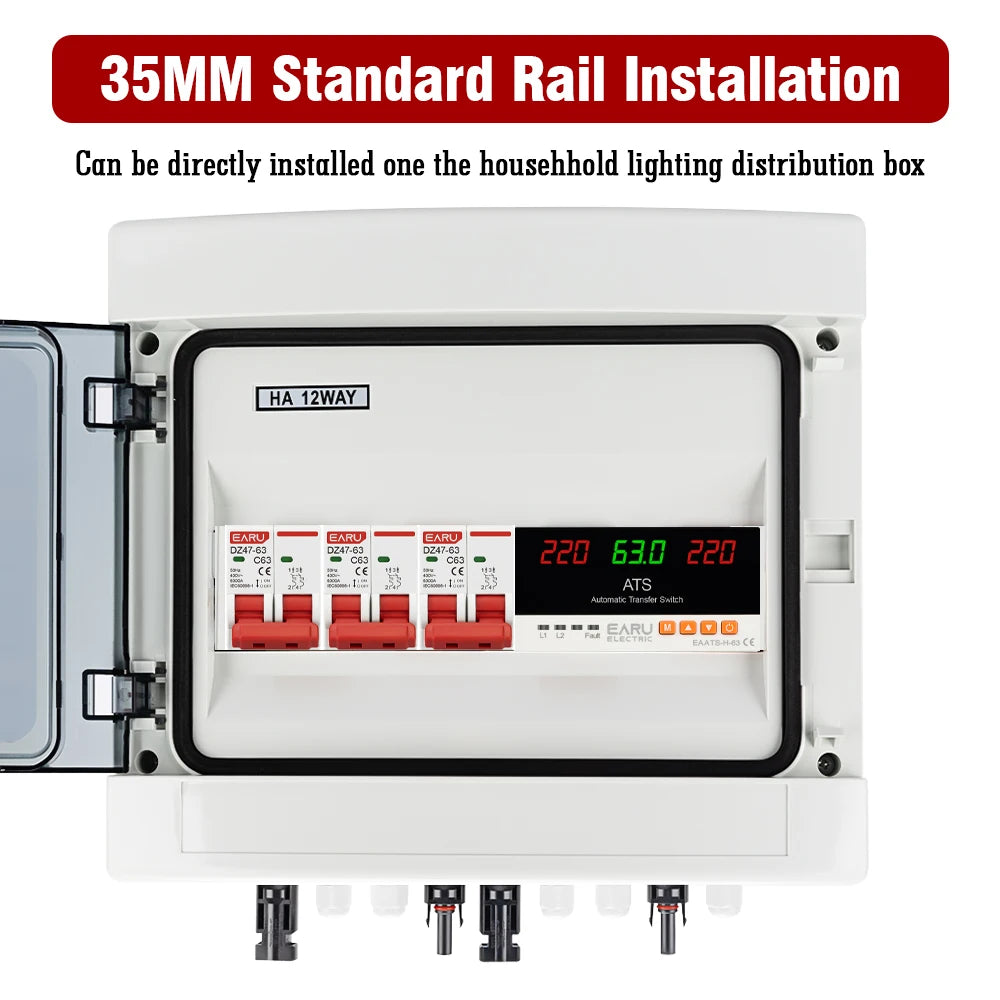

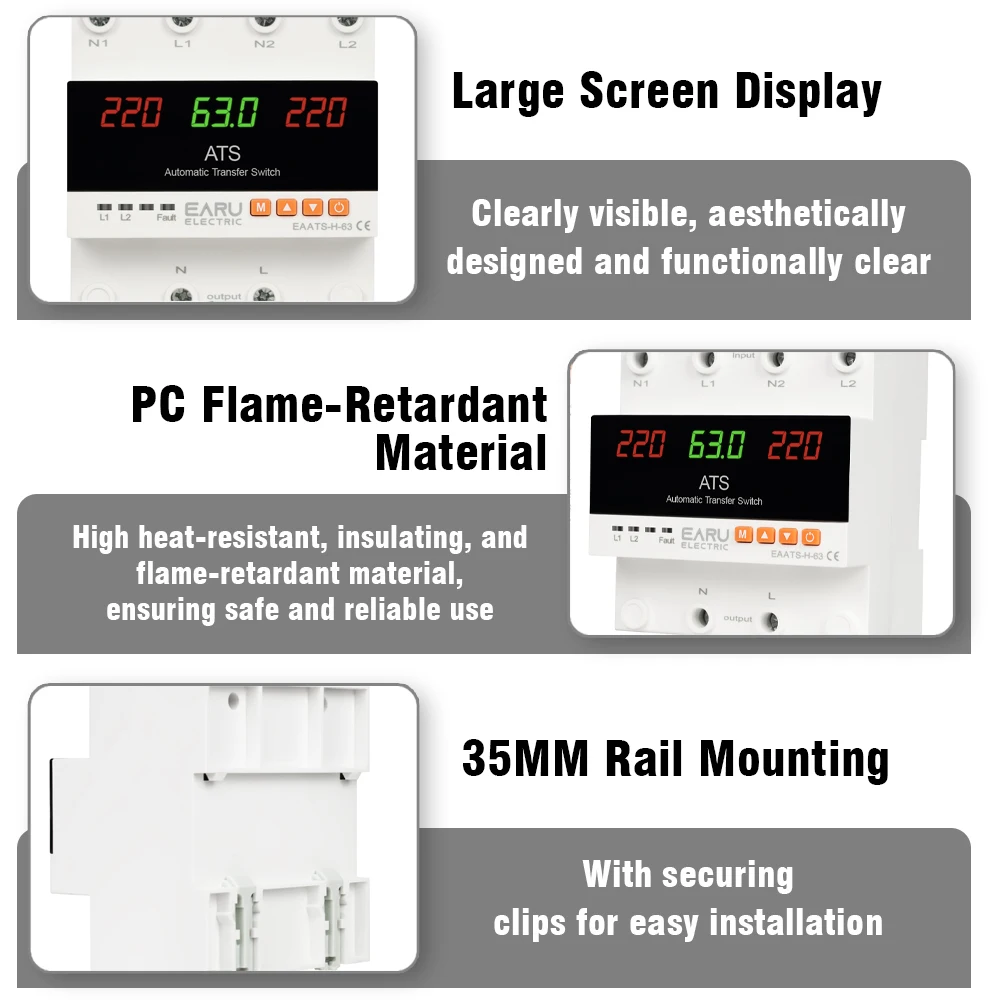

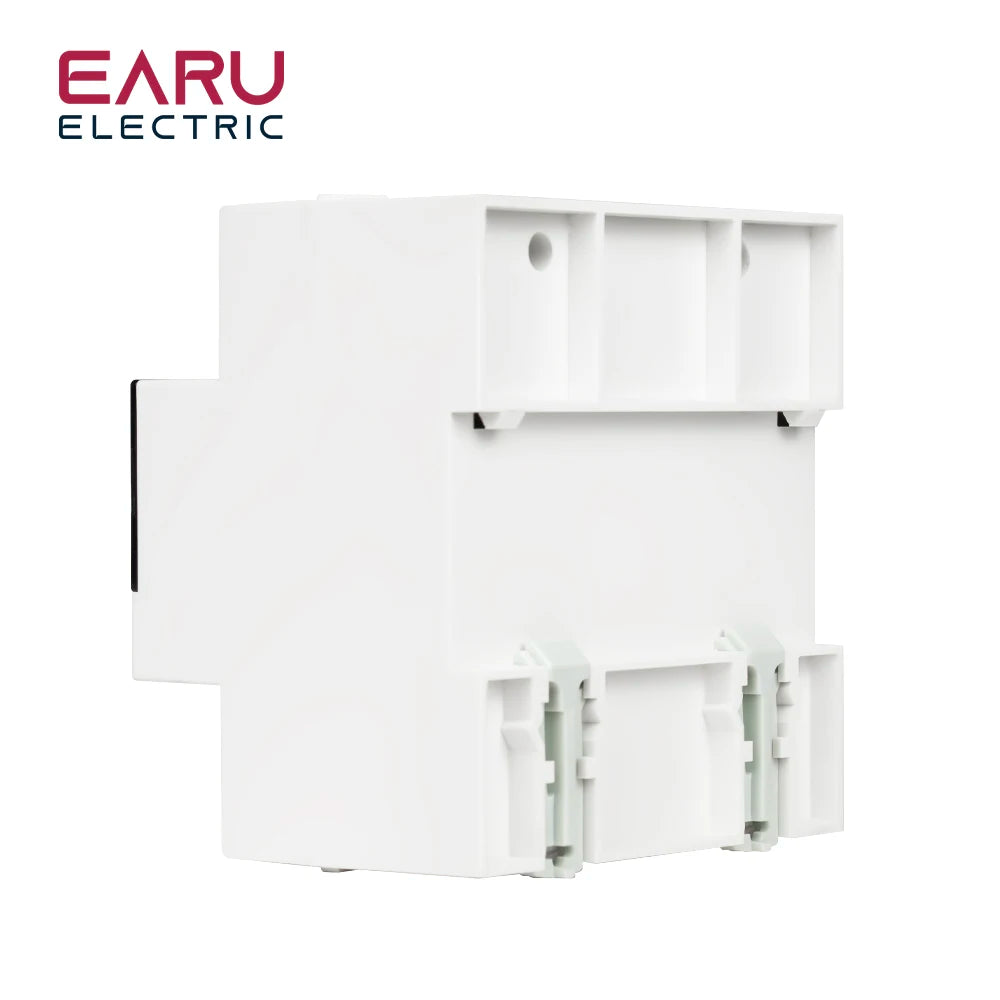

7.Din-rail mounting

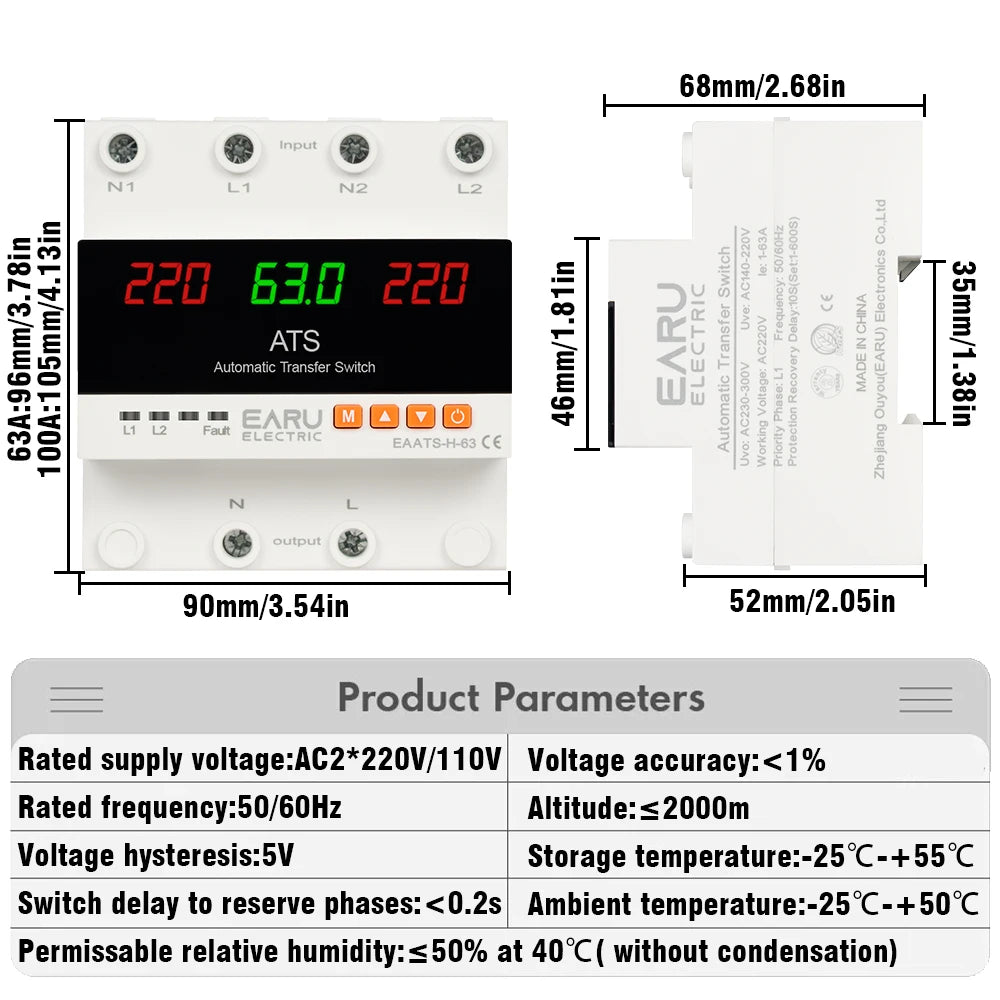

Technical Data
Supply terminals:N1,L1,N2,L2
Rated supply voltage:AC2*220V/110V( N1-L1/N2-L2)
Rated frequency:50/60Hz
Umax setting range:230-300V,110-300V
Umin setting range:140-220V,80-220V
Auto-reclosing delay(Ton):1-600s
Return delay to priority phase:1-600s
Switch delay to reserve phases:<0.2s
Voltage hysteresis:5V
Overvoltage trip delay:0.1s;≥350V: 0.02s
Undervoltage trip delay:0.1s;≥350V: 0.02s
Voltage accuracy:<1%
Max. operating phase voltage:350V
Rated operating current:63A/80A/100A
Max. operating current:63A/80A/100A
Pollution degree:3
Altitude:≤2000m
Ambient temperature:-25℃~+50℃
Permissable relative humidity:≤50% at 40℃ ( without condensation)
Storage temperature:-25℃~+55℃
