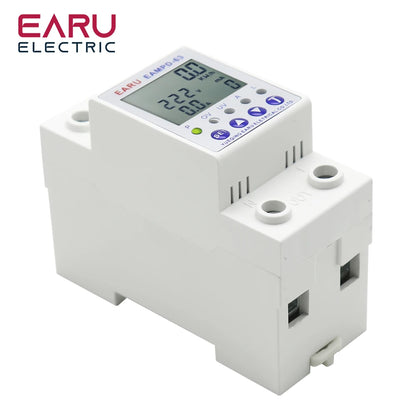

63A AC 230V Earth Leakage Relay with Voltage Protector & Display

63A AC 230V Earth Leakage Relay with Voltage Protector & Display

Regular price $29.97 USD
Regular price $0.00 USD Sale price $29.97 USD
Sale Sold out
Shipping calculated at checkout.
Rated Current

Monitor and protect your electrical system with the 63A AC 230V Display Adjustable Current Earth Leakage Protection Over Under Voltage Protector Relay Device Energy Power kWh Meter. Detect and prevent over or under voltage, leaks, and meter your energy usage for optimal efficiency.

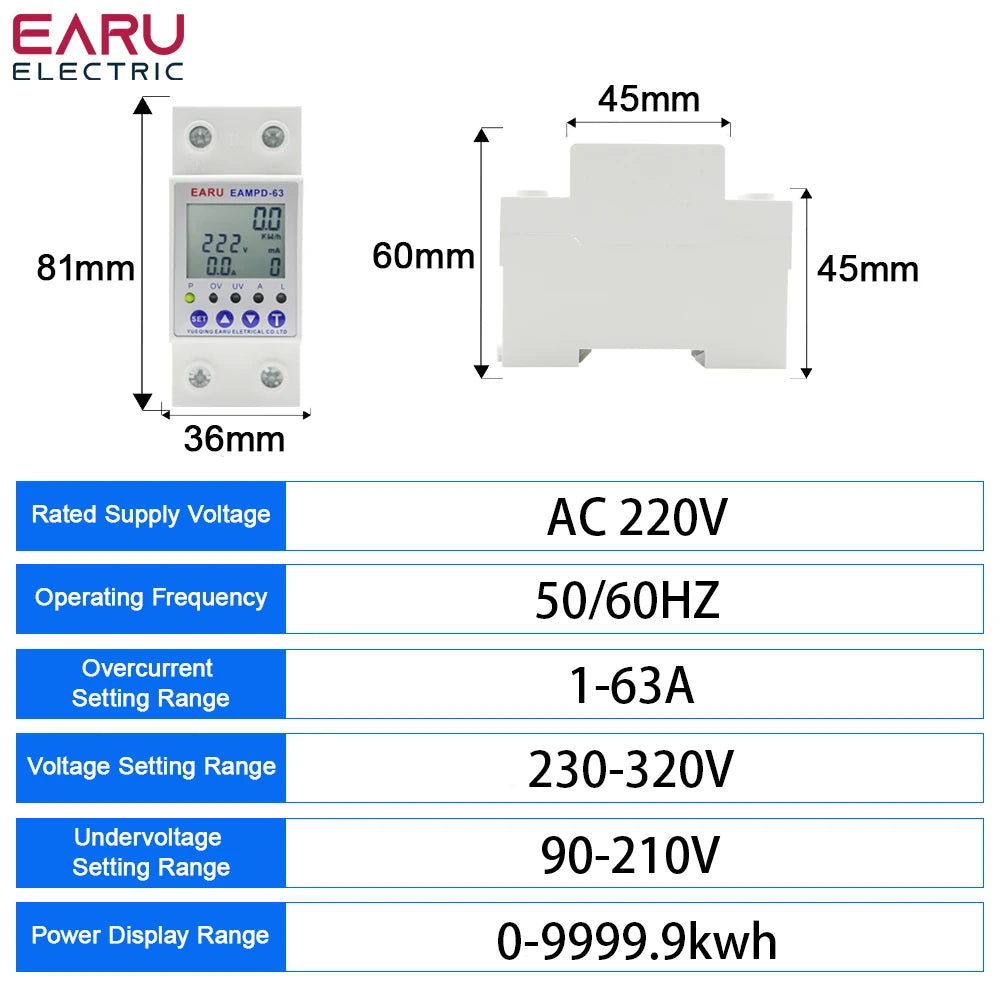

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Type: Earth Leakage
  • Rated Voltage: 220V
  • Type: Circuit breaker
  • Model Number: EAMNPD-63
  • Rated supply Voltage: AC 220V
  • Operating Frequency: 50/60HZ
  • Overcurrent Setting Range: 1-63A
  • Voltage Setting Range: 230-320V
  • Undervoltage Setting Range: 90-210V
  • Power Display Range: 0-9999.9kwh

Our factory can provide OEM service to manufacture this device with your brand, logo, if  you get any need, feel free to contact the buyer!

Rated voltage: 230V; Frequency: 50Hz/60Hz

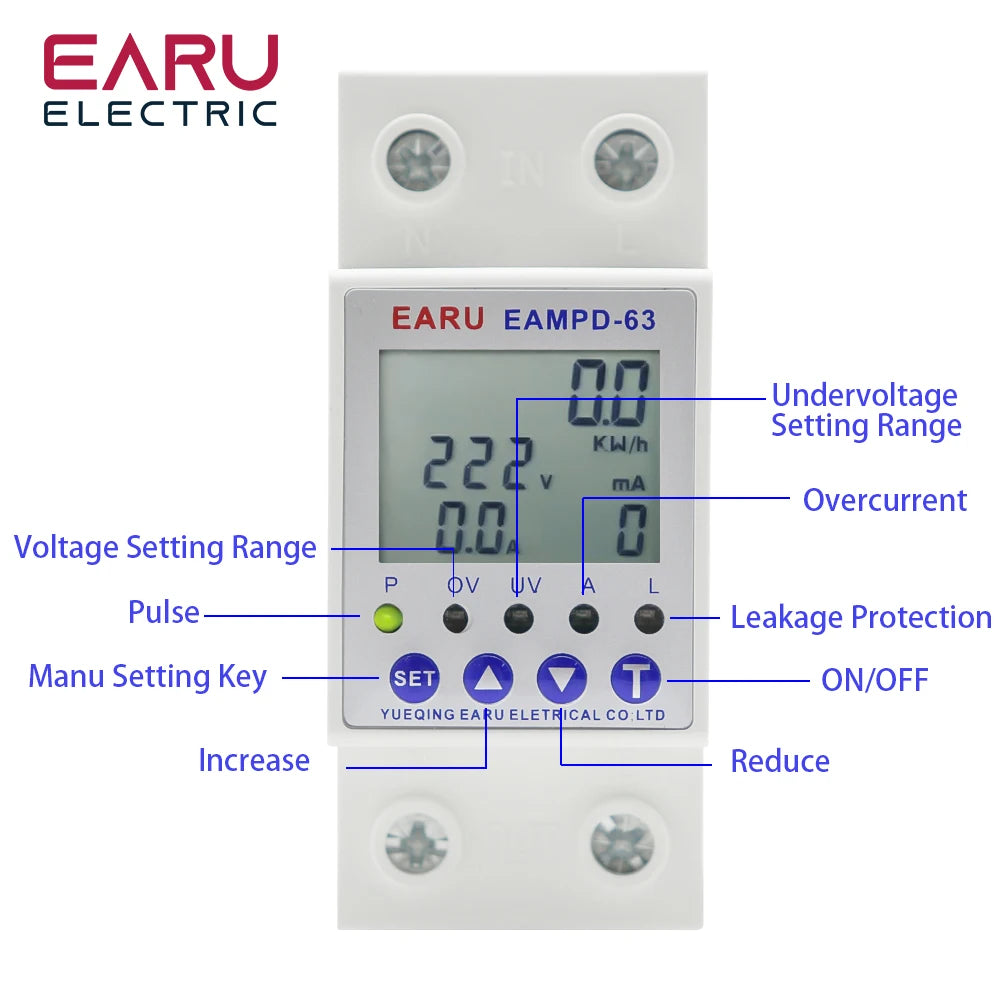

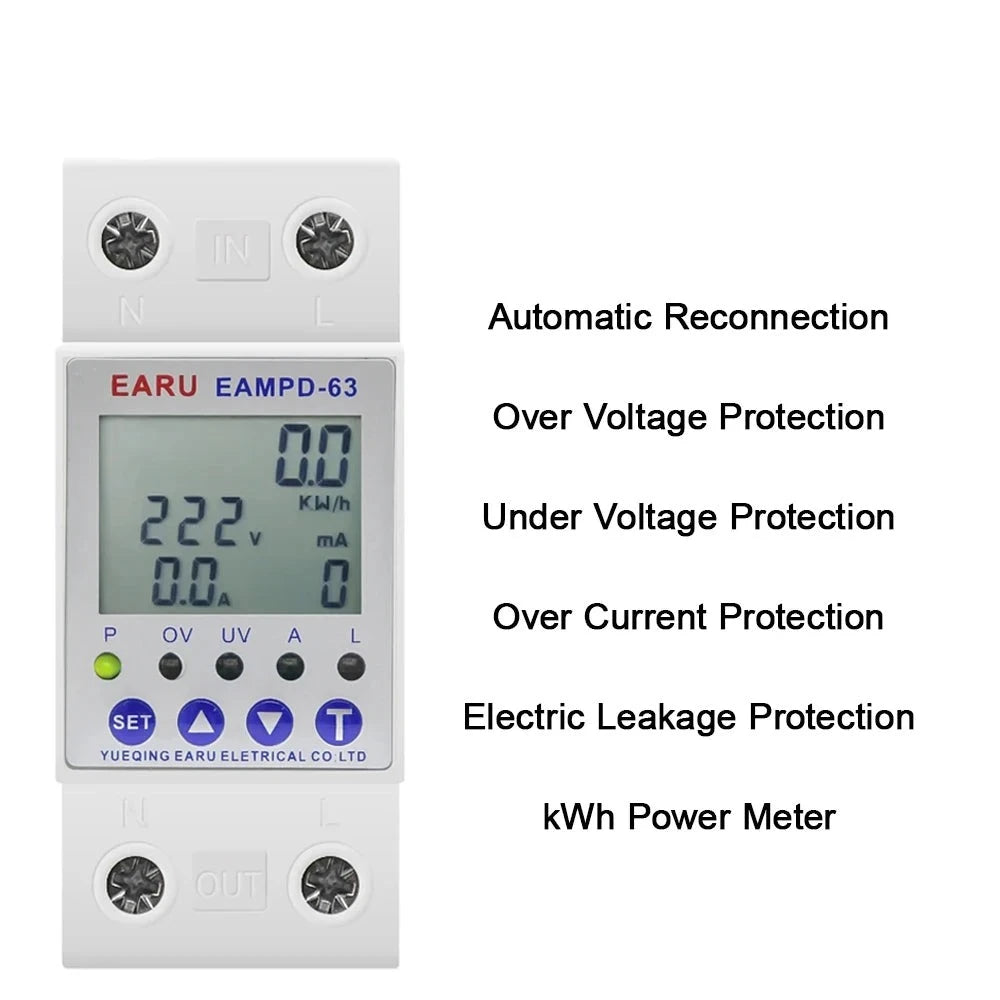

Function:

  • Under voltage protection 90V-210V (adjustable) (default: 170V)
  • Over voltage proteciton 230V-320V (adjustable) (default: 270)
  • Over current protection 1A-63A (adjustable) (default: 63A)
  • Reconnect time (delay on time): 5s-90s (default: 30s)
  • Electric leakage protection:10-99mA
  • Power display range:0-99999.9kwh
  • Voltage meter
  •  Ammeter
  • Energy meter
