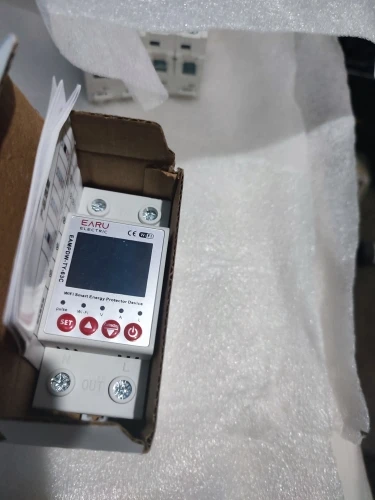

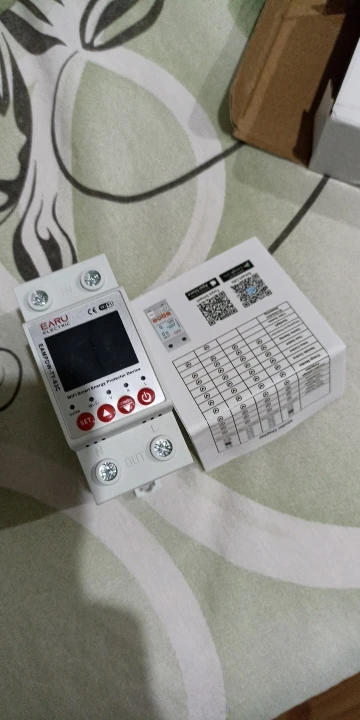

63A AC 230V Tuya WiFi Smart Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker

63A AC 230V Tuya WiFi Smart Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker

Regular price $33.44 USD
Regular price $0.00 USD Sale price $33.44 USD
Sale Sold out
Shipping calculated at checkout.
Rated Current

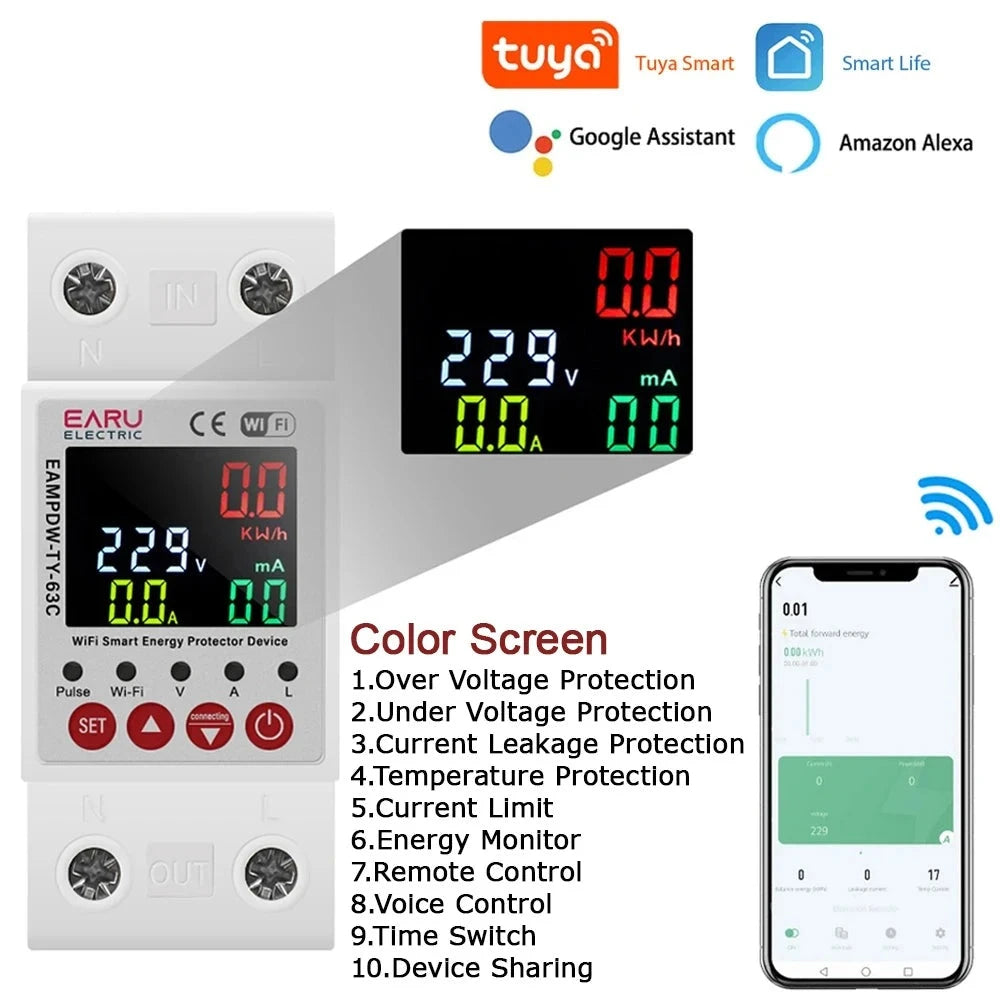

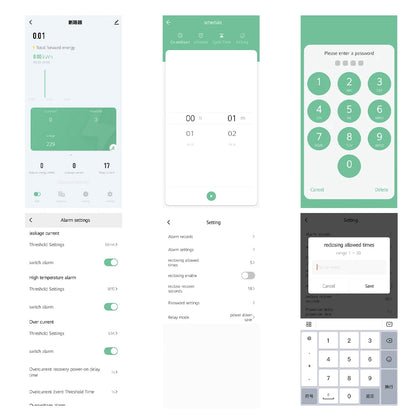

Track and control your energy usage with the 63A AC 230V Tuya WiFi Smart Energy Meter. This power kWh meter features earth leakage, over/under voltage protection, and a relay switch breaker, all accessible through the Tuya app. Stay informed and save on your energy bill with this innovative device.

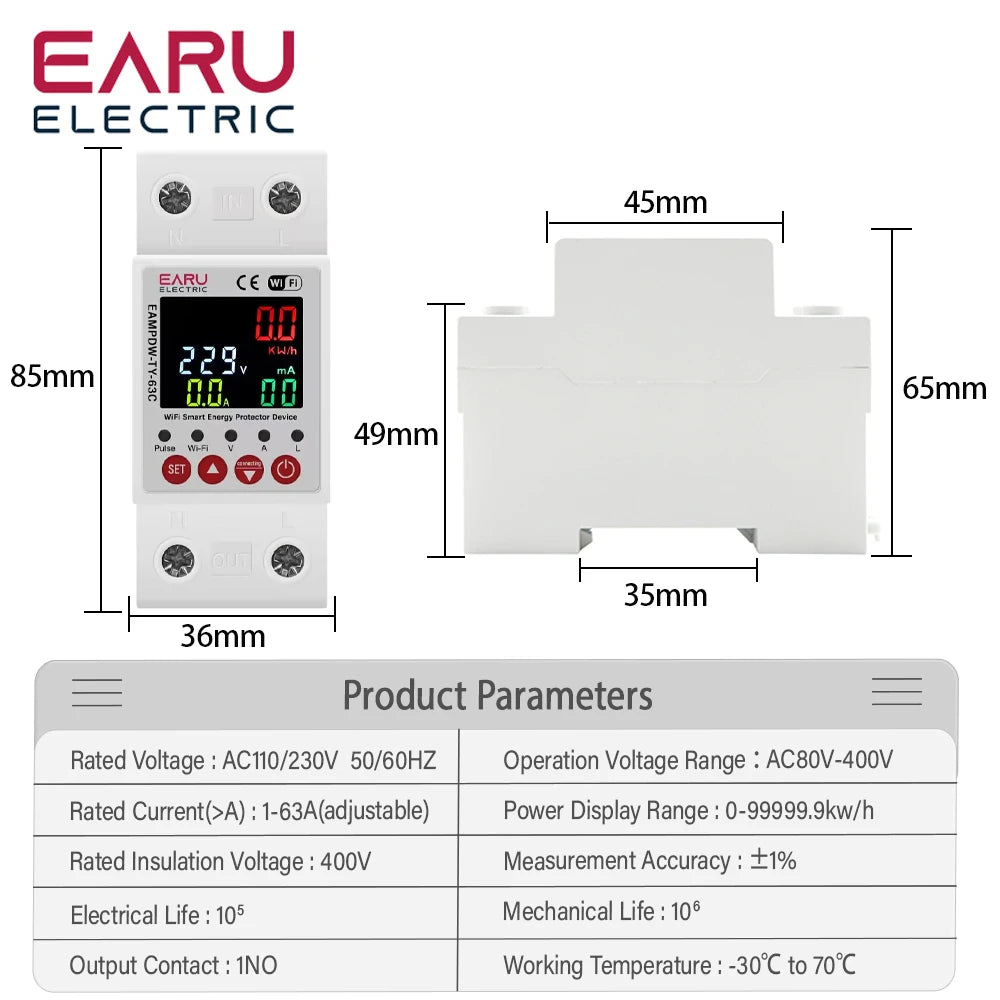

SPECIFICATIONS

  • Rated Current: 1-63A(Adjustable)
  • Rated Frequency: 50/60Hz
  • Operation Voltage Range: AC80V-400V(Single Phase)
  • Rated Voltage: AC110/230V
  • Power Display Range: 0-99999.9kw/h
  • Working Temperature: -30℃ to 70°C

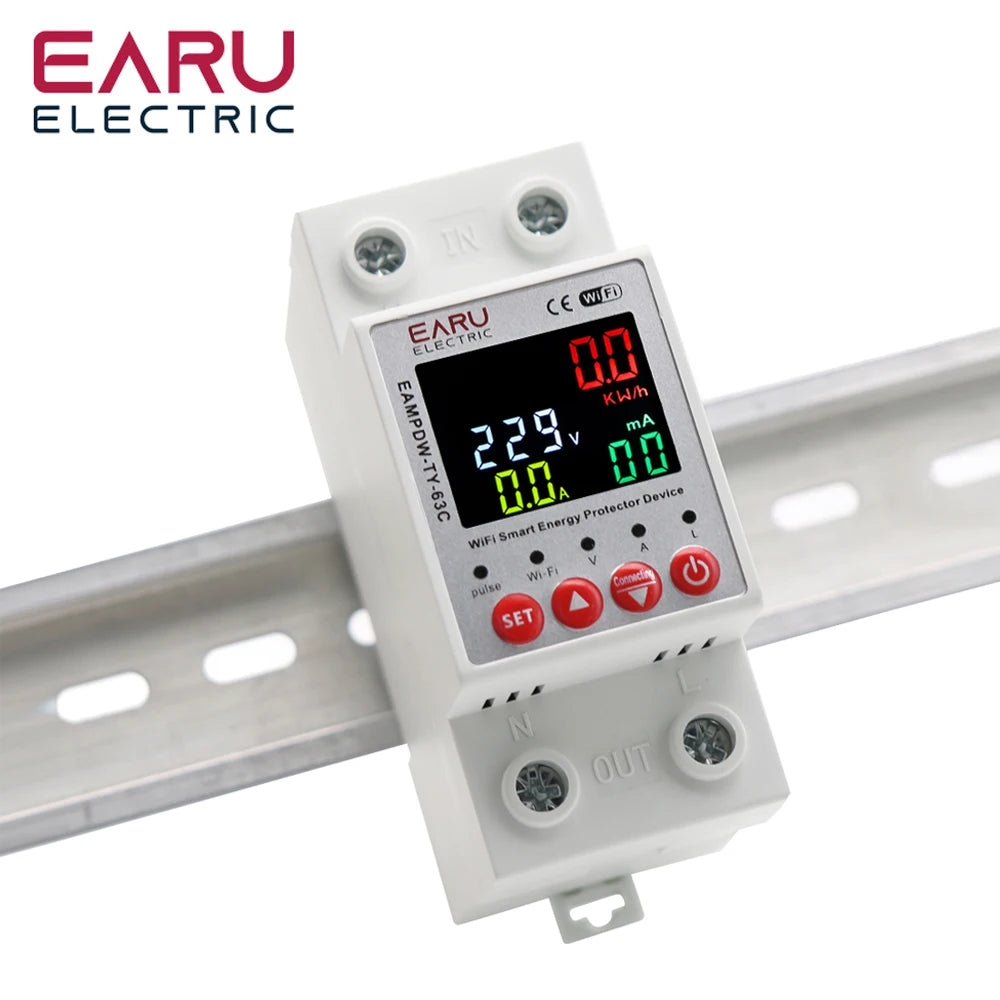

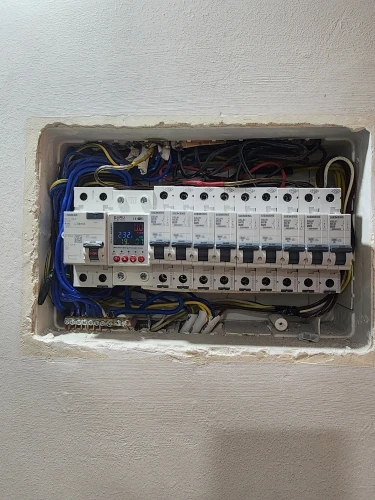

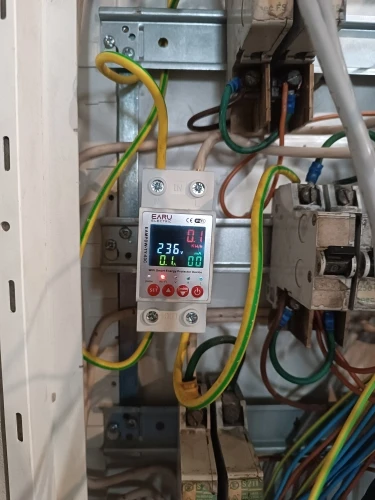

  • Installation: 35MM Din Rail
  • Protection Degree: IP20
  • Output Contact: 1NO
  • Measurement Accuracy: ±1%
  • Phase: 2P
  • Model 1: RCCB
  • Model 2: RCBO
  • Model 3: RCD
  • Brand Name: EARUELETRIC
  • Model Number: EAMPDW-TY-63C
  • Type: Mini
  • Rated Voltage: 220V
  • Type: Circuit breaker



We can offer OEM service to print your logo on the circuit breaker, if you get any need, feel free to contact the seller!

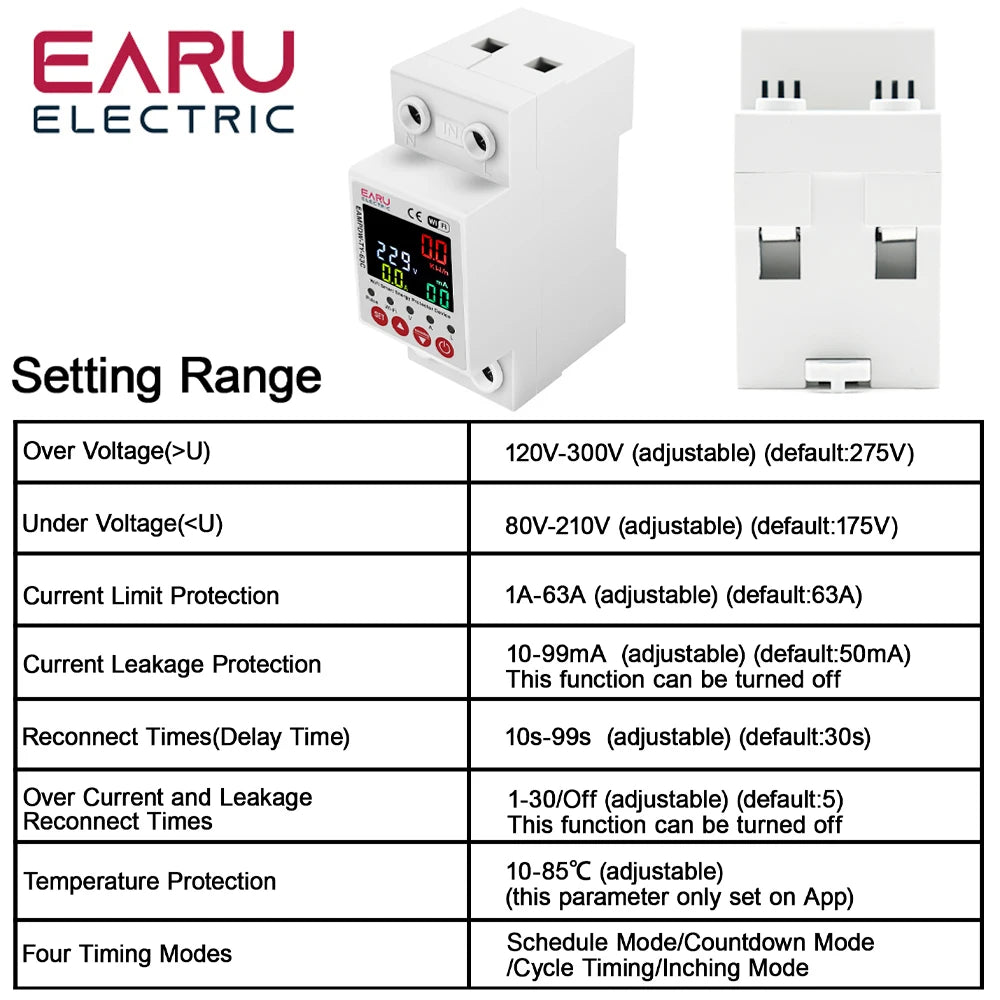

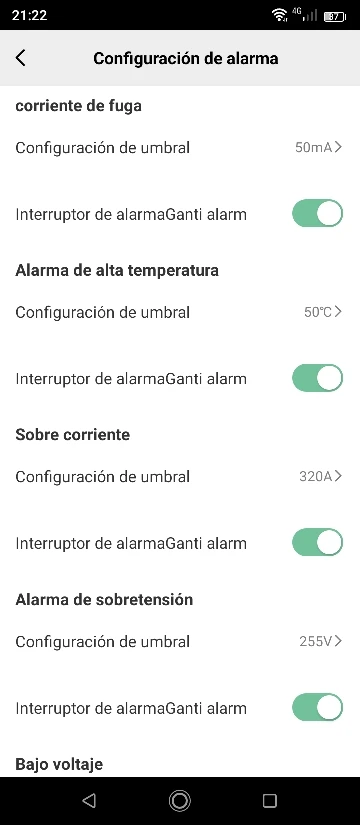

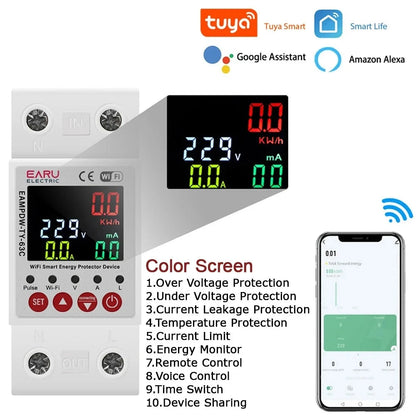

Function:

  • Under voltage protection 80V-210V (adjustable) (default: 175V)
  • Over voltage proteciton 120V-300V (adjustable) (default: 275)
  • Over current protection 1A-63A (adjustable) (default: 63A)
  • Reconnect time (delay on time): 10s-90s (default: 30s)
  • Current Leakage protection:10-99mA   (This function can be turned off)
  • Over Current and Leakage Reconnect Times  1-30/Off(adjustable)(default:5)  This function can be turned off

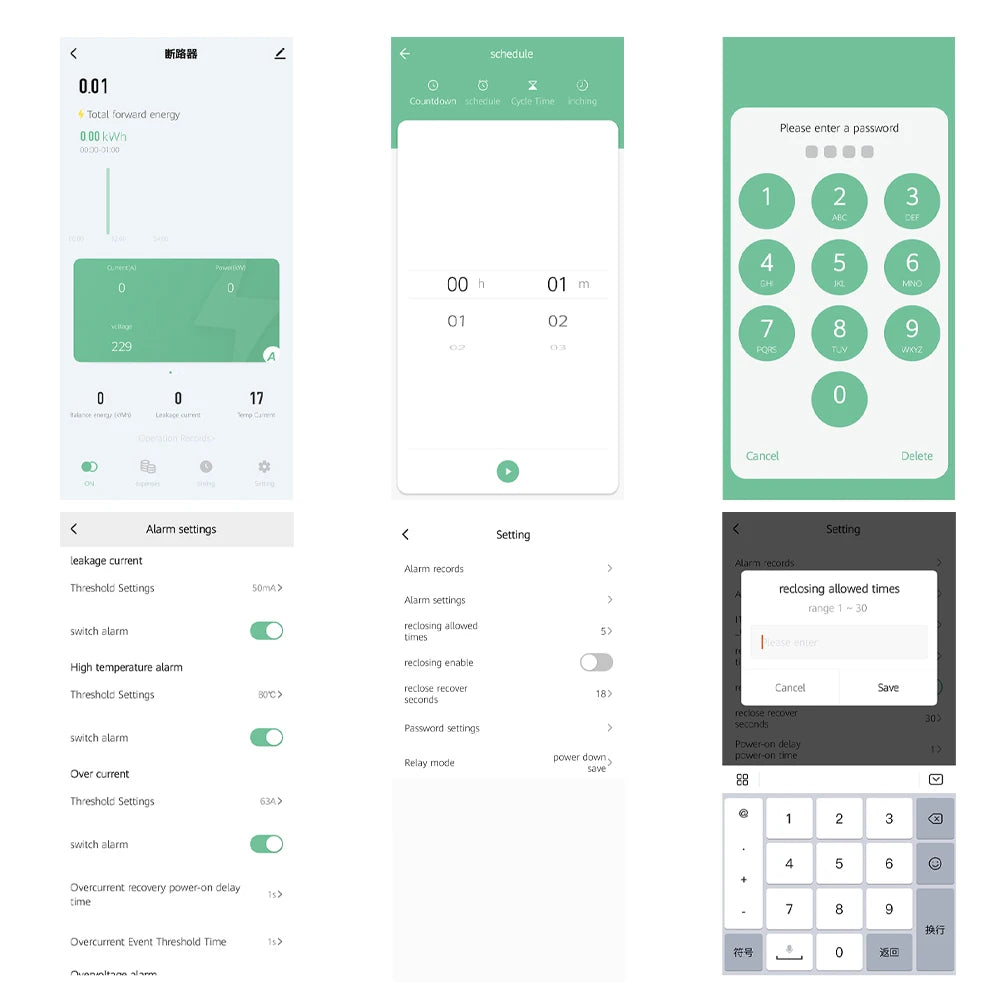

  • Temperature Protection      10-85°C(adjustable)    (this parameter only set on App)
  • Power display range:0-99999.9kWh
  • Energy Consumption Record Range:10-500kWh(default: 30kWh)

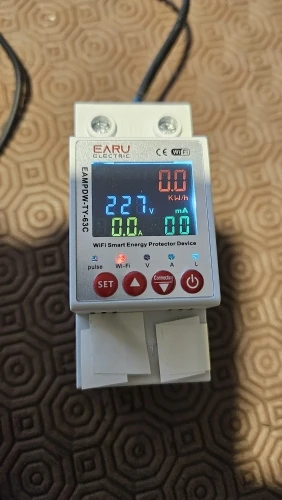

  •  Voltage meter

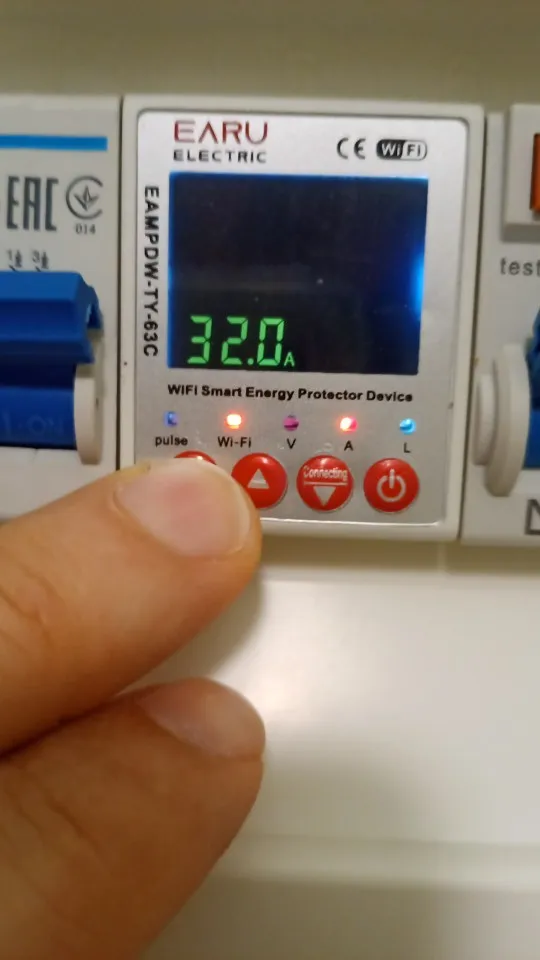

  • Ammeter
  • Energy meter
  • Delay time of APP setting program and device: max 20s (It depends on the network speed)

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value.
