6IN1 Display Smart Meter Din Rail AC Monitor Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52-2066

Name: 6IN1 Display Smart Meter Din Rail AC Monitor Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52-2066
Rating: 5 (10 reviews)

$32.28 USD

~~$0.00 USD~~ $32.28 USD

Sale Sold out

Shipping calculated at checkout.

Color Built-in CT External CT

Voltage AC 250-450V AC 40-300V

Quantity

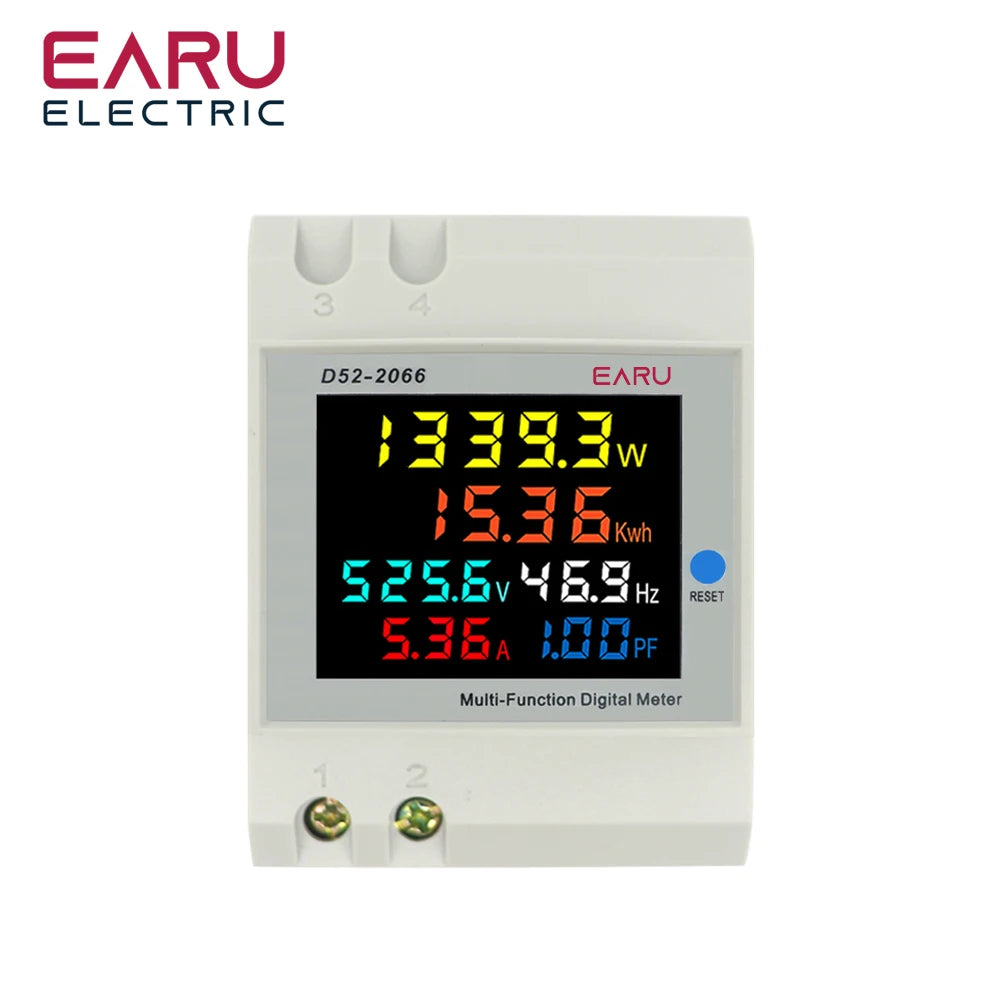

Monitor and track your electrical usage with the 6-in-1 Smart Meter. Featuring a display that shows voltage, current, power factor, active KWH, electric energy, and frequency, this meter is perfect for keeping an accurate record of your energy consumption. Track your usage and make informed decisions to save energy and money.

SPECIFICATIONS

AC voltage: AC 40.0-300.0V,AC 250.0-450.0V
AC Current: AC 0-100.0A
Frequence: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W
Electric Energy: 0-99999kwh
Speed: 2 times per second
Brand Name: EARUELETRIC
Model Number: D52-2066
Display Type: Digital Only
Accuracy Class: 1% +/- 2 words
Dimensions: 54*80*64
DIY Supplies: ELECTRICAL

Parameter

Features: 100% Brand new and high quality!

D52-2066

Good stability, standard size, high precision, easy to install

Technical Indicators

Accuracy:1%±2 words
Range: AC voltage: AC 40.0-300.0V or AC 250.0-450.0V(You should select one type of the meter in your order)
AC Current:AC 0-100.0A, the current resolution is 0.01A.
Frequence: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W, the electric power resolution is 0. 1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W.
Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh
Speed: 2 times per second

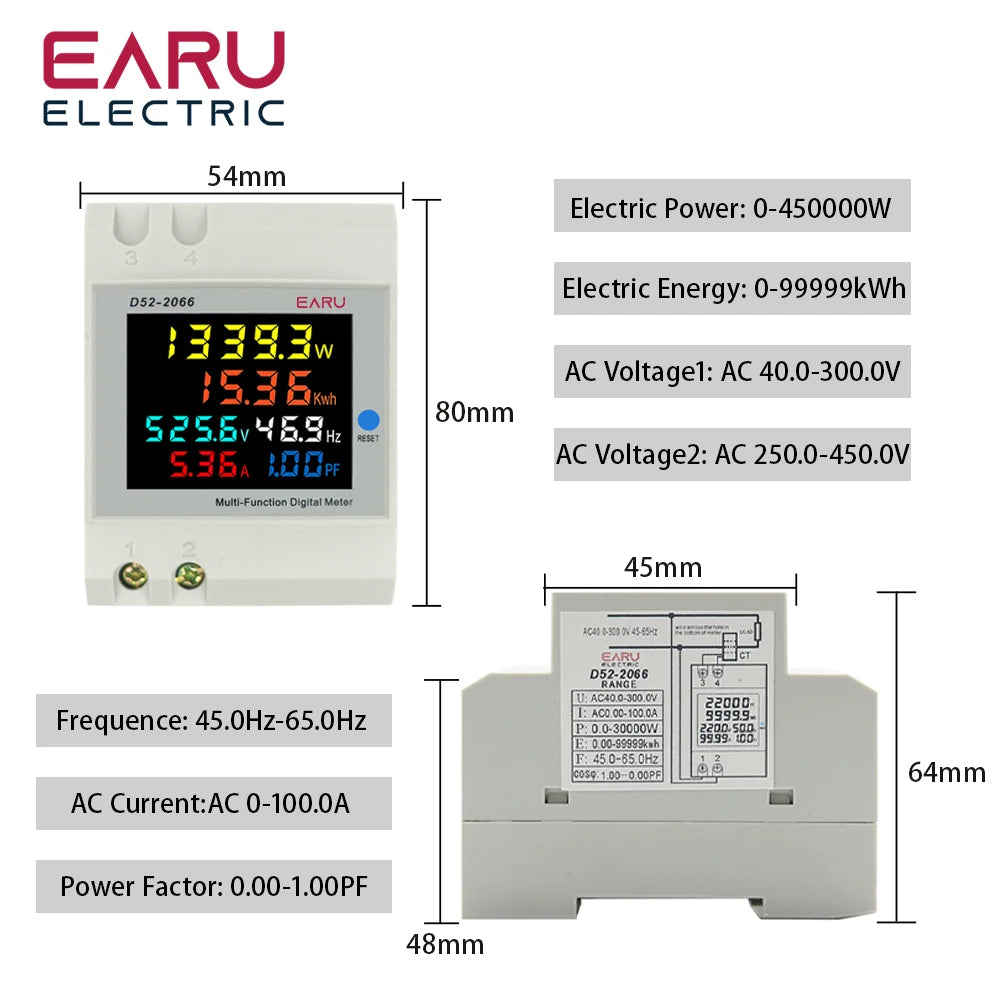

Size:54×80×64

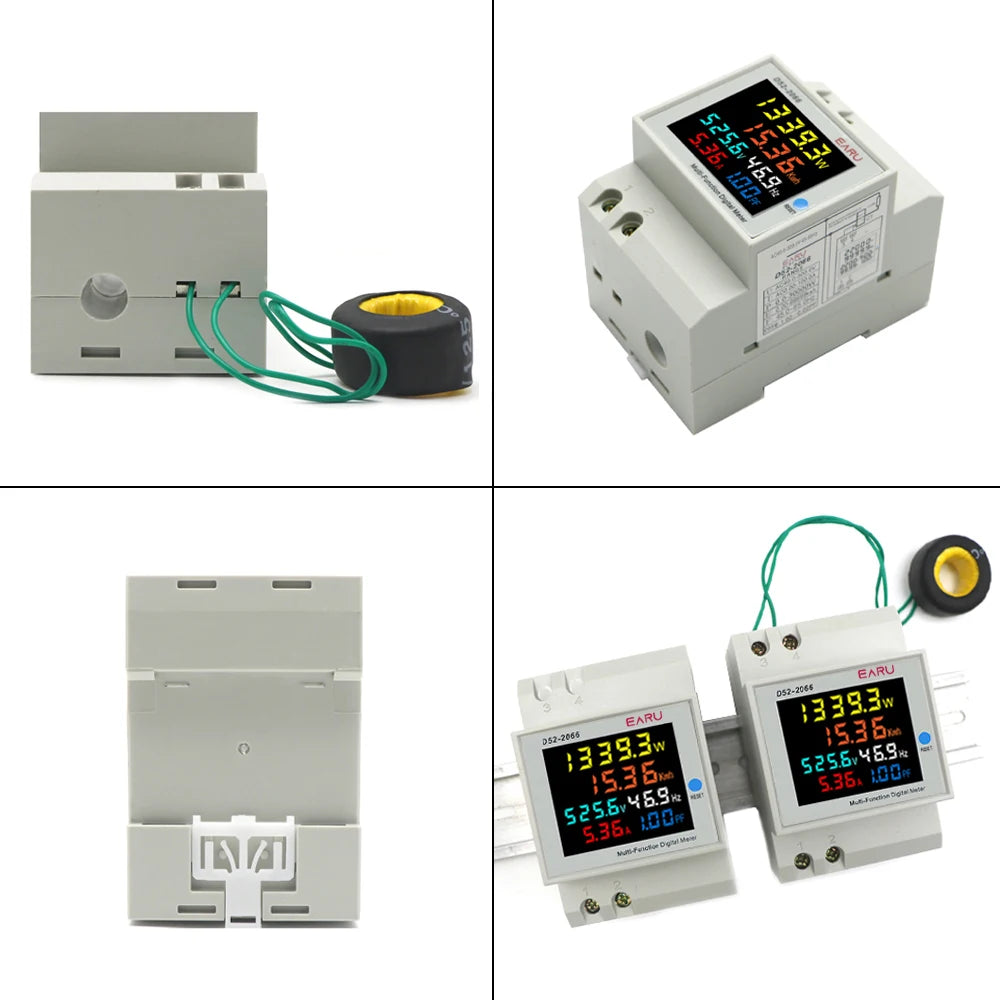

Installation: Din-Rail

Application Method

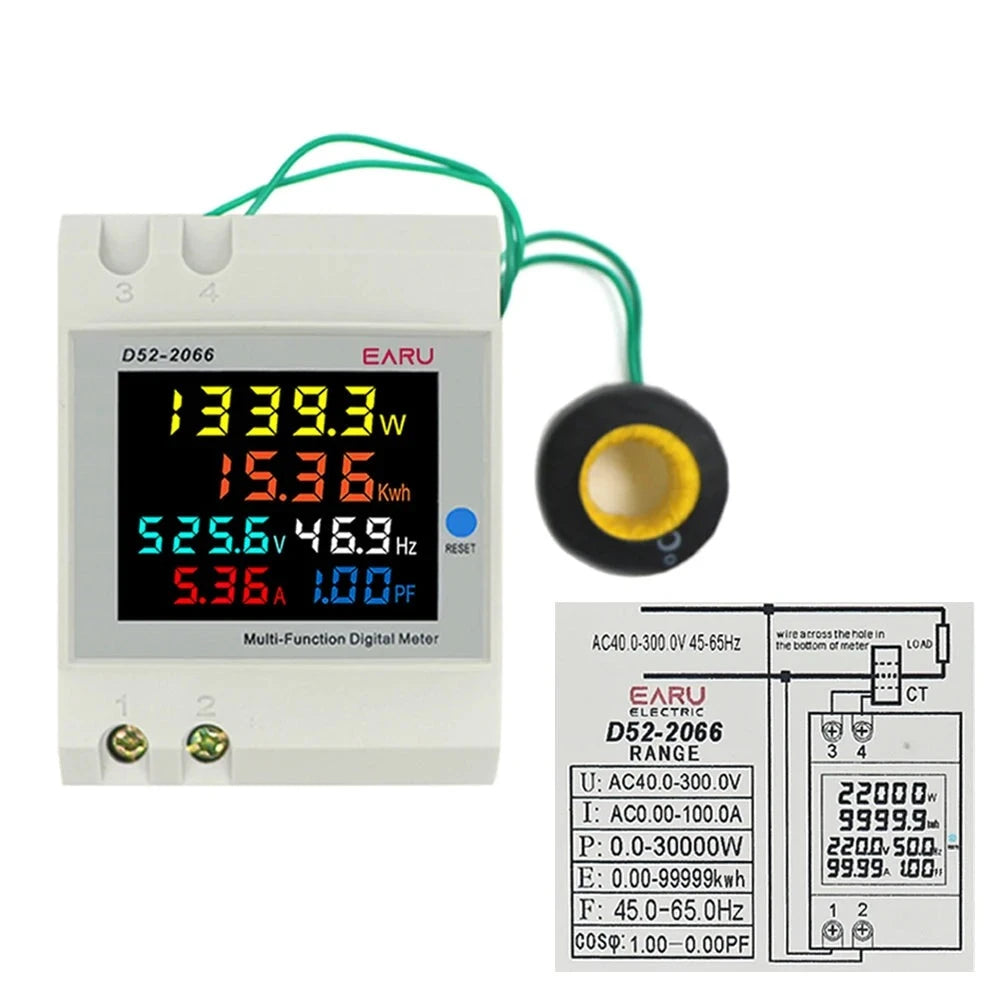

According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.
Supply power and start to measure and display the result.
Press down the button last for 5 second, the electric energy will to be zero.

Attentions:

The meter will be destroyed when you make wrong connection method with voltage
The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input (green terminal) and secondary current transformer (blue terminal). measure square wave, output of inverter and correction sine wave.

Package included:
