This panel-mount LED indicator light fits a 6, 8, 10, 12, or 14 mm panel cutout and runs on 5 V, 12 V, 24 V, or 220 V depending on variant — designed for control panels, machine status indicators, and DIY enclosures. IP65 waterproof rating, copper conductor housing, available in red, green, yellow, blue, or white. CE certified, 1-year warranty.
Product Description

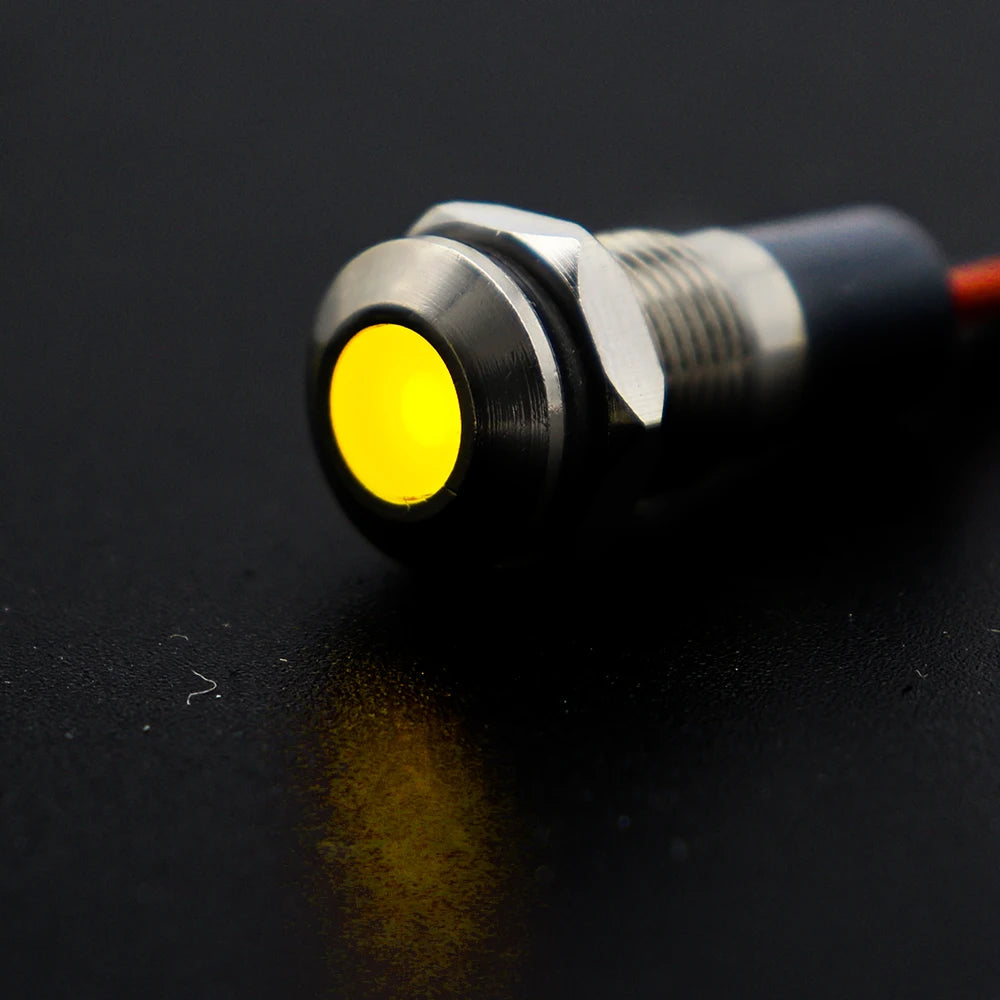

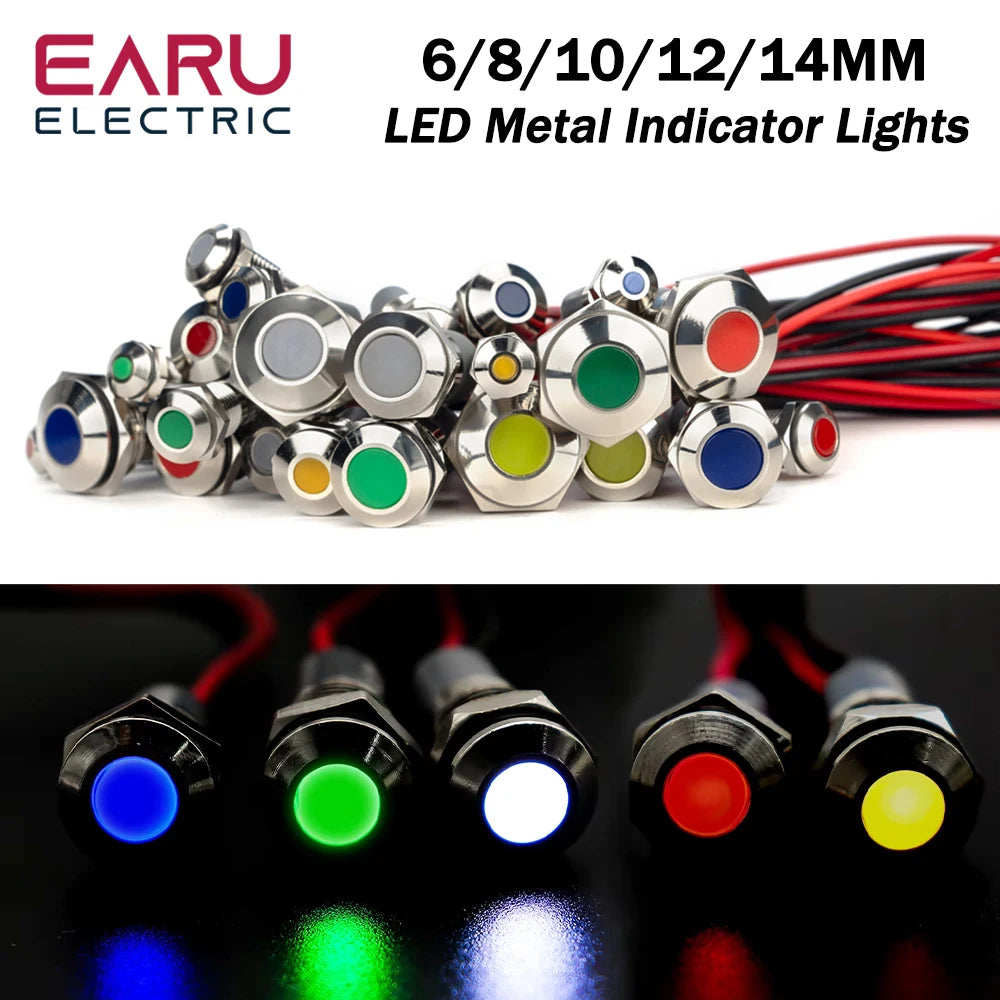

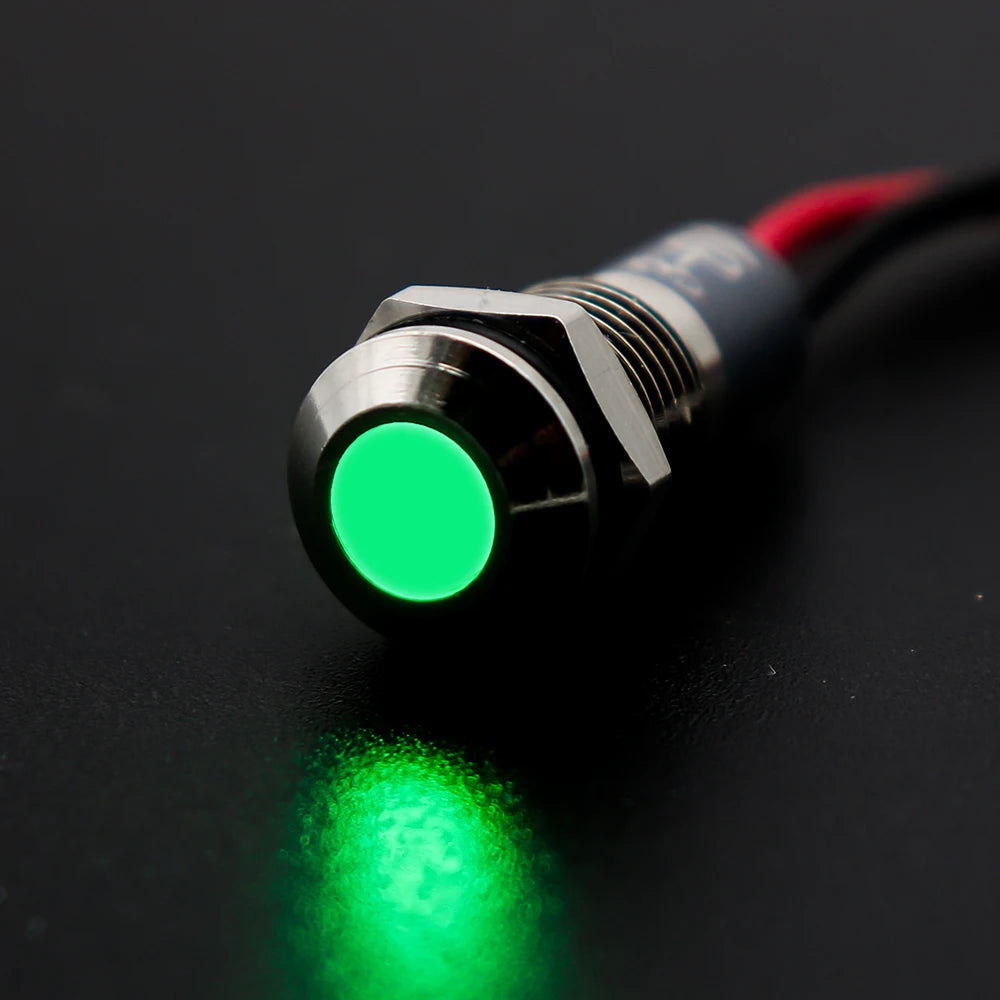

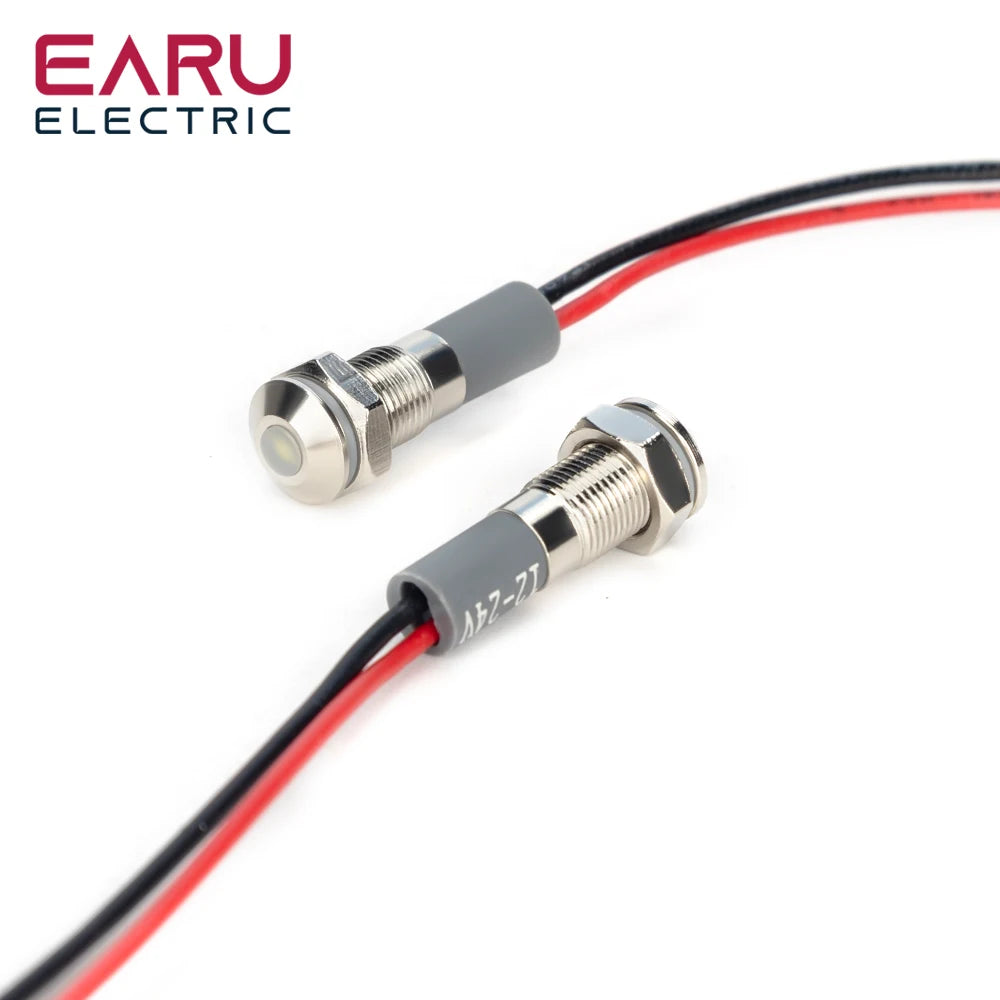

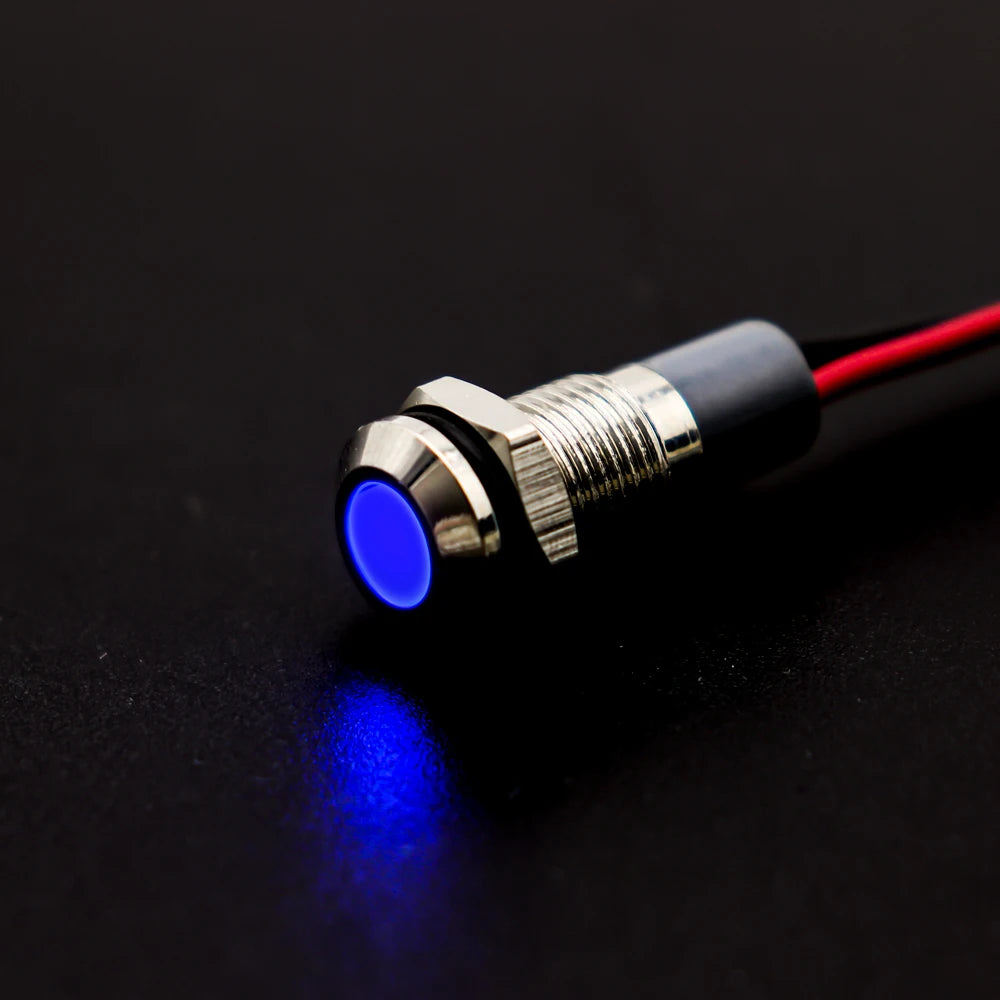

This is a metal-housed LED pilot indicator lamp designed to mount through a circular cutout on a control panel or enclosure. Five panel-cutout diameters (6, 8, 10, 12, 14 mm) cover everything from compact instrument panels to industrial control cabinets. Five voltage options (5 V, 12 V, 24 V, 220 V) cover low-voltage logic indication, automotive, industrial DC, and mains-AC indicator-light duty. Five LED colors (red, green, yellow, blue, white) follow the standard IEC 60073 indicator-color conventions for stop, go, warning, info, and reset.

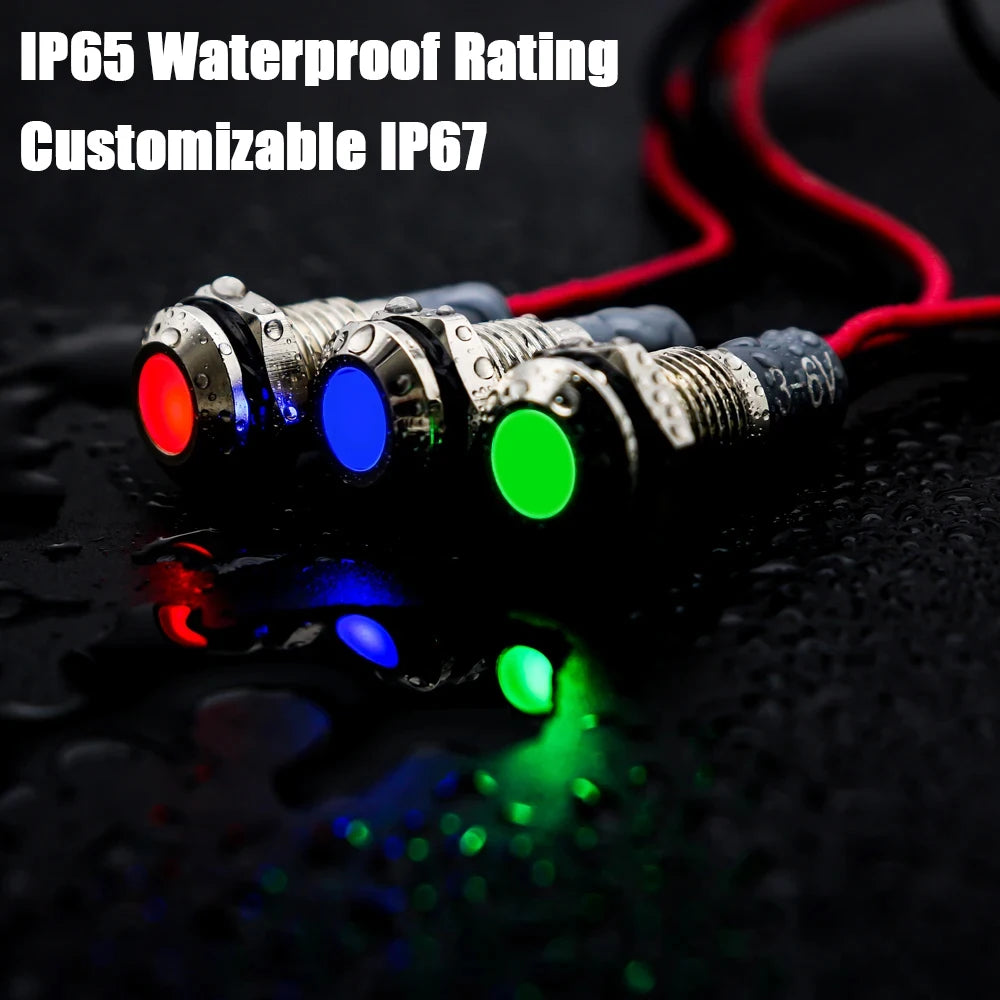

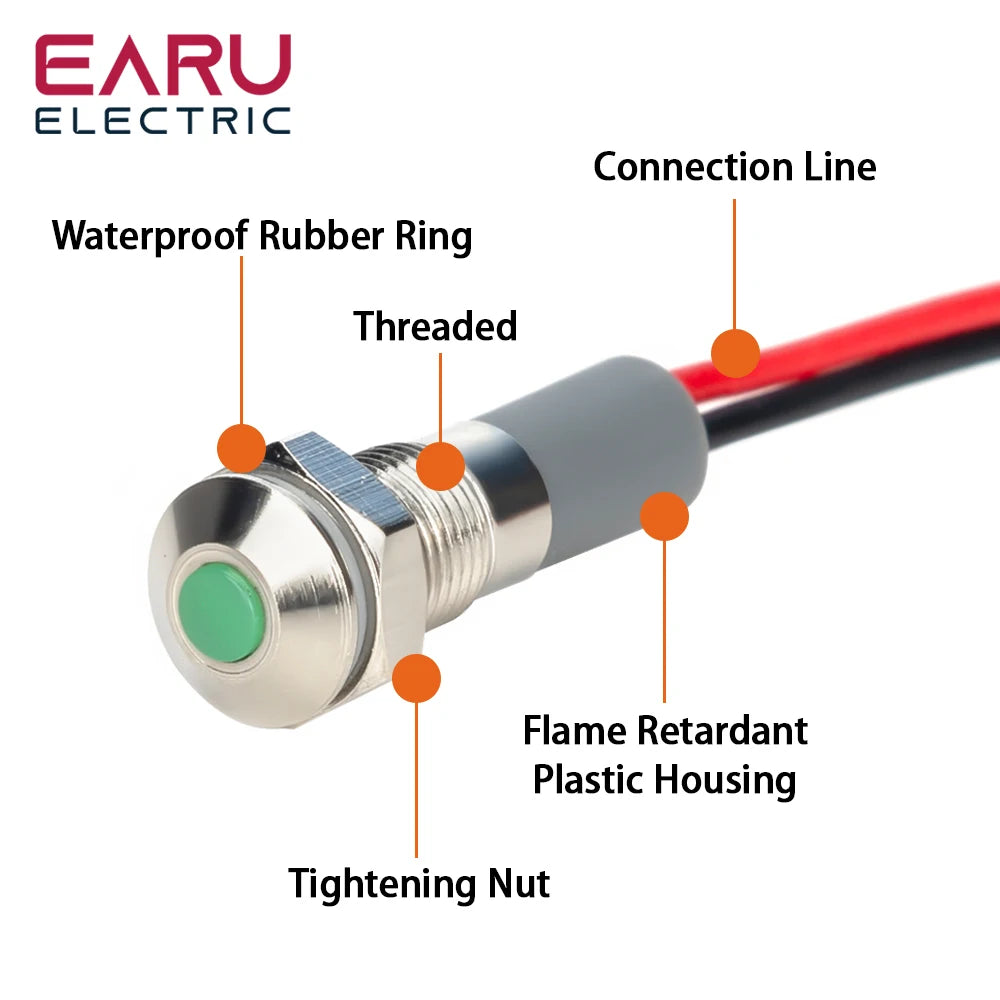

The IP65 rating means the indicator is dust-tight and protected against low-pressure water jets from any direction — enough for outdoor enclosure use, washdown environments, and industrial control panels. The metal body resists impact and provides a reliable mechanical mount through the panel.
Key Benefits
- Five panel-cutout sizes (6 / 8 / 10 / 12 / 14 mm) cover compact to industrial panels
- Five voltage options (5 V, 12 V, 24 V, 220 V) span logic-level to mains-AC duty
- IP65 dust-tight and water-jet protected for outdoor and washdown environments
- Metal body resists impact and provides solid panel mounting
- Five colors follow IEC 60073 standard for industrial indicator conventions
Key Features
The defining feature is the size + voltage combination matrix. Choosing 6 mm or 8 mm gives you a compact instrument-panel indicator suitable for handhelds and small enclosures; 10 mm and 12 mm are the most common general-purpose panel sizes; 14 mm is appropriate for larger industrial cabinets where visibility from a distance matters. The voltage selection lets you wire directly into low-voltage logic, automotive 12 V, industrial 24 V, or mains AC — no separate driver or resistor needed for any of the listed options.

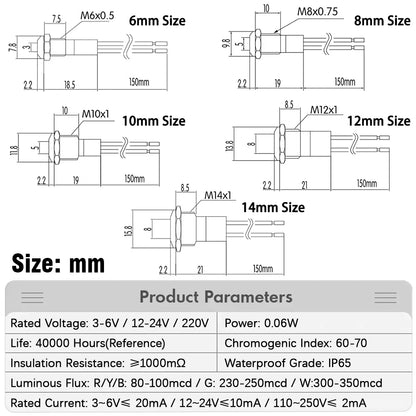

Technical Specifications

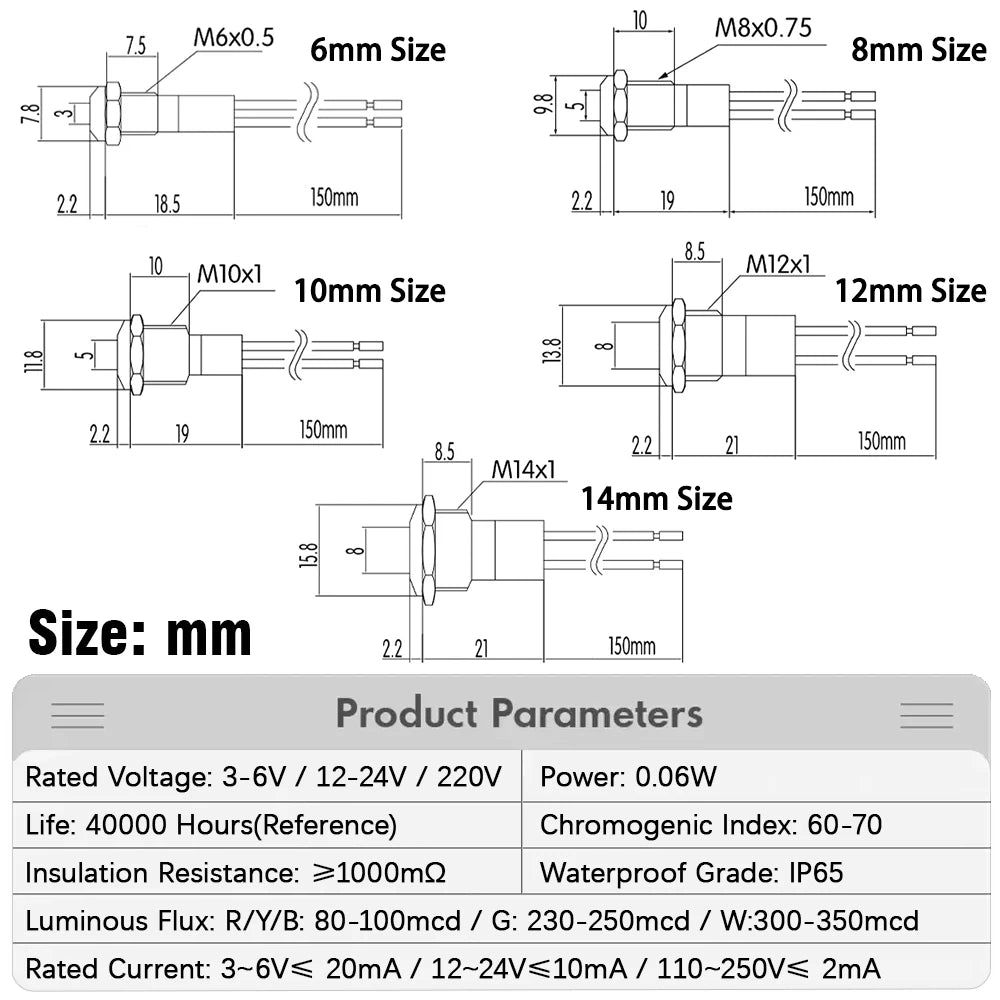

The defining parameters are the panel-cutout diameter (6–14 mm), the operating voltage (5–220 V), and the IP65 environmental rating. Full specs below.
| Parameter | Value |
|---|---|
| Panel cutout diameter | 6 mm, 8 mm, 10 mm, 12 mm, or 14 mm (selectable per variant) |
| Operating voltage | 5 V, 12 V, 24 V, or 220 V (selectable per variant) |

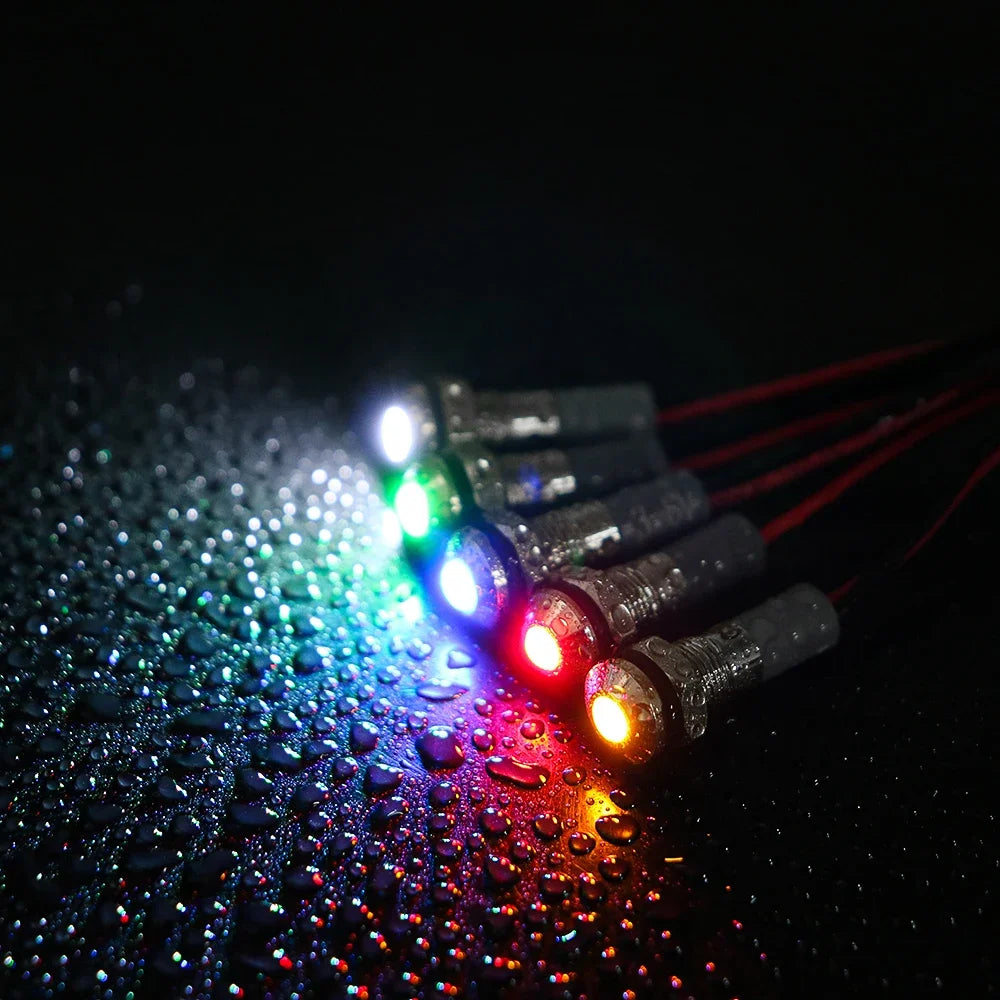

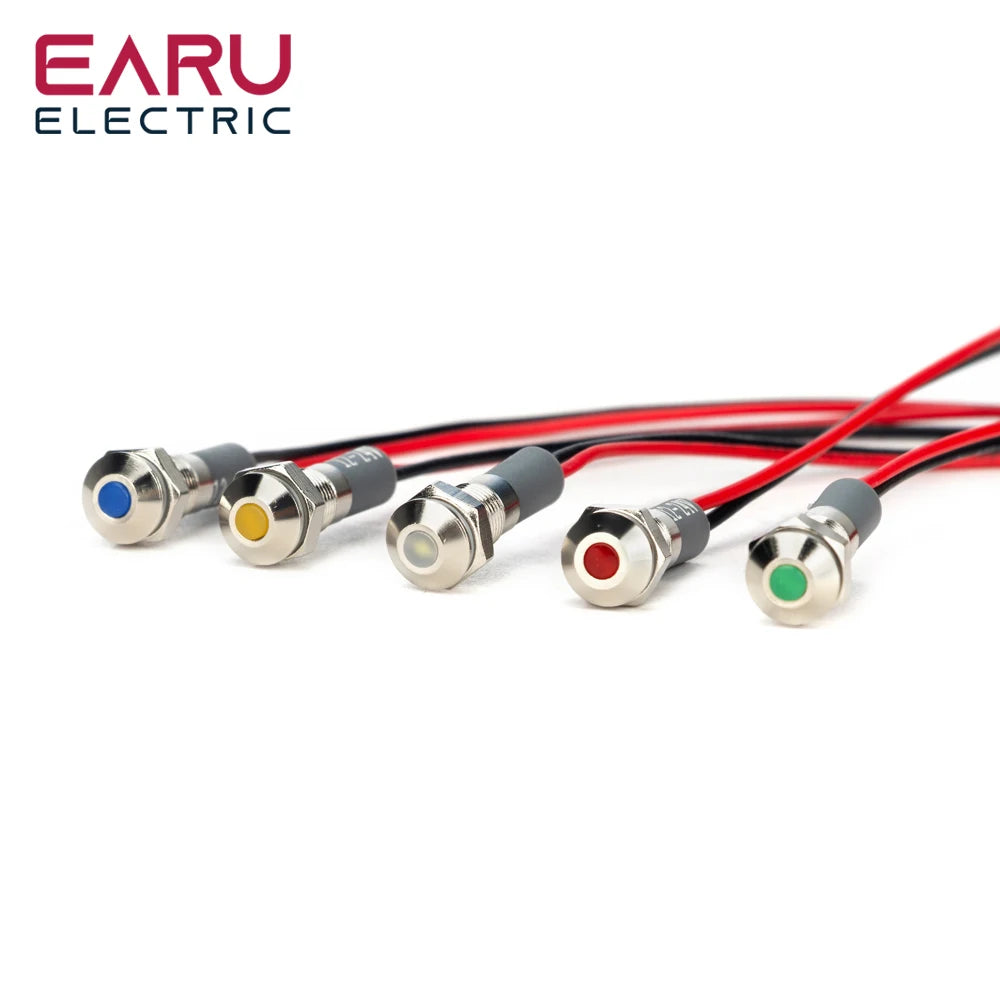

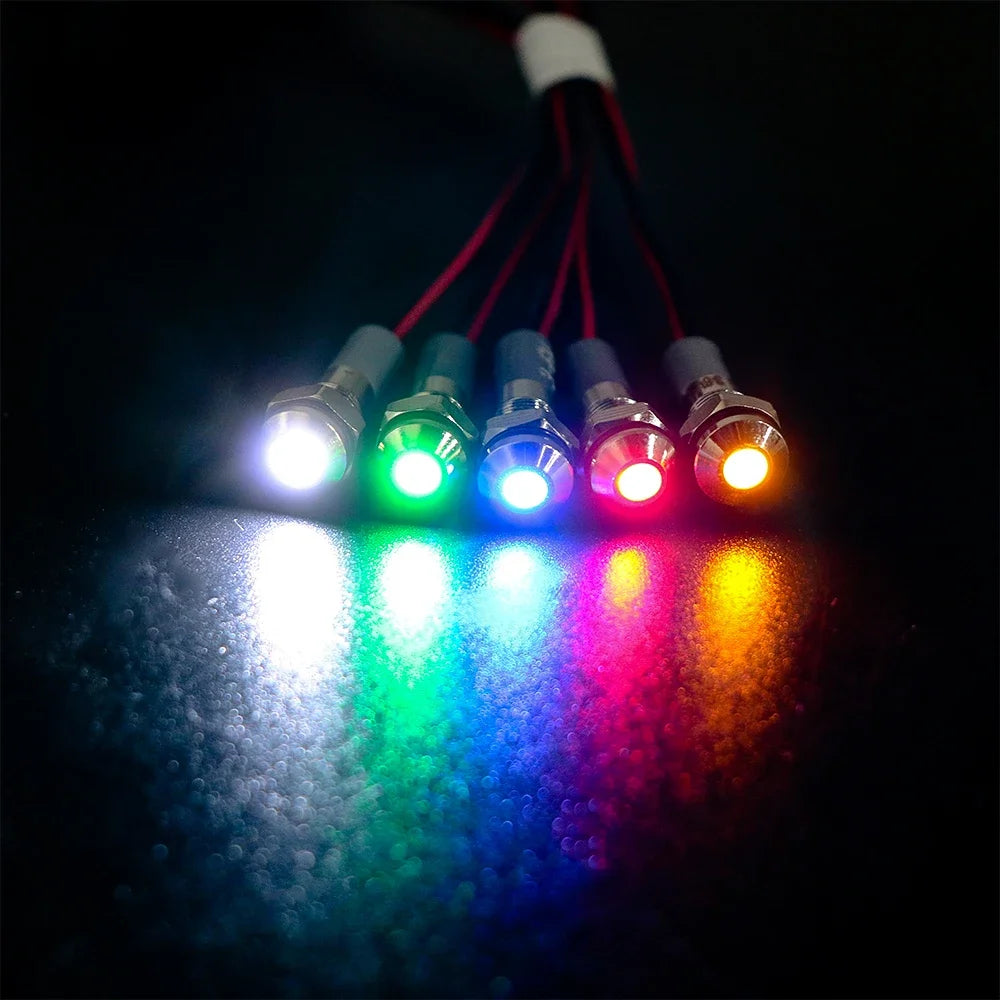

| LED color | Red, green, yellow, blue, or white (selectable per variant) |
| Light source | Solid-state LED |

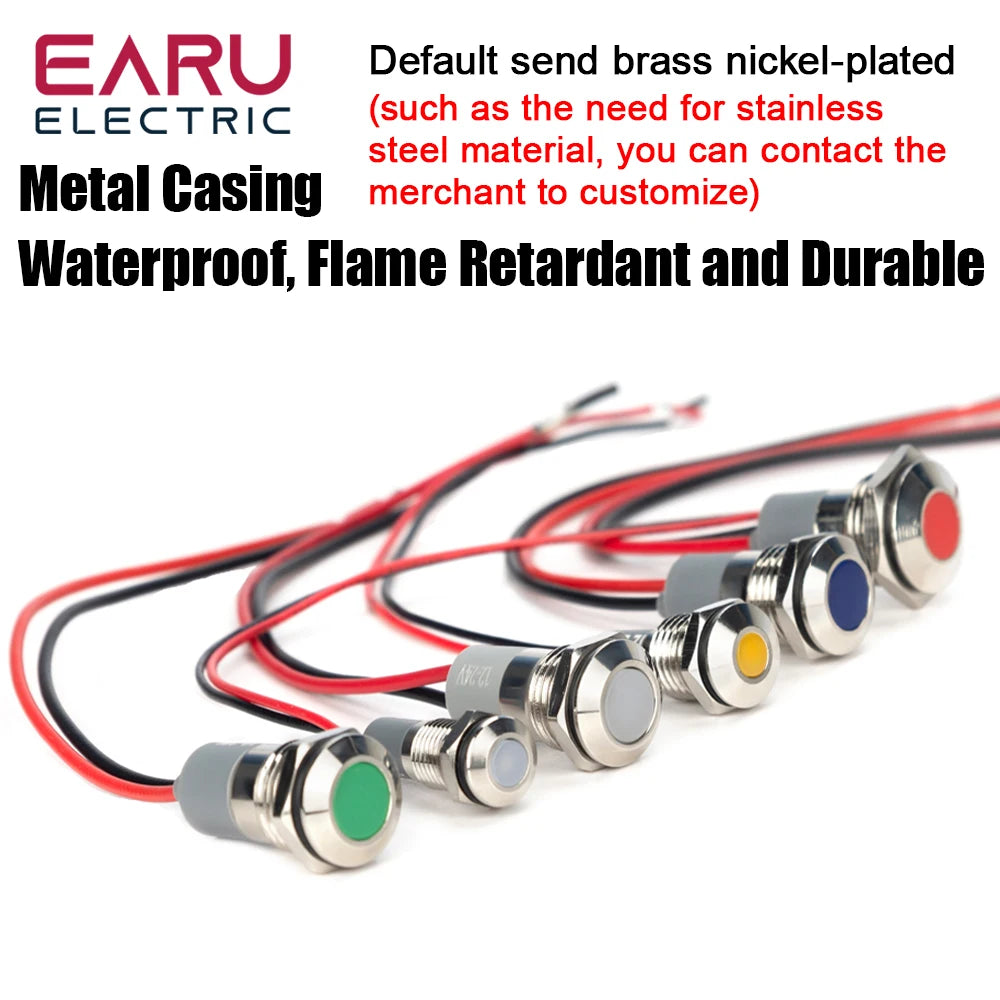

| Body material | Metal |
| Conductor | Copper |
| Environmental rating | IP65 (dust-tight, water-jet protected) |
| Certification | CE |
| Warranty | 1 year |
| Internal SKU | 54G-IND-LED-001 |
Technical data sourced from manufacturer documentation.
What's Included
- 1 x panel-mount LED indicator (per selected size, voltage, and color)
Compatibility & Applications
This indicator fits any panel or enclosure with a circular cutout matching the selected diameter (6–14 mm) and any power source matching the selected voltage. Typical applications include:
- Industrial control cabinet status indication
- Machine "power on," "running," "fault" lights
- DIY electronics project enclosures
- Automotive dashboard custom indicators
- Outdoor and washdown control panels (IP65 environments)
Not suitable for: panel cutouts outside 6–14 mm range, voltages outside the 5/12/24/220 V supported set (check variant before purchase), or fully submerged use (IP65 is protected against water jets, not immersion).
Why Trust Us
Operated for 5+ years across 35+ countries by a UK-incorporated company specializing in renewable energy and small-electronics components. Every order ships with tracked delivery, a 30-day return window, and a manufacturer-backed warranty against defects. Technical questions are answered by email at info@54energy.net. Last updated: May 2026.
Frequently Asked Questions

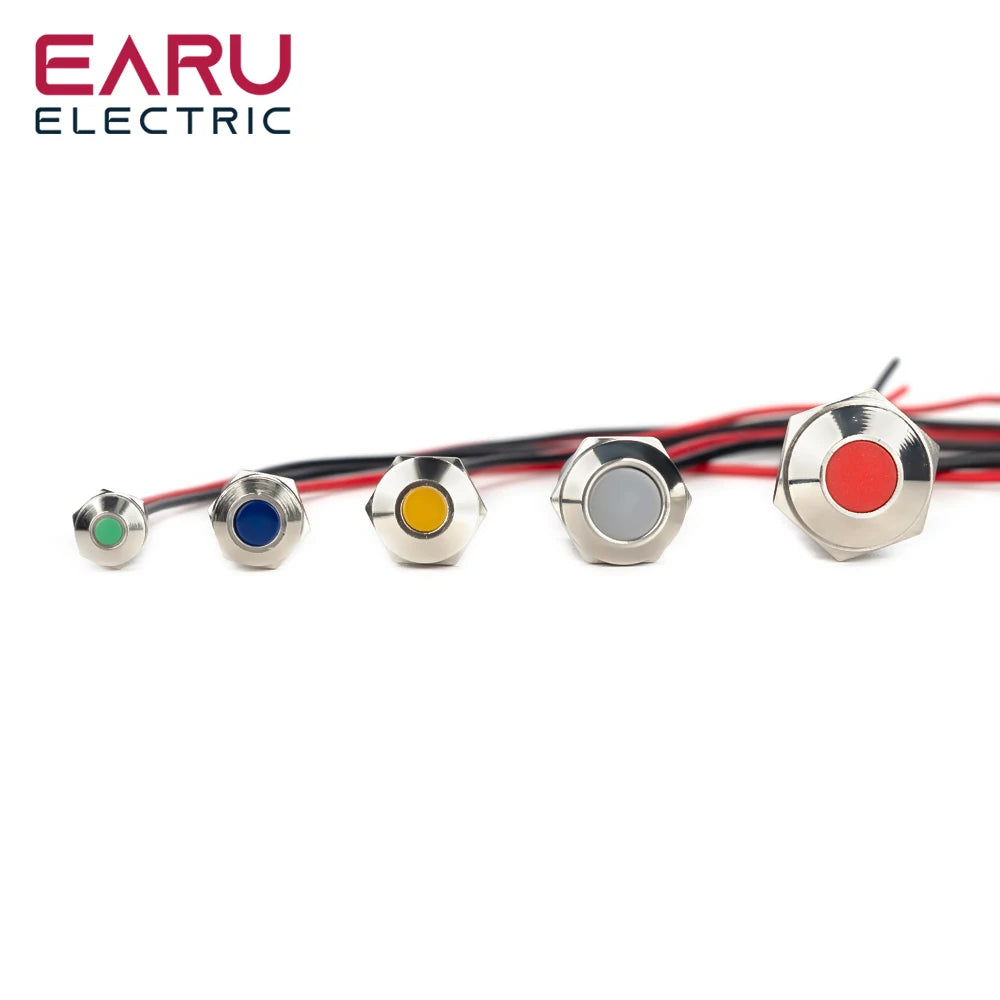

Which panel size should I choose?
6 mm and 8 mm are best for compact handheld instruments and small enclosures; 10 mm is the most common general-purpose size for control panels; 12 mm is the standard for medium industrial cabinets; 14 mm is the choice when visibility from across a room matters. Match the cutout to the existing hole on your panel — these are not adjustable.
Do I need a current-limiting resistor?
No. Each voltage variant ships with the appropriate driver circuitry built in, so you wire the indicator directly to your selected supply (5 V, 12 V, 24 V, or 220 V). Make sure the variant voltage exactly matches your supply — a 12 V indicator on a 24 V rail will fail prematurely; a 24 V indicator on a 12 V rail will be dim or not light at all.
What does the IP65 rating actually cover?
IP65 means the indicator is fully dust-tight and protected against low-pressure water jets from any direction. That covers outdoor weather exposure, washdown cleaning of industrial equipment, and accidental splashes. It does not cover full immersion in water (IP67/IP68), high-pressure jet washing (IP69), or solvent immersion.
How fast does shipping take?
Orders are dispatched from regional fulfillment partners in North America, Europe, and Asia. Typical delivery is 5 to 15 business days depending on destination country, with tracked shipping included. Specific timelines per destination are listed in the Shipping Policy.
How does this indicator compare to others in its category?
Within the panel-mount LED indicator category, the meaningful comparison points are size range, voltage range, and IP rating. This product offers five panel sizes, four voltage options, and IP65 sealing in a metal housing — the configuration that fits the broadest set of industrial and DIY panel applications and drives the lowest return rate within our control-component category.
