SPECIFICATIONS

Accuracy Class: ±1%

Battery Included: No

Brand Name: EARU

Certification: CE

Choice: yes

DIY Supplies: Electrical

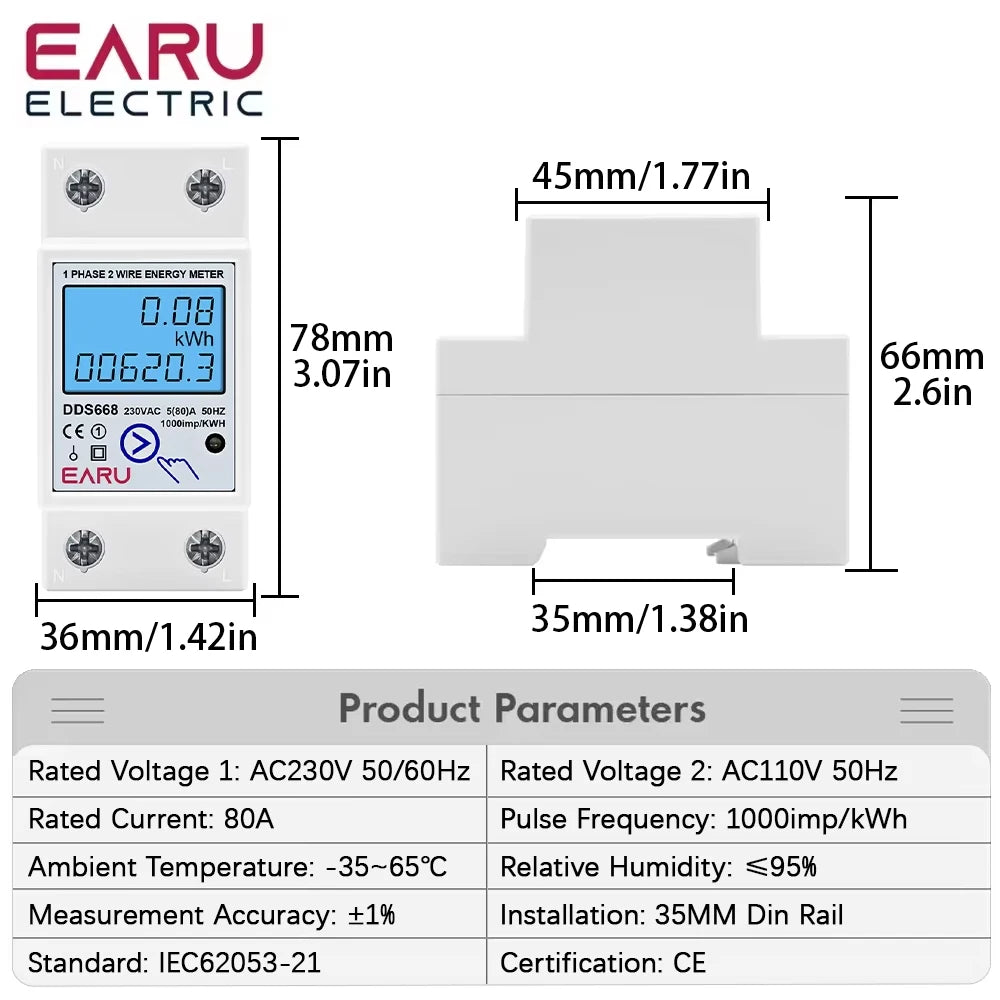

Dimensions: 78*65*35mm

Display 1: Total Energy kWh

Display 2: Temporary kWh

Display 3: Voltage

Display 4: Current

Display Type: LCD

Frequency: 50Hz/60Hz

High-concerned chemical: None

Max Operating Current: 50A - 79A

Measuring Energy Range: 99999.9

Model Number: DDS668

Operating Temperature: -10 to 50C

Operating Voltage 1: AC220V/230V

Operating Voltage 2: AC110V

Origin: Mainland China

Output Voltage: 220V

Phase: single phase

Power Supply: AC

Rated Voltage: 220V

semi_Choice: yes

Features:

DDS668  AC230V/50Hz   AC230V/60Hz   AC110V/60Hz

Maximum Current:80A

Pulse Frequency:1000imp/kWh

Pulse LED indicates working of meter.

35MM Din Rail Installation

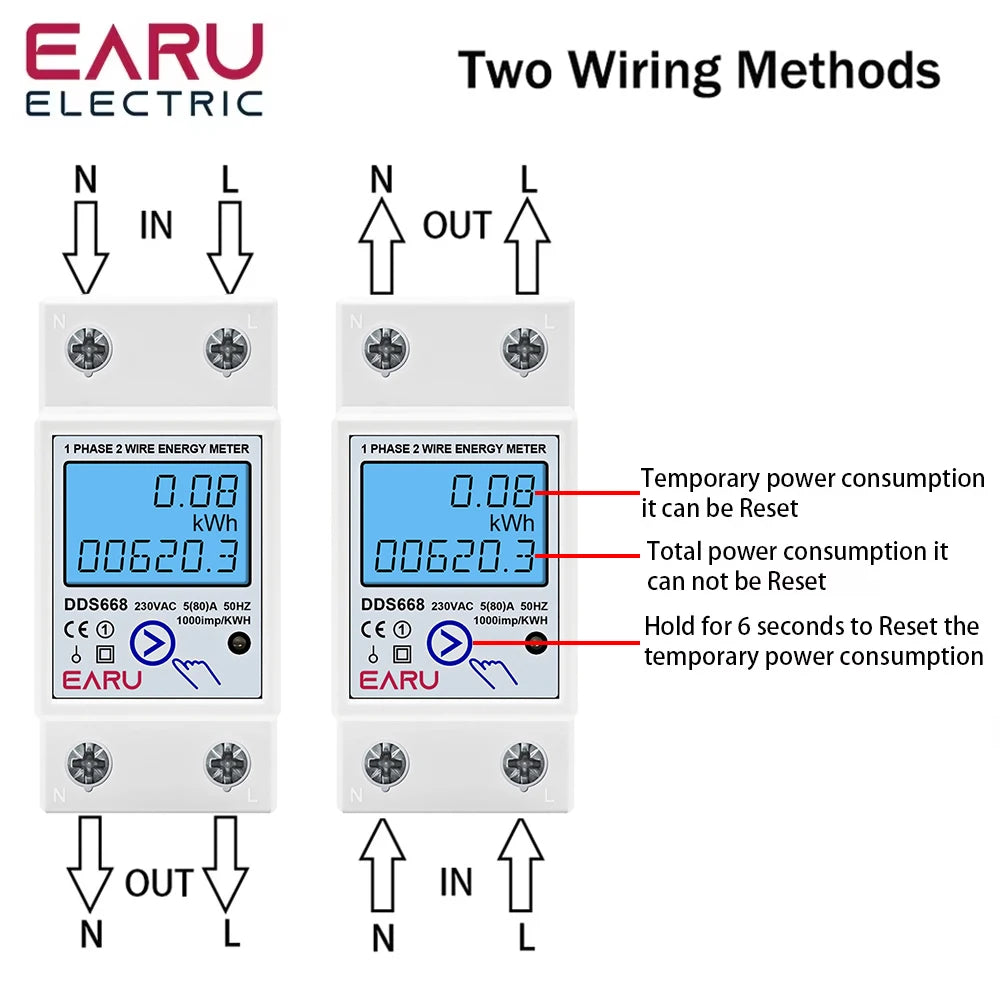

Wiring method: top input and bottom output or top output bottom input

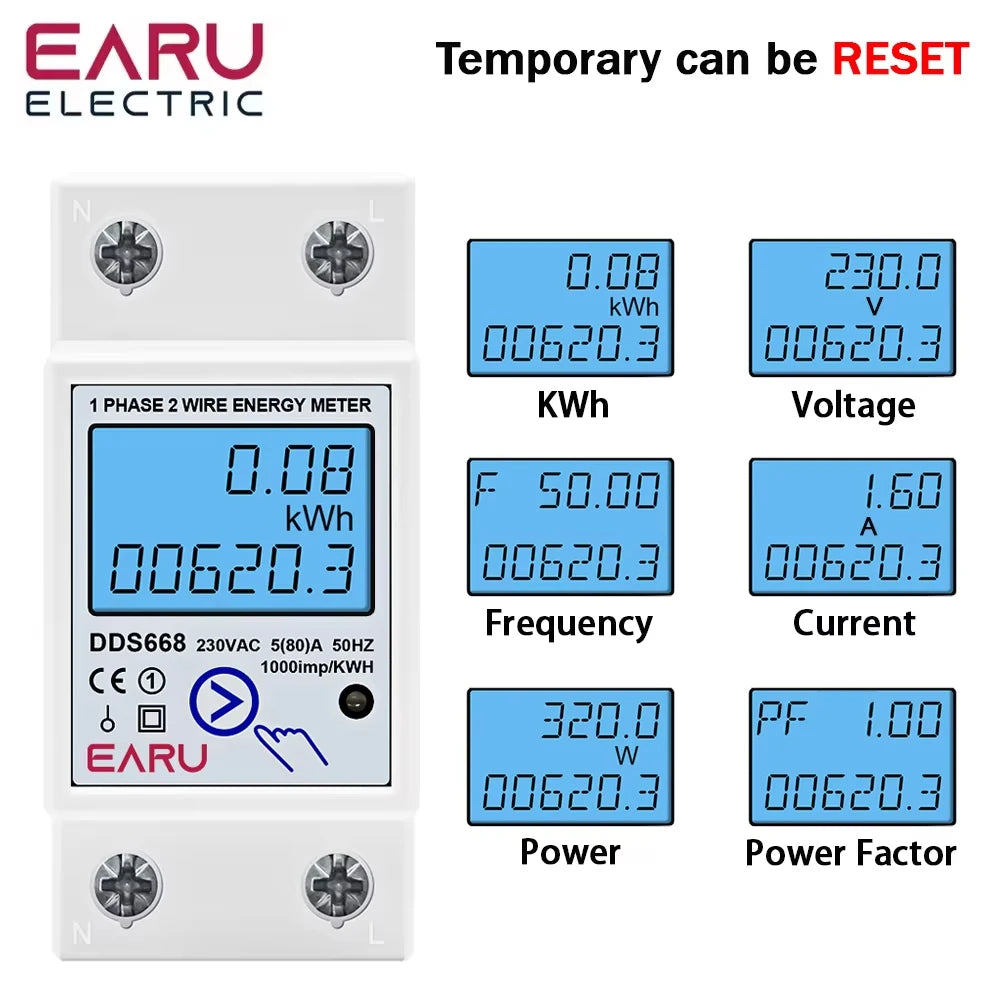

The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing.

Features:

1、With button and With reset function

2、Hold the button for 6 seconds to Reset the temporary kWh

3、With total and temporary electricity consumption

4、Always Display two values simultaneously, one of which inevitably displays power.

NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.
