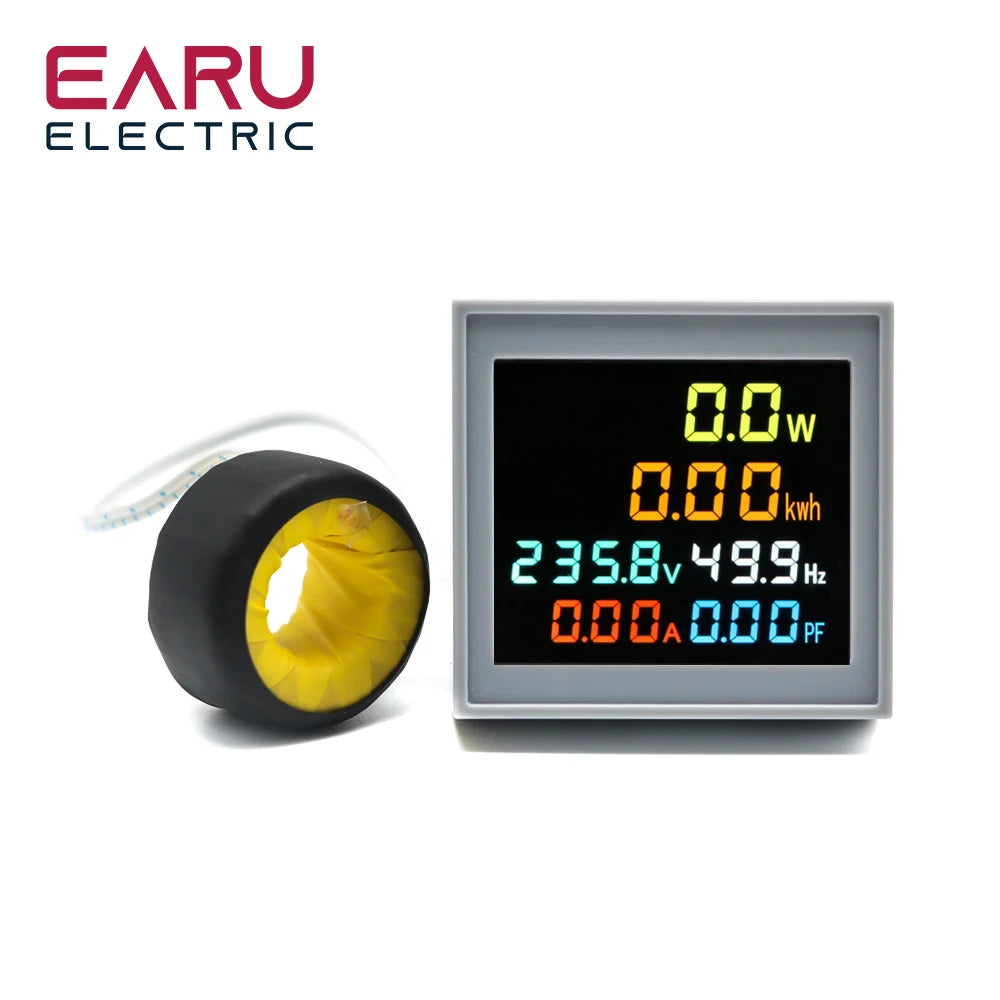

D48-2058 DIN-rail multi-function Digital meter can measure AC voltage.AC current. power factor, active power, electric energy and power frequency. The meter display part adopts the colof high-definition LCD screen

I.Accuracy:1%±2 words

2.Range:

AC voltage:AC 50.0-300.0V/AC 250.0-450.0V(You should select the one type of meter in your order)

AC current: AC 0-100.0A(the accuracy is 0.01A when measure signal lower than 100A, when measure
signal higher than 100A, the meter will show 100.0A)

Power frequency:45.00-65.00Hz

Power factor: 0.00-1.00PF

Aclive power: 0-45000W(The display accuracy is 0. 1W when the active power between 0 and 9999.9W,

otherwise the accuracy is 1W)

Electric energy: 0-99999kwh(The display accuracy is 0.01kwh when the electric energy belween
0-999.99kwh,0. 1kwh when the electric energy between 10000.0-9999.9kwh.0.01kwh
when the electric energy between 100000-99999kwh

3 Speed:2 times per second

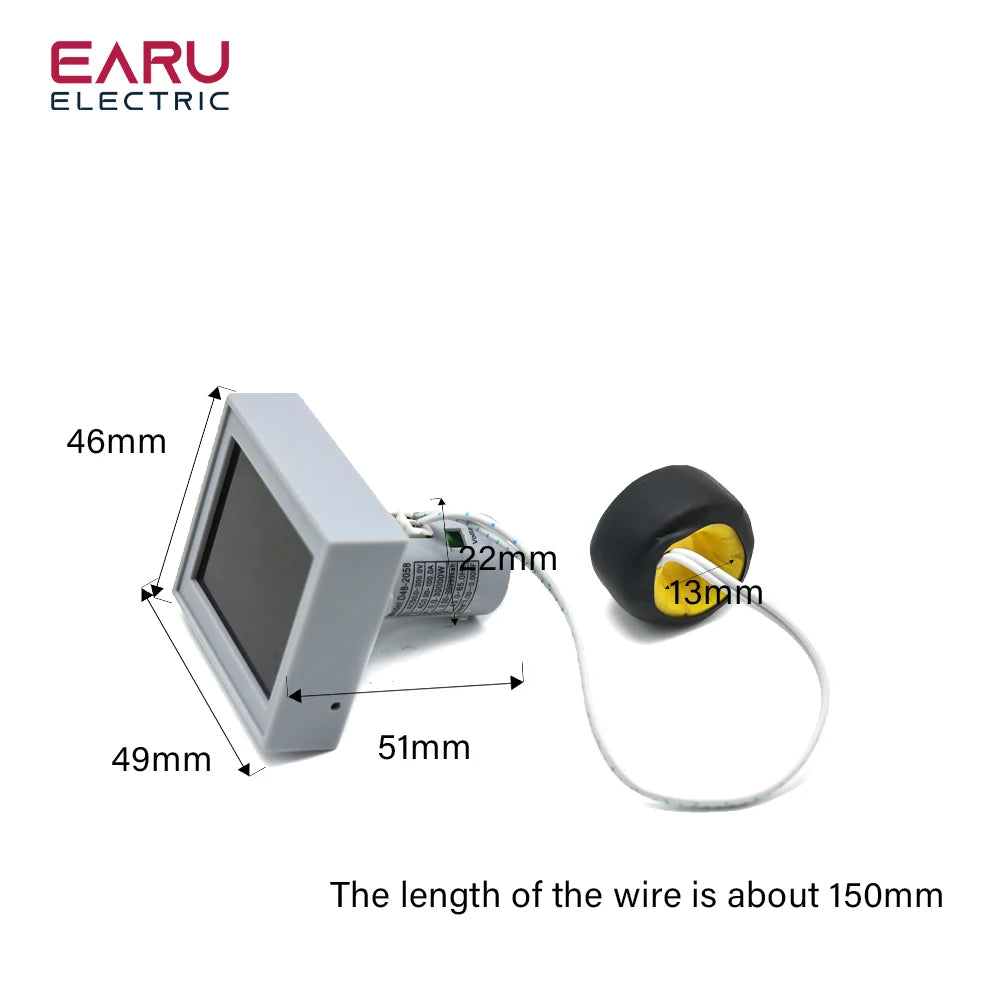

4.Size:49×47×52
mm

5.Hole: diameter Φ22mm

6. Autosave; When the meter power is off, the current electric energy value will be automatscally saved the meter
will read the value after the next power on and going to keep adding to the saved value number.
