AC90V-240V 3A 16A Water Electric Floor Heating TRV House Room Thermostat Temperature Controller Digital LCD Display Wall Mounted
AC90V-240V 3A 16A Water Electric Floor Heating TRV House Room Thermostat Temperature Controller Digital LCD Display Wall Mounted
Regular price
$22.80 USD
Regular price
$0.00 USD
Sale price
$22.80 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Efficiently control the temperature of your space with the AC90V-240V 3A 16A Water Electric Floor Heating TRV House Room Thermostat. With a digital LCD display and wall-mounted design, this thermostat allows for precise temperature adjustments. Perfect for any room, this thermostat ensures comfort and energy savings.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Type: Floor Heating Parts
- Voltage: 230V
- Floor Heating Part Type: Floor Heating Thermostats
- Floor Heating Valve: Automatic Deflation Valve
- Material: Anti-flammable PC
- Current: 3A/16A
- Power Supply: AC 90-240V
- Temperature sensor: NTC
- Display: LCD
- Temperature accuracy: ±1℃
- Power consumption: <1W
- Work environment: -5~50℃
- Display range: 0~50℃
- Model Number: KC01RH
Specification
- Type: Thermostat Temperature Controller
- Material:Anti-flammable PC
- Voltage:AC 90- 220V,50/60Hz
- Max. Current Load: 3A/16A
- Temperature Accuracy: 1℃
- Temperature Setting: 5-60℃

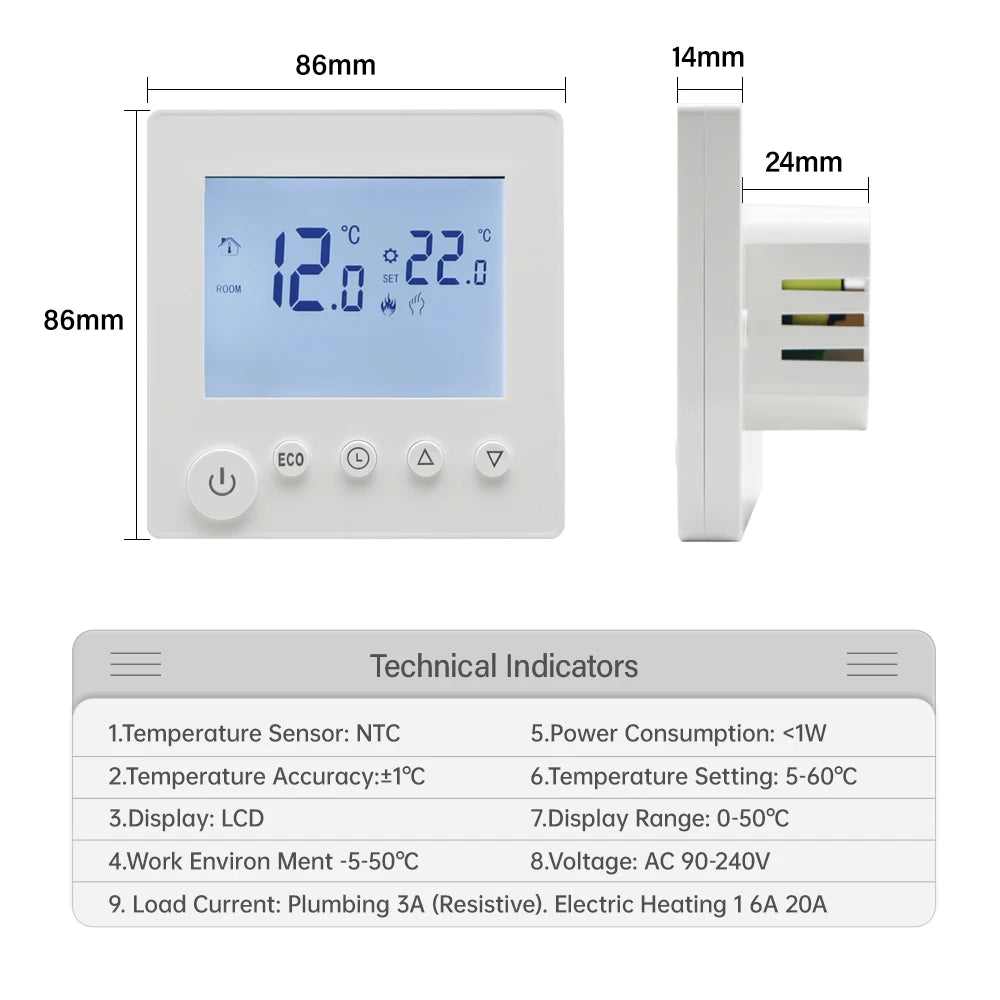

- Item Size: 86 * 86 *mm/ 3.4 * 3.4in
Packing List
- 1*Thermostat

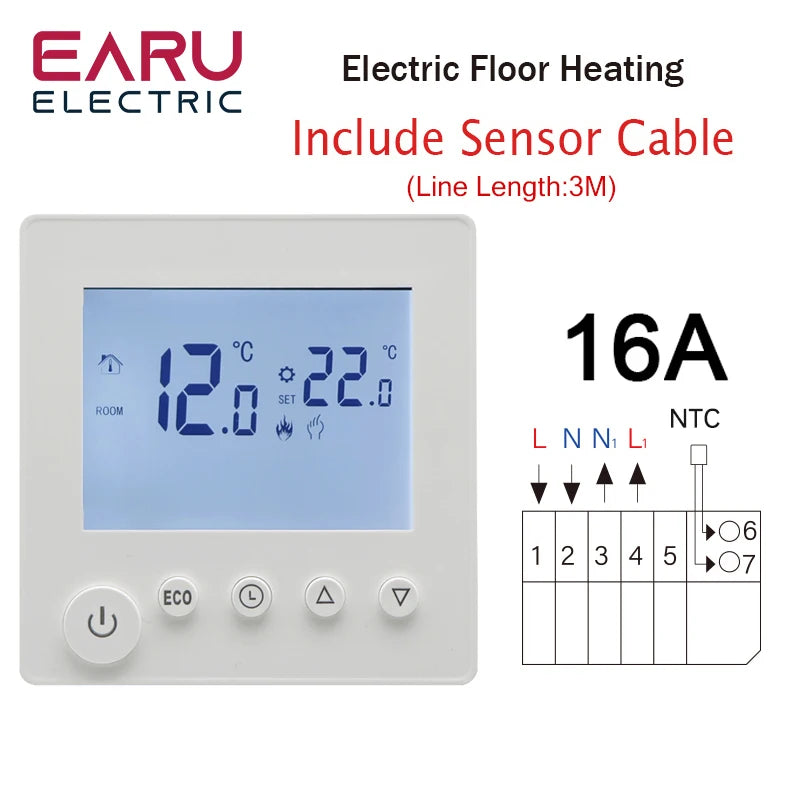

- 1*Sensor probe(only electric floor heating include sensor cable)
- Screws
- Manual

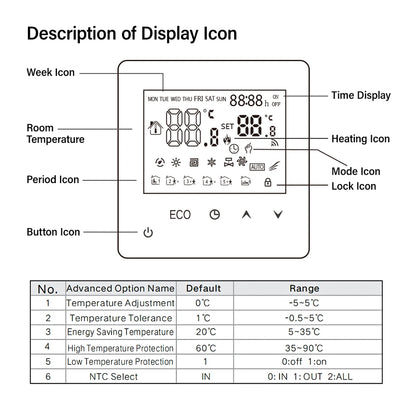

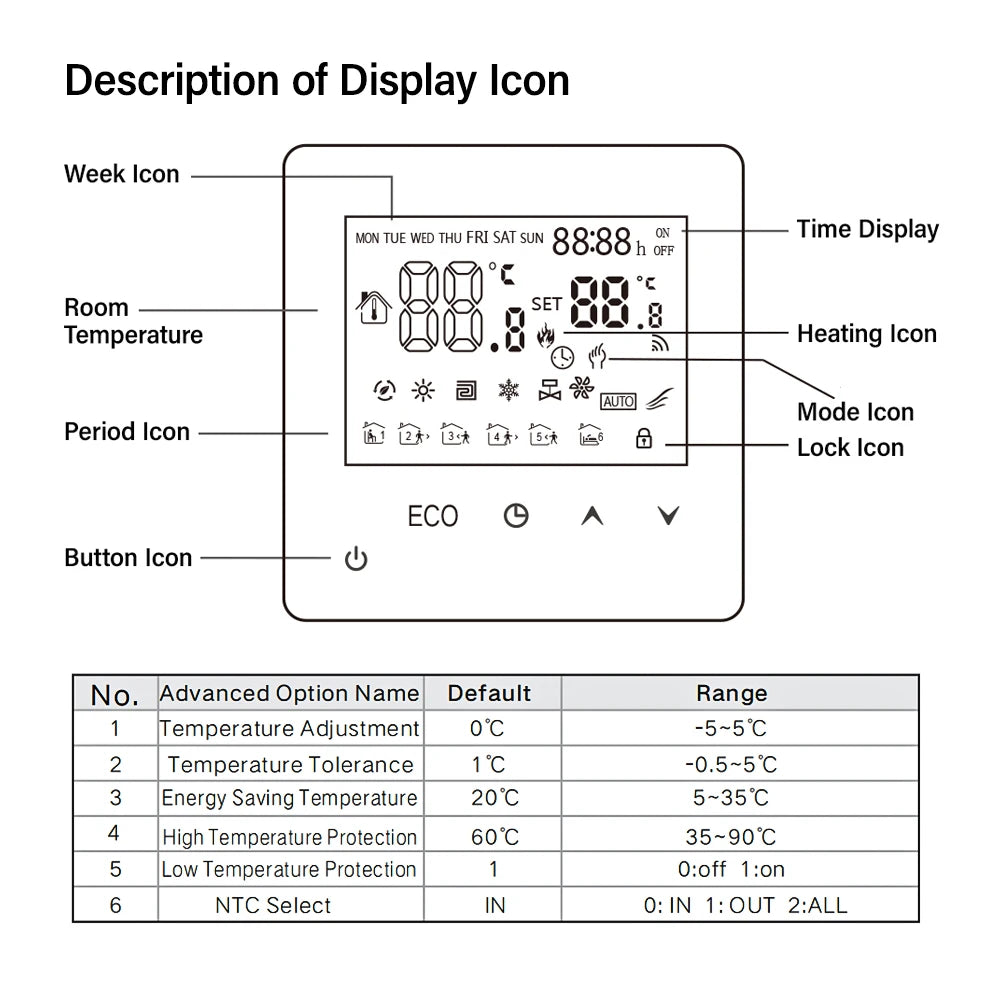

User Operation
- Temperature compensation
- Sensor selection
- Limit temperature temperature value setting
- Temperature difference start
- Antifreeze function
- Primary and secondary reverse selection
- Passive output delay setting
- Set temperature upper limit
- Restore original mode
