Wind turbine charge controller for 12V, 24V and 48V off-grid systems
A wind turbine without a controller is an unprotected turbine. This regulator sits between your generator and your battery bank, converts the three-phase AC output to a controlled DC charge, and brakes the rotor automatically when the batteries are full or the wind gets too strong. Four versions are available so you can match the controller to the turbine you already own: PWM, MPPT boost, advanced three-phase PWM and a wind + solar hybrid unit.
Which version should you choose?
| Version | Best for | Key behaviour |
|---|---|---|

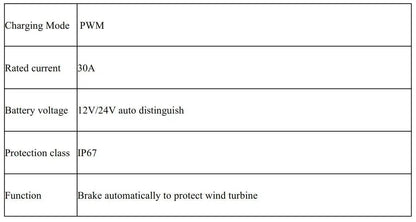

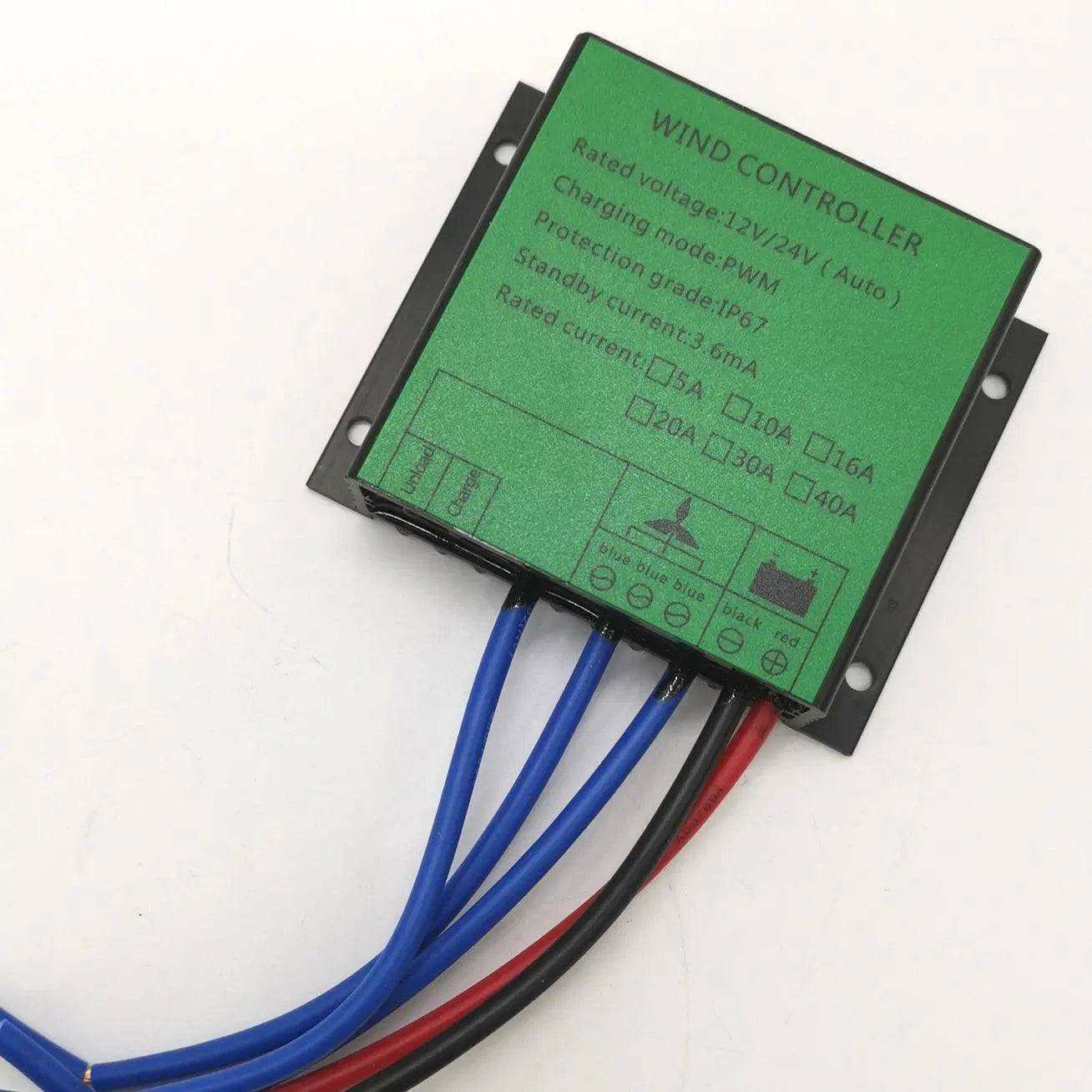

| PWM Controller | Small 12V/24V turbines up to ~600W | Simple auto-detect charging with dump-load braking |

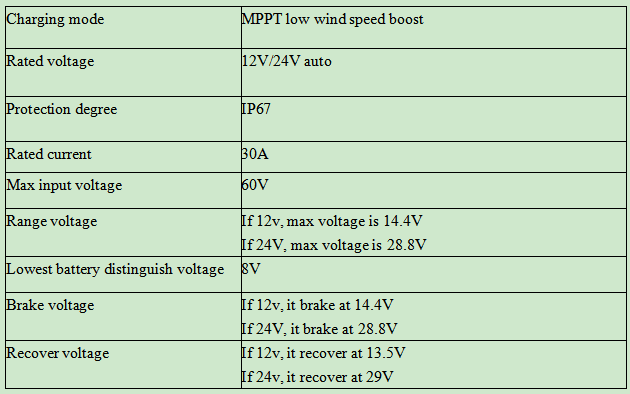

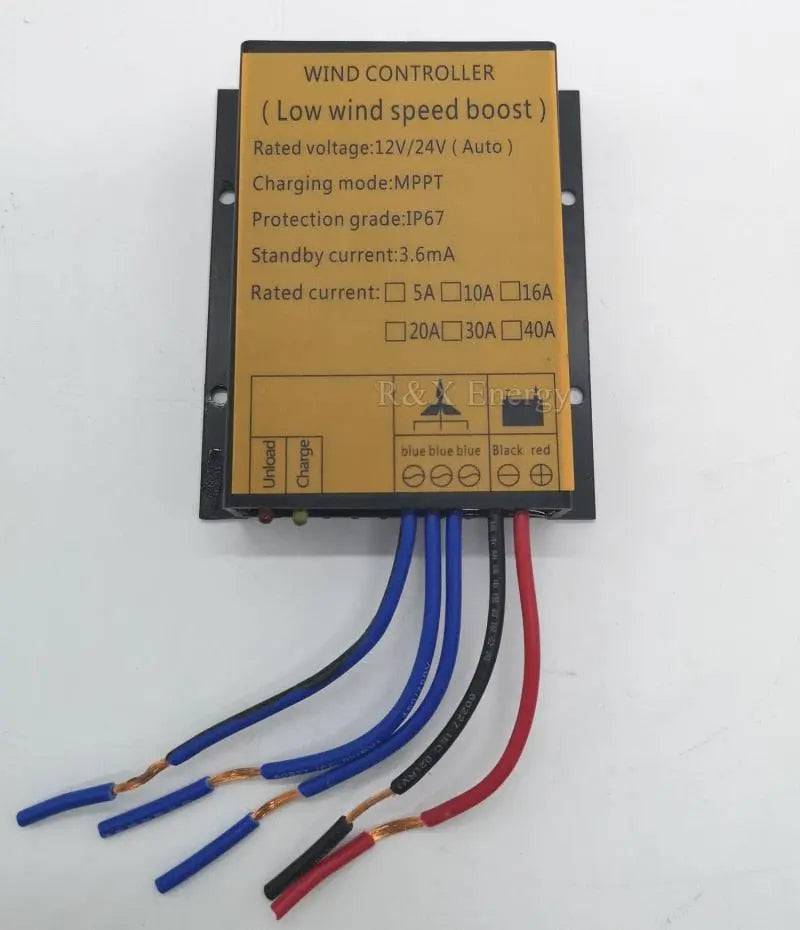

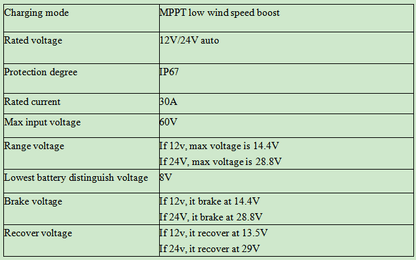

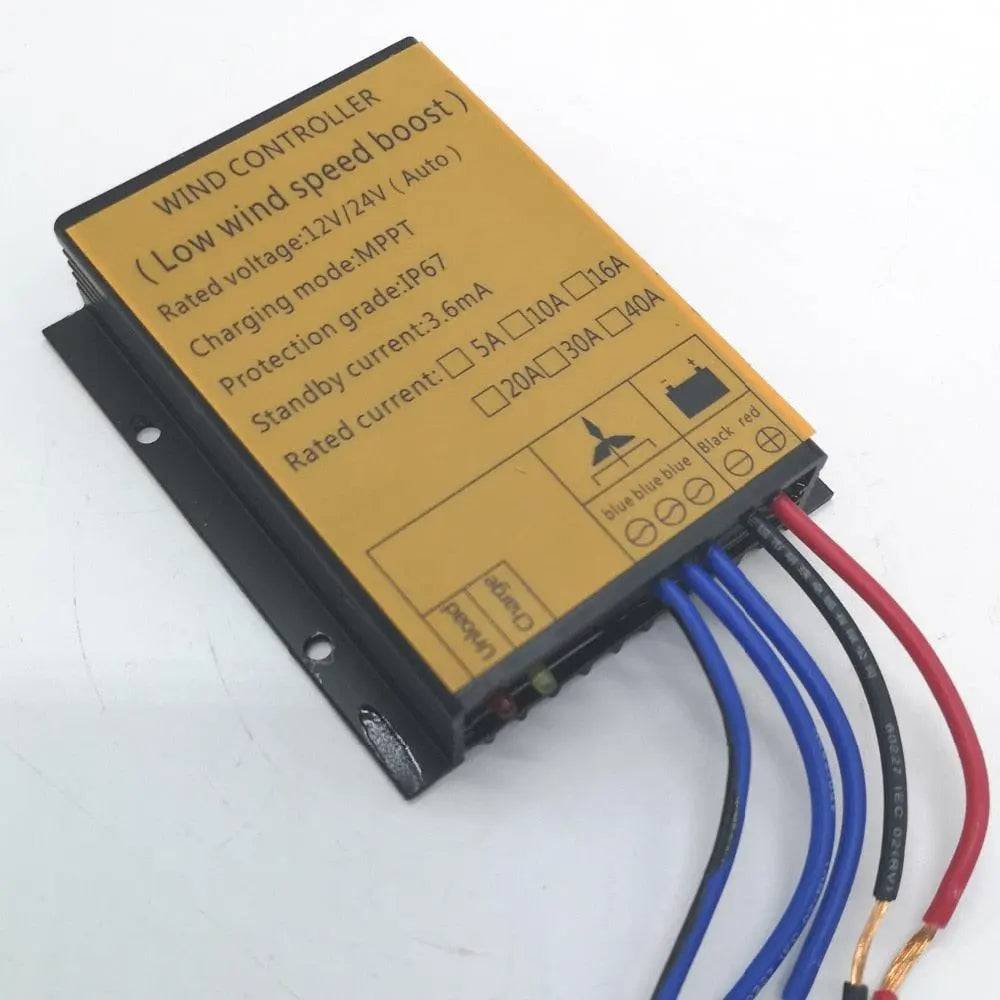

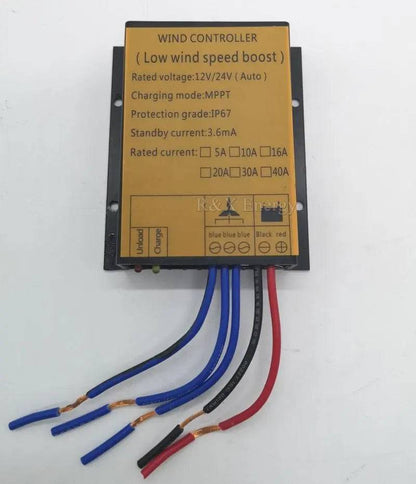

| MPPT Controller | Low-wind sites, 12V/24V | Boost charging starts at lower rotor speed, more usable kWh |

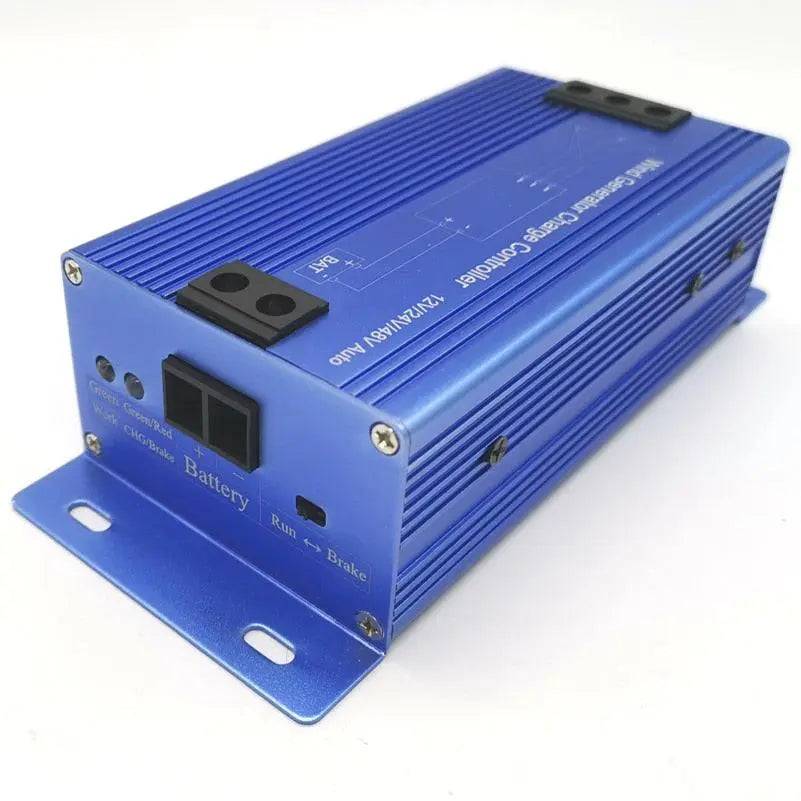

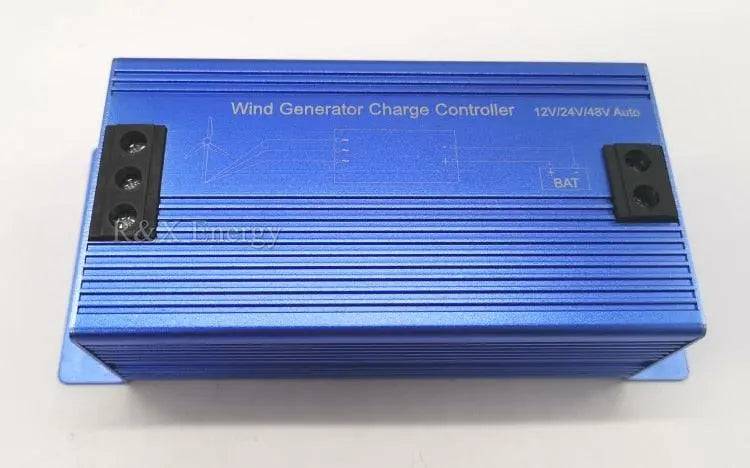

| Advanced Controller | 12V/24V/48V turbines | Three-phase soft braking, gentler on the generator |

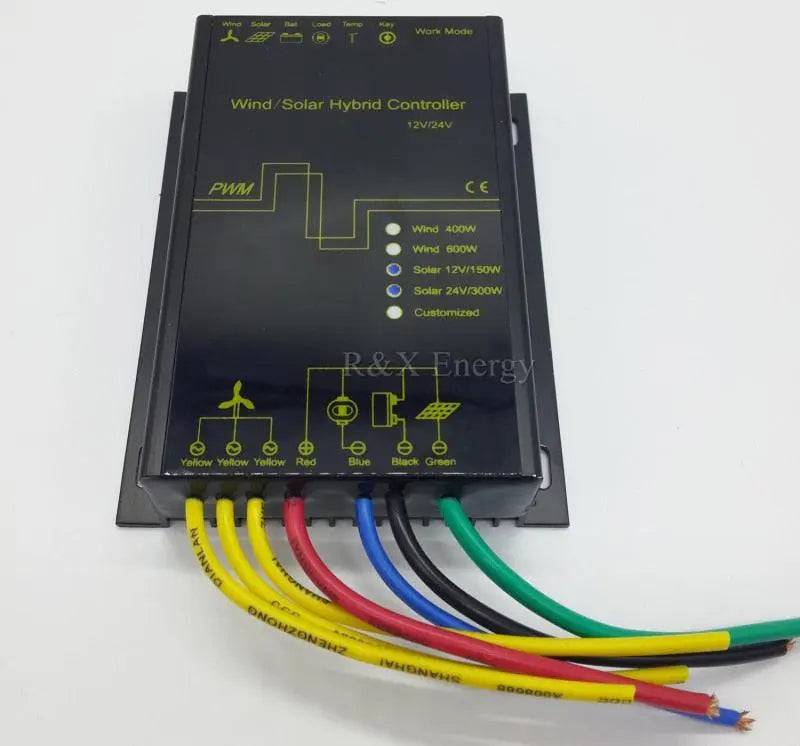

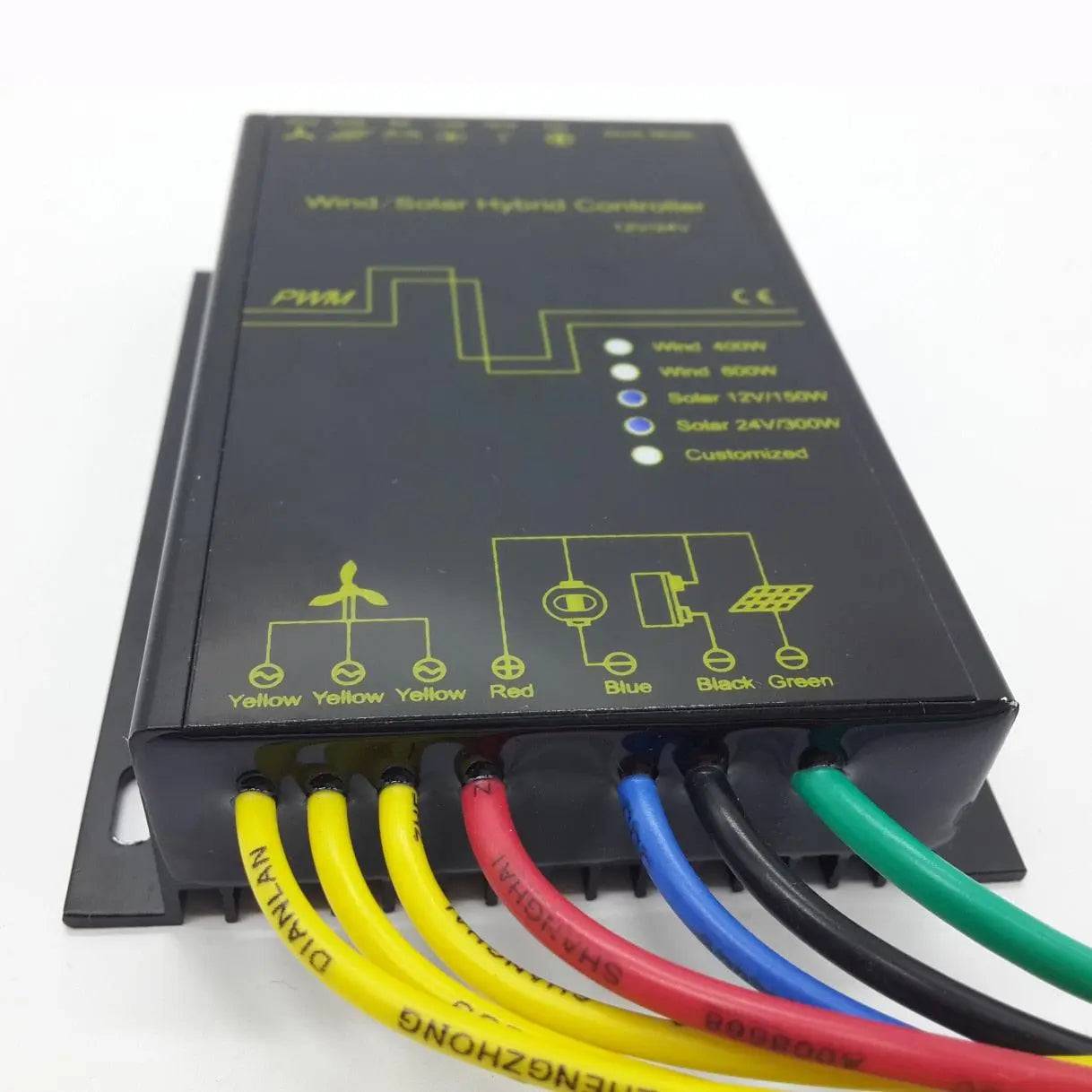

| Wind Solar Hybrid | Wind + PV on one battery bank | Single regulator for both sources, LED display, full protection set |

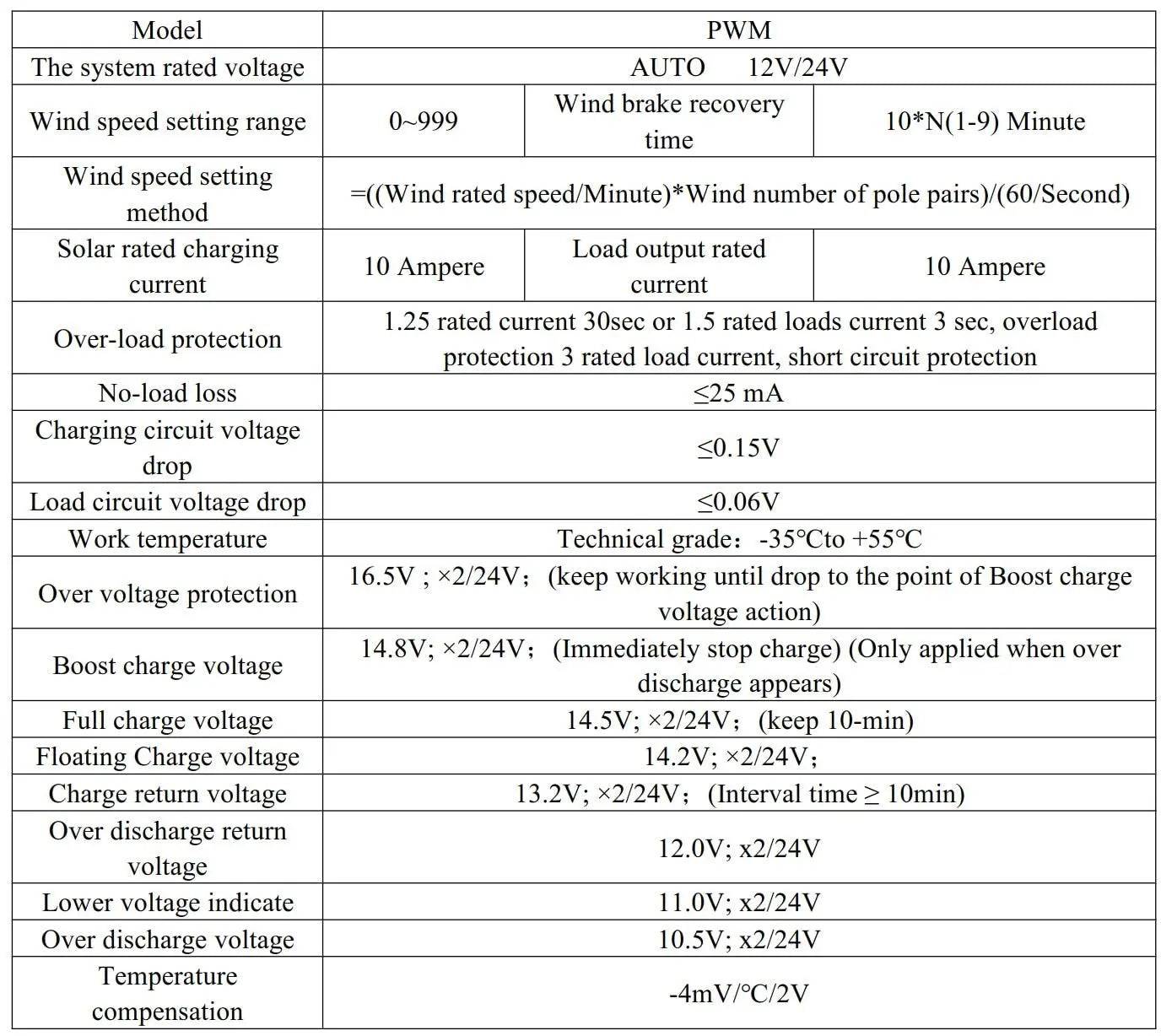

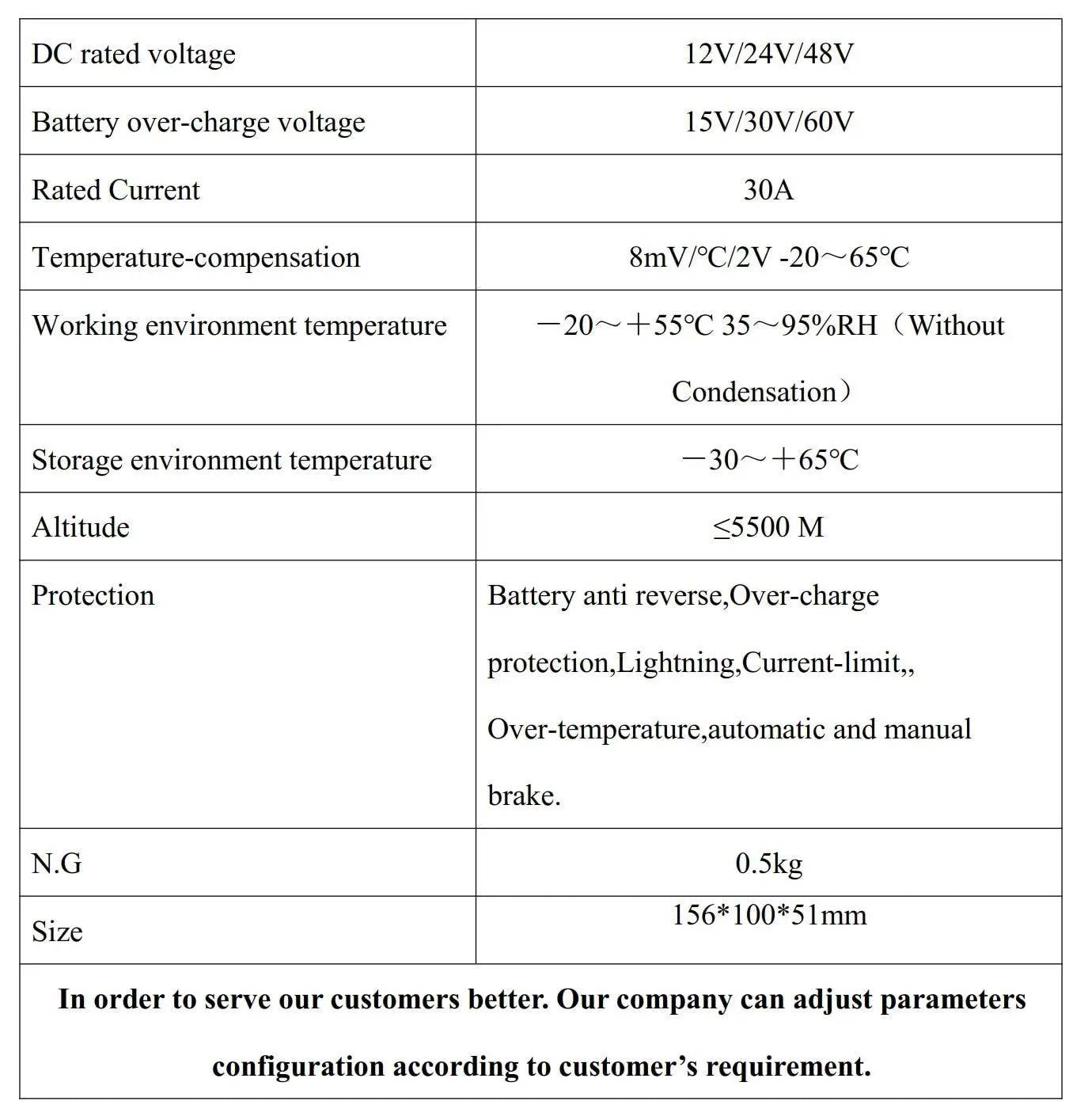

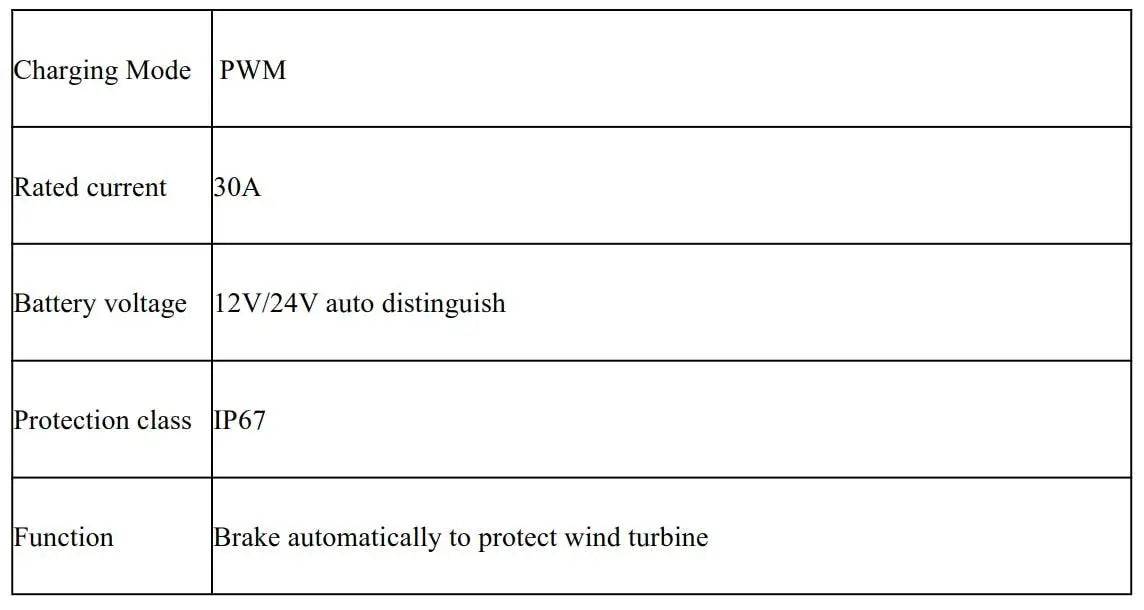

Technical specifications
| System voltage | 12V / 24V / 48V (auto-detect) |
| Maximum charge current | 30A |
| Turbine input | Three-phase AC (3 blue wires) |
| Braking | Automatic dump load + manual brake |
| Protections | Overcharge, over-discharge, reverse polarity, overspeed, overload, short circuit |
| Enclosure | Waterproof aluminium housing (hybrid version) |
| Certification | CE |
Wiring in plain terms

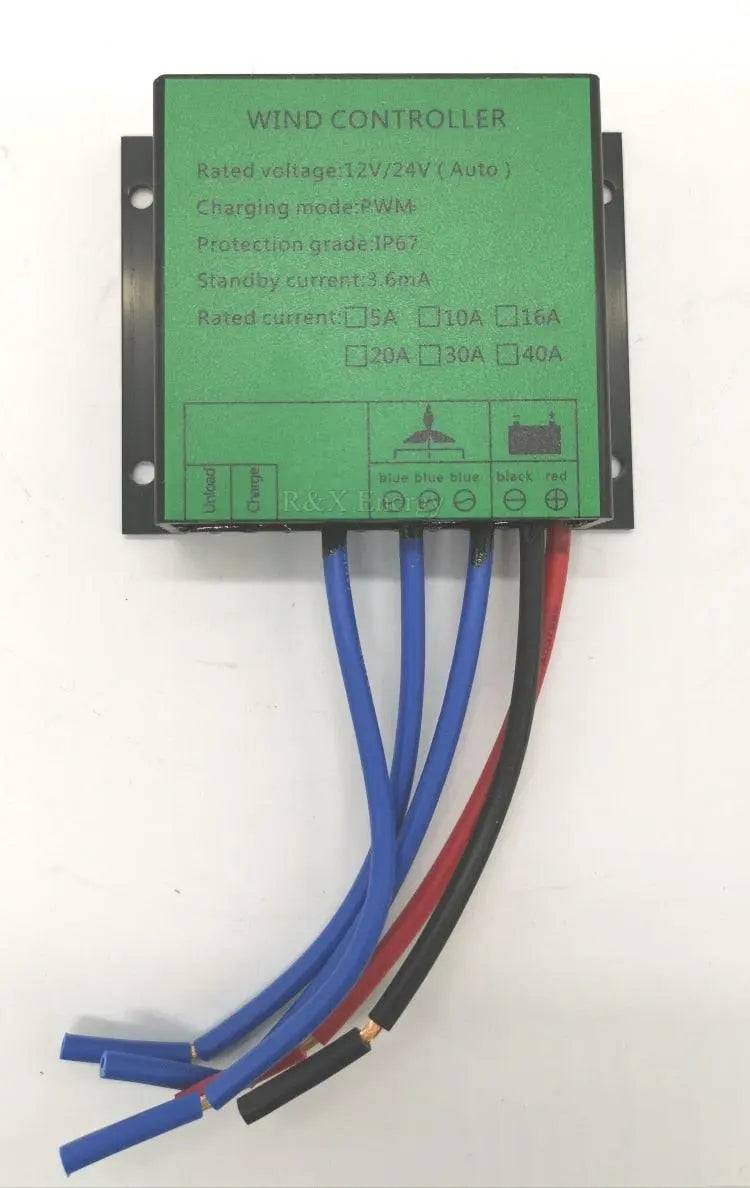

Three blue wires go to the three turbine phases (order does not matter). The red wire goes to battery positive, the black wire to battery negative. Always connect the battery before the turbine: the battery is what gives the controller a reference voltage and keeps the rotor braked during installation.
Sizing guidance, honestly
Pick a controller rated at or above your turbine's peak output, not its nominal rating. A 600W turbine in a gust can push well past 600W, and a controller running at its limit is the part that fails first. If you also have solar panels, the hybrid version is usually cheaper and simpler than two separate regulators sharing one battery bank.
Buying from 54 Energy
- Sold by 54 Energy — one-year warranty on every unit
- Dispatch from North America, Europe or Asia; delivery in 5 to 15 business days
- Secure payment by card or Apple Pay through Stripe
- Full specifications published on this page — no quote needed
Frequently asked questions
Can I use this controller with a solar panel too?
Only the Wind Solar Hybrid version accepts PV input. The PWM, MPPT and Advanced versions are wind-only.
Does it work with a lithium battery bank?
It is designed around lead-acid and AGM charge voltages. With lithium, use a BMS-managed bank and verify the cut-off voltages match your cells before commissioning.
What happens when the batteries are full?
The controller diverts the turbine output to the dump load and, if the wind keeps rising, applies the electromagnetic brake so the rotor does not overspeed.
Is the unit waterproof?
The hybrid version uses a sealed aluminium housing rated for outdoor mounting. The compact PWM and MPPT units should be installed in a sheltered enclosure.
Do you provide installation support?
No. Installation must be carried out by a qualified electrician following local wiring regulations.
How long does delivery take?
Five to fifteen business days, worldwide.
