Bluetooth Solar Inverter 11000W Off Grid Pure Sine Wave Inverter 500Vdc 100A MPPT 48V Battery Charger parallel 1 Phase&3 Phase
Bluetooth Solar Inverter 11000W Off Grid Pure Sine Wave Inverter 500Vdc 100A MPPT 48V Battery Charger parallel 1 Phase&3 Phase
Couldn't load pickup availability
SPECIFICATIONS
Is_customized: Yes
WiFi function: Yes
Weight: 27KG
Size: 59 cm X 39cm X 231cm
Rated capacity: 5500Wx2
Parallel function: 9 units
Parallel Kit: Contains 2 sets
Overcharge protection: 64V,63VDC
Output voltage: 220V-240Vac auto-sensing
Output Type: Single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz auto detect
Origin: Mainland China
Model Number: SMR 11KW
Maximum open circuit voltage of the PV array: 500 VDC Output
Maximum charging current: 80A
MPP range operating voltage: 240 VDC-430VDC
Is Smart Device: Yes
Controller type: MPPT
Certification: CE
Brand Name: EASUN POWER
Battery voltage: 48Vdc

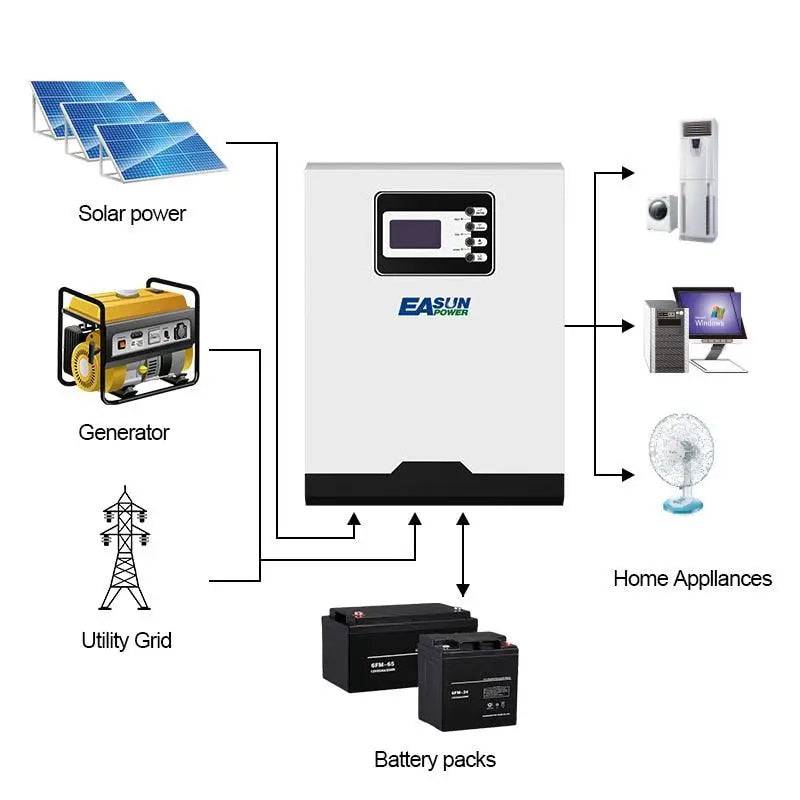

I would like to be able to conect a generator to the inverter

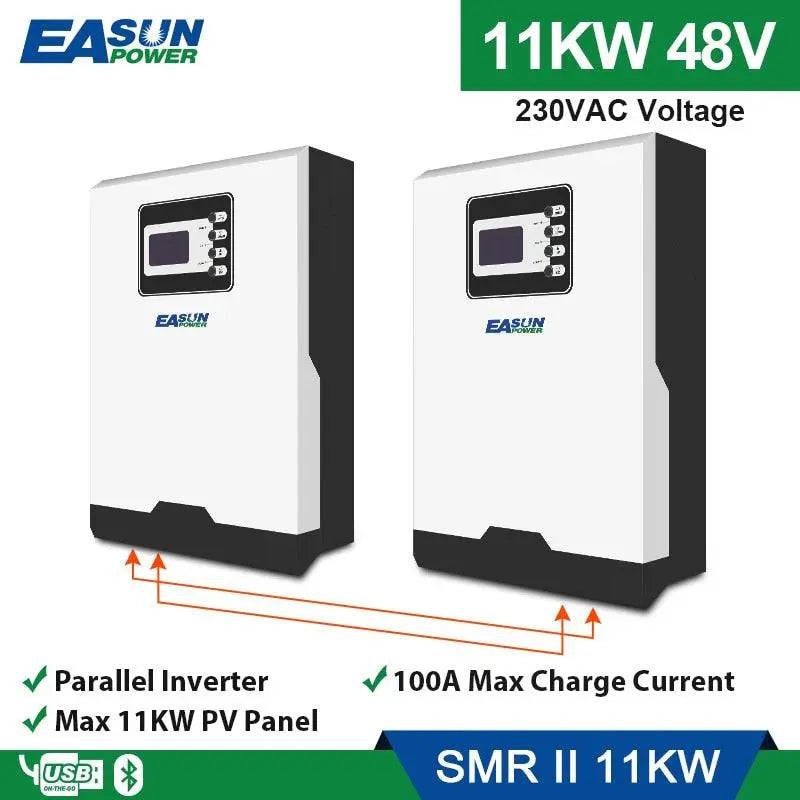

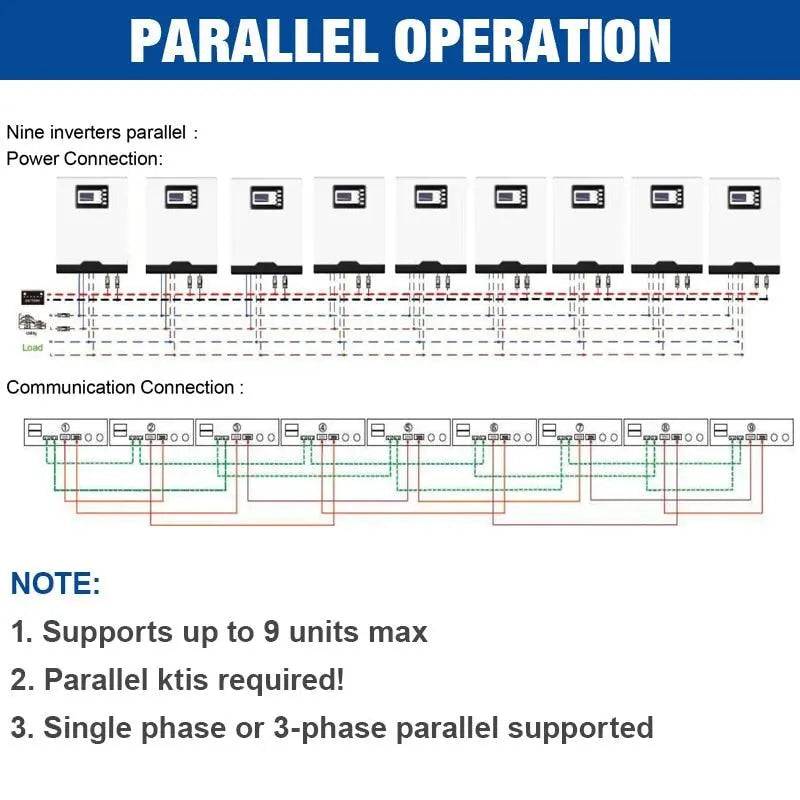

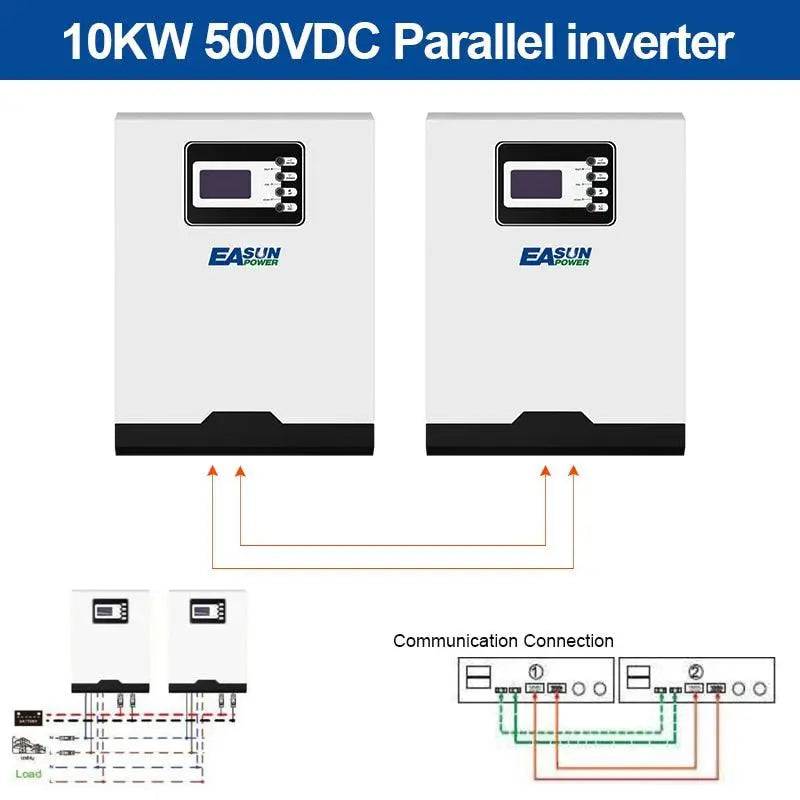

- Max.can be 9 pcs in parallel with optionalkit
- Efficiently work with or without battery
- MPPT Solar Charge Controller up to
- 5000W solar panel
- Built - in Wifi for mobile monitoring
- (Requires APP)
- Compatible with (Li-ion,LiFePo4 and etc.)batteries
- Battery Equalization
|
Model |
ISolar-SMR-II-3KW |
ISolar-SMR-II-5.5KW |
|
Rated Power |
3000VA/3000W |
5500VA/5500W |
|
INPUT |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
OUTPUT |
||
|
AC Voltage Regulation(Batt. Mode) |
230VAC±5% |
|
|
Surge Power |
6000VA |
11000VA |
|
Efficiency(Peak) |
Up to 93.5% |
|
|
Transfer Time |
10ms(For Personal Computers);20ms(For Home Appliances) |
|
|
Waveform |
Pure Sine Wave |
|
|
BATTERY |
||
|
Battery Voltage |
24VDC |
48VDC |
|
Floating Charge Voltage |
27VDC |
54VDC |
|
Overcharge Protection |
33VDC |
63VDC |
|
SOLAR CHARGER & AC CHARGER |
||
|
Maximum PV Array Open Circuit Voltage |
500VDC |
500VDC |
|
Maximum PV Array Power |
5500W |
5500W |
|
MPPT Range @ Operating Voltage |
120～450VDC |
120～450VDC |
|
Maximum Solar Charge Current |
100A |
100A |
|
Maximum AC Charge Current |
80A |
80A |
|
Maximum Charge Current |
100A |
100A |
|
PHYSICAL |
||
|
Dimension,D×W×H(mm) |
100×300×440 |
|
|
Net Weight(kgs) |
9 |
10 |
|
Communication Interface |
USB/RS232 |
|
|
ENVIRONMENT |
||
|
Humidity |
5% to 90% Relative Humidity(Non-condensing) |
|
|
Operating Temperature |
-10℃ to 50℃ |
|
|
Storage Temperature |
-15℃ to 60℃ |
|
