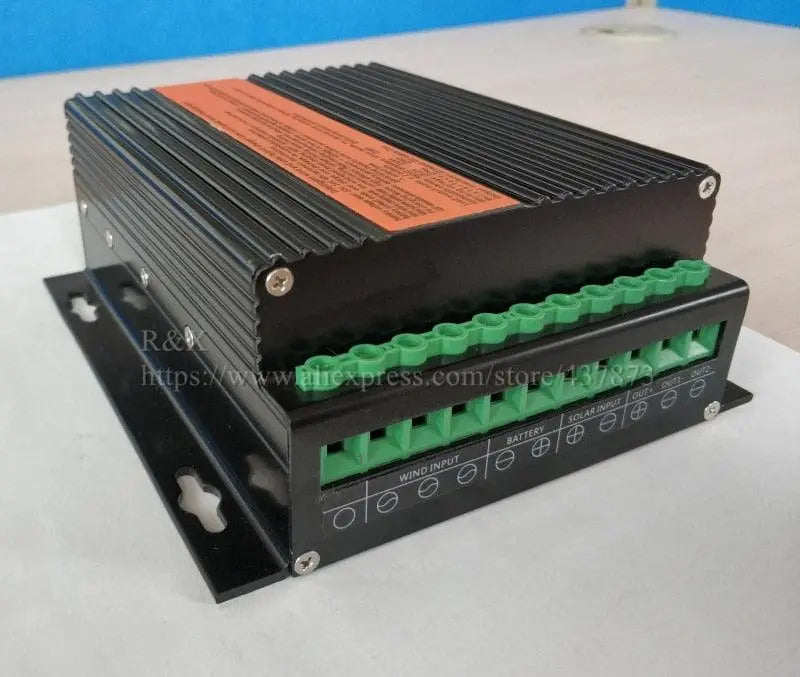

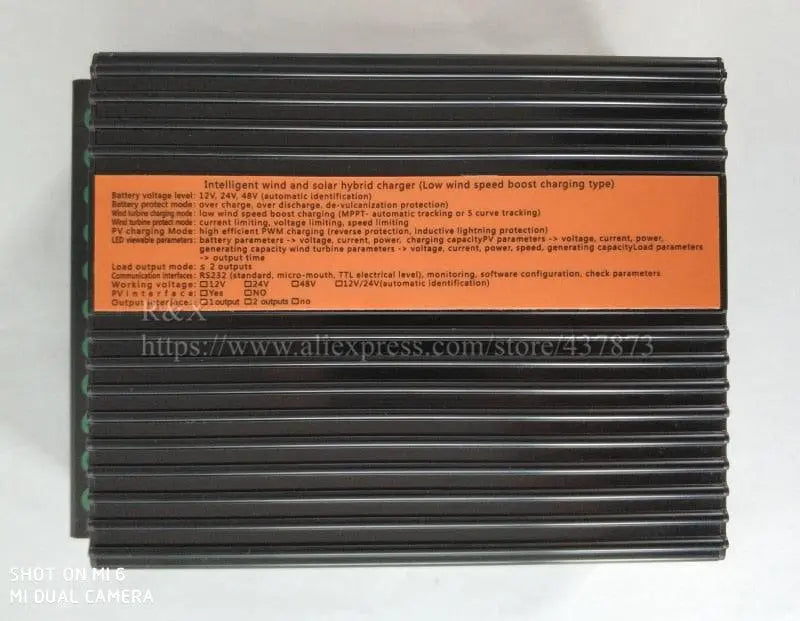

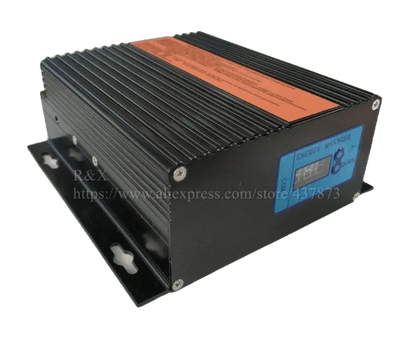

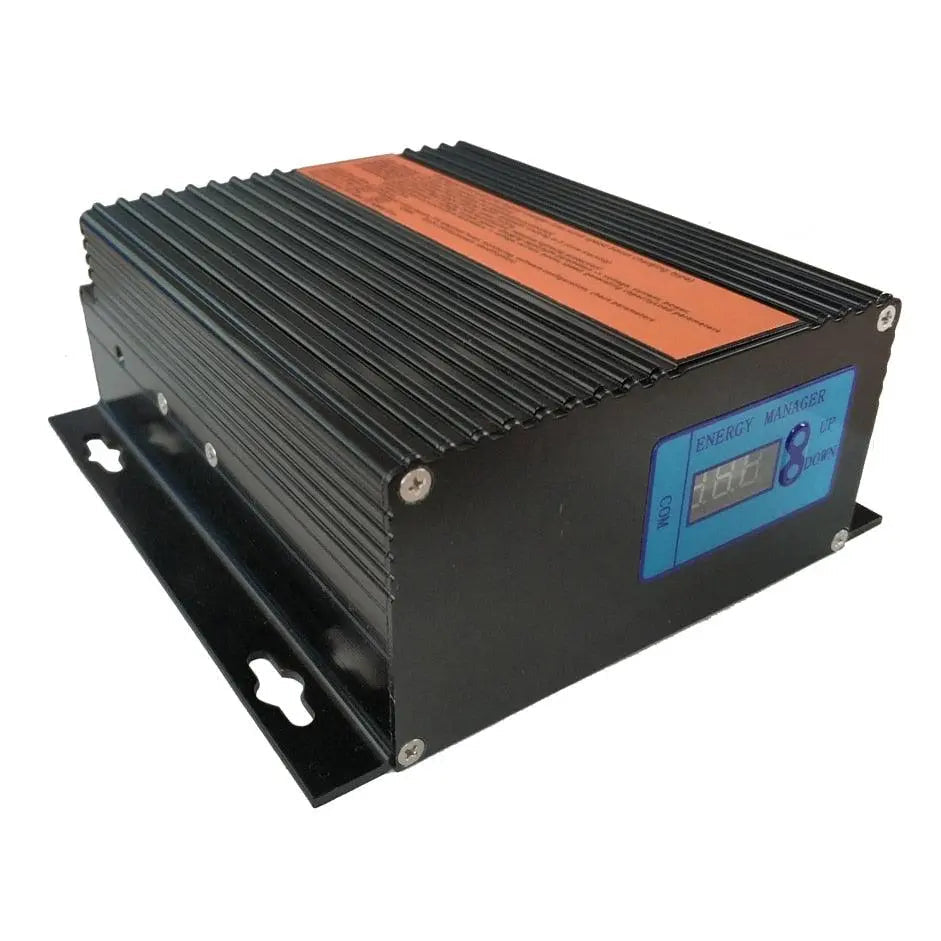

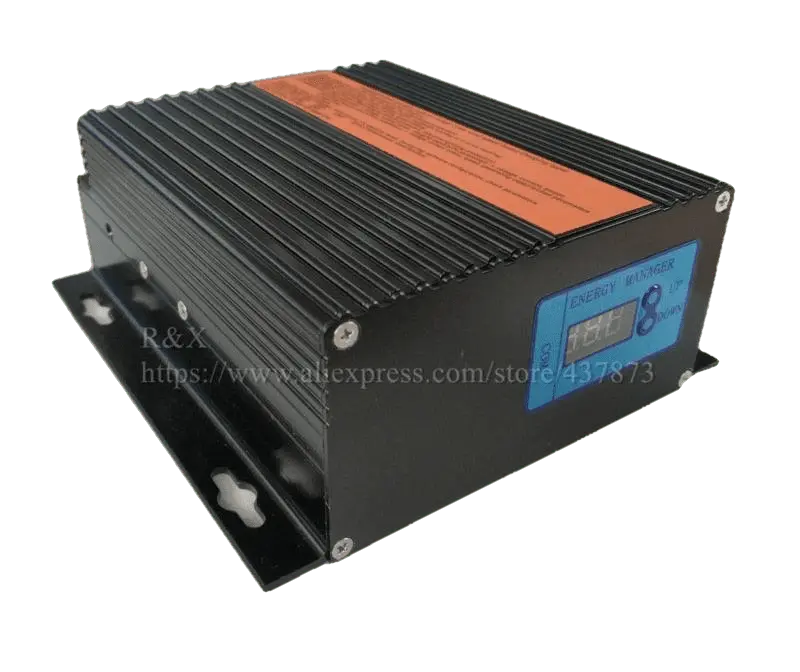

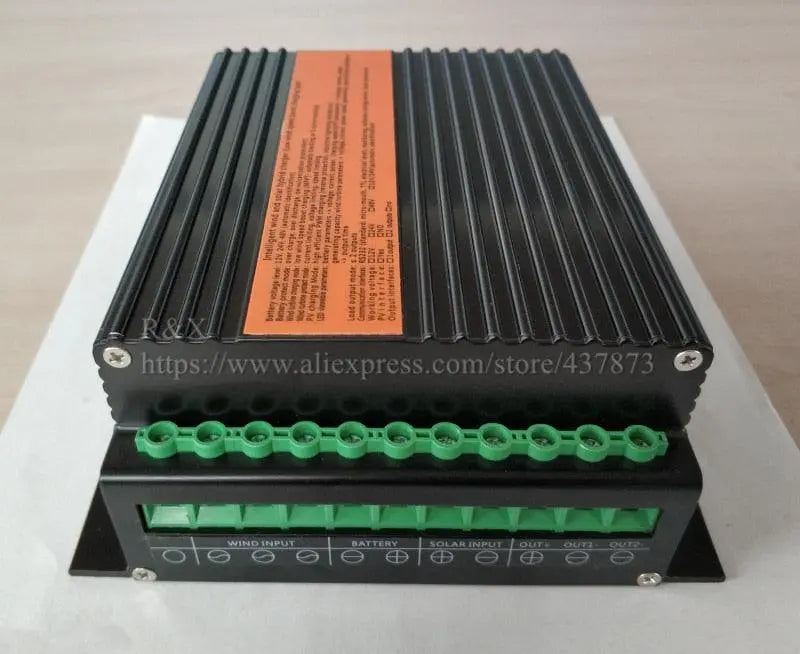

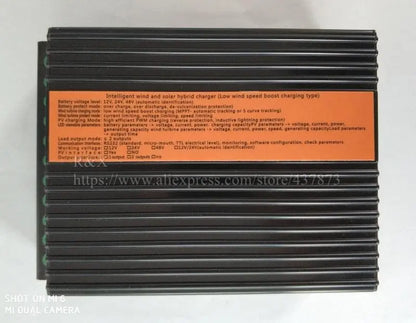

Charge Controller for Wind Turbine Max 600W and 300W Solar Panel Waterproof Battery Controller 24V/48V R&X MPPT

Charge Controller for Wind Turbine Max 600W and 300W Solar Panel Waterproof Battery Controller 24V/48V R&X MPPT

Regular price $152.00 USD
Regular price Sale price $152.00 USD
Sale Sold out
Shipping calculated at checkout.
Rated Voltage
Controller Type

SPECIFICATIONS:

  • Is_customized: Yes
  • category: charge controller
  • Model Number: RX-600MPPT-MS
  • Maximum Current: 20A
  • Application: Solar System Controller,Wind Controller,其它(Other

Description:

 Super-intelligent wind-solar hybrid controller is a cost-effective control device optimized by our company on the basis of super intelligent controller. It inherits most of the practical functions (such as speed control, limit protection of over-current, over-voltage etc.) and reduces the scalability, so it has a very high cost-performance ratio. Itrsquos suitable for mass and low cost use.



Three-protected circuit board, and waterproof jacket, both protect the device from damage due to taking in water slightly.



Standard configuration of mini port TTL232 communication, it is easy to do the monitoring with the computer software. (RS485, short-range wireless is optional). Using a USB to RS232 members, more convenient to exchange data with a computer (computer with USB interface can be used).



Photovoltaic panels will not be damaged with continuous reverse connection at the input port; it can work normally after correction.



ican provide automatically tracking mode of wind turbine maximum input power, or the mode of 5 segments match curve input configuration (input rev to input current; or input voltage to input current curve), which makes the high efficient generation of the wind turbine, but with low speed.



It provides selection of multiple output modes (light control, time control, dawn mode, reverse direction), which can satisfy a variety of applications.

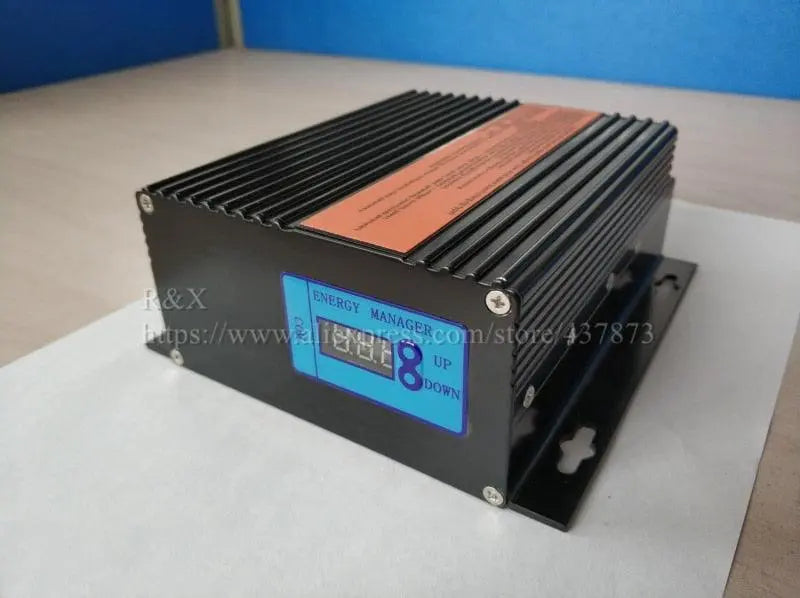

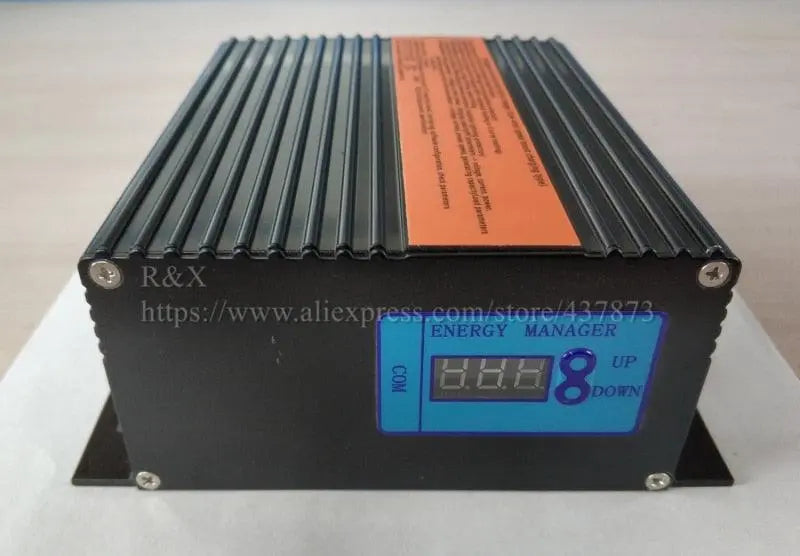

The controller screen displays not only the current, voltage, power of conventional wind turbine, PV, battery, and the output port; but also the cumulative generating capacity of wind turbine and PV, the remaining battery power, wind turbine speed.





Technical data:

Battery parameters

Applicable battery voltage

24V

48V

Battery protect method

Reverse connection protection ( Blow Fuse); over voltage protection, under voltage protection (for street light and such kind of load)

Voltage at the over voltage protection point

29.0Vplusmn0.2V

58.0Vplusmn0.2V

Voltage at the over voltage recovery point

27.5Vplusmn0.2V

55.0Vplusmn0.2V

Voltage at the under voltage protection point

21.0Vplusmn0.2V

42.0Vplusmn0.2V

Voltage at the under voltage recovery point

23.0Vplusmn0.2V

46.0Vplusmn0.2V

Parameters of wind turbine input port

Rated power of applied wind turbine

600W

Rated current of the port

20A dc (after rectification)

15A dc (after rectification)

Max. input current of the port

25A dc (after rectification)

20A dc (after rectification)

Default speed of the wind turbine generation with limited speed

500 Rpm (settable)

Default current of the wind turbine generation with limited current

20A (settable)

wind turbine protection method

Over speed protection, over current protection, induction lightening protection

Unloading method

PWM stepless high-frequency soft unloading (built-in)

MPPT function

Boost MPPT model ( automatic tracking or 5 segments curve tracking)

Input current of MPPT channel

5A (standard configuration)

Parameters of PV input port

Rated power of applied PV

300W/24V (standard configuration)

Rated input current of the port

15A (standard configuration)

30A (optional configuration)

Charging voltage drop

<0.2V

PV protection method

Reverse connection protection

Unloading method

Open circuit unloading





Display mode

3 digitsl (LED) display

Communication mode

RS232 (5V electrical level) (standard configuration), RS485/Short-range wireless RF (optional configuration)

Displayed parameters

wind turbine input voltage/current/power/generated capacity/ speed/ unloading current

PV input voltage/current/power/generated capacity

Battery voltage/charging current/power/total charging capacity/ battery status information

Power consumption in standby mode (screen backlight closed)

~ 15ma /48V

Operating mode

3M foil key operation (2 buttons)

Working temperature / humidity range (environment)

-40~+80℃/20~85%RH (non condensing)

Protection grade

IP41

Controller size (L*W*H)

158mm*113mm *60mm

Net weight

1.0KG
























48V MPPT-1



48V MPPT-2



48V MPPT-3



48V MPPT-4



48V MPPT-5



48V MPPT-6



48V MPPT-7













Application

Off grid diameter
