D85-2058 Single-Phase Household Digital LCD AC Panel Meter Intelligent Voltage Current Frequency Power Monitor

D85-2058 Single-Phase Household Digital LCD AC Panel Meter Intelligent Voltage Current Frequency Power Monitor

Regular price $26.90 USD
Regular price $0.00 USD Sale price $26.90 USD
Sale Sold out
Shipping calculated at checkout.
Size

This digital LCD AC panel meter is the perfect household solution for monitoring voltage, current, frequency, and power usage in a single-phase system. With intelligent features and a clear display, you can easily stay informed and make informed decisions about your energy usage.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Power Supply: AC
  • Model Number: D85-2058
  • Display Type: LCD
  • Accuracy Class: 1%±2words
  • Dimensions: 70*39*40
  • Measuring Energy Range: 0-99999kwh
  • DIY Supplies: ELECTRICAL

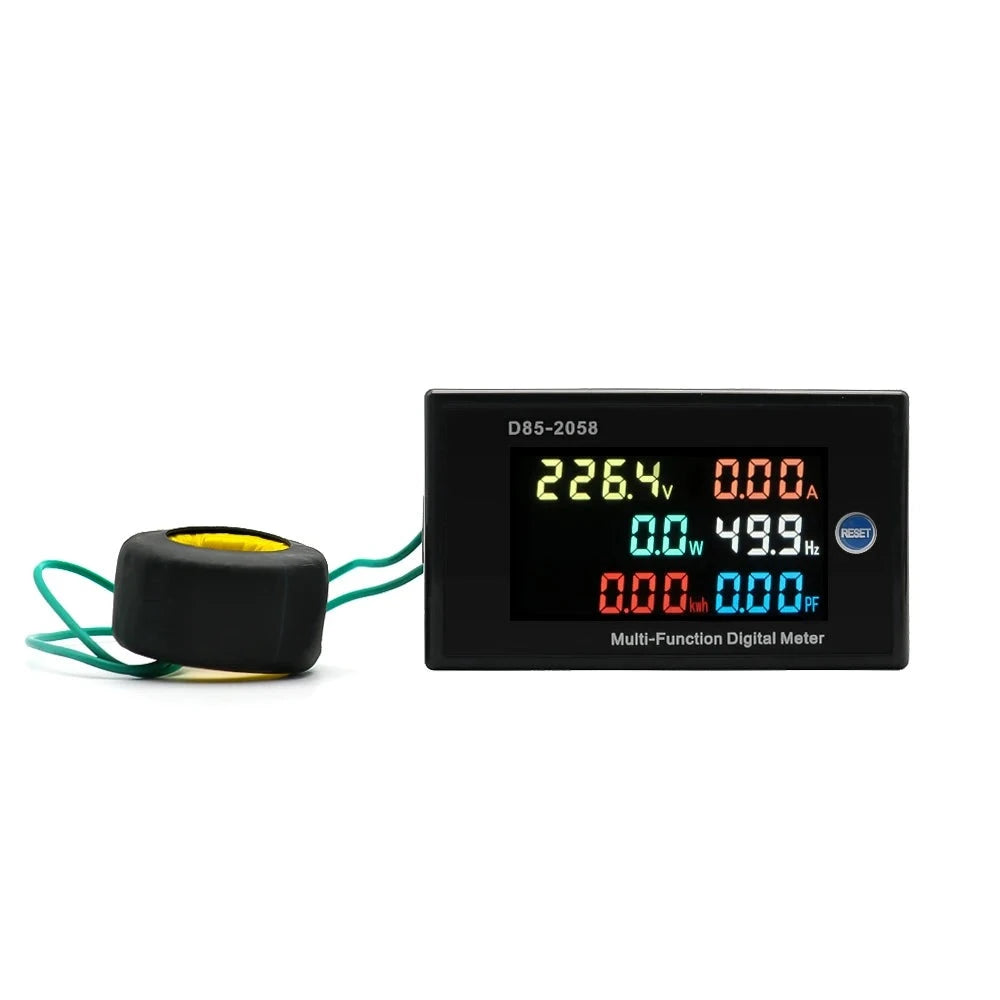

D85-2058 multi-function Digital meter can measure AC voltage, AC current, active power, power factor, power

frequency and electric energy. HDLCD has adopt for display module

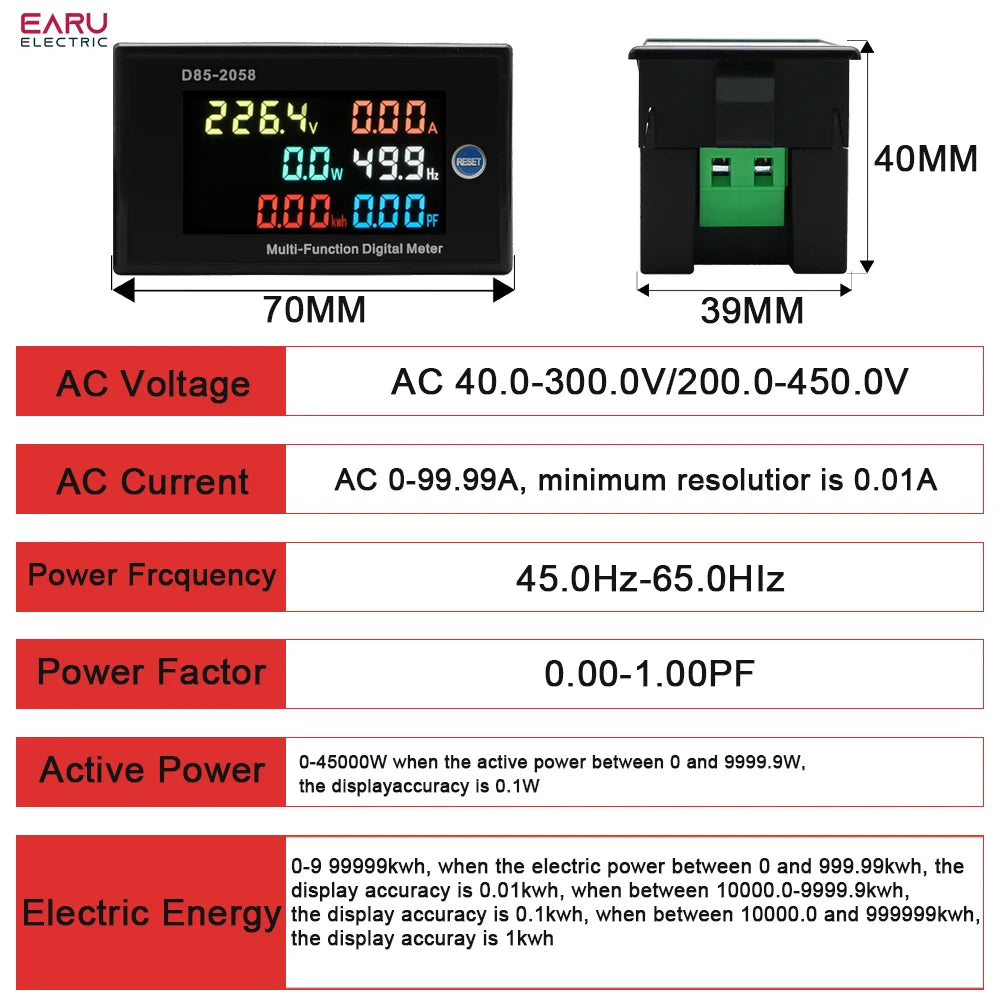

Technical Indicators

  • Accuracy: 1%±2 words
  • Range: AC voltage: AC40.0-300.0V/200.0-450.0V(You should select the suitable typc of meter when your making order ) AC current: AC 0-99.99A, minimum resolutios, is 0.01A power frequency: 45.0Hz-65.0Hz power factor : 0.00-1.00PF active power:0-45000Wwhen the active power between 0 and 9999.9W, the display accuracy is 0.1W Electric energy: 0-9 99999kwh,when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh, when between 10000.0 and 999999kwh, the display accuray is 1kwh.
  • Speed: 2 times per second
  • Size: 70*39*40
  • Installation Size: 68*38
  • Auto-saving: when power off, the electric energy will be saved. The saved electric cnergy will

Be accumulated continue when the meter power-on next time.

Application Method

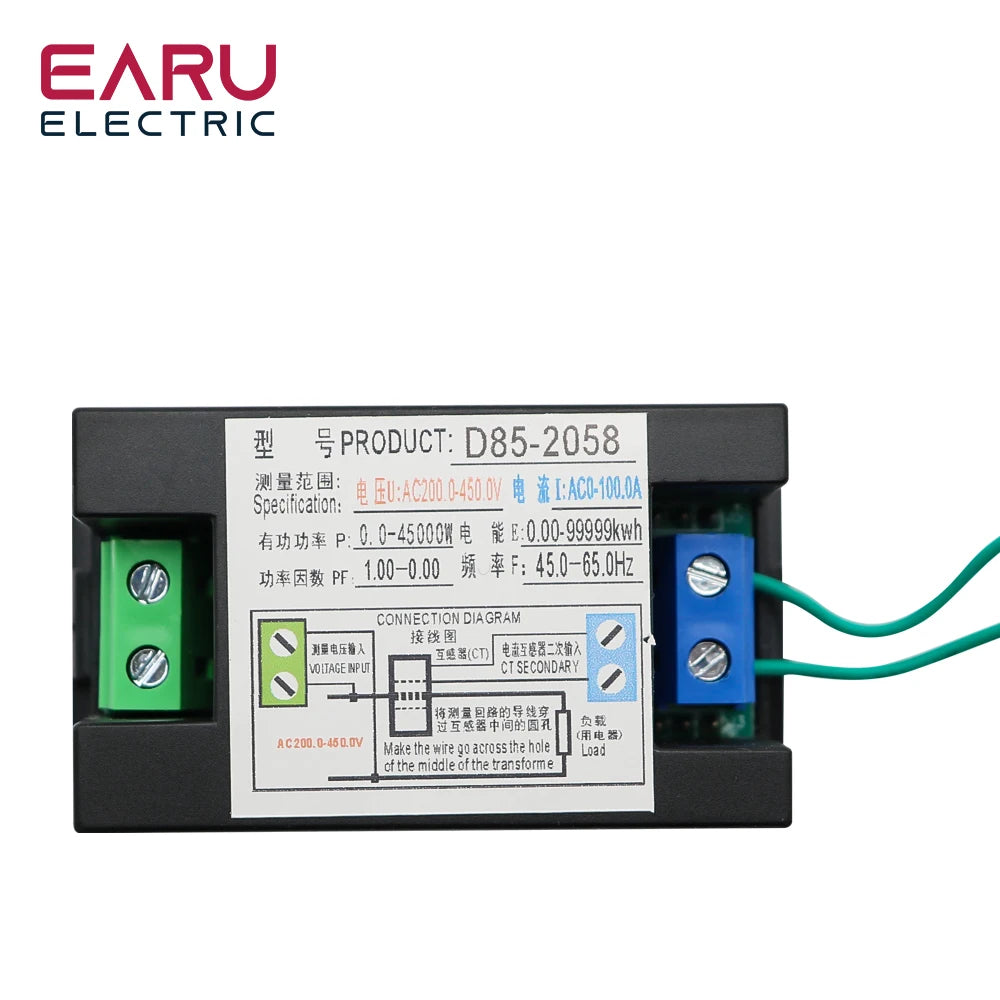

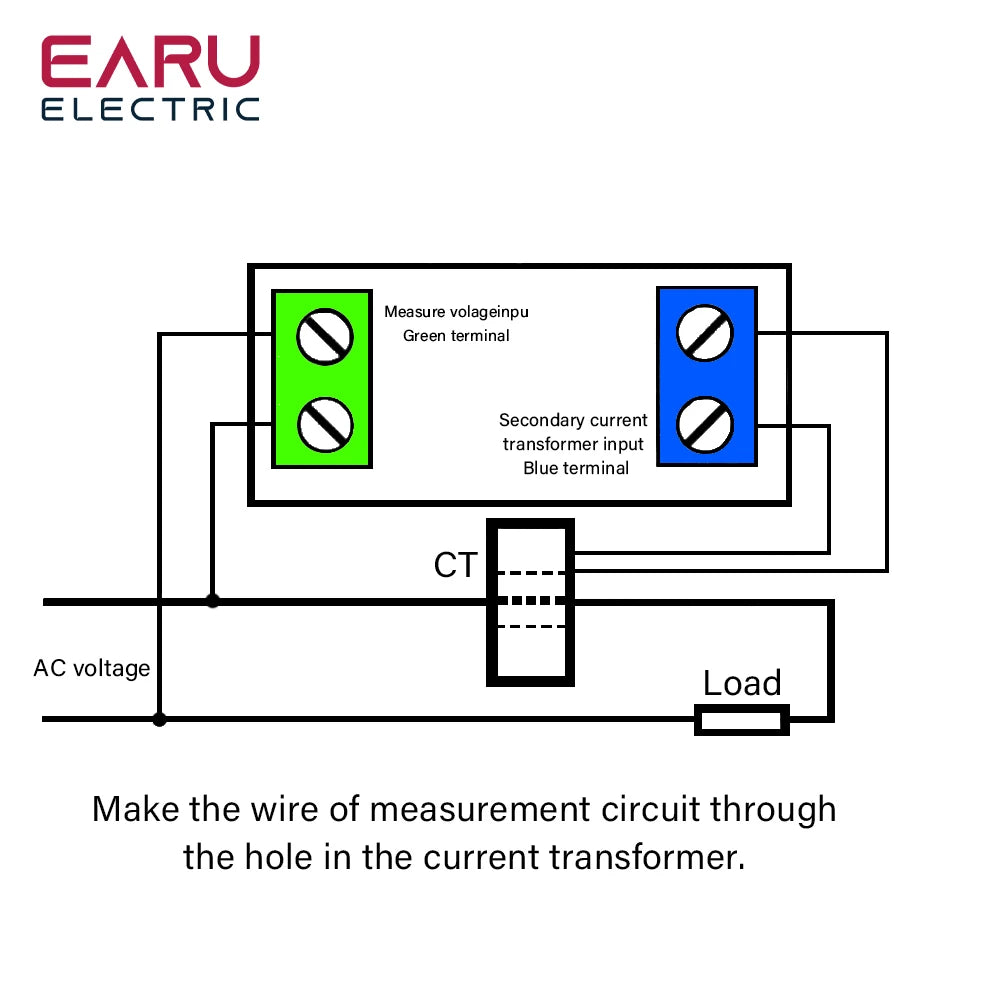

  • According to connection graph, connect the green wire of secondary current transformer to the biue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.
  • Supply power and start to measure and display the result.
  • Press down the button last for 5 second, the electric energy will to be zero.

Attention

  • The meter will be destroyed when you make wrong connection method with voltage
  • The meter can only use to measure 50HzAC city electricity, it will be destroyed when use to input(green terminal) and secondary current transformer(blue terminal). measure square wave, output of inverter and correction sine wave.
