Digital Display AC Current KWH Electric Energy Monitor Multifunction Meter VOLT AMP Ammeter Device With Energy Zeroing Din Rail

Digital Display AC Current KWH Electric Energy Monitor Multifunction Meter VOLT AMP Ammeter Device With Energy Zeroing Din Rail

Regular price $25.70 USD
Regular price $0.00 USD Sale price $25.70 USD
Sale Sold out
Shipping calculated at checkout.
Color

This multifunctional energy monitor accurately measures and displays voltage, amperage, and kilowatt-hours for your electrical system. With the ability to reset energy usage, you can easily track and monitor your energy consumption. Perfect for homes or businesses, ensuring efficient energy usage.

SPECIFICATIONS

  • Output Voltage: AC80-270V
  • Phase: Single phase
  • Measuring Energy Range: 100A
  • Power Range: 0-25KW
  • Battery Range: 0-9999KWH
  • Installation: 35mm DIN Rail
  • Frequency: 50/60HZ
  • Rated Voltage: 270V
  • Mould 1: Voltmeter
  • Mould 2: Ammeter
  • Mould 3: Wattmeter
  • Mould 4: Energy meter
  • Brand Name: EARUELETRIC
  • Model Number: EADDS-1
  • Display Type: Digital Only
  • Accuracy Class: ±1%
  • Dimensions: 79mm* 36mm * 67mm
  • Power Supply: AC
  • DIY Supplies: ELECTRICAL

Features

  • The housing is made of PC material, high-temperature resistant and flame-retardant, effectively preventing fire hazards.
  • Selected intelligent chip, stable operation, high sensitivity, and accurate measurement, with low power consumption.

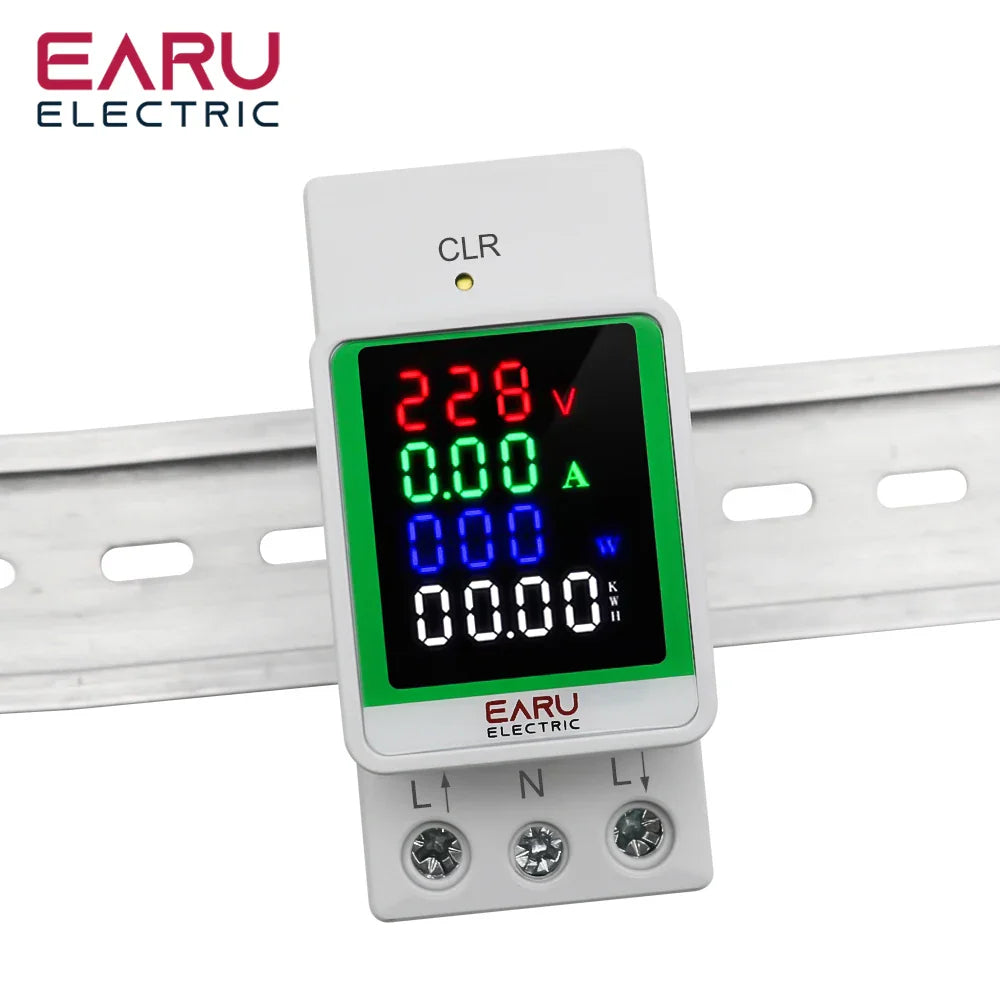

  • LCD color display, dual interface display, voltage-current-active power-power or frequency-power-factor power-power, clear definition, at a glance.
  • The multifunctional design supports the measurement of AC voltage, current, active power, frequency, power factor, and electrical quantity.
  • Functional metering, strengthening electricity management, and making electricity bills more transparent.

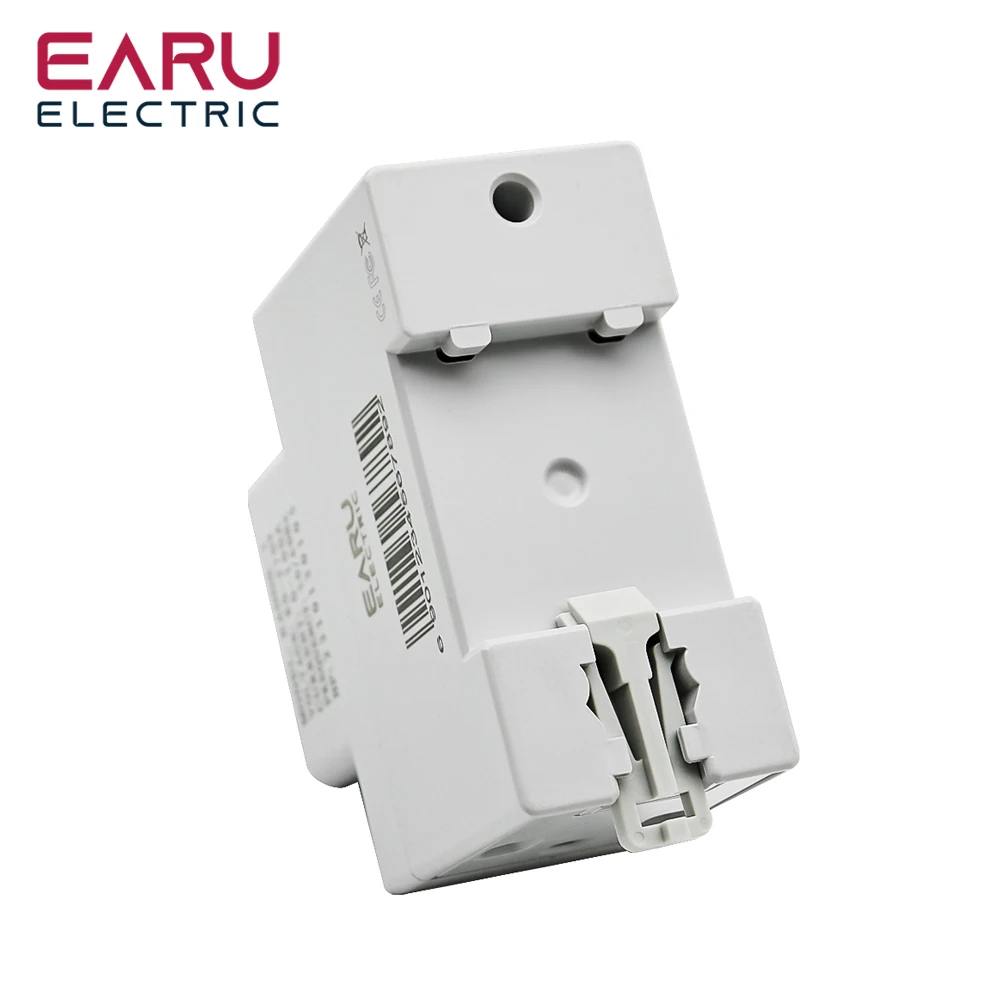

  • Standard size, 2P size, 35mm standard guide rail installation, support both up and down wiring for easy installation, strong versatility.
  • Widely used in homes, rental housing, hotels, homestays, office buildings, shopping malls, electrical equipment electricity metering, and so on.

Specifications:

  • Name: Current and Voltage Meter
  • Material: PC
  • Voltage measurement ranges: AC80V-270V, ±1%
  • Current measurement ranges: AC 0-100A, ±1%
  • Starting test current: 0. 1A
  • Active power measurement ranges: 0-25KW, ±1%
  • Starting test power: 10W
  • Energy measurement ranges: 0-9999KWH, ±1%
  • Item size: 79 * 36 * 67mm / 3.11 * 1.42 * 2.64in

Other functions

  • Optional RS485 communication interface
  • Press and hold the CLR key for 10 seconds to reset the electrical energy
