54 Energy - Renewable Energy Store

Power Meter Digital Electricy consumption 220/110V AC Power

Power Meter Digital Electricy consumption 220/110V AC Power

Regular price $26.24
Regular price Sale price $26.24
Sale Sold out
Tax included. Shipping calculated at checkout.
Color

Free shipping worldwide.



Digital Wattmeter 220V 110V AC Power Meter Electricy consumption Energy Meter EU Plug Power Kilowatt Wattage Electricity Meter

SPECIFICATIONS

measuring energy range: 99999.9

Wattmeter: power meter

Wattimetro: Voltmeter 220

Watt controller: Watts

UV meter: Electricity meter

USA Plug: 120V / 60Hz

UK Plug: 230V / 50Hz

Single Sockets: Plugs for sockets

Rated Voltage: 230V

Power Supply: AC

Power Consumption Meter: Electricity meter

Power Analyzer: Power Energy Tester

Plug Type: EU UK US AU BR FR

Phase: single phase

Output Voltage: 230v ac

Origin: Mainland China

Operating Temperature: normal

Name: Wattmeter socket

Model Number: Energy meter

Measuring Energy Range: 230VAC/16A/50Hz/3680W(EU)

Max operating current: 19a & under

Max Operating Current: 19A & Under

Function 2: Electric consumption meter

Function 1: voltage indicator 220v

FR Plug: 230V ~ 250V 50Hz

Energy meter: meter electric 220v

EU Plug: 230V ~ 250V 50Hz

Display type: analog and digital

Display Type: Digital Only

Dimensions: 15.50 x 7.00 x 3.50 cm

Digital wattmeter v: Watt meter

Digital wattmeter 220v: Digital wattmeter v

Digital wattmeter: wattmeter 220v

DIY Supplies: ELECTRICAL

Certification: CE,FCC,RoHS

Brand Name: Nashone

BR Plug: 230V / 50Hz

Accuracy class: class 1

Accuracy Class: 0.000KWH/0.01A/0W

AU Plug: 240V/ 50Hz

0utput voltage: 230v







Electricity meter 220v

It's no secret that electricity bills are on the rise. With Nashone power meter you can cut your energy costs and find out what appliances are actually worth keeping plugged in by finding power-wasting appliances. Simply connect any appliance to the Nashone Wattmeter, it will then assess how efficient each appliance really is.

Nashone Power Meter Feature

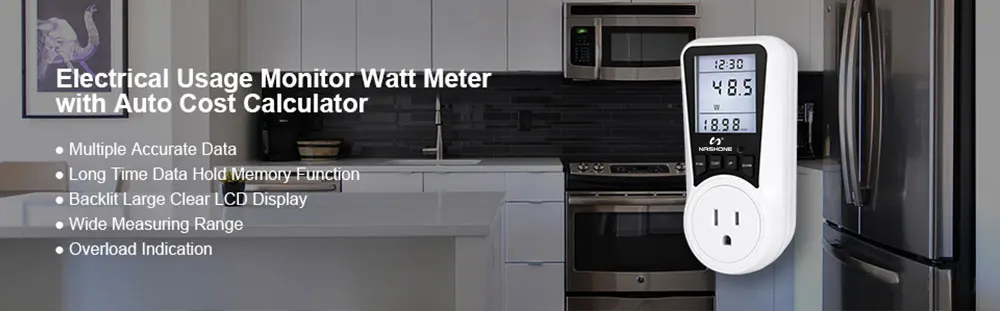

【 Monitoring Electric Usage and Know Cost Intuitively 】 Power consumption meter can measure power (W), volts, amps, frequency, power factor, maximum and minimum power (W), cumulative time and energy (kWh), and calculate cost automatically after price-setting; monitoring home energy usage and help you to save electricity cost
【 Large Clear LCD Display with Backlight 】 Electricity monitor kilowatt meter has a wide view angle and clear-digit display; easy to read and operate the electricity monitor in dark areas with the backlit clear LCD display
【 Long Time Data Hold Memory Function 】 Come with built-in rechargeable battery backup, the watt meter power analyzer can hold data up to 90 days when coming across a power outage or plugging out the meter from the outlet; all data includes the cost setting will go to zero once press the reset button

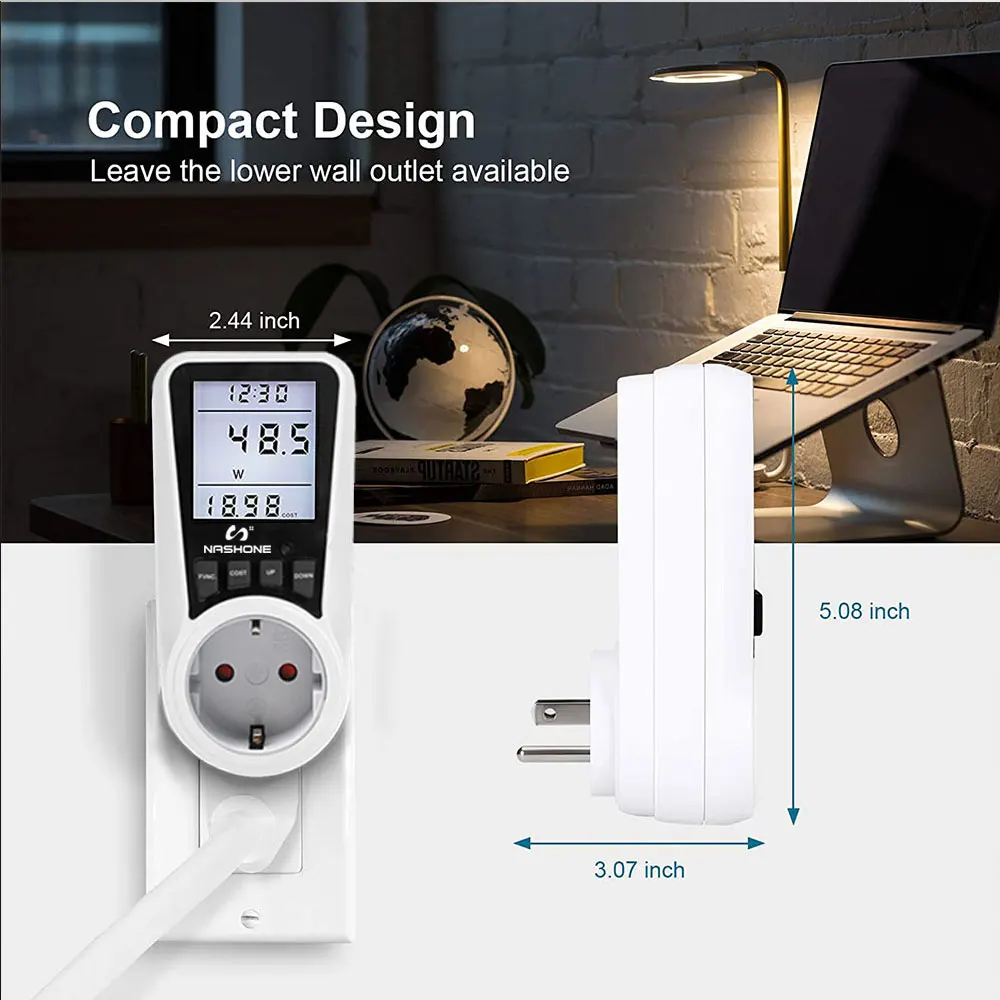

【 Potable and Takes up 1 Outlet Only 】 Compact size; power meter socket plug leaves the lower wall outlet available when plugging into the upper outlet; made of high-quality fire-resistant material; friendly after-sale customer service and 1-year limited warranty; Note: do not compatible with AC inverter and solar power inverter
【 Dual Voltage Wide Measuring Range 】 This power monitor meter can measure 110-130 Vac & 200-240 Vac voltage; 0-16A AMP; 0-3680W wattage, and indicate overload when load up to 3680W; Class 1.0 accuracy standard with 0.1W, 0.1V, 0.001A and 0.001kWh resolution; Note: Label on watt meter back only shows low volt range due to certification requirements

Plug type : EU plug / US plug / UK plug / AU plug/FR plug/(optional)

EU plug type E:  Primarily used in France, Belgium, Poland, Slovakia & Czechia

EU plug type F:  Used almost ererywhere in Europe & Russia, except for the UK  & Ireland

BR plug type E (optional): With both version of the 127V / 60 Hz and 220V / 50 Hz, please double check it before order.



Specifications:

Input Voltage: 250V, 50HZ
Operating Current: 16A
Accuracy Standard: Class 1.0
Power Dissipation: < 0.8W

Questions & Answers

Q1: Can i swivel the display part to show upright if the socket is sideways?
A1: Unfortunately, the display part can't be swiveled, but it has the memory function. The data will stay even if you plug it out.

Q2: Can I use to accurately measure inrush current? Does it register and save such brief spikes in current?
A2: It will display amps or watts and you can see a surge on the display, as say the capacitors charge up in a power supply, or an electric motor draws more power on start up, but it won't store these transient values.

Q3: How do you reset the usage? I don't need to reset the cost Kw/h, just the running totals.
A3: This usage will be reset all, and then you could set the cost again, if you have any problem when reset, please tell us the details, you could send the email to sales02@nashone.cn, we will be surely responsible to this problem.

Q4: Does it for remote by a computer or cell phone?
A4: It does not. If there ahve any question, you also could contact us by email(sales02@nashone.cn), we will reply to you in 24 hours, thanks for purchasing Nashone power meter.

Electrical Power Consumption Meter Socket, Plug in Watt Hour Meter Electricity Energy Usage Monitor

Electricity meter Wide Measuring Display Range

Dual Voltage Range: 110-130 & 200-240 Vac
Frequency: 50 / 60Hz
Wattage: 0.0-3680W
Current: 0.000-16.00A
Overload Indication: 3680W
Time: 0 Second-9999days
Cost Range: 0.00-99.99/KWH
Total KWH: 0.000-9999KWH
Total Cost: 0.00-9999

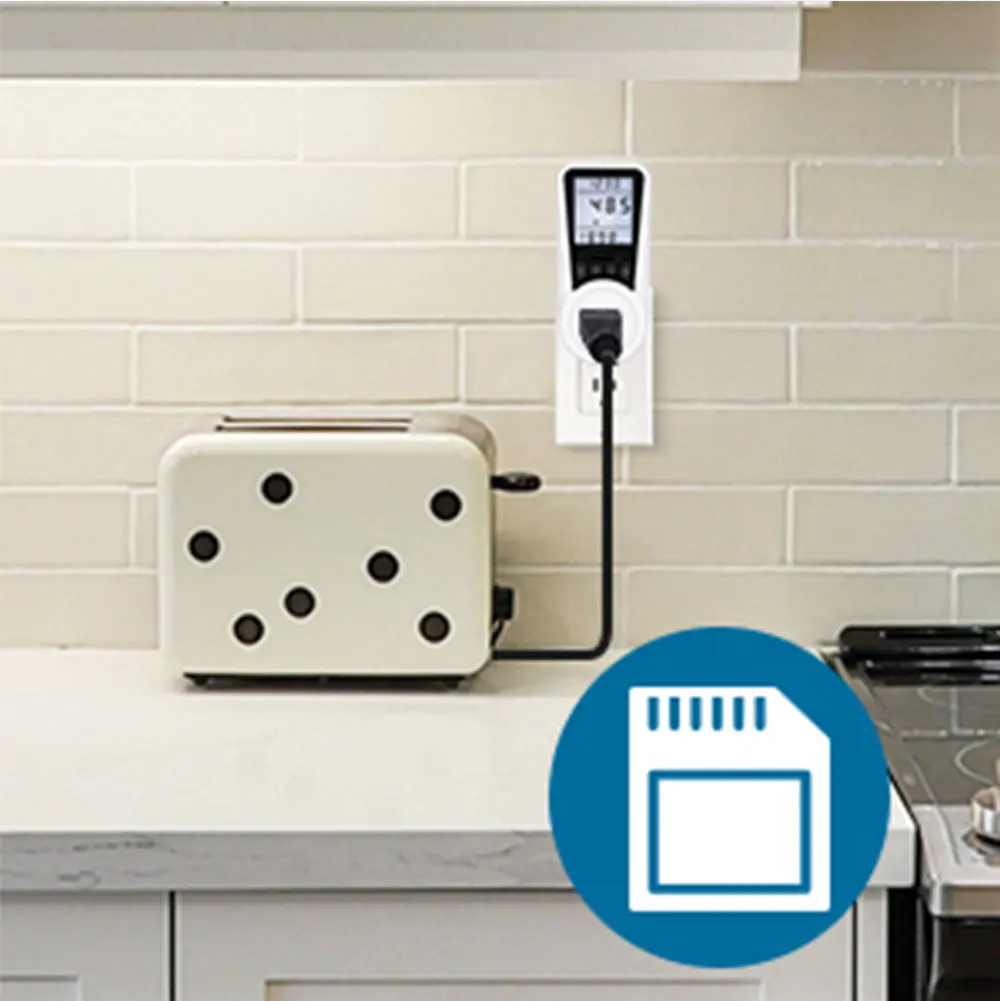

Watt Meter Up to 90 days Long Time Data Hold Memory Function

Electric kilowatt usage meter has a built-in rechargeable battery backup which will hold the data when coming across a power outage or plugging out the meter from the outlet.

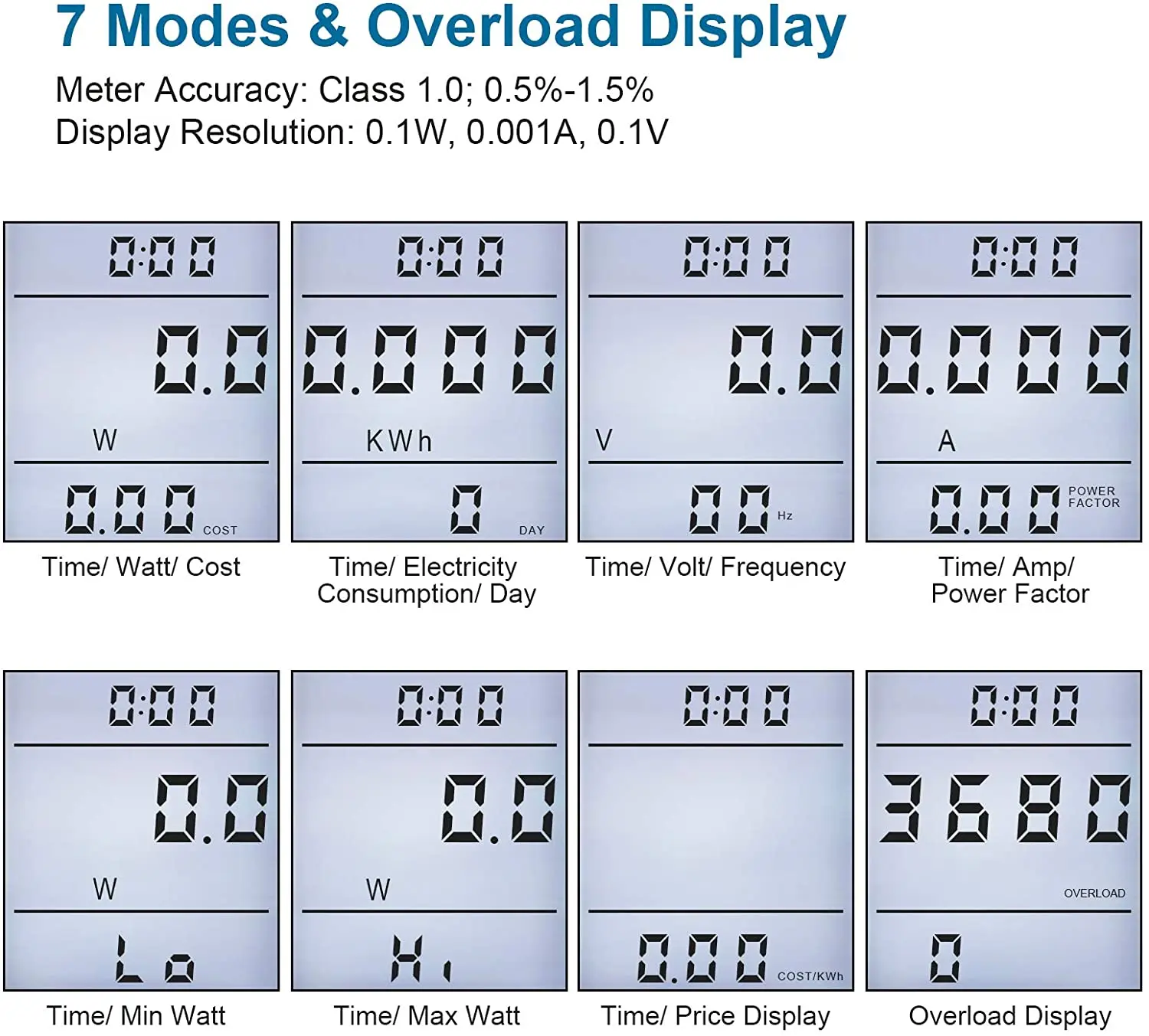

Electricity meter 7 Modes & Overload Display

Mode 1-Time/Watt/Cost display
Mode 2-Time/Cumulative electrical quantity display
Mode 3-Time/Voltage/Frequency display
Mode 4-Time/Current/Power Factor display
Mode 5-Time/Minimum power display
Mode 6-Time/Maximal power display
Mode 7-Time/Price display

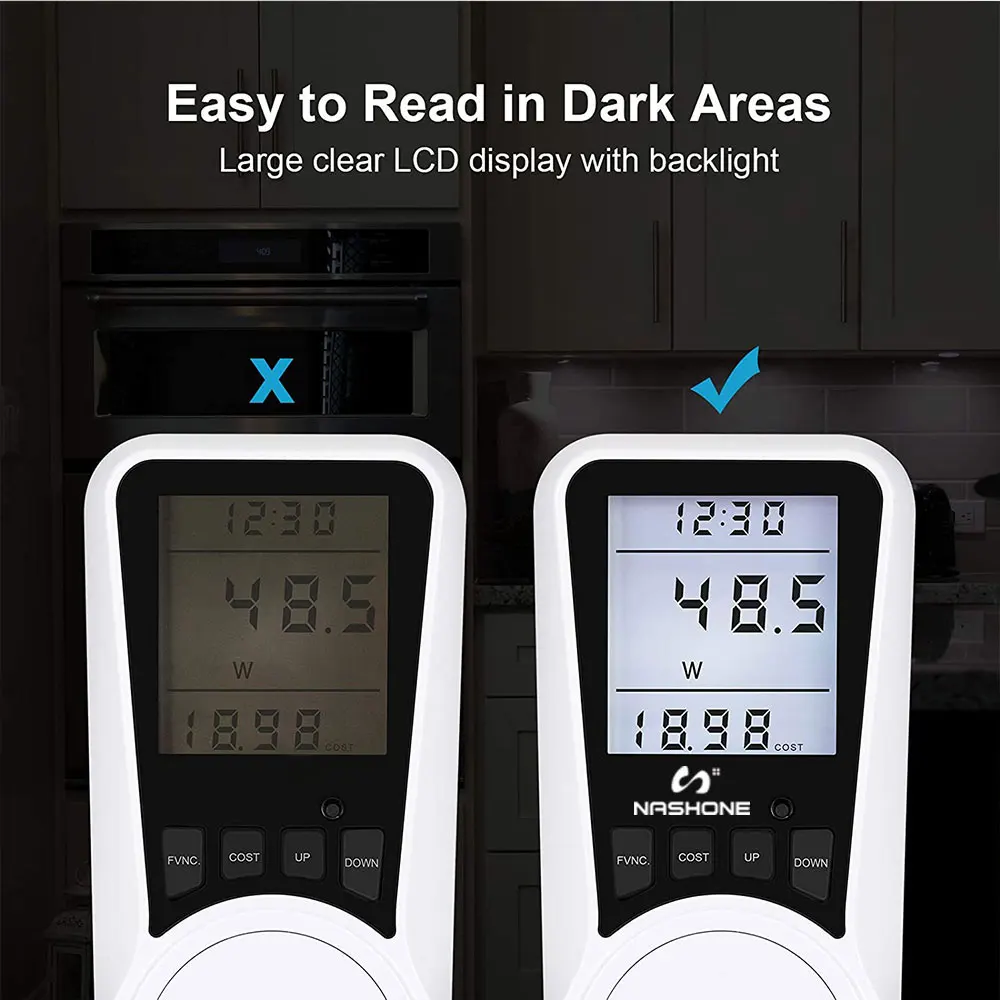

Easy to Read and Operate in Dark Areas

Large clear LCD display with a backlight will lit when connecting to the power.



.





















View full details

Customer Reviews

Based on 19 reviews
100%
(19)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Adelia Hoppe

The seller and the purchase is happy. OtPR
The car was issued on the day of the order. Delivery fast 19 days, via Uzbekistan. The description of the goods corresponds to the declared seller. Thank you.

R
Rashawn Harber

The box is worn out as always. No symbols. The device itself is intact and works.

F
Frank Muller

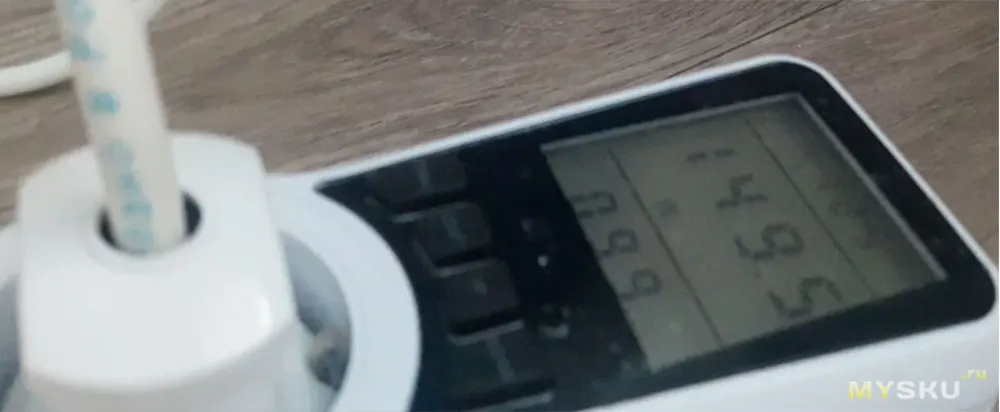

Very nice looks, nice illumination. Connected a small napugu, writes voltaz, Amperas,, consumption in W accumulatively and the cost entered manually. Delivery from the warehouse in Russia is a week.

W
Wyman Runte

Arrived perfectly, in test, brand all right. Thanks China. No fees Mt Brazil

A
Ashton Bosco

Good wattmeter. Strong, compact body. Well readable screen. The testimony is correct. It is easy to estimate the consumption of any el. When repairing equipment is also useful. Delivery is fast, the price is adequate. I recommend the goods and the seller.
