Din Rail 18mm Voltage Meter AC 80-500V 220V 380V Single Three Phase Modular Voltmeter Indicator LED Digital Display Detector

Din Rail 18mm Voltage Meter AC 80-500V 220V 380V Single Three Phase Modular Voltmeter Indicator LED Digital Display Detector

Regular price $12.72 USD
Regular price $0.00 USD Sale price $12.72 USD
Sale Sold out
Shipping calculated at checkout.
Color

This Din Rail Voltage Meter measures AC voltage in the range of 80-500V, applicable for both single and three phase systems. With its compact 18mm design, it can be easily mounted on a DIN rail for convenient installation. The LED digital display provides accurate and easy-to-read voltage readings, making it a reliable detector for various industrial applications.

SPECIFICATIONS

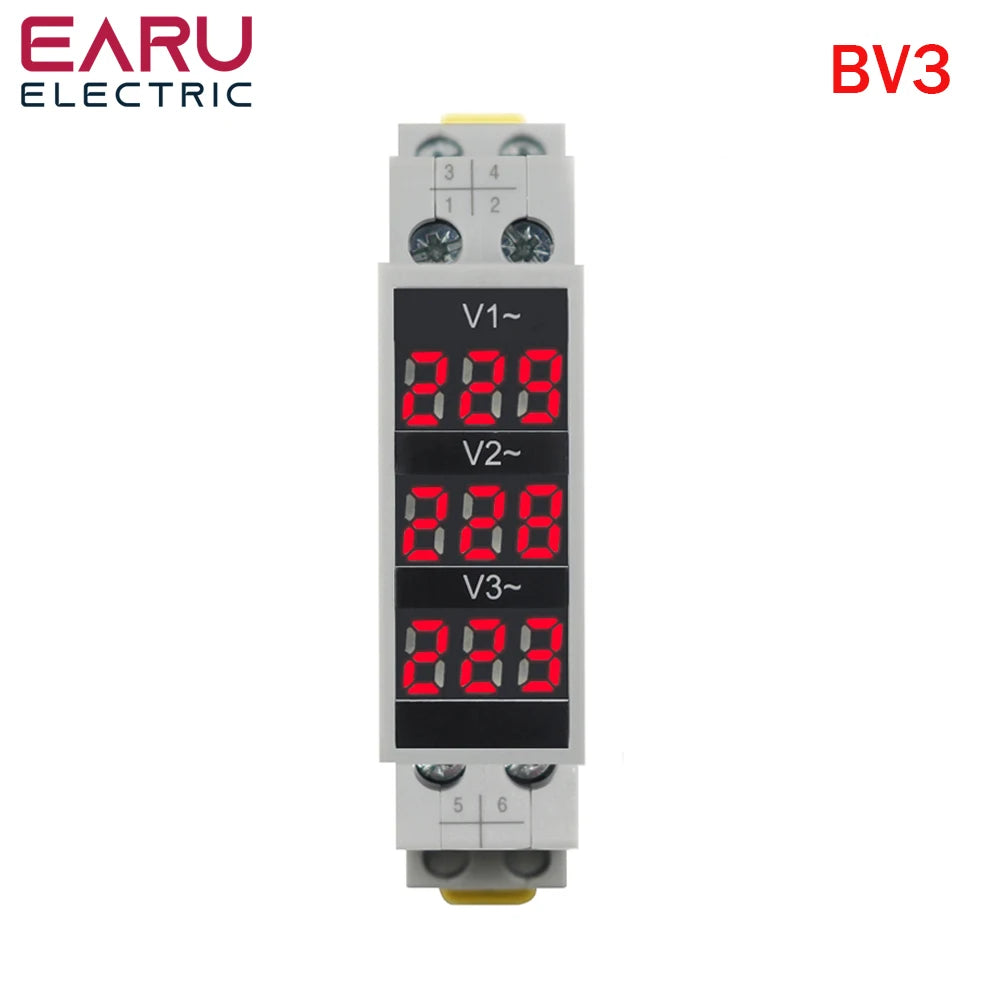

  • Terminal for wiring 1: Three phase 3L+3N
  • Measurement voltage range: AC 80V~500V
  • Rated frequency: 50/60Hz
  • Measuring rate: >200MS/time

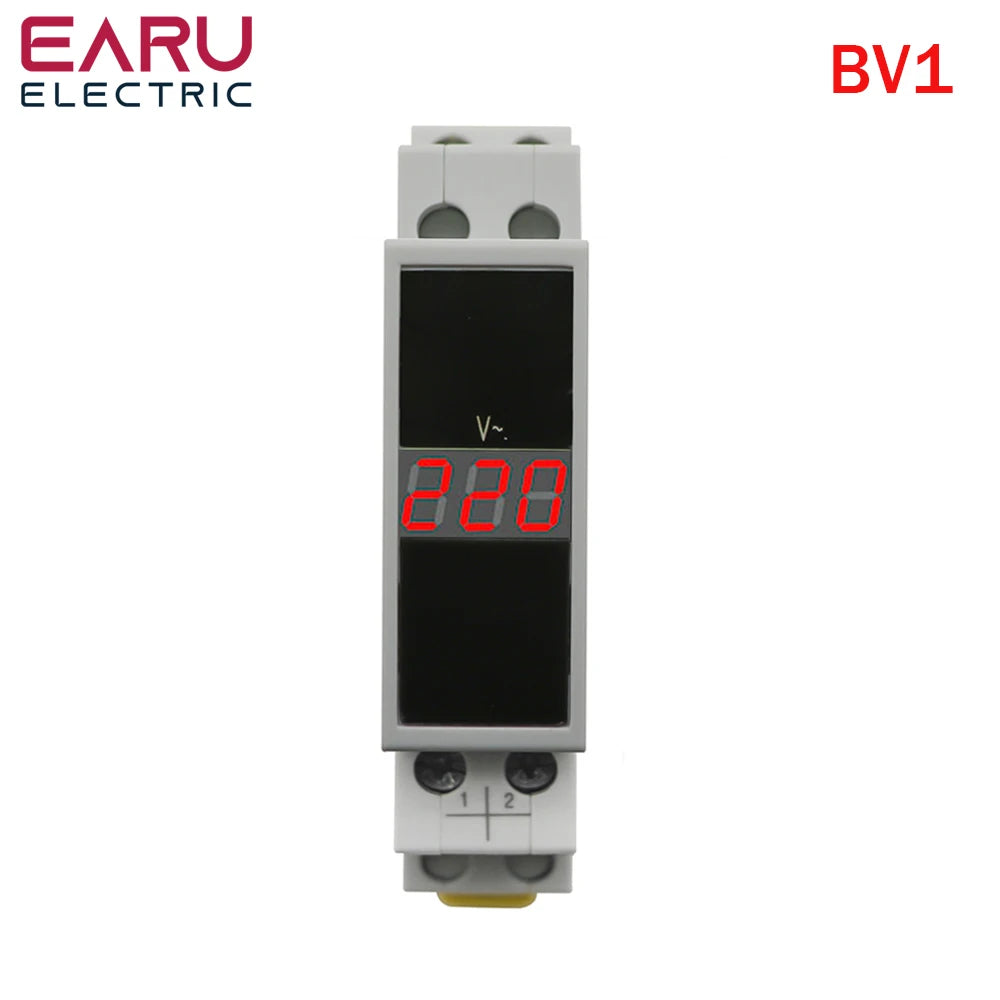

  • Terminal for wiring 2: Single phase 1 L+N
  • Measuring accuracy: 1.0
  • Brand Name: EARUELETRIC
  • AC Voltage: 80V~500V
  • Display Type: Digital display
  • Measuring Inductance Range: AC 80-500V
  • DIY Supplies: ELECTRICAL

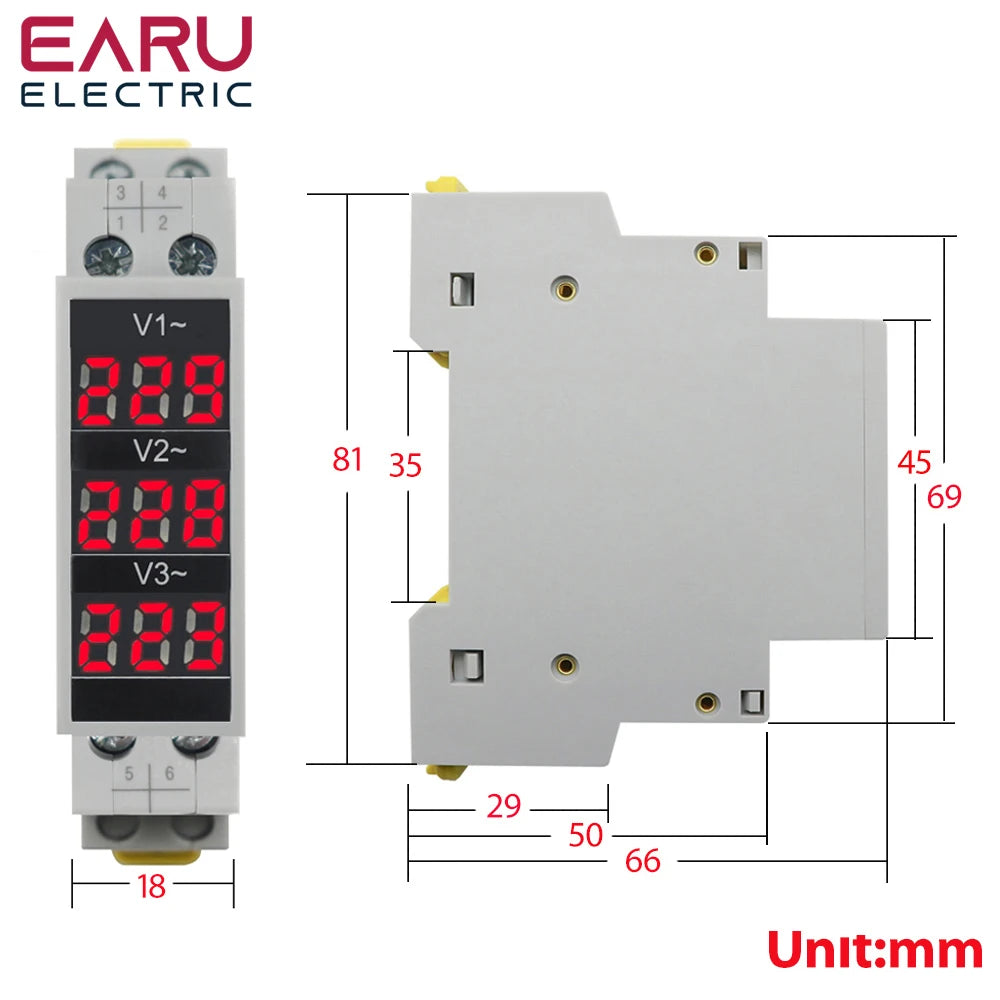

  • Dimensions: 81mm*18mm*66
  • Operating Temperature: 0 - 40 ℃

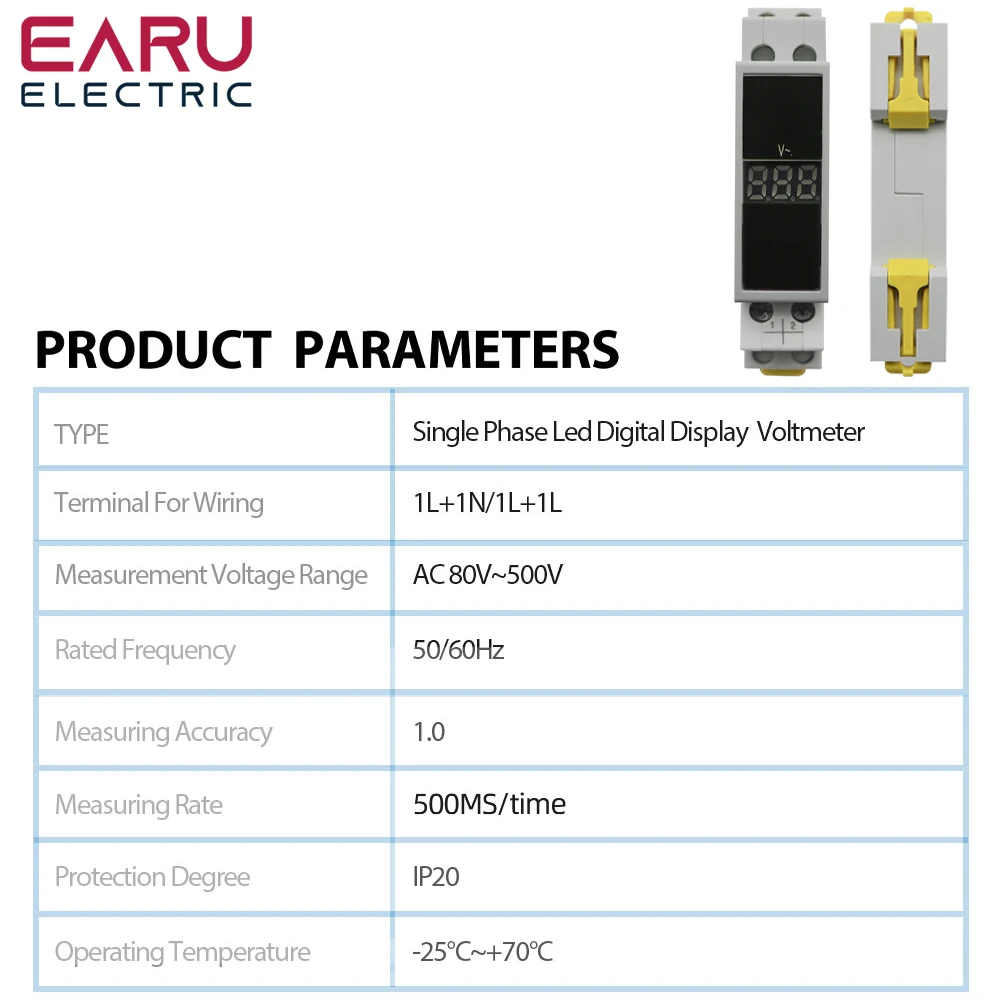

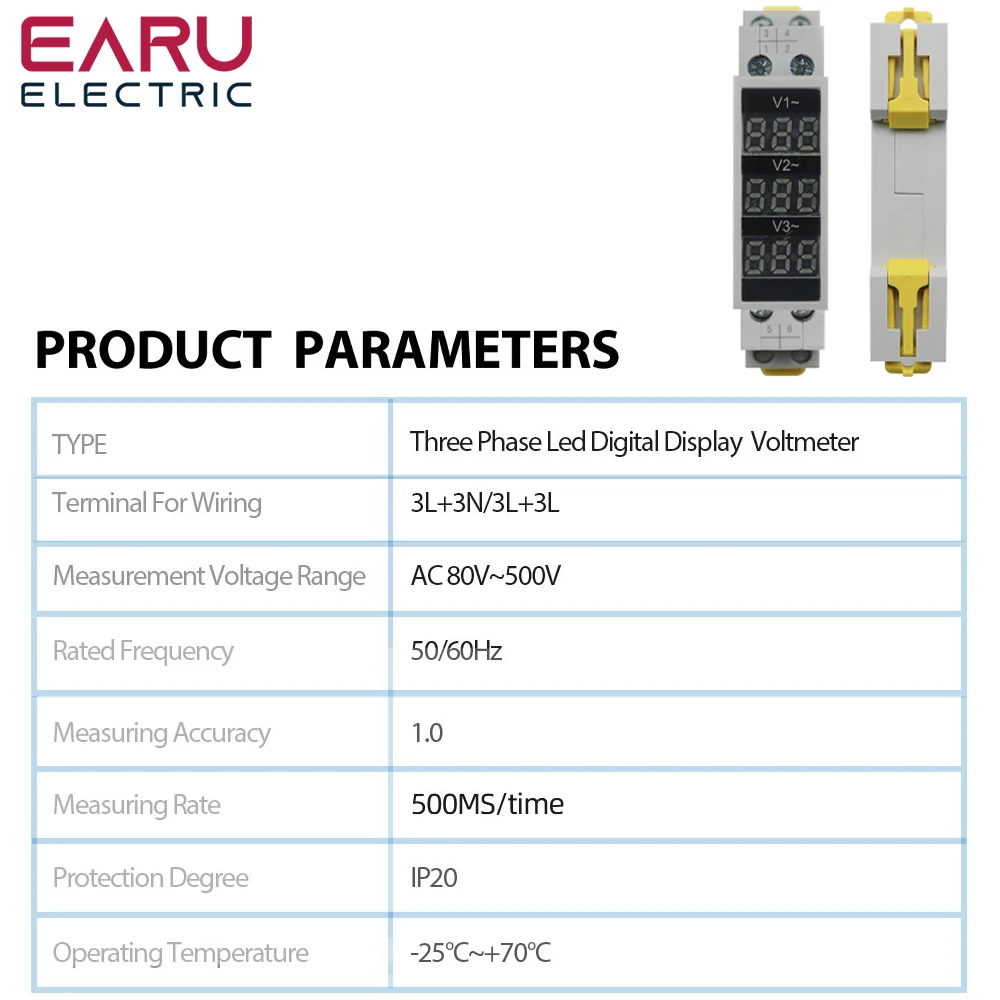

Parameter

  • Type: Voltage Meter

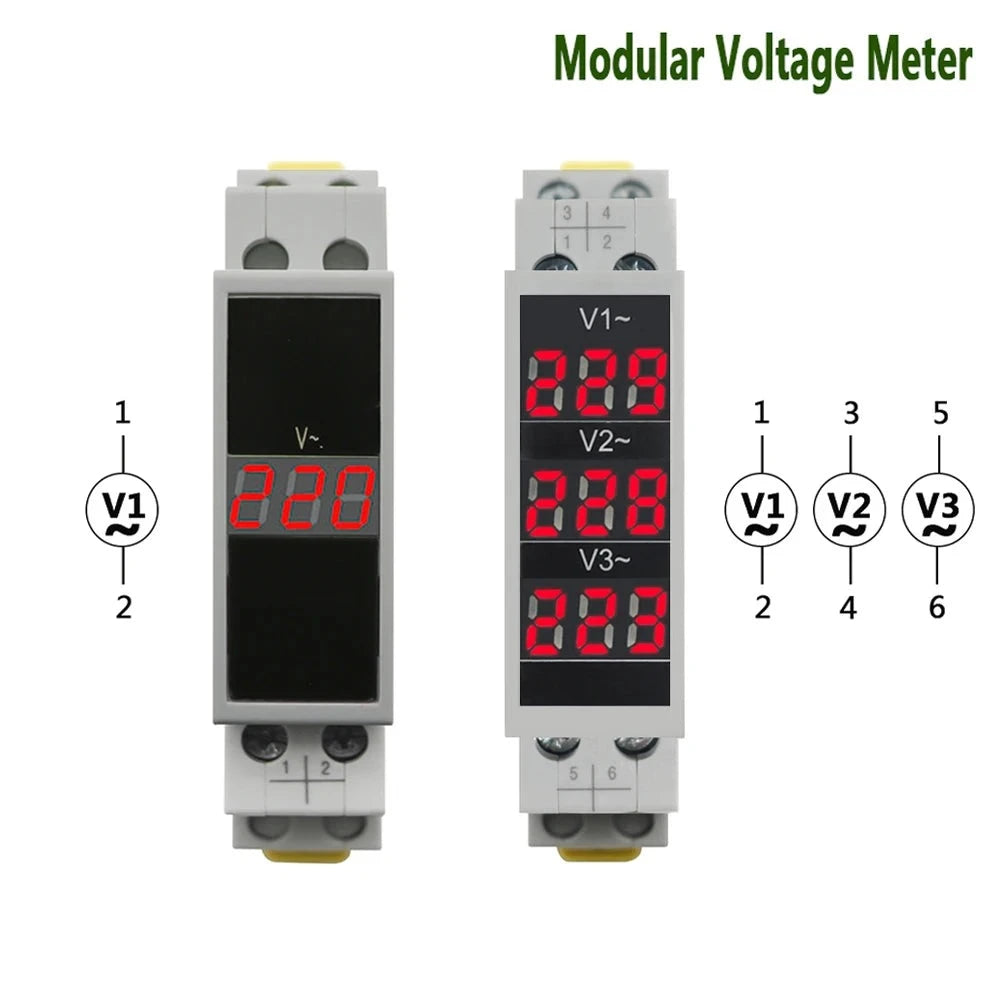

  • Terminal for wiring: L+N/3L+3N
  • Measurement voltage range:AC 80V~500V
  • Measuring accuracy:1%
  • Measuring rate:>200MS/time
  • Protection degree:IP 20
  • Electrical Life:≥15000 hours
  • Working Conditions:temperature(with daily average ≤35℃ ) -5℃~+40℃
  • Storage temperature:-25℃~+70℃
  • Air relative humidity:1-80%(no condensation)
  • Working pressure:80~160Kpa
  • Weight:75g

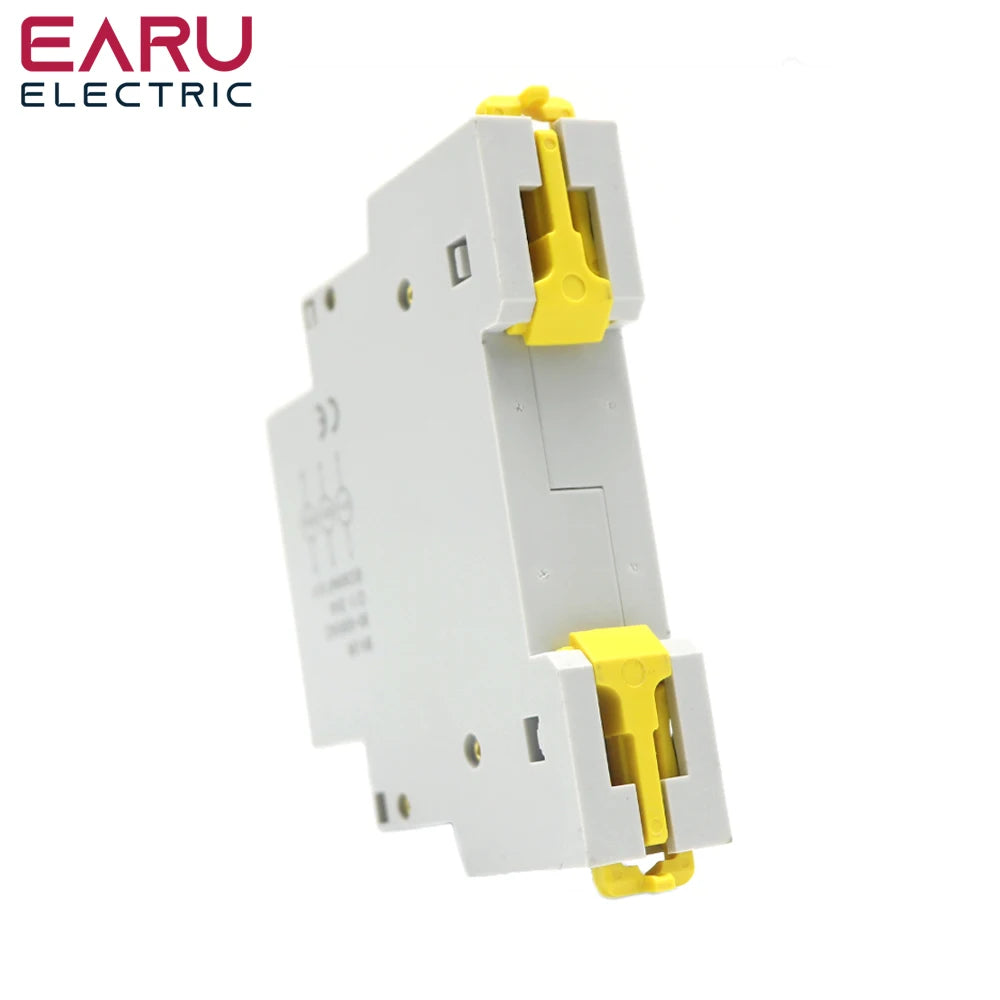

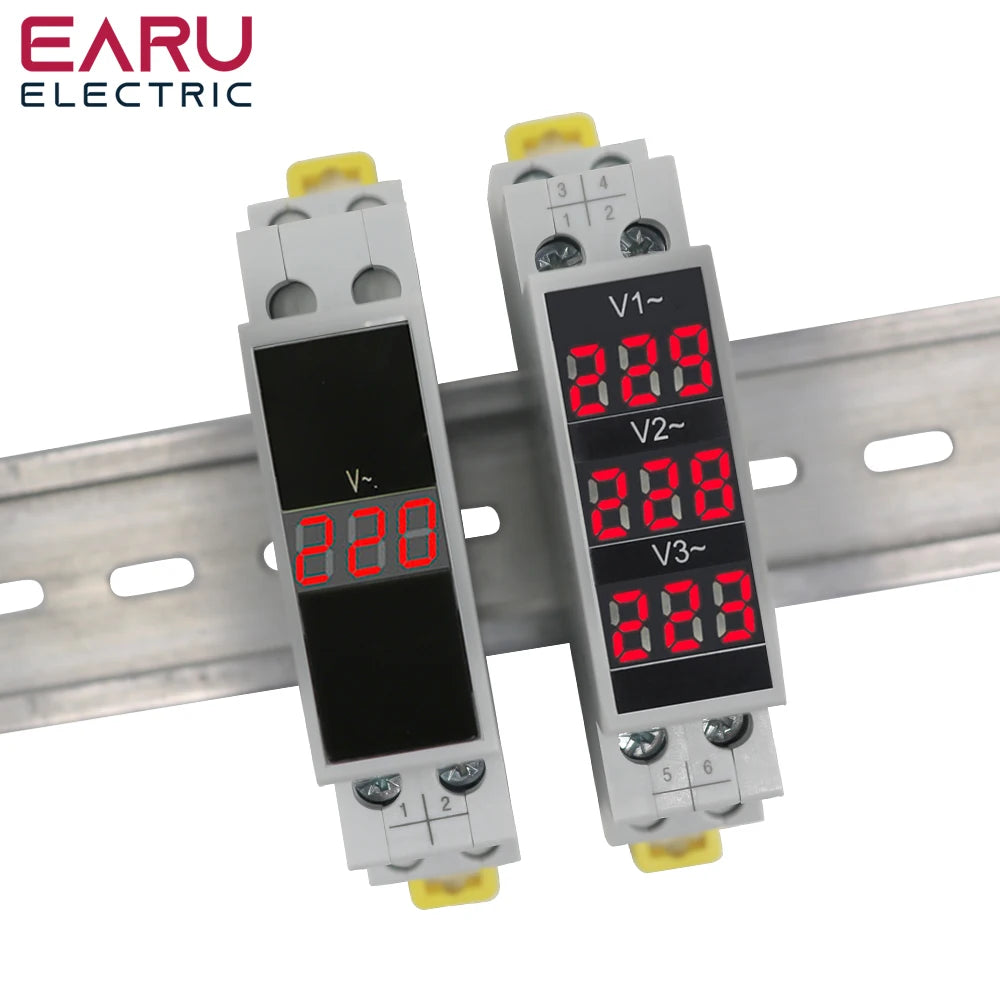

  • Mounting:DIN rail
