Solar Panel 100W Flexible Monocrystalline Flexible Car/Boat High Quality 12V

Solar Panel 100W Flexible Monocrystalline Flexible Car/Boat High Quality 12V

Regular price $168.72 USD
Regular price Sale price $168.72 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color


Specification

  • is_customized: Yes
  • Voc: 22.5V
  • Vmpp: 18.00V
  • Type: Solar Panel
  • Size: 1190x540MM
  • Origin: CN(Origin)
  • Number of Panels: 1
  • Number of Cells: 36
  • Model Number: DFSP-100M
  • Max. Power: 100W
  • Material: ETFE
  • Material: Monocrystalline Silicon
  • I sc: 5.81A
  • I mpp: 5.56A
  • Foldable Solar Panel: No
  • Flexible Solar Panel: Yes
  • Factory Outlet: Yes
  • Certification: CE

Easy to use:

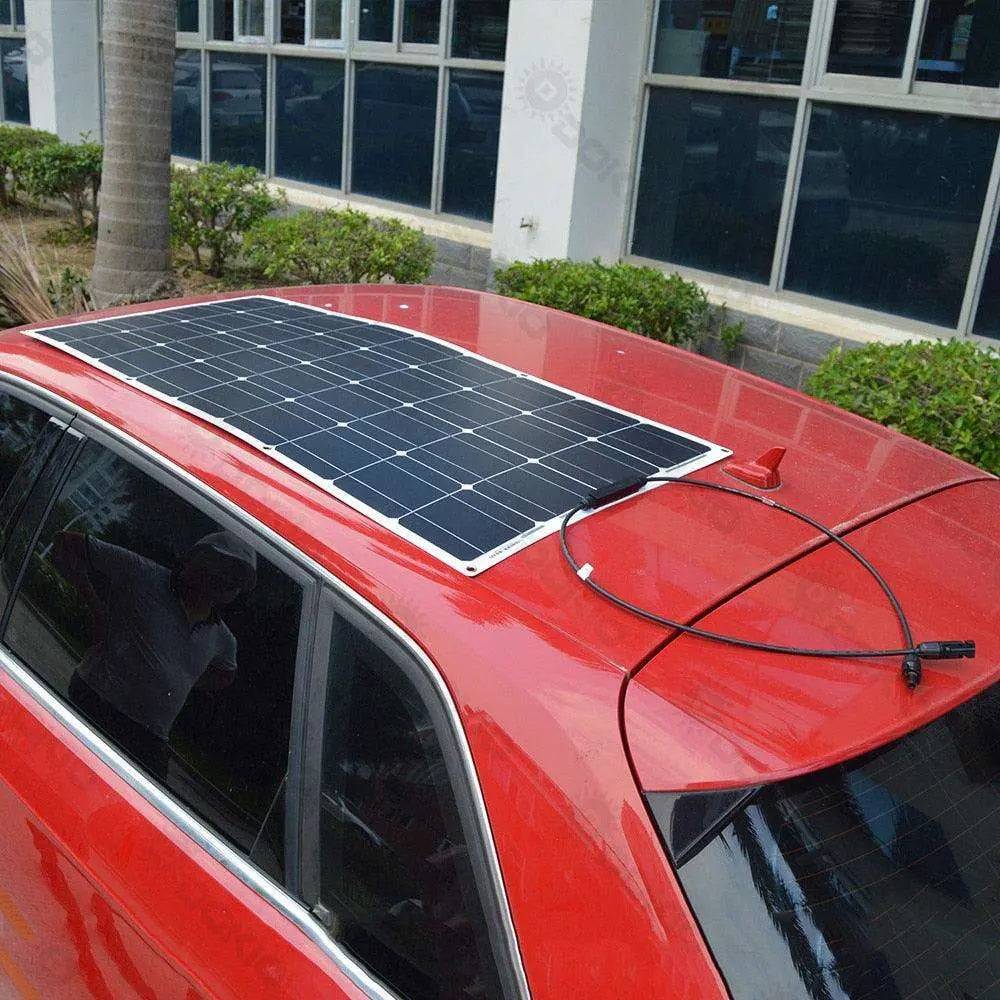

Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.

Light weight:

only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.

Waterproof

The junction box on the back of the solar panel is IP65 rated

Easy to install:

Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times. As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.

PRODUCT DATA

  • Model:18VDFSP-100M
  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp):18.00V
  • Maximum Power Current (Imp):5.56A
  • Open-Circuit Voltage (Voc): 22.50V
  • Short-Circuit Current (Isc):5.81A
  • Maximum System Voltage: DC1000V
  • Maximum Series Fuse:15A
  • Nominal Operating Cell Temp.(NOCT):-45 to 80℃
  • Weight: 1.1KG

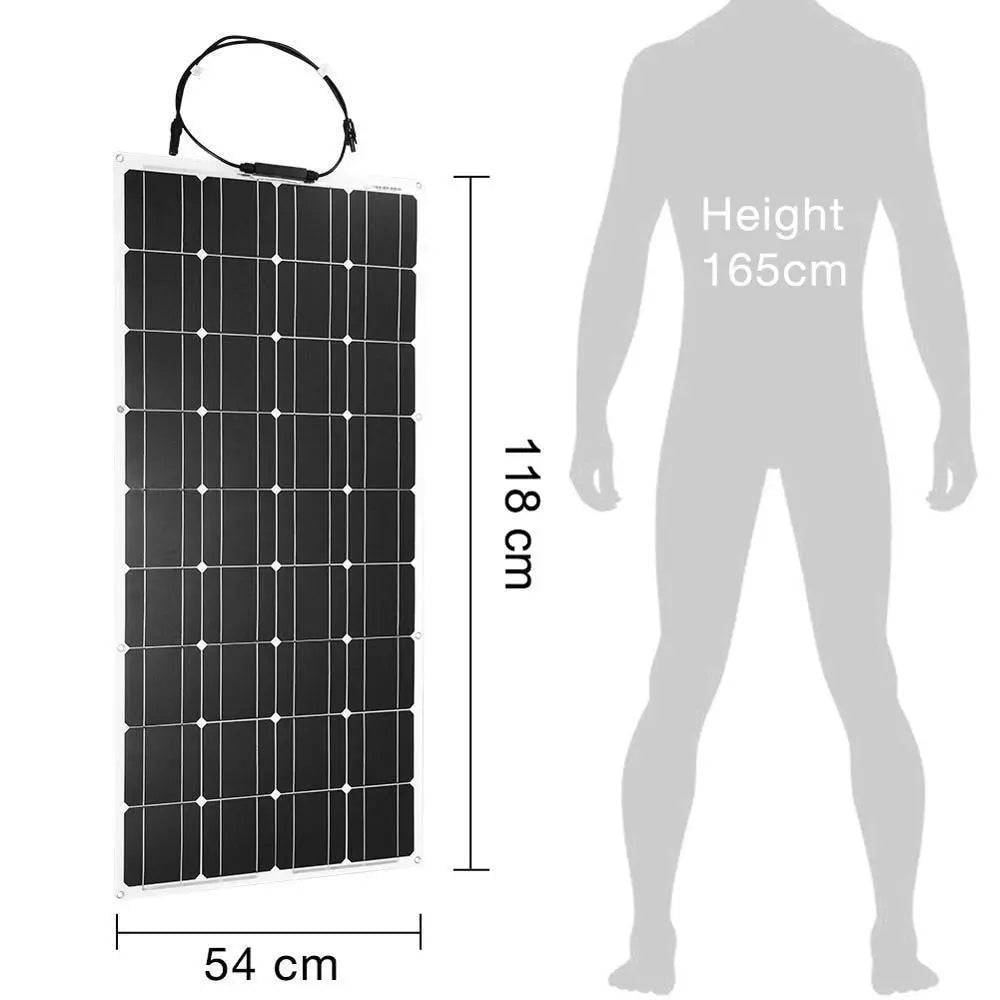

  • Dimensions:1180*540mm

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
