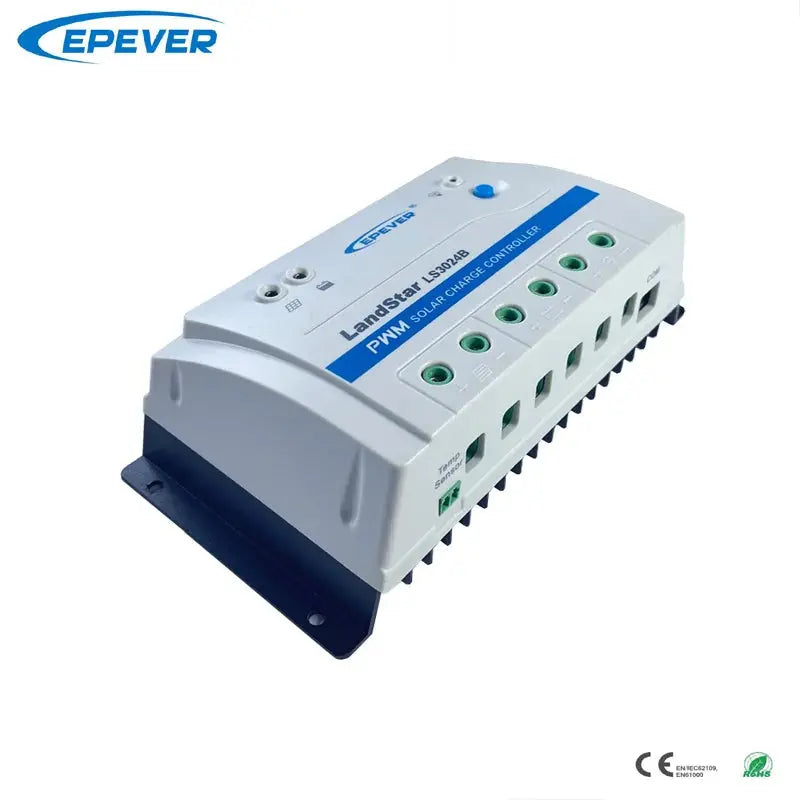

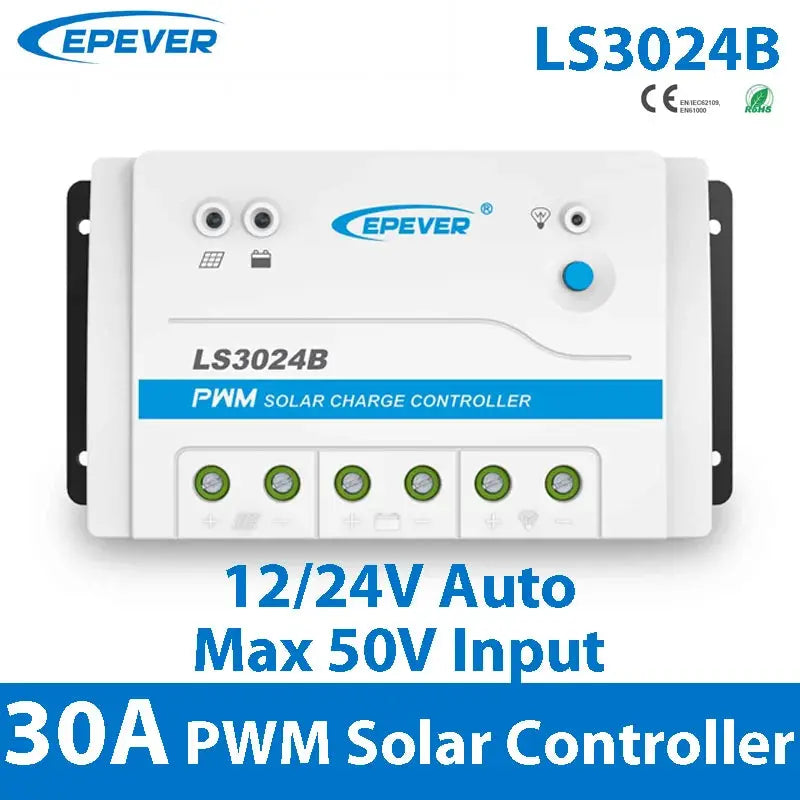

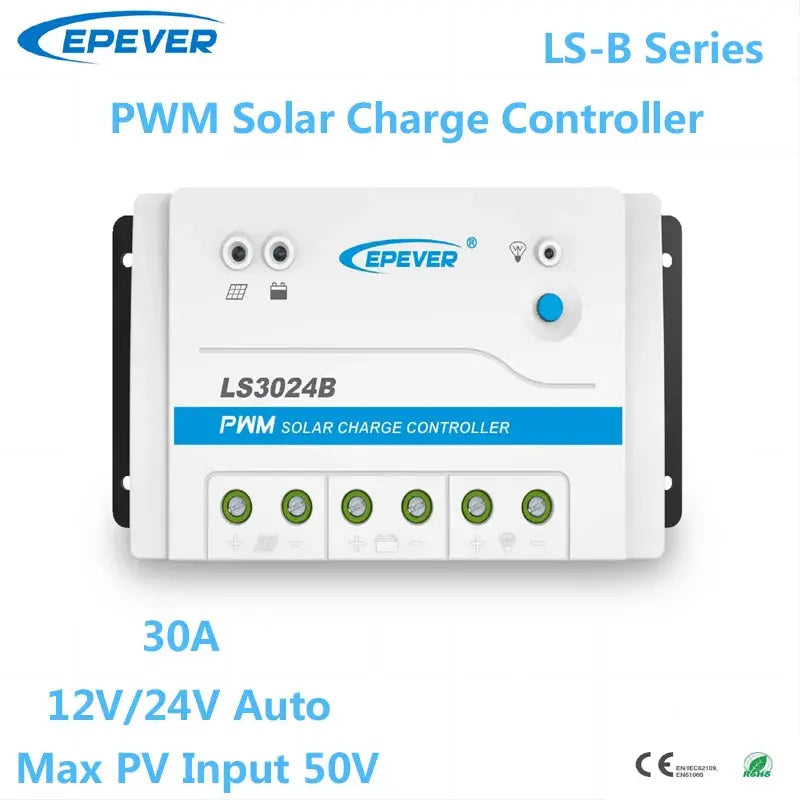

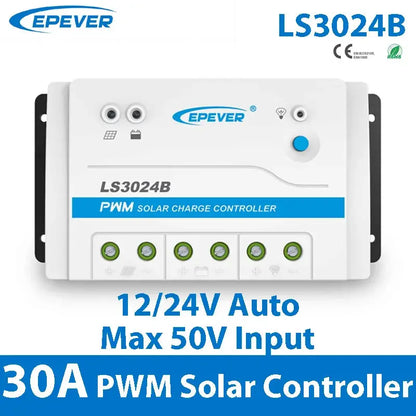

EPEVER 30A PWM Solar Charge Controller 12V 24V Auto LS3024B With RS485 Interface Solar Panel Regulator Accessory Optional

EPEVER 30A PWM Solar Charge Controller 12V 24V Auto LS3024B With RS485 Interface Solar Panel Regulator Accessory Optional

12 total reviews

Regular price $102.08 USD
Regular price $0.00 USD Sale price $102.08 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage|Ships From

SPECIFICATIONS:



  • Maximum Current: 30A
  • Certification: CE
  • Certification: RoHS
  • Application: Charger Controller
  • Application: Lighting Controller
  • Application: Solar System Controller
  • Application: Solar Working Station

EPEVER EPSolar 30A 12V24V PWM Solar Charge Controller RS485 Interface With Accessories Optional LS3024B

Overview:

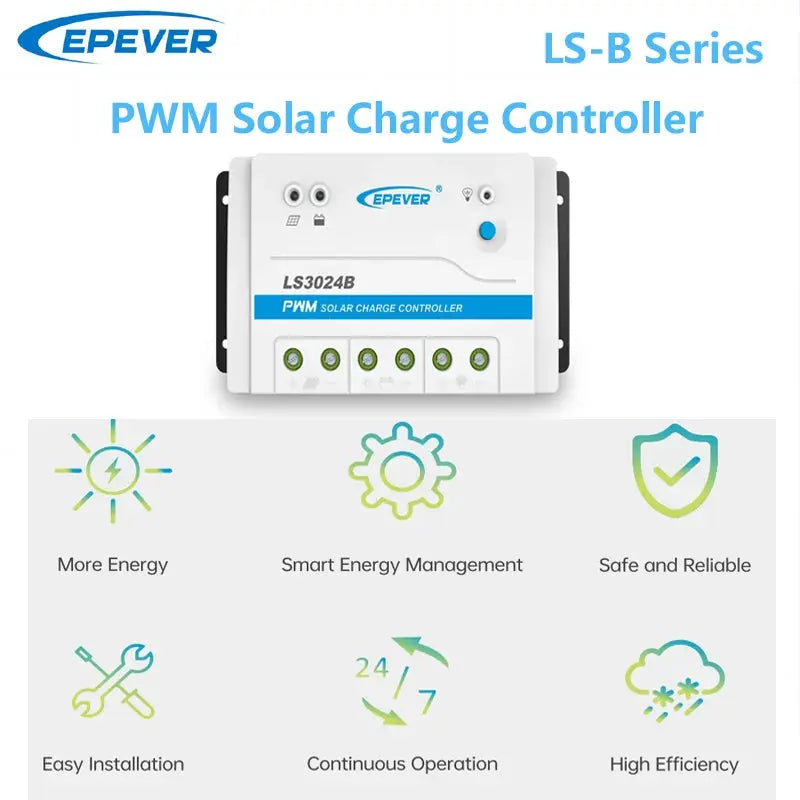

LS-B series is a common positive PWM charge controller. Thanks to the RS485 interface. The parameters can be configured via com. Port, APP, and PC software. It is widely applied to solar home systems, and surveillance system, etc.


Features:

  • Series PWM charging mode

  • Multiple load control modes

  • Full load operation within the working temperature range

  • Extensive electronic protection

  • Variety optional accessories

  • Standard Modbus communication protocol with RS485 interface

Package List:

  • 1 x EPEVER PWM Solar Charge Controller 30A LS3024B

  • 1 x User Manual (English)

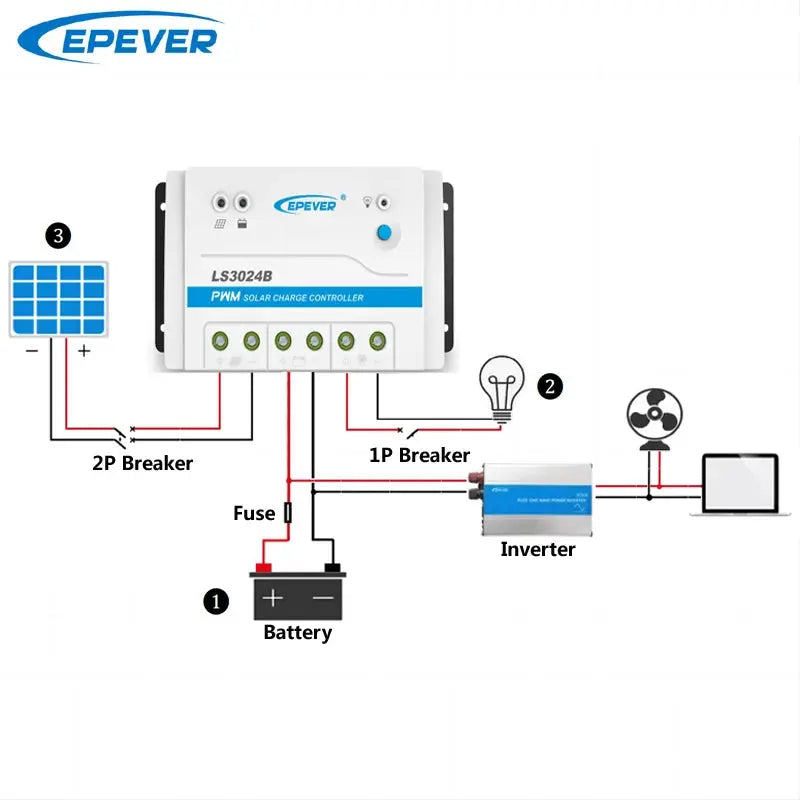

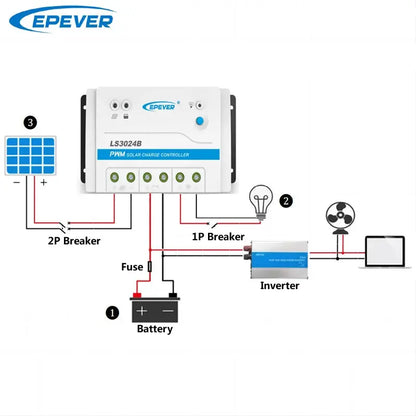

Note: Connect the system in the order of ①battery-②load-③PV array, and disconnect the system in reverse order③②①.


More powerful function via MT50 or PC

  • Diversified load control modes: Manual, Light ON/OFF, Light ON+ Timer, Time Control

  • Battery type option: Gel, Sealed, flooded and USER

  • Real-time monitor

  • Programmable parameters

  • LVD or SOC load disconnect function

  • Rnergy statistic function

PC Software:

Model

LS1024B

LS2024B

LS3024B

Nominal system voltage

12/24VDC/Auto

Battery type

Sealed(Default)/Gel/Flooded/User

Battery input voltage range

8~32V

Rated charge current

10A

20A

30A

Rated discharge current

10A

20A

30A

Max. PV open circuit voltage

50V

Equalization voltage

Sealed:14.6V,Flooded:14.8V,User-defined:9-17V

Boost voltage

Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V

Float voltage

Gel/Sealed/Foolded:13.8V,User-defined:9-17V

Low voltage reconnect voltage

Gel/Sealed/Foolded:12.6V,User-defined:9-17V

Low voltage disconnect voltage

Gel/Sealed/Foolded:11.1V,User-defined:9-17V

Self-consumption

≤8.4mA/12V≤7.8mA/24V

Temperature compensation

-3mV/℃/2V (default)

Relative humidity

≤95%(N.C.)

Enclosure

IP30

Communication interface

RS485(RJ45)

Grounding

Common Positive

Operating temperature range

-30℃~50℃

Dimensions(LxWxH)(mm)

138.6 x 69.3 x 37

159.6 x 81.4 x 47.8

200.6 x 101.3 x 57

Net weight

0.13kg

0.30kg

0.50kg
