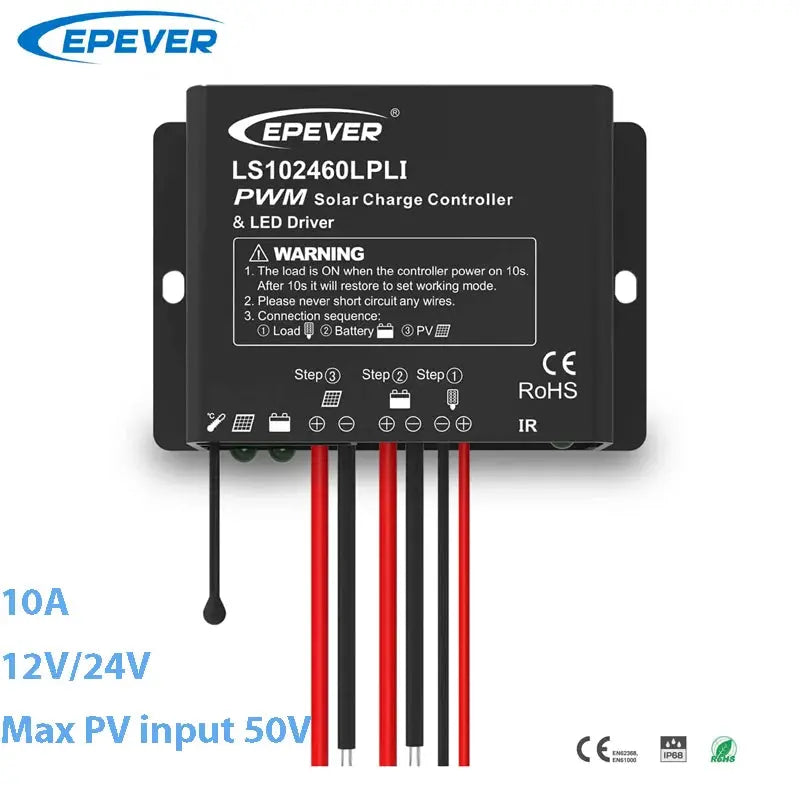

EPEVER PWM Solar Charge Controller Built In LED Constant Current Driver Multiple Load Control Modes For LED Lighting 10A 20A

EPEVER PWM Solar Charge Controller Built In LED Constant Current Driver Multiple Load Control Modes For LED Lighting 10A 20A

10 total reviews

Regular price $67.04 USD
Regular price $0.00 USD Sale price $67.04 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS:

  • Maximum Current: 10A;20A
  • Certification: CE
  • Certification: RoHS
  • Application: Charger Controller
  • Application: Lighting Controller
  • Application: Solar System Controller
  • Application: Solar Working Station

Solar charge controller with built-in LED Driver Applications to LED indoor and outdoor lighting, road lighting, landscape lighting, billboard lighting

Overview:

The LS-LPLI series controller combines the solar charge controller and LED constant current driver in one unit. It is ideal for solar LED lighting, especially for the LED lamp application, which requires dimmer function. The advanced pulse width modulation chartging methods enables system charging and diacharging management to obtain the most radical optimization. Make the system cost reduce and increase system flexibility.

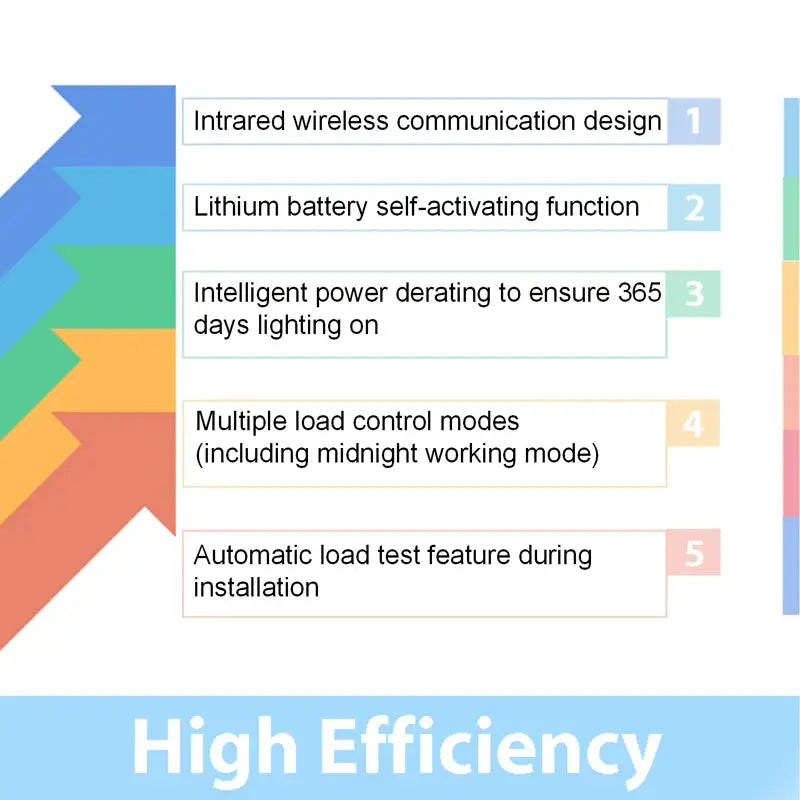

Features:

  • Support lead-acid and lithium-ion batteries

  • Lithium battery self-activating function

  • PWM charging mode

  • Infrared wireless communication design

  • Intelligent power mode with 365-day lighting control technology

  • Multiple load control modes (including midnight working mode)

  • Automatic load test feature during installation

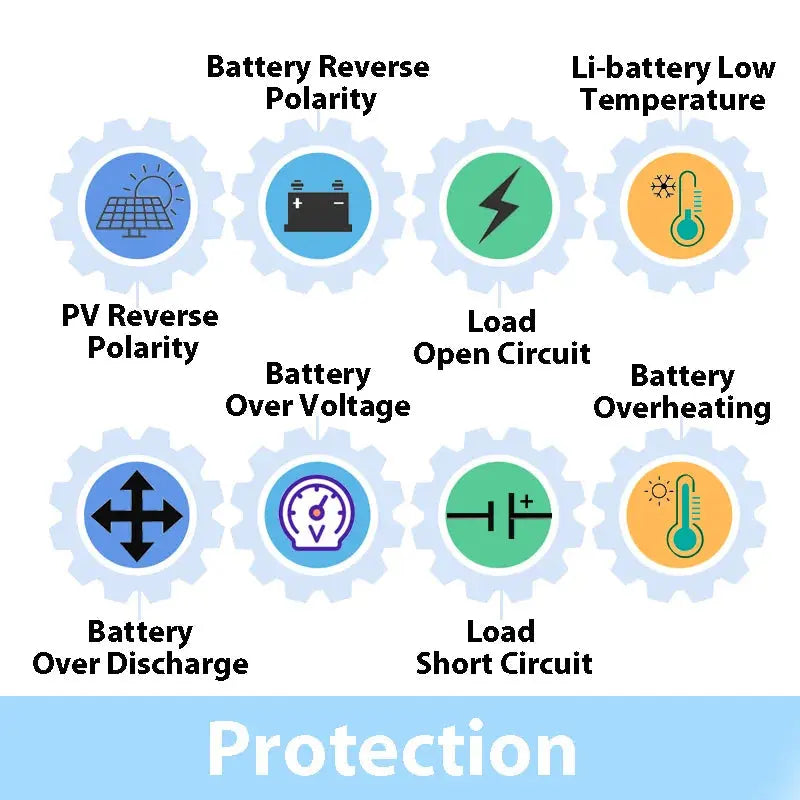

  • Extensive electronic protection

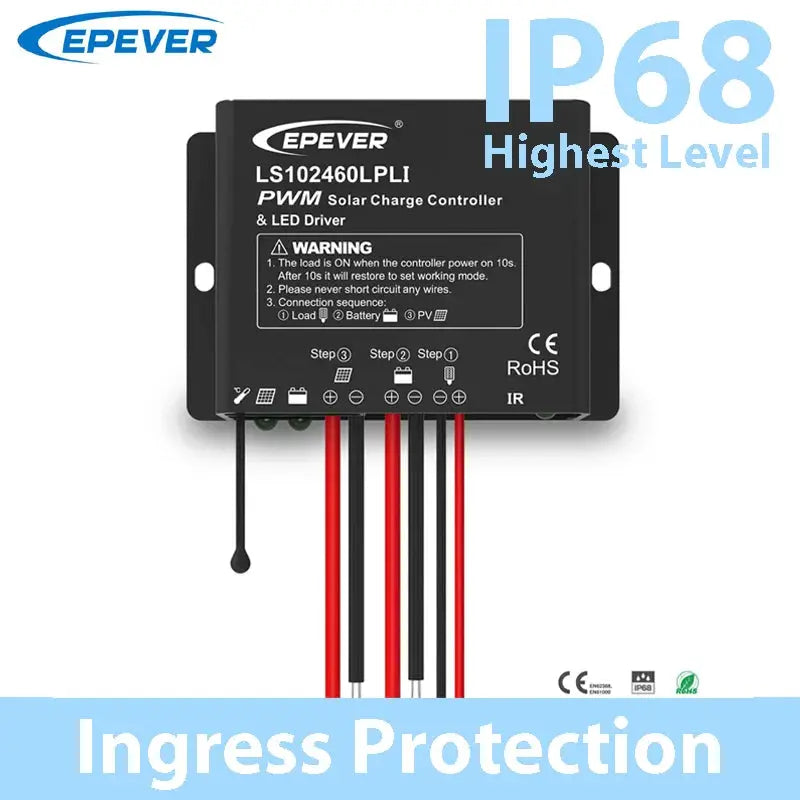

  • Fully encapsulated PCB, IP68 protection class (1.5meters, 72h)

  • Discharging power calculation and real-time energy statistics recording function

  • Aluminum housing for better cooling

  • Without any button, parameter setting via RC-10 and FC-01 with IR function (optional)

  • Configurable multiple load control modes, LED rated current, and the current percentage

  • Digital precision constant current control and the control accurancy are less than ±2%

  • Maximum output efficiency of 96%

*If the temperature sensor connection is short-circuited or open-circuit, the controller charges or discharges the battery at 25℃ and no temperature compensation.

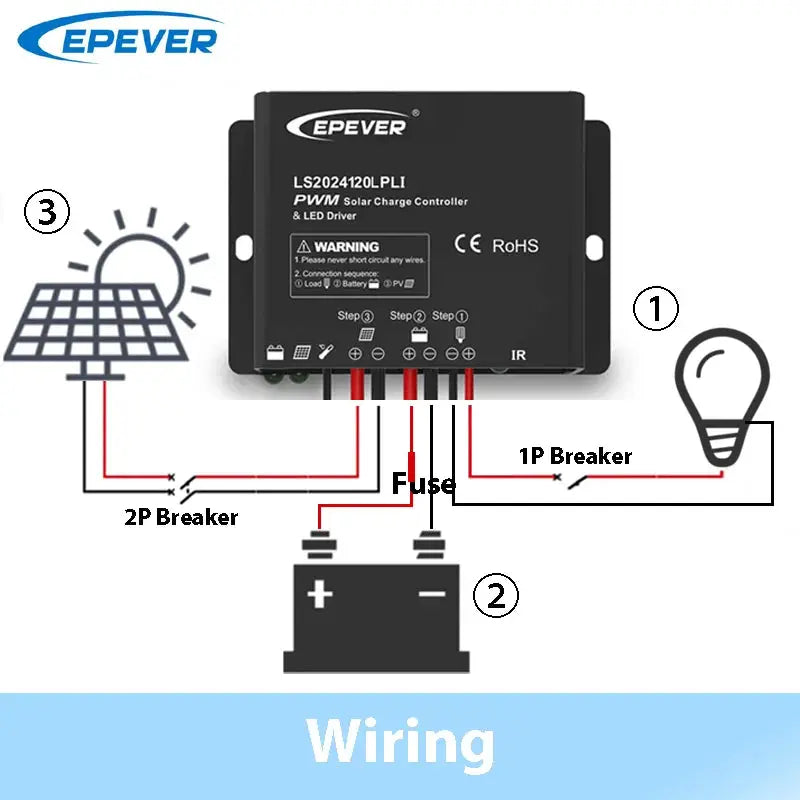

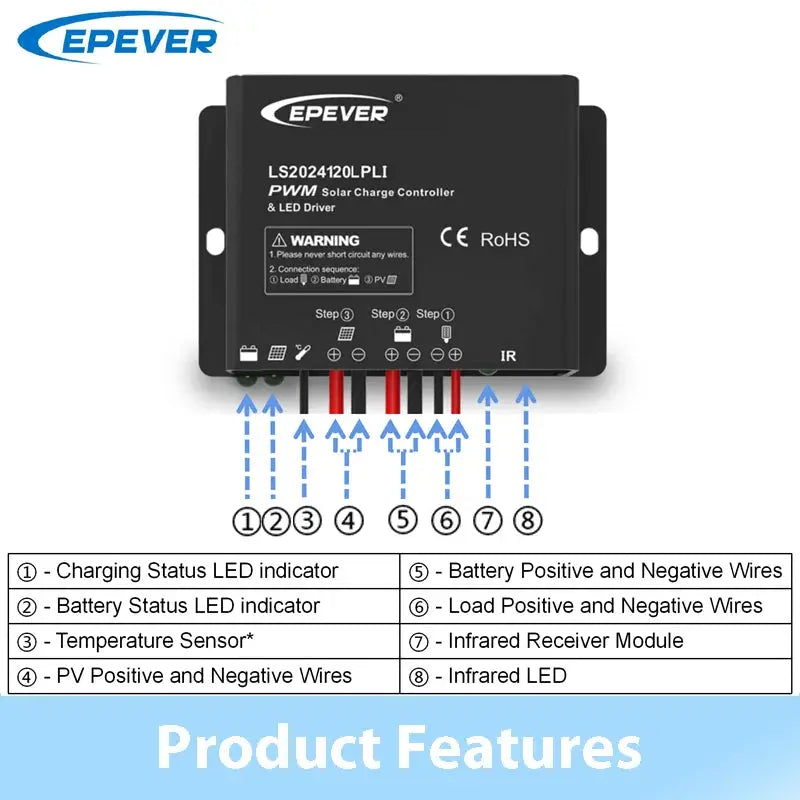

Wiring:



  • Connection order

  1. Connect components to the charge controller in the sequence as shown above and pay
    much attention to the “+” and “-”. Please don’t insert the fuse or turn on the breaker during
    the installation. When disconnecting the system, the order will be reversed.

  2. After power on the controller, check the battery LED indicator on the controller, it will be
    on solid green.

  3. Connecting a fuse in series through battery positive (+) in the circuit and the battery
    circuit fuse must be 1.25 to 2 times to the rated current. The installed distance is within
    150mm.

  • Load self-test function

The load is ON when the controller power on 10seconds. After 10 seconds it will restore to
set working mode.


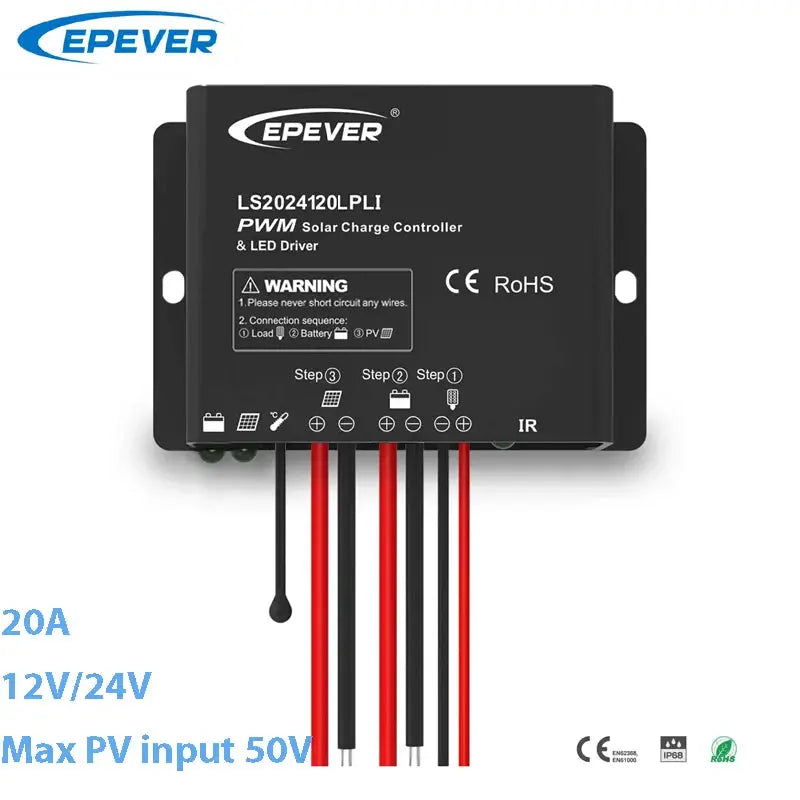

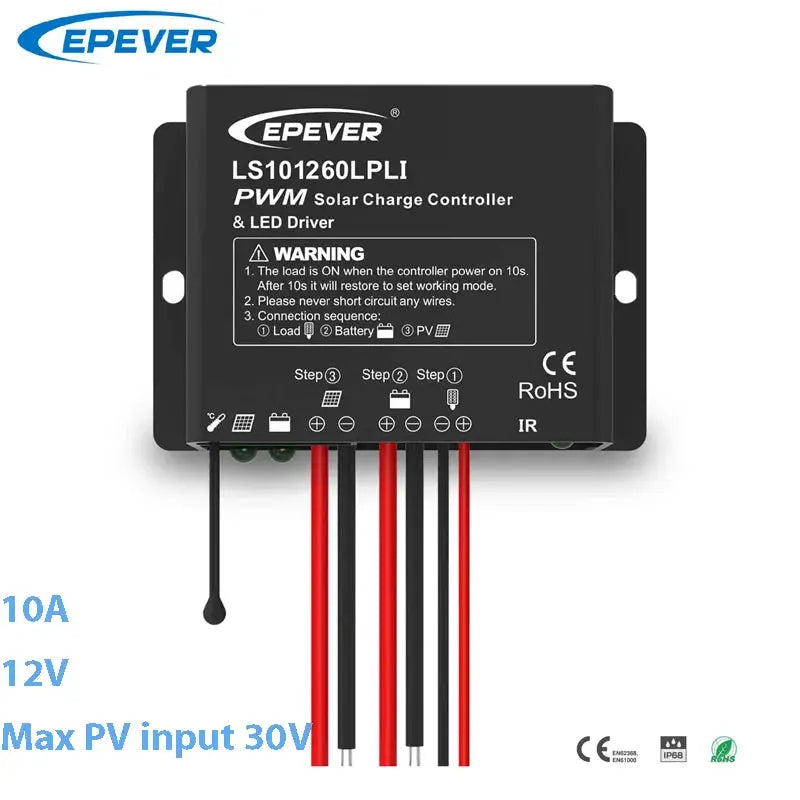

Technical Specifications:


Model

LS101260LPLI

LS102460LPLI

LS2024120LPLI

Nominal system voltage

12VDC

12/24VDC

Battery type

Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User

Battery input voltage range

9V~16V

9V~32V

Rated charge current

10A

10A

20A

Max. output power

60W

30W/12V
60W/24V

60W/12V
120W/24V

Max. PV open circuit voltage

30V

50V

Max. output current

4.0A

2.0A

4.0A

Output voltage range

(Max. Battery Voltage +2V)~60V

Maximum output efficiency

96%

Ouput current control accuracy

≤2%

Equalization voltage

Sealed:14.6V,Flooded:14.8V,User-defined:9-17V

Boost voltage

Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V

Float voltage

Gel/Sealed/Foolded:13.8V,User-defined:9-17V

Low voltage reconnect voltage

Gel/Sealed/Foolded:12.6V,User-defined:9-17V

Low voltage disconnect voltage

Gel/Sealed/Foolded:11.1V,User-defined:9-17V

Self-consumption

≤18mA(12V);≤23mA(24V)

Enclosure

IP68(1.5m, 72h)

Communication interface

IR

Operating temperature range

-40℃~+55℃

Dimensions(L*H*W)(mm)

87*63*24.8

108.5*88*25.6

Net Weight

0.21kg

0.40kg


Package List:

  • 1 x LS-LPLI series controller


Setting Operation (Optional Accessory):


Note: The following accessories are not included in controller box, you could check and purchase accessories separately.



2.4G remote controller is an accessory which is compatible with the road solar controller. The function is to set the system voltage, battery type,control parameters, working time and current of LED lamp, etc, and viw the working status of system and load test function. The main features are:

  • Setting parameter via 2.4G wireless communication

  • 2.4G and IR communication mode

  • One-key parameter sending, one-to-one setting

  • Compatible with road solar controller

  • Dot matrix LCD display

  • Load test mode, detection system connection timely
