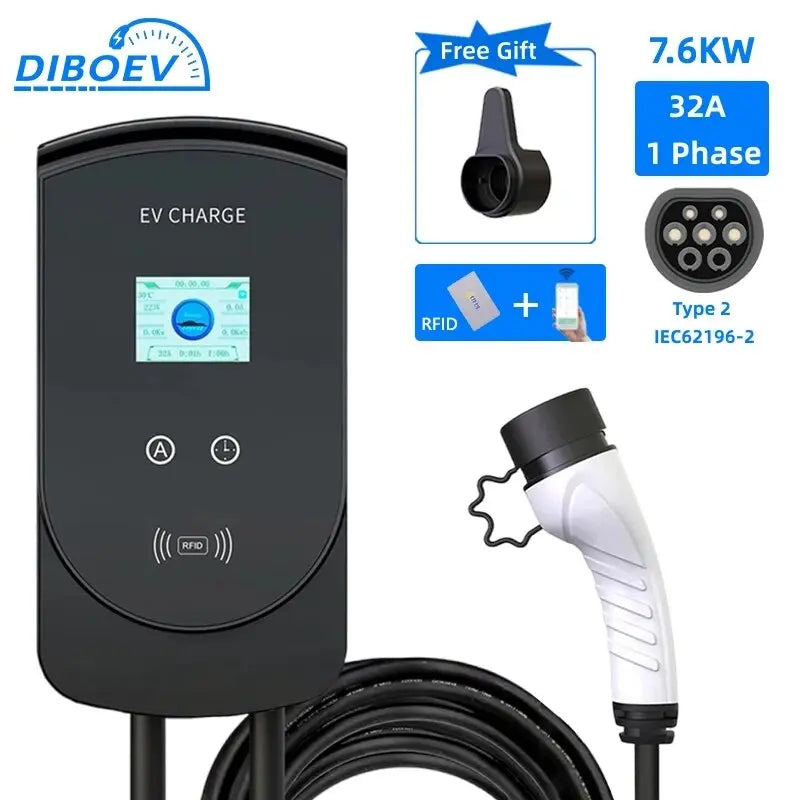

EV Charger 32A 7.6KW Electric Vehicle Car Charger EVSE Wallbox 3Phase 22KW 11KW Type2 Cable IEC62196-2 Socket APP Control

"U" shape design concept version for Type2 EV Wallbox

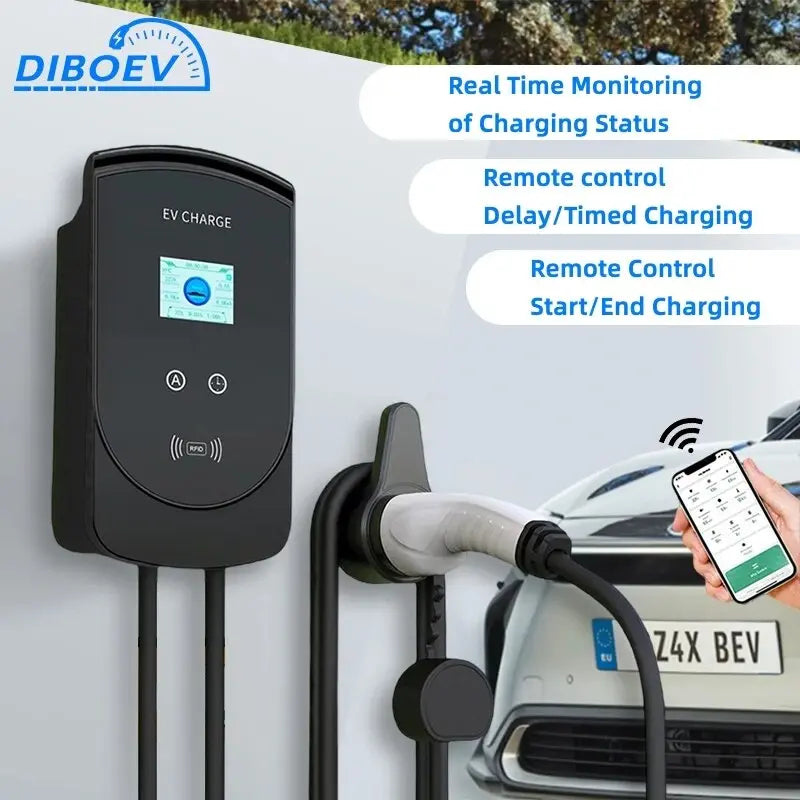

1、Remote control: via the app, you can control the wallbox/charging station in the easiest and most effective way, e.g. monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.

2、Large screen and high compatibility: LCD screen showing charging current, charging voltage and temperature. The charging station also has a 5m charging cable and is equipped with a Type 2 plug (IEC62196-2). The screws are inserted into the box, so you don't have to worry about the screen falling off. The 5 metre long cable leaves enough space between your car and the charging station.

3、Easy installation: Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use thanks to IP55 certification (garage, carport). It is compatible with all household installations and with electric vehicles available on the market and plug-in hybrids with type 2 plug the maximum power for your car and achieve more efficient consumption.

4、Weather and heat resistant: The connectors on both ends of the cable has achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed, avoiding safety risk. The protection class IP55 protects against dust, rain and wind, thus guarantees safe long-term outdoor charging.

5、Support APP wireless connection, mobile phone remote control.

Features

1.Charging plug meet IEC 62196-2 standard.

2.Control box meet IEC 61851 control principle.

3.Excellent protection performance,protection grade IP55-Working condition.

4.Operating temperature:-30℃ to 55℃.

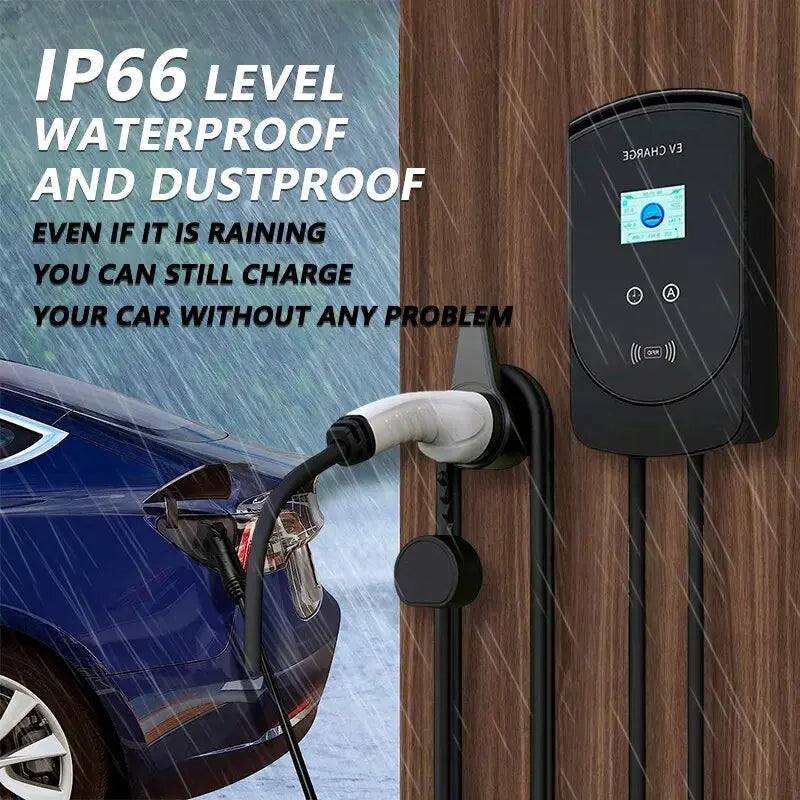

5. Protection level: IP66.

6. Number of phases: 1-phase/ 3- phase.

7. Contact bush: copper alloy, silver plating.

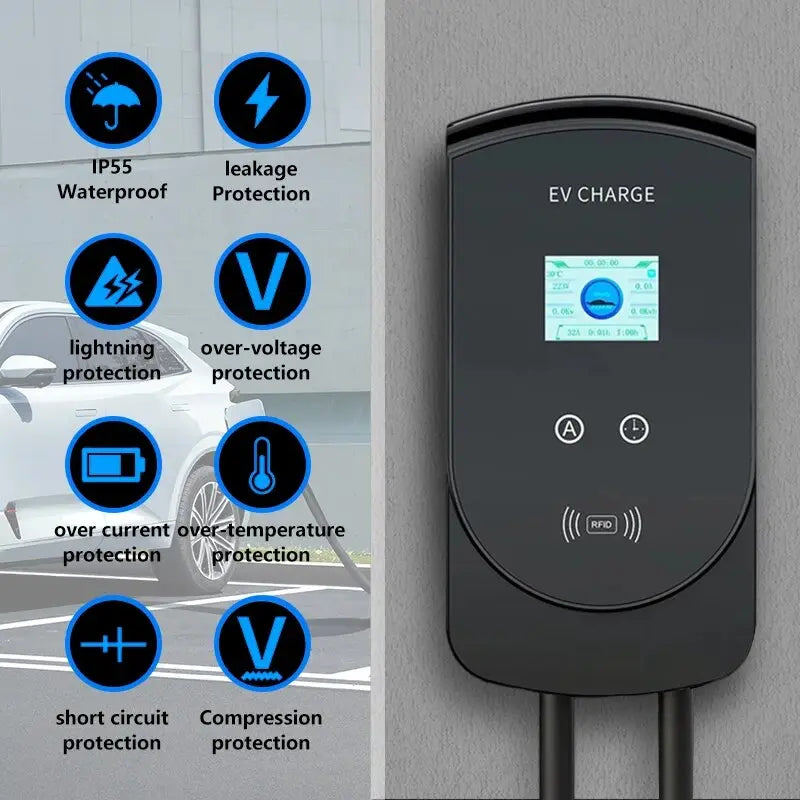

Control Box Function

1.Leakage protection (restart recover).

2.Over voltage under-voltage protection (self-checking recover).

3.Lightning protection.

4.Over current protection.

5.Overheat protection.

6.Ground protection.

7.Change the current: 8A/10A/13A/16A/32A adjustable.

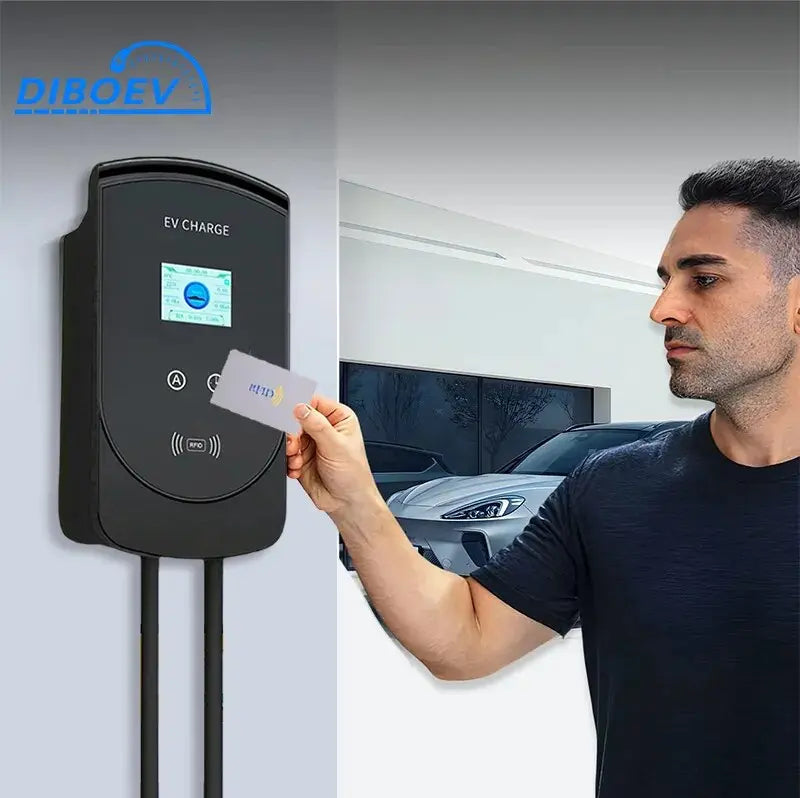

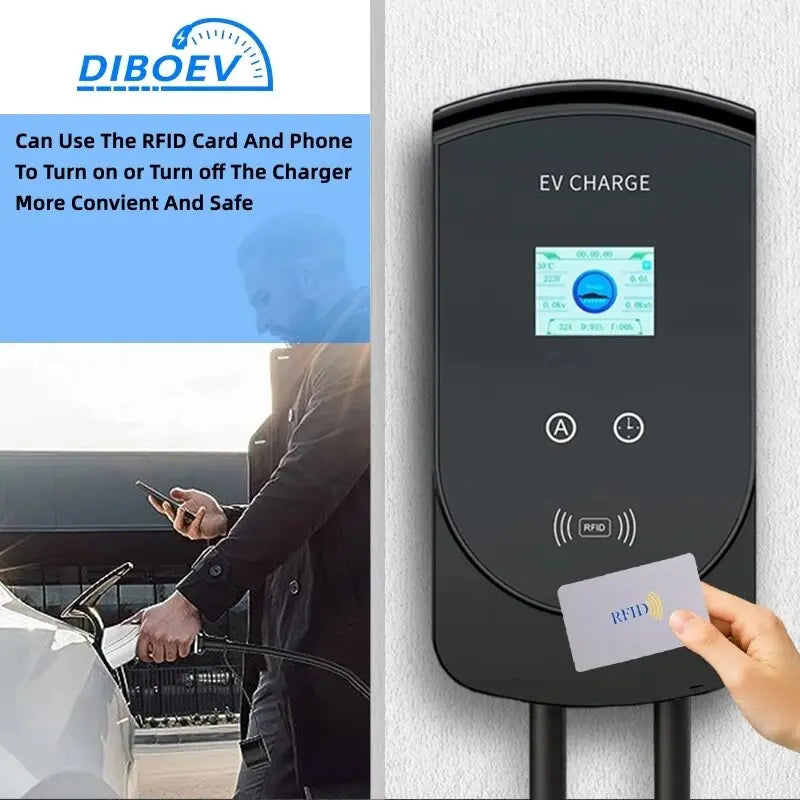

8.RFID card function.

9.Charging time to make an appointment.

10.With APP & WIFI.
