Introducing the feyree EV Charger - the ultimate solution for efficient and safe charging of your electric car! With GB/T Socket for dynamic loading balance, choose from 7KW, 11KW, or 22KW charging options and control everything with the user-friendly APP. Experience fast and reliable charging with this EVSE wallbox.
Specifications
- Brand Name: feyree
- Cable Length: 5m
- Charger Type: Charging Station
- Current: 16A 32A,8A-10A-13A-16A-20A-25A-32A
- Height: 13cm
- Hign-concerned Chemical: None
- IP Rating: IP65
- LCD: 2.8INCH
- Material: copper alloy, silver plating
- Operating Temperature: -30~ + 55
- Power: 7.6KW/11KW/22KW
- RCD: TypeB AC30mA+ DC6mA
- Voltage: 85V-264V-380V
- Width: 32cm
- length: 41cm
- phase: single phase/three phase
- type: GB/T type
- weight: 4.5kg
Features

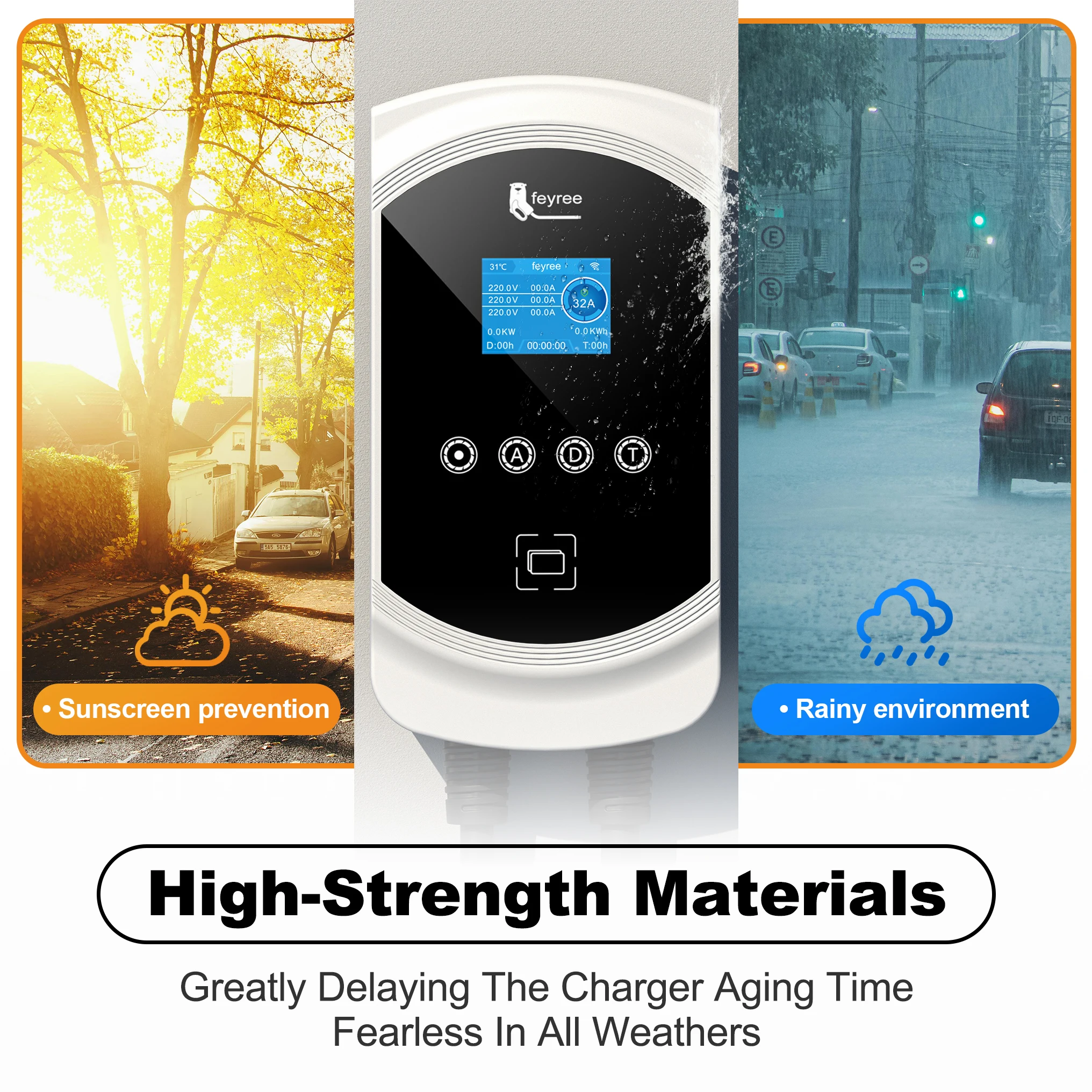

【High-quality Material】 cable with 99.95% pure copper wire core, far exceeding the material standards of peers ,The charging head pin is made of high quality 5μ silver plated material, corrosion and oxidation resistant. Cable with TUV certificated, durable and flexible,ensure charging safety and extend service life.
【Smart App Control and Real-Time Monitor】 with tuya APP you can control the wallbox/charging station in the easiest and most effective way, e.g. monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.
【8 Intelligent Safety Protection 】 Providing lightning-proof, leakage, overvoltage, overheat, IP66 rating waterproof, UL94V-0 rating flame resistance and overcurrent protection for your safety.
【Intelligent temperature control system】 Intelligent temperature control system support to the usage of cold or hot weather environment, smart temperature protection system to protect charging safety.

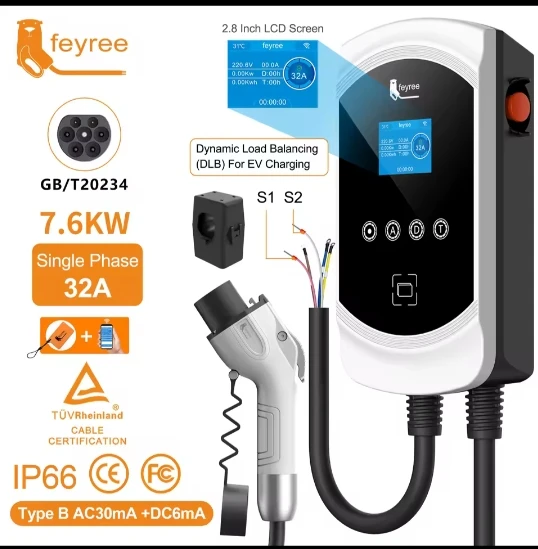

【2.8-inch color LCD screen】 High-definition screen real-time displays the charging information such as charging current, voltage and charging power. It is very easy to follow up the charging status.
【Safety Type B leakage protection】 Install with type B ( AC30mA +DC6mA ) leakage protection to guarantee your charging safety.
【Schedule charging time to save money】 Smart Appointment Scheduling charging time during off-peak hours to save on costs.
【Easy installation】 Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use thanks to IP66 certification (garage, carport). It is compatible with all household installations and with electric vehicles available on the market and plug-in hybrids with GB/T plug the maximum power for your car and achieve more efficient consumption.
Support Tuya APP wireless connection, mobile phone remote control
1.charging plug meet GB/T type.
2.Excellent protection performance,protection grade IP66-Working condition.
3.Operating temperature:-30℃ to 55℃.
4. Protection level: IP66 (working state)
5. Number of phases: single phase/ three phase
6. Contact bush: copper alloy, silver plating
Control Box Function:
1.Leakage protection (restart recover).
2.Over voltage under-voltage protection (self-checking recover).
3.Lightning protection.
4.Over current protection.
5.Overheat protection.
6.Ground protection.
7.Change the current: 8A/10A/13A/16A/20A/25A/32A adjustable
8.RFID card function
9.Charging time to make an appointment
10.APP WIFI version
