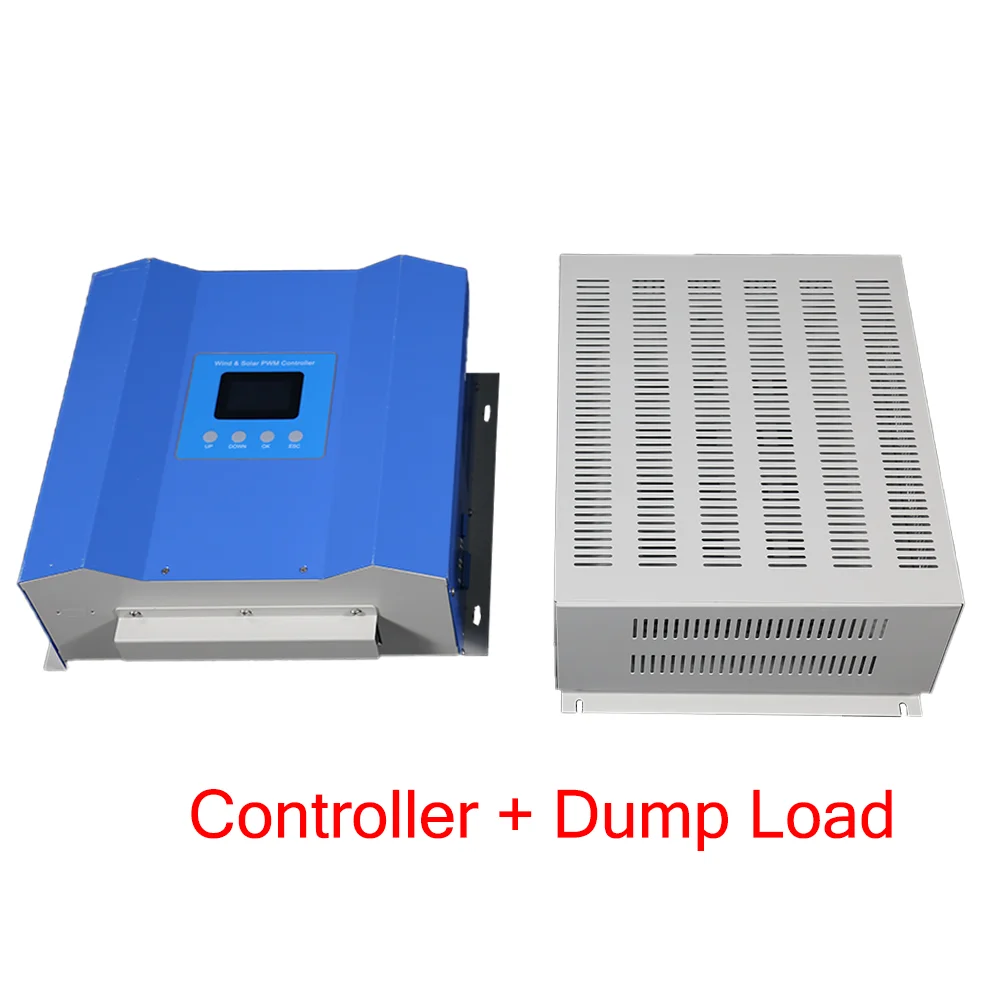

FLTXNY 1KW 2KW 48V 220V On Grid Intelligent Wind Solar Hybrid Controller Wind Controller MPPT Dump Load Wind Generator

FLTXNY 1KW 2KW 48V 220V On Grid Intelligent Wind Solar Hybrid Controller Wind Controller MPPT Dump Load Wind Generator

Trustify review stars will be displayed here!

Regular price $1,633.50 USD
Regular price $0.00 USD Sale price $1,633.50 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage|Controller Type

Upgrade your renewable energy system with the FLTXNY 1KW 2KW on-grid intelligent wind solar hybrid controller. With advanced MPPT technology and a dump load wind generator, this controller maximizes energy production by up to 20%. Efficiently manage wind and solar power and reduce your energy costs now.

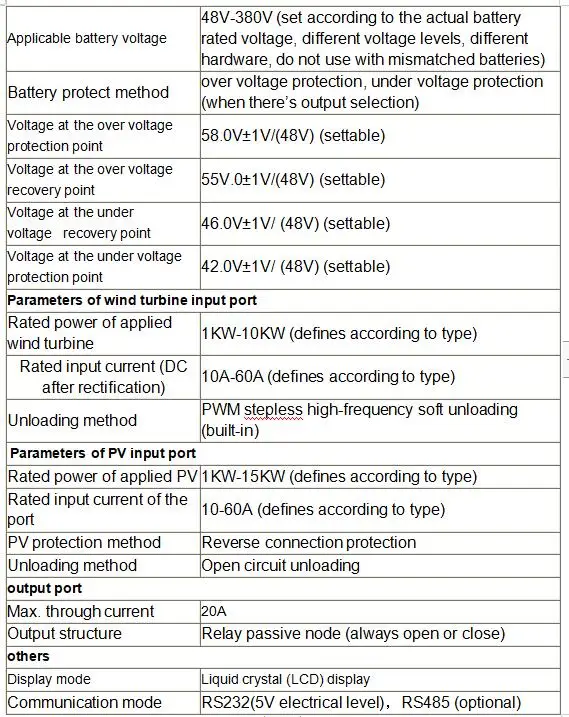

Specifications

  • Application: Wind Controller
  • Model Number:: MAX-1000W2000W
  • Application:: Voltage Controller
  • Application:: Collector Controller
  • Application:: Solar System Controller
  • Maximum Current:: 60A
  • Voltage:: 48-380V
  • Solar Rate Power:: 1KW-15KW
  • Display Mode: Liquid: crystal (LCD) display
  • Working temperature:: -40~60℃

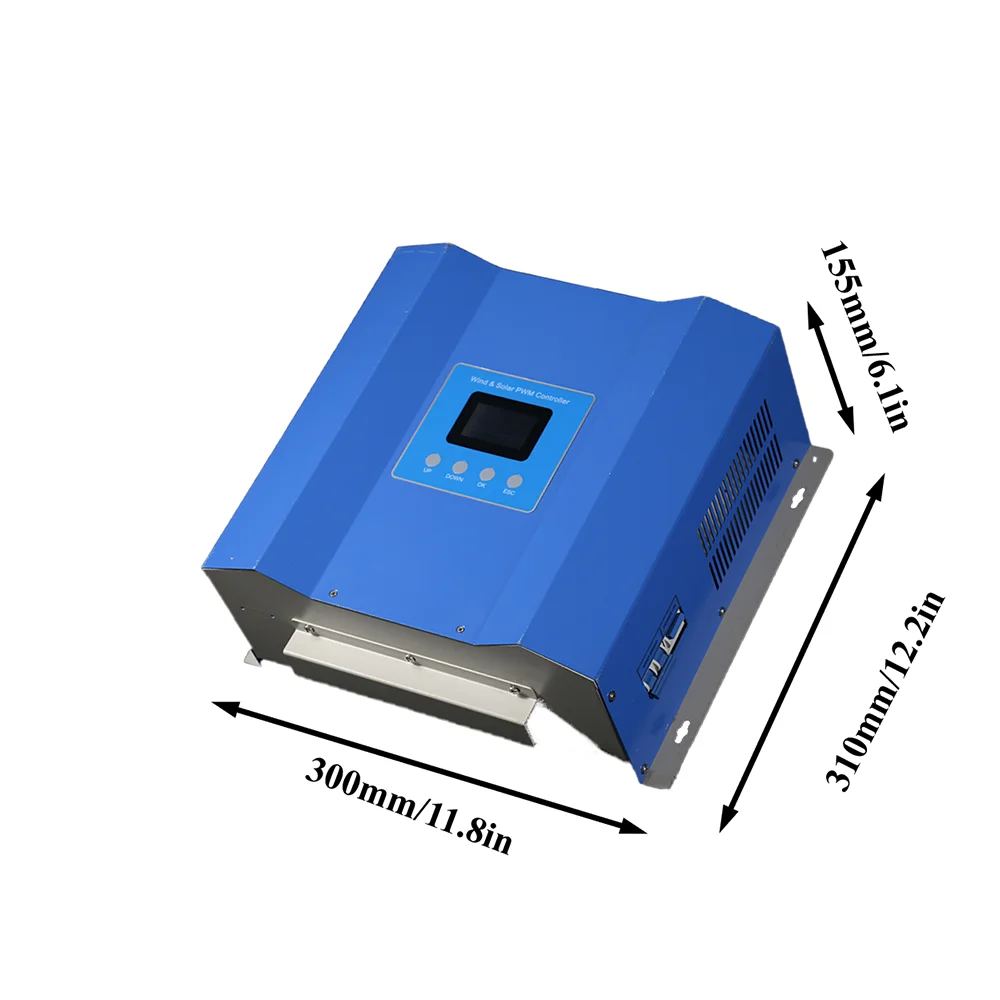

  • Controller size:: 300mm*310mm *155mm
  • Application:: Charger Controller
  • Application:: Wind Controller
  • Application:: Lighting Controller
  • Application:: Solar Working Station
  • Wind Rate Power:: 1KW-10KW
  • Unloading Method:: Open circuit unloading
  • Operating mode:: 3M foil key operation (4 buttons)
  • Protection grade:: IP41
  • Net weigh:: 5.4KG (controller), 8.4KG (unloading



MPPT Wind Solar Hybrid Controller For 1000W Wind Turbine And 600W Solar Panel With RS232Communication To Monitoring PC

Super-intelligent wind/solar hybrid controller is a new type of special high performance control
device for new energy application which is designed on the basis of ultra high performancecontroller.
It contains many years of application experience (such as waterproof, dustproof, salt spray, wiring error, wind resistance limit control of Wind turbines, energy management etc.), it has done to ultimate no matter it applied to the charging control or street light control. In order to meet variety of applications, the controller adopts a hierarchical and modular structure, all functions can be achieved with different functional plates according to actual application, and it is convenient for rapid customization and application.

Features

  • Can be applied to grid-tied system, off-grid system and grid-tied energy storage system. Charge function is optional.
  • Several functions are optional, such as PV control function, wind speed measure function, rotational speed control function and temperature compensation function.
  • RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth/RJ45 connection)
