NFLIXIN VFD 0.75–7.5kW — 1-Phase 220V Input | 3-Phase 220V Output
The NFLIXIN 9600D Variable Frequency Drive (VFD) converts single-phase 220V mains power into three-phase 220V output, enabling standard 3-phase AC motors to run from a domestic or light-industrial single-phase supply. Available in six power ratings from 0.75kW to 7.5kW, with sensorless vector control and built-in RS485 communication.
Key Features
- Converts 1-phase 220V input to 3-phase 220V output
- Output frequency range: 0–400Hz for precise motor speed control
- Sensorless vector control (SVC) and V/F control modes
- Built-in RS485 communication interface
- 16-speed multi-step control with auto-run capability
- Built-in PID regulation for closed-loop temperature, pressure and tension control
- 25 fault protection functions: over-current, over-voltage, under-voltage, over-temperature, phase loss, overload
- IP20 protection rating
- Industrial flame-retardant ABS housing with all-aluminium heatsink and high-flow fan
- Three-proof coating on motherboard for dust and humidity resistance
Technical Specifications
- Brand: NFLIXIN
- Model: 9600D
- Input: AC 1-phase 220V ±15%, 50/60Hz
- Output: AC 3-phase 0–220V, 0–400Hz
- Power Options: 0.75kW / 1.5kW / 2.2kW / 4kW / 5.5kW / 7.5kW
- Rated Current: 4A / 7A / 10A / 16A / 20A / 30A
- Control Method: Sensorless vector control (SVC) + V/F control
- Communication: Built-in RS485
- Protection Level: IP20
- Dimensions (approx.): 0.75–2.2kW: 155×82×135mm | 4kW: 172×125×165mm | 5.5–7.5kW: 220×152×179mm
- Weight: 1kg / 1.7kg / 3kg (by power rating)
Rated Current Table
| Model | Power | Input | Output | Rated Current | Input Phase | Output Phase |
|---|---|---|---|---|---|---|

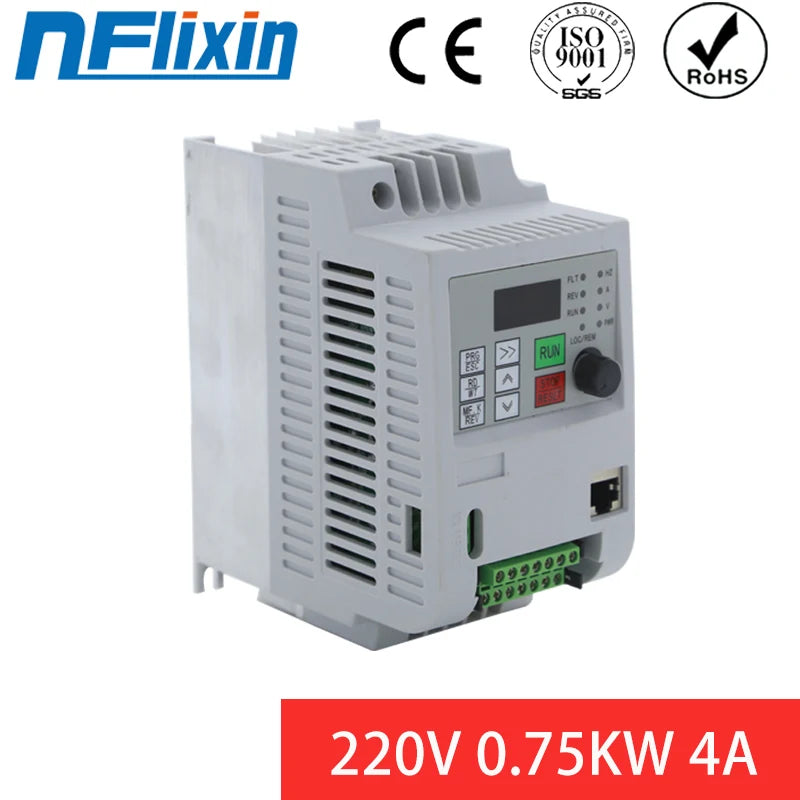

| 9600D-1T-00075G | 0.75kW | 220V ±15% | 220VAC | 4A | 1-phase | 3-phase |
| 9600D-1T-00150G | 1.5kW | 220V ±15% | 220VAC | 7A | 1-phase | 3-phase |

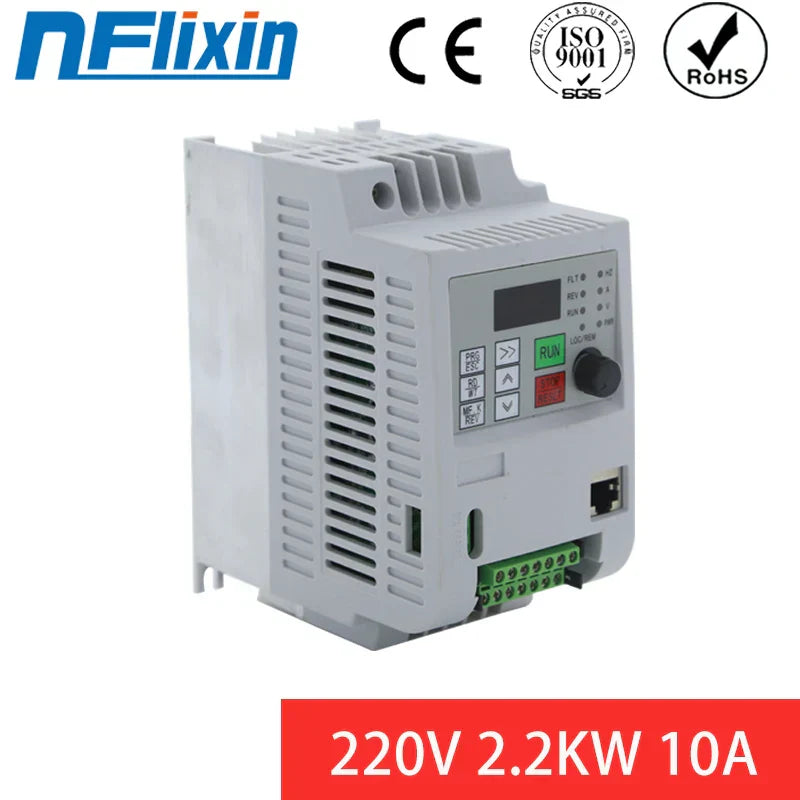

| 9600D-1T-00220G | 2.2kW | 220V ±15% | 220VAC | 10A | 1-phase | 3-phase |
| 9600-1T-00400G | 4kW | 220V ±15% | 220VAC | 16A | 1-phase | 3-phase |
| 9600-1T-00550G | 5.5kW | 220V ±15% | 220VAC | 20A | 1-phase | 3-phase |
| 9600-1T-00750G | 7.5kW | 220V ±15% | 220VAC | 30A | 1-phase | 3-phase |
Typical Applications
Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan, blower, freight elevator, crane.
