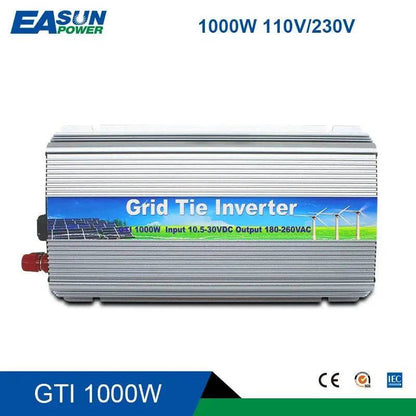

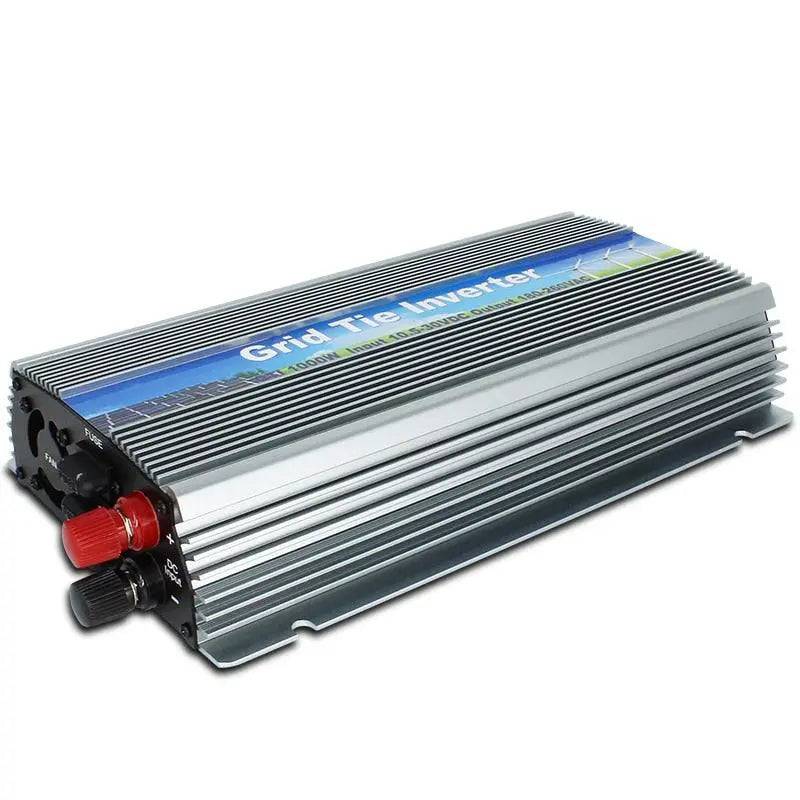

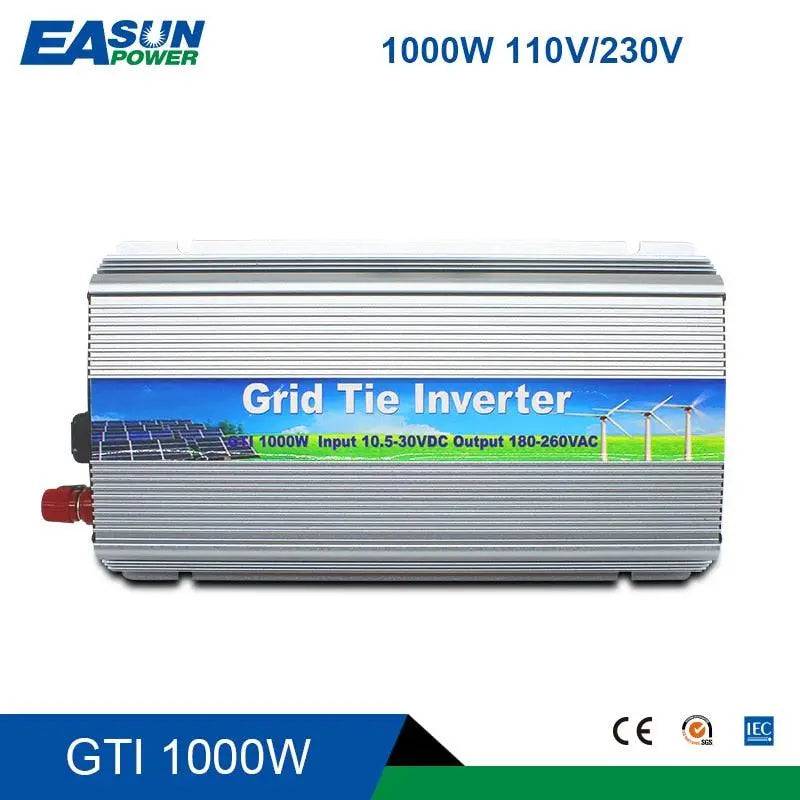

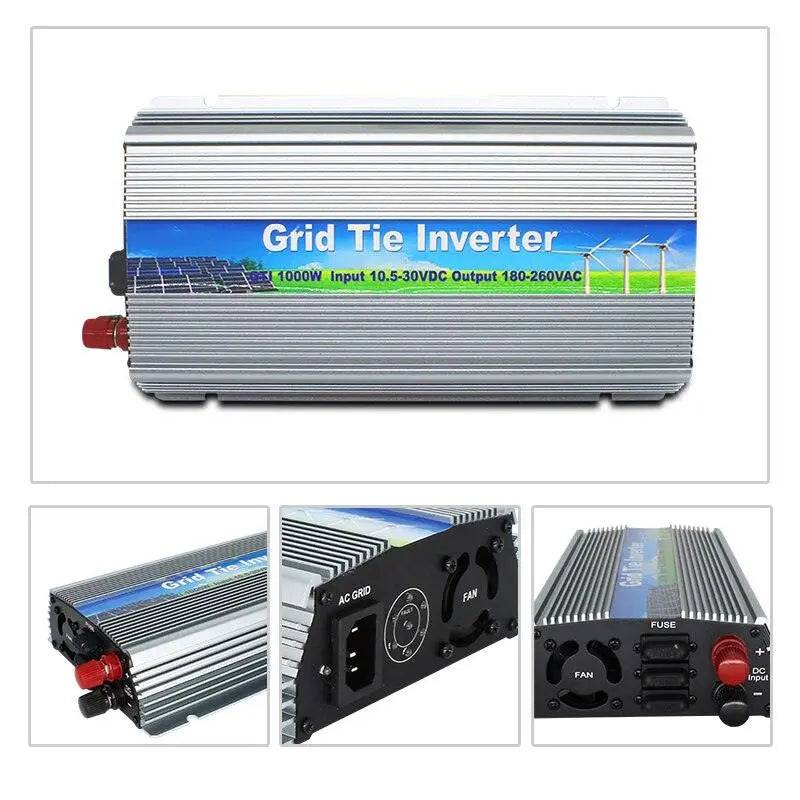

Grid Tie Solar Inverter 1000W Pure Sine Wave 10.5-28V or 20V-45V vmp30V Solar Panel Micro On Grid Inverter

Grid Tie Solar Inverter 1000W Pure Sine Wave 10.5-28V or 20V-45V vmp30V Solar Panel Micro On Grid Inverter

Regular price $157.86
Regular price Sale price $157.86
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Input Voltage
Output Voltage

SPECIFICATIONS

  • Is_customized: Yes
  • Weight: 2.7kg
  • Type: DC/AC Inverters
  • Size: 394*209*117mm
  • Show: LED
  • Recommend use solar panels: 1250Wp/Vmp=18V/Voc=21V
  • Output Type: Single
  • Output Power: 500 - 1000W
  • Output Frequency: 50HZ/60HZ
  • Output Current: 4.58/2.39A
  • Origin: Mainland China
  • Model Number: GTI-1000W
  • Maximum input current: 65A
  • Grid-series models: 1000W
  • DC voltage range: Vpv 10.5V~28VDC
  • DC maximum voltage: VpvDC30.2VDC
  • DC Maximum Input Power: 1200W

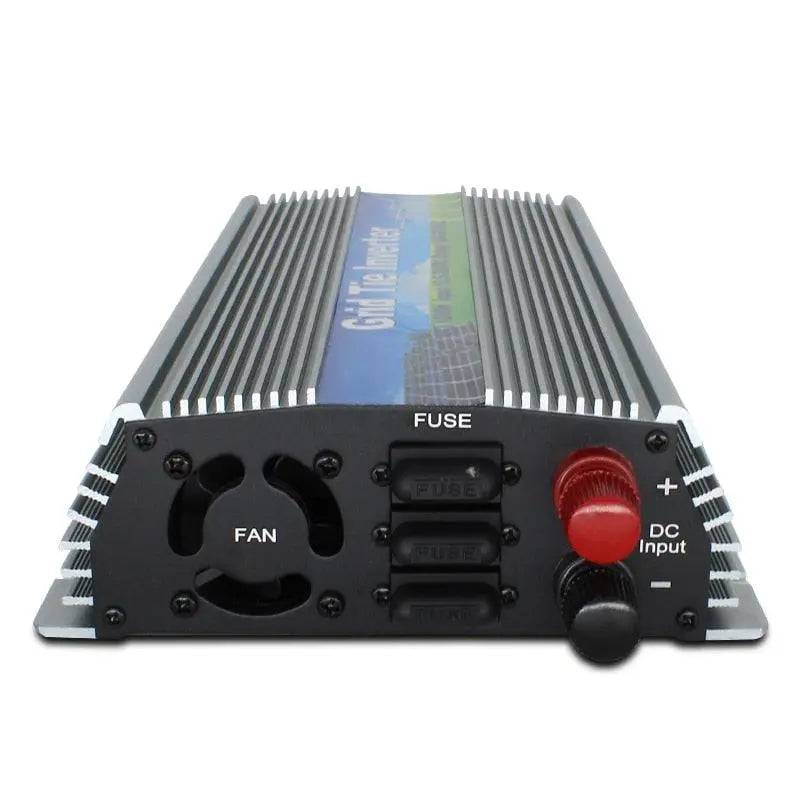

  • Cooling: Fan
  • Certification: CE
  • Anti-voltage protection: Fuse
  • AC standard voltage range: 90~140VAC/180~260VAC
  • AC output power: 1000W
  • AC frequency range: 55Hz~63Hz/ 45Hz-53Hz

Input and output

1.DC input limit
Input voltage range: 10.5V to 28V /22V to 50V
Solar Panel: Recommend using the power more than 30W and the standard voltage of 17.5V PV panel for GTI-1000.
Recommend using multiple solar panels. Solar panel in series will result in high-input voltage which will exceed the working voltage range of the inverter.
2.AC output:
Voltage range of the inverter whose output is 220V AC.:180V -260V
Voltage range of the inverter whose output is 110V AC.: 90V - 140V
 Product descriptions:

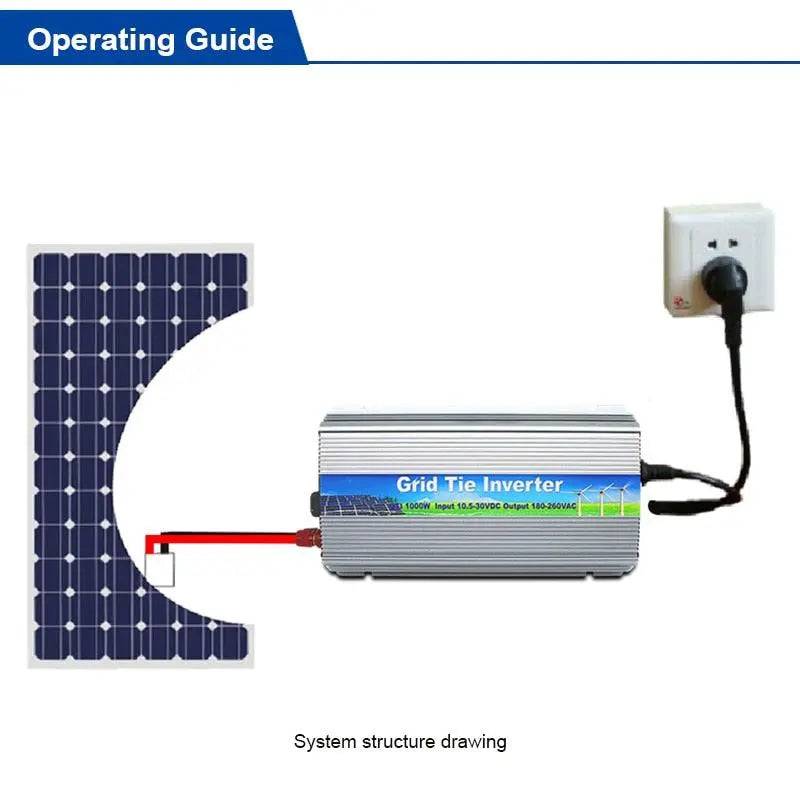

1. Directly connected to the solar panels (do not need to connect the battery)
Using precise MPPT function, APL functions, the inverter automatically adjust the solar panels of maximum output power,simply connect the solar panel to the grid inverters. Do not need to connect the battery.
2. AC 0 angle with high precision auto-detection
AC phase angle of 0 through isolation amplifier then input to the MCU for high-precision detection and analysis. The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.
3. Synchronous High-frequency Modulation
In the process of the grid, usually adapt the same phase angle in parallel. (ie, When the two-phase alternating current total is equal to 0.Use switch to combination the two AC fusion) and the product is rectified AC half-frequency AC to 100Hz first, then the machine use the high frequency current in the circuit and semi-100Hz frequency alternating current generated combination, to achieve high-frequency modulation.
4.Pure Sine Wave Output
Use SPWM directly to make pure sine wave output.
5. Automatic Sensing Function Solar Luminosity
Use the latest luminosity perception operation technology. The different illuminate angle and intensity of the solar panel will produce different current output. Use advanced CPU to operate the different illuminance and the data can be directly displayed on the LCD. Then you can visually see the sense of the strength of the sun unit. Used more convenient.
6. Power Automatically Locked (APL)
In different current fluctuations, we should use the MPPT function. When the MPPT function adjusted to the maximum power point, the product automatically powers locked in maximum power point, then made the output power more stable.
7. Maximum Power Point Tracking (MPPT)
Because the current intensity and the voltage changes at any time, if there is no power point tracking, there will be a lot of problems. In the past time, usually adopt a solar controller, but this product uses high-precision MPPT operation power, automatic and immediate adjust the solar panels output power at the maximum output point, then achieve a stable output purposes.
8. Automatically Adapt To Different Load Power Factor
Adapt to any of the power load.
9. Constant Current, Constant Power
This product is constant current, constant output power, without any overload, over-current phenomenon.
10. Automatically Shut Down When The Power Output Of a Fault
When the city power system is in failure, the inverter will automatically turn off the output.
11. Current Limit Protection:Current limit

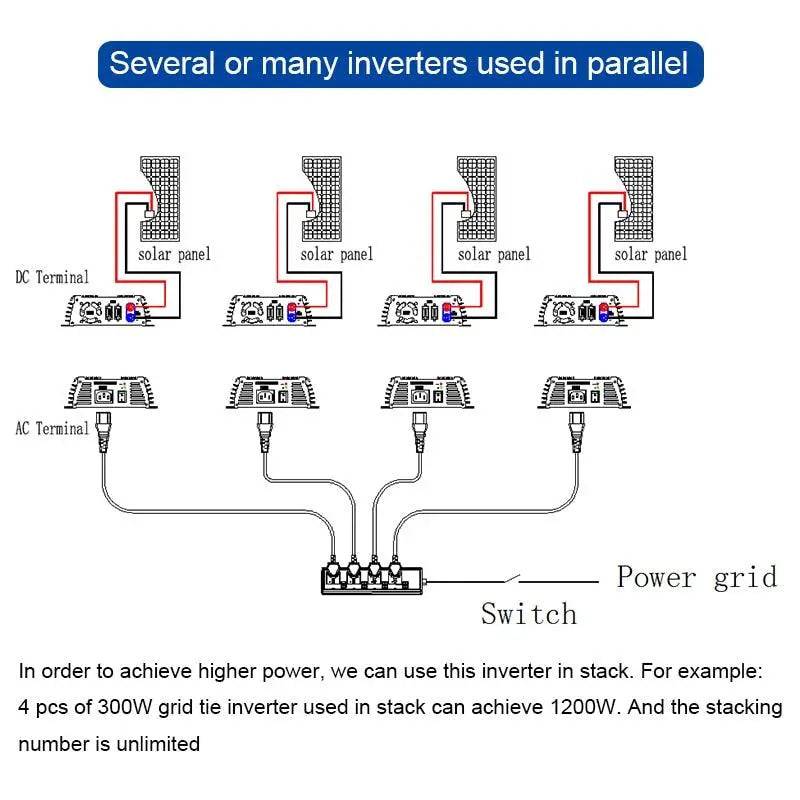

12. Stack Multiple Machines
13. Multiple small power inverters in parallel can achieve large output power.
14. High-Frequency High Conversion Rate:Adapt high frequency converter, the output more efficient.

Grid-series models

600W

1000W

Recommend use solar panels

720Wp/Vmp=18V/Voc=21V

1250Wp/Vmp=18V/Voc=21V

DC Maximum Input Power

700W

1200W

DC maximum voltage

VpvDC30.2VDC

DC voltage range

Vpv 10.5V~28VDC

Maximum output power factor

99%

Maximum input current

40A

65A

AC output power

600W

1000W

AC maximum output power

600W

1000W

Anti-voltage protection

Fuse

AC standard voltage range

90~140VAC/180~260VAC

AC frequency range

55Hz~63Hz/ 45Hz-53Hz

Output current total harmonic distortion

THDIAC <5%

Phase

<1%

Islanding protection

VAC;f AC

Output short circuit protection

Current-limiting

Show

LED

Installation

Wall hanging

Cooling

Fan

Standby Power

<1W

Night Power

<1W

Ambient temperature range

-25 ℃~60℃

Humidity

0~99%(Indoor Type Design)

Waterproof

Indoor Type Design

Electromagnetic Compatibility

EN50081.part1 EN50082.part1

Power System

Disturbance

EN61000-3-2 EN60950-1

Network test

DIN VDE 1026

Certificate

CE
