High Quality MPPT Solar Charge Controller 60A 12V 24V 48V

High Quality MPPT Solar Charge Controller 60A Auto 12V 24V 48V 180VDC Solar Panel Aluminum Alloy Regulator For Solar System

The High Quality MPPT Solar Charge Controller 60A Auto 12V 24V 48V 180VDC Solar Panel Aluminum Alloy Regulator For Solar System is the ultimate solution for efficient solar power management. This advanced charge controller optimizes solar energy utilization and ensures maximum battery performance, making it an essential component for any solar power system.

• Application: Charger Controller, Voltage Controller, Solar System Controller
• Battery Types: LiFePO4, Ternary Lithium, Lead-Acid
• Max Input Solar Panel Voltage: 180V
• Max Solar Panel Power: 2880W (48V system)
• Maximum Current: 60A
• Charging Mode: Intelligent MPPT technology with three-stage charging
• Built-In Features: LCD display, overcharge protection, automatic battery voltage detection, and more.

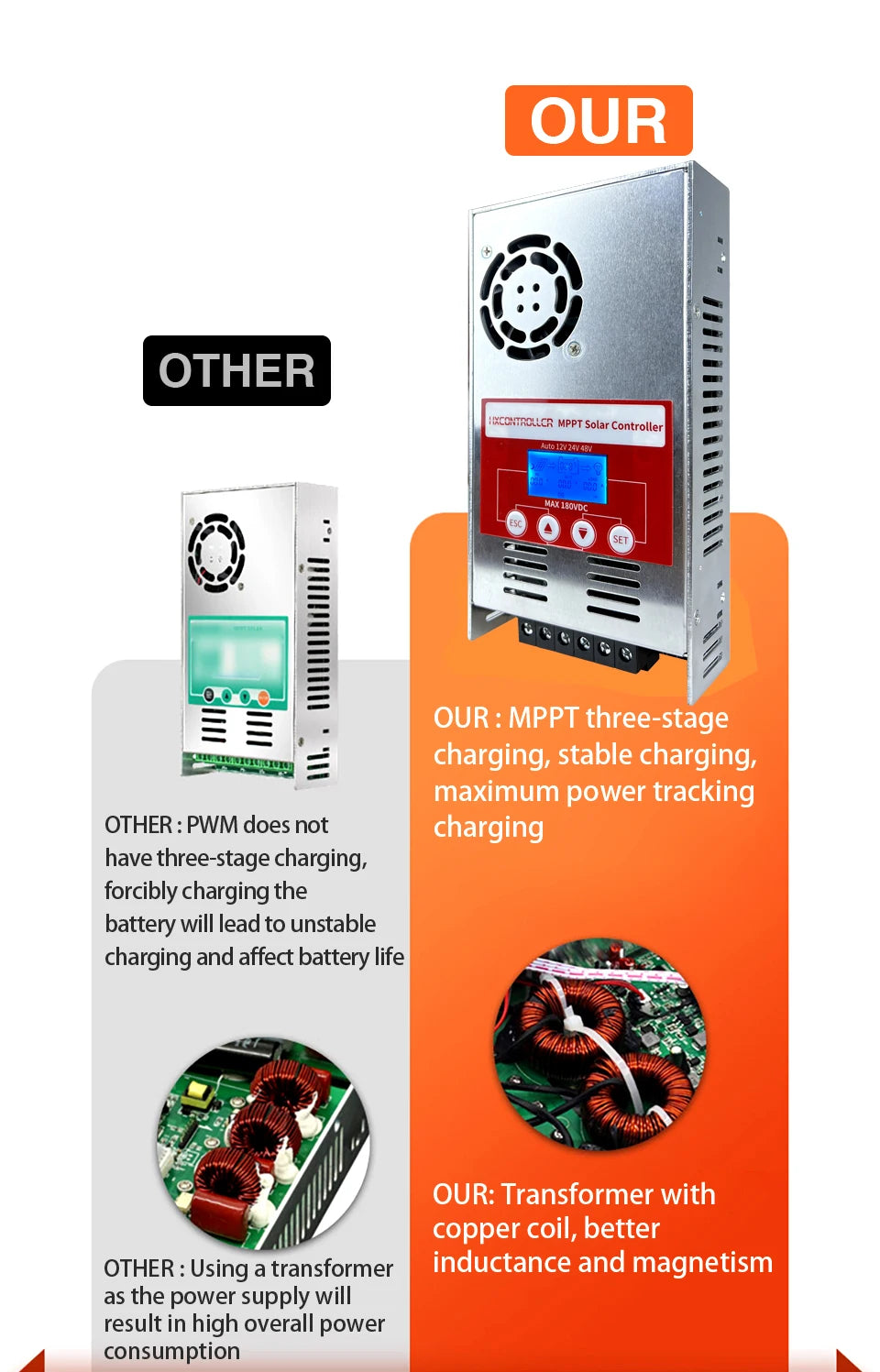

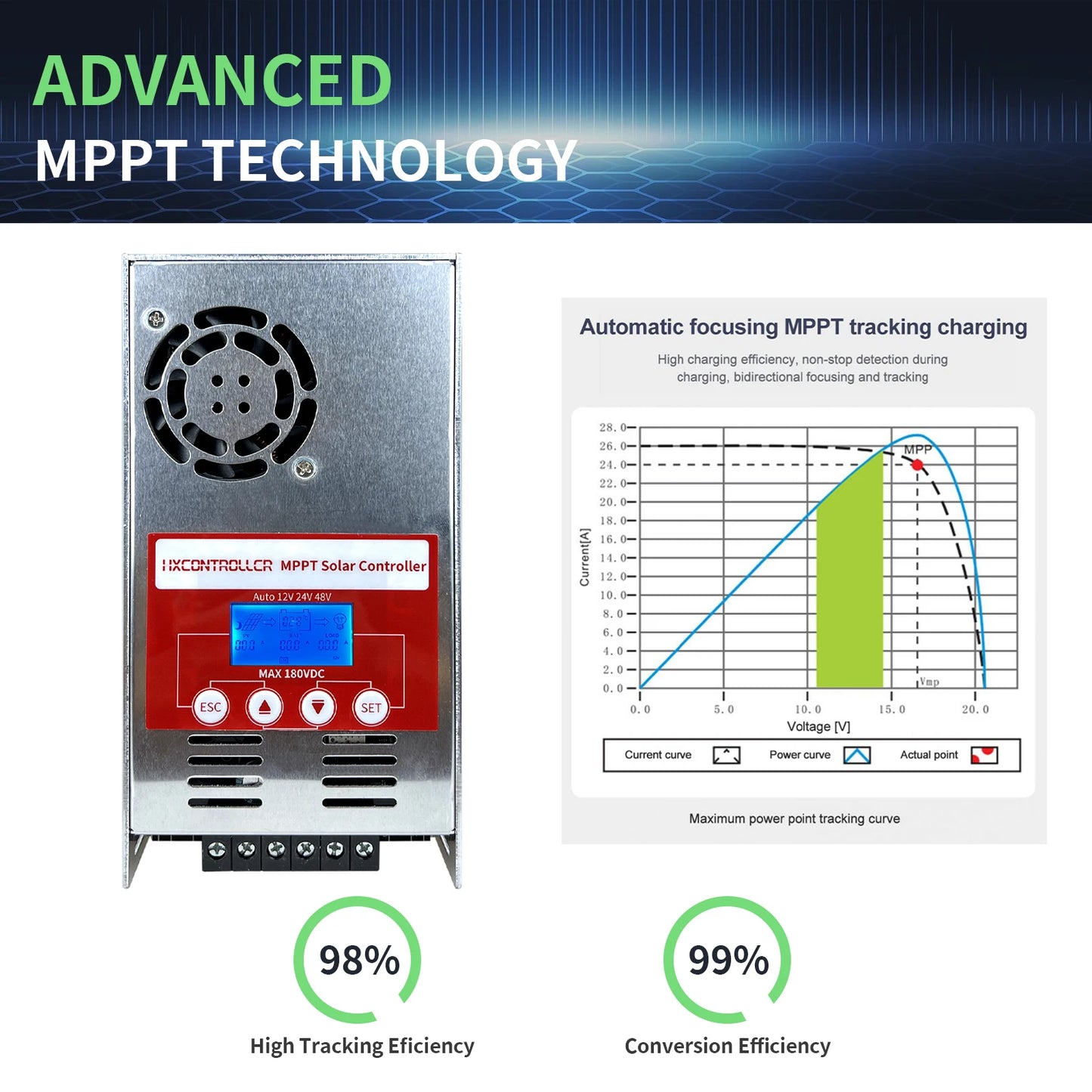

The MPPT technology allows the controller to consistently adjust to the maximum power point of your solar panels, resulting in an energy utilization improvement of 15% to 20% compared to conventional PWM controllers. Coupled with an aluminum alloy shell, this controller not only ensures excellent heat dissipation but also enhances durability.

With a maximum efficiency of over 98% and a robust design, the High Quality MPPT Solar Charge Controller 60A Auto 12V 24V 48V 180VDC Solar Panel Aluminum Alloy Regulator For Solar System is perfect for any solar energy enthusiast looking to maximize their power output. Don't miss out on the chance to upgrade your solar system!

Technical Specifications

• Model: HX-MPPT60A
• Max PV Input Power: 720W (12V), 1440W (24V), 2160W (36V), 2880W (48V)
• Max PV Input Voltage: 180Voc
• Working Temperature: -20℃ to +55℃
• Protection Functions: Overcharging, Temperature, and Fan Control

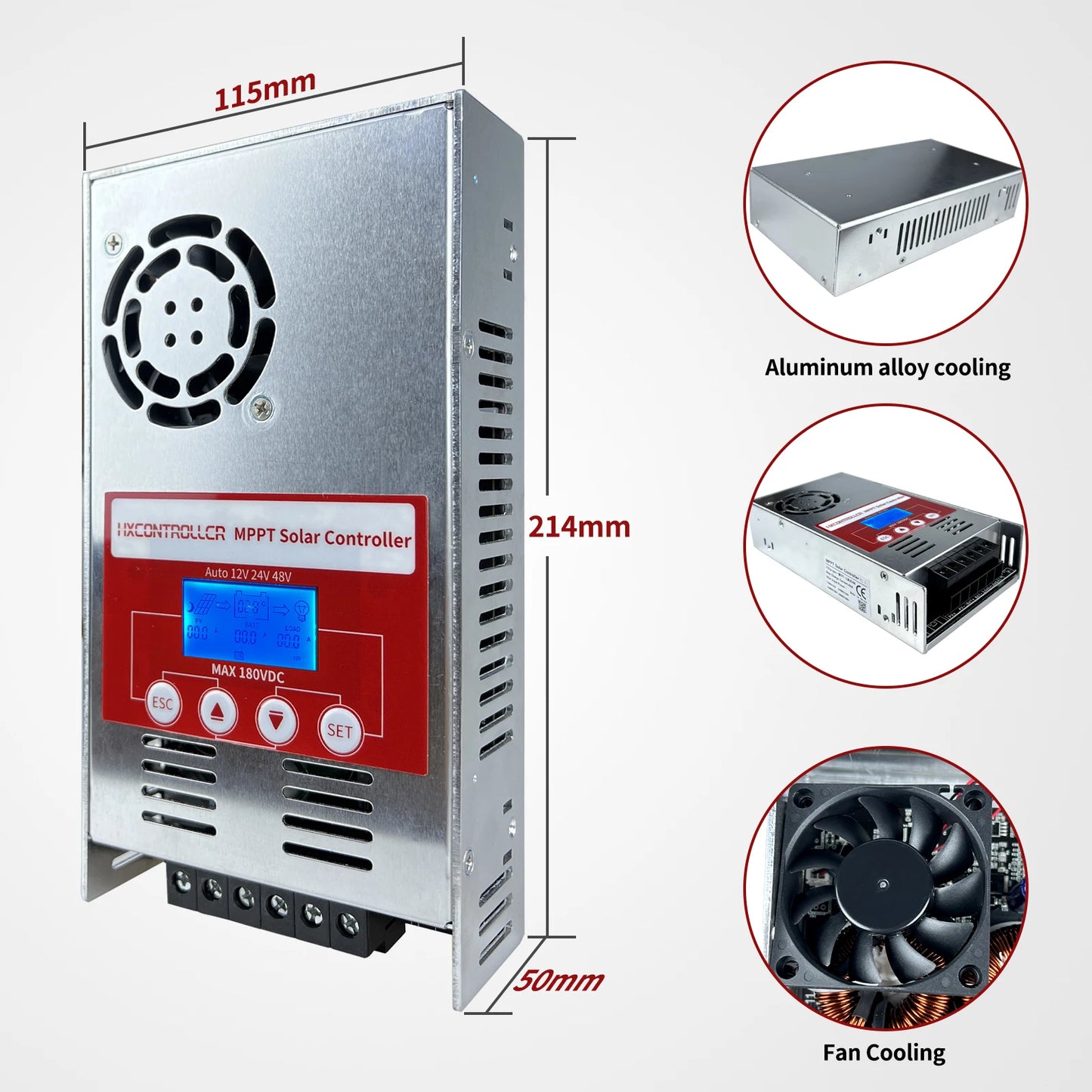

• Size: 214 x 115 x 50 mm
• Weight: 1.1 kg (net), 1.2 kg (gross)
• IP Rating: IP21
