Vertical Axis Wind Turbine 800W / 1000W / 1500W — 12V 24V 48V 96V Home Windmill with MPPT Controller

Coreless vertical axis wind turbine for homes and small sites

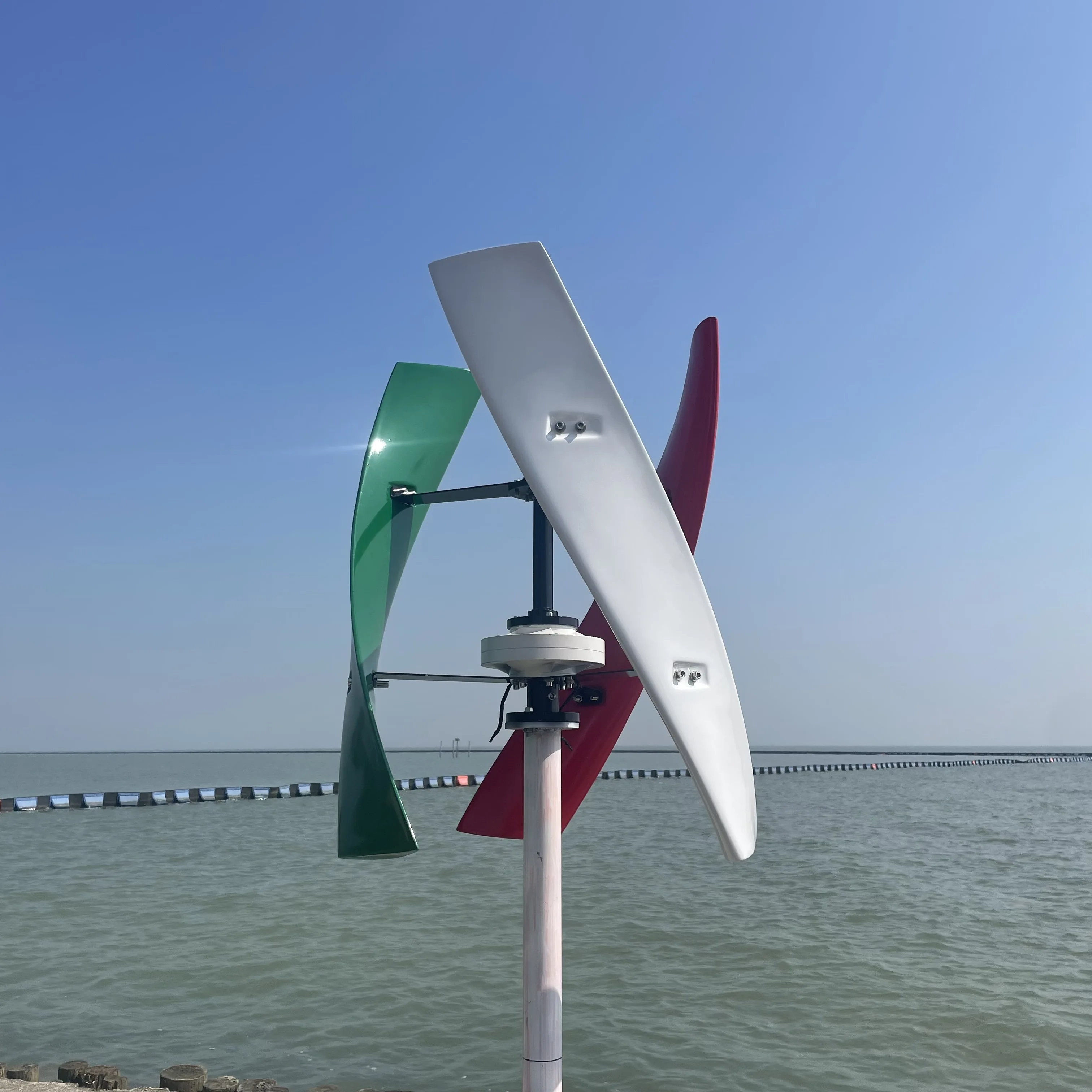

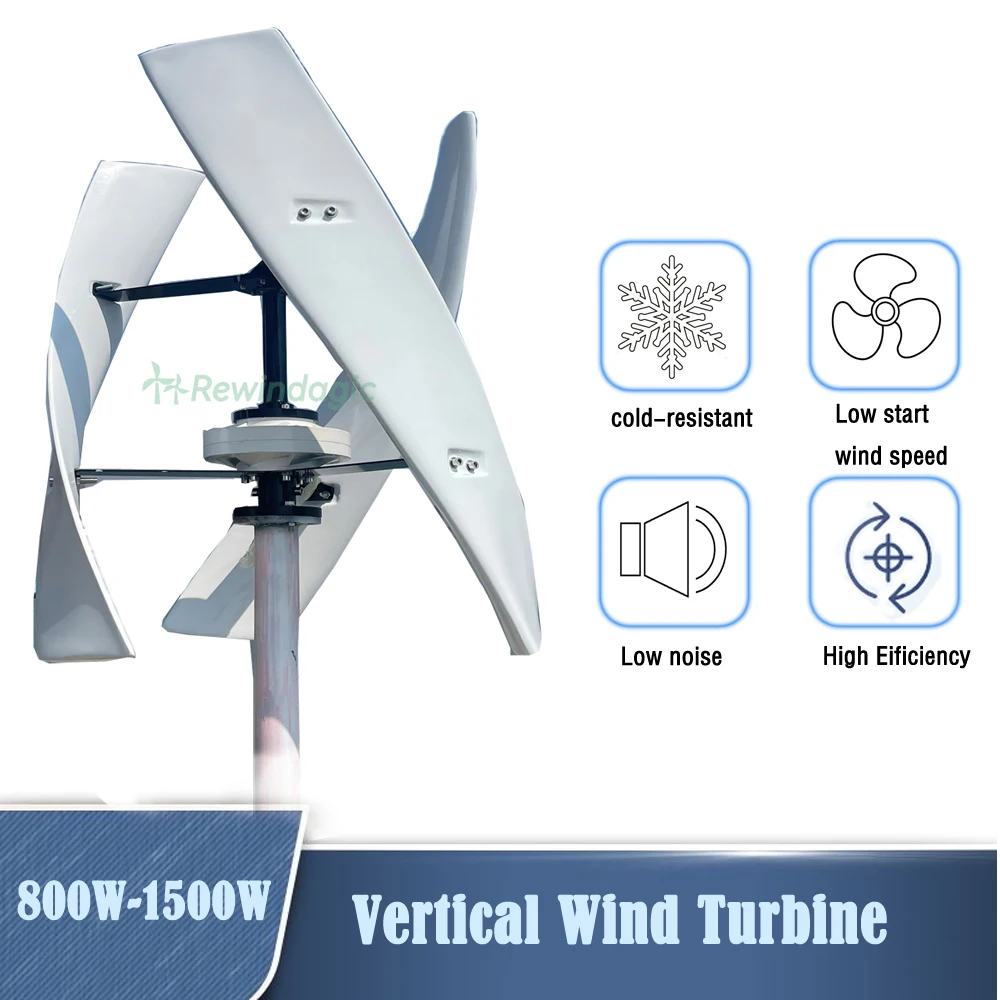

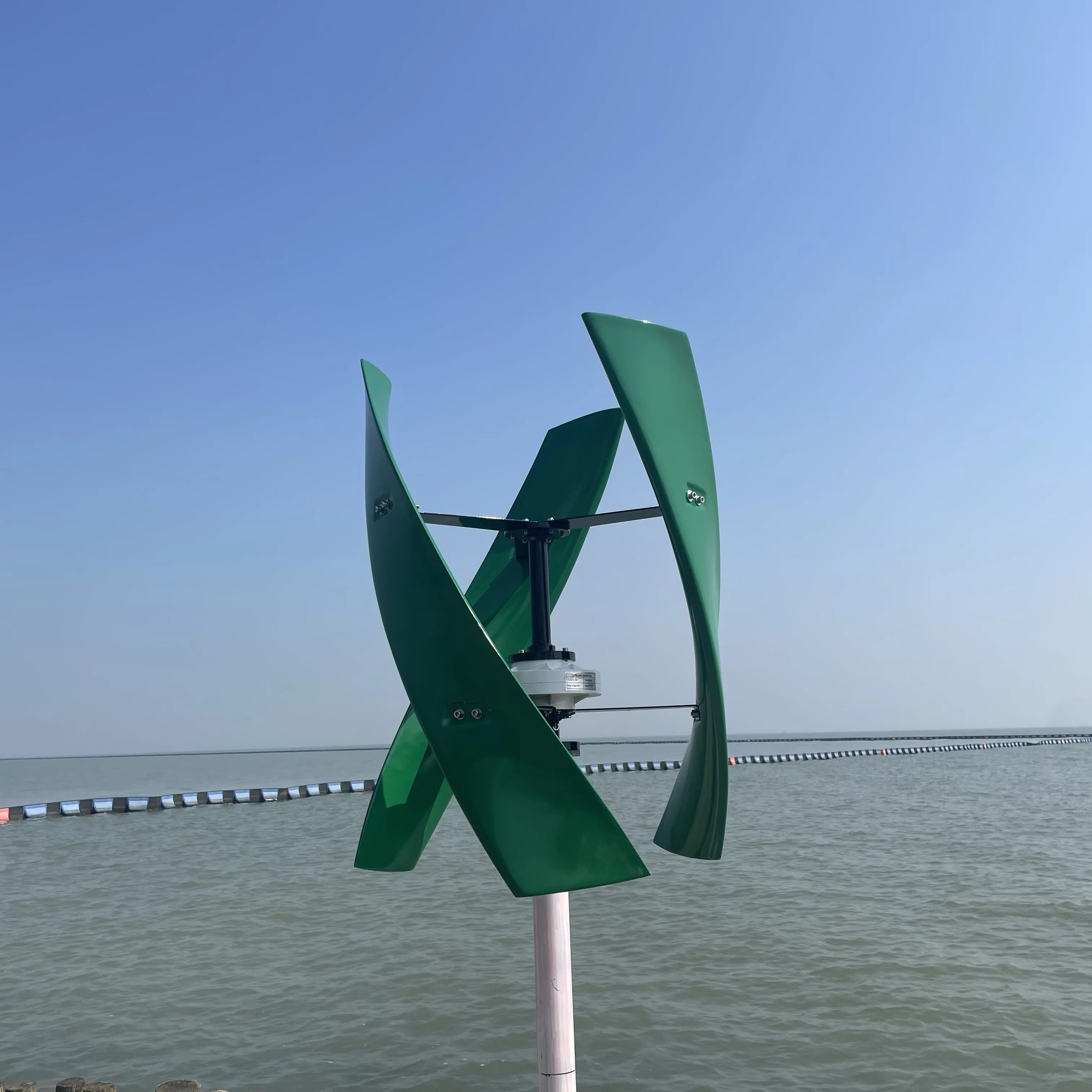

An upright vertical axis wind turbine (VAWT) with a coreless maglev generator, offered in 800W, 1000W and 1500W at 12V, 24V, 48V and 96V. The coreless stator removes cogging torque, so the rotor spins up in light wind and keeps generating across a wide 2.5–25 m/s window instead of only at peak gusts.

Key advantages

• 1.3 m/s start-up — produces useful charge on days a horizontal turbine stays still.
• Wide operating window — 2.5 to 25 m/s, so output is spread across the year rather than concentrated in storms.
• No yawing, no tail — works with turbulent wind around buildings, trees and rooftops.
• Small and light — easy to raise on a short mast, suitable for street lighting, marine use and grow rooms.

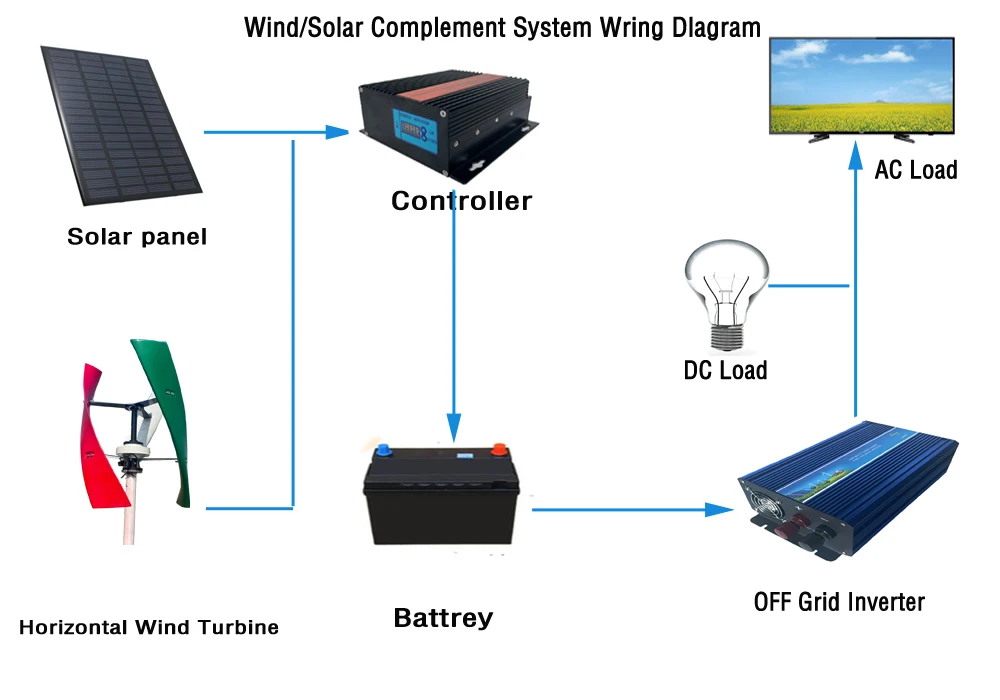

• Hybrid ready — pairs with solar through the optional MPPT boost hybrid controller, or with an on-grid inverter.
• 20-year design life, CE certified.

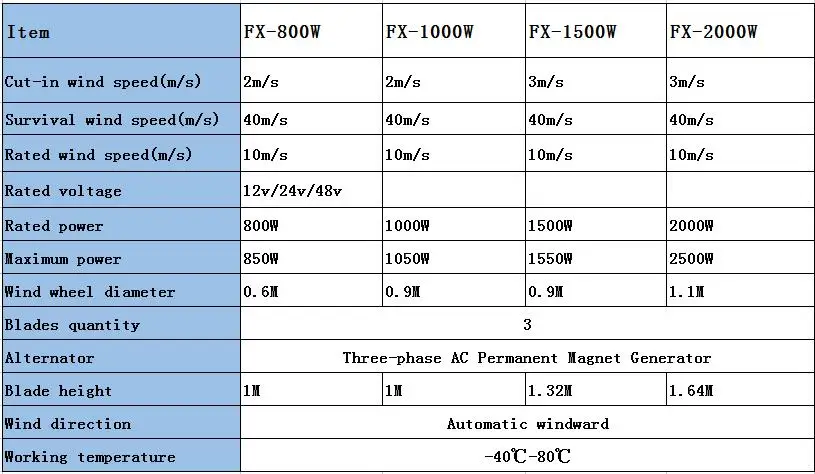

Technical specifications

Choosing your configuration

• 800W — lighting, CCTV, telecom and small battery top-up.
• 1000W — cabins, boats, grow rooms and hybrid solar systems.
• 1500W — the strongest option here, for homes with steady daily consumption.

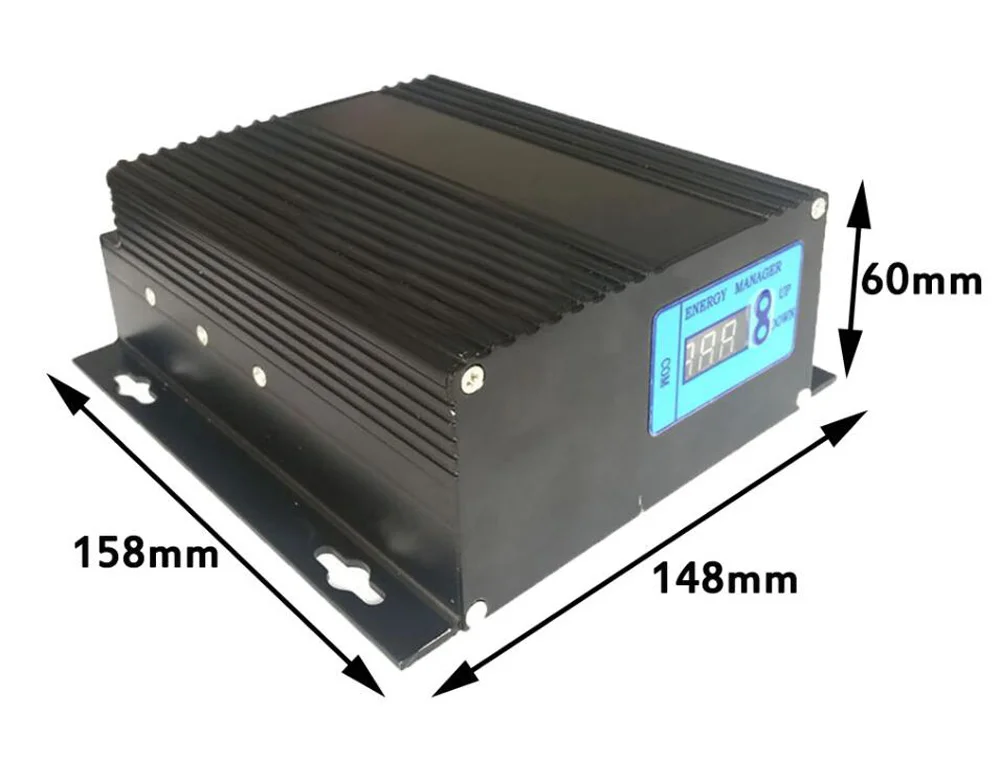

Only wind turbine ships the generator and rotor alone, for buyers who already own a controller. With MPPT controller adds the matched hybrid charge controller, which accepts up to 1000W of extra solar input and offers two 12A DC outputs.

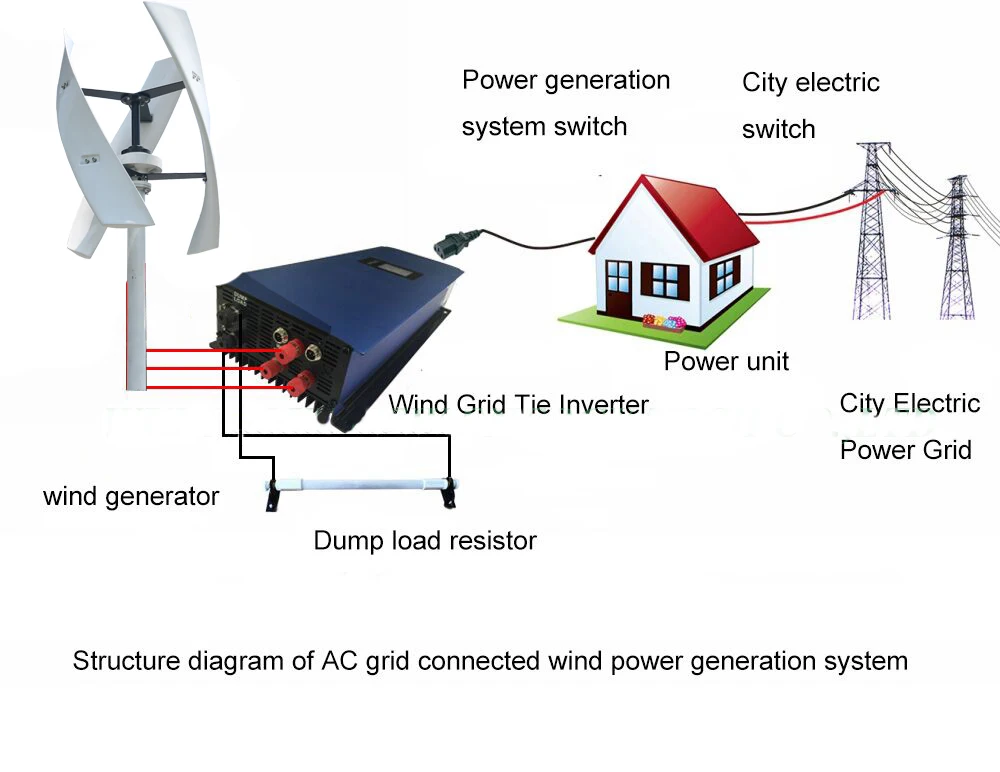

For an on-grid setup you need only the turbine, an on-grid inverter and a support tower.

Ordering, delivery and warranty

• Sold by 54 Energy
• Delivery 5 to 15 business days, tracked, worldwide
• Warranty 1 year against manufacturing defects on all products
• Payment Stripe: credit card, debit card and Apple Pay
• Import duties are not included and depend on your country's rules

Frequently asked questions

What is a coreless generator and why does it matter?

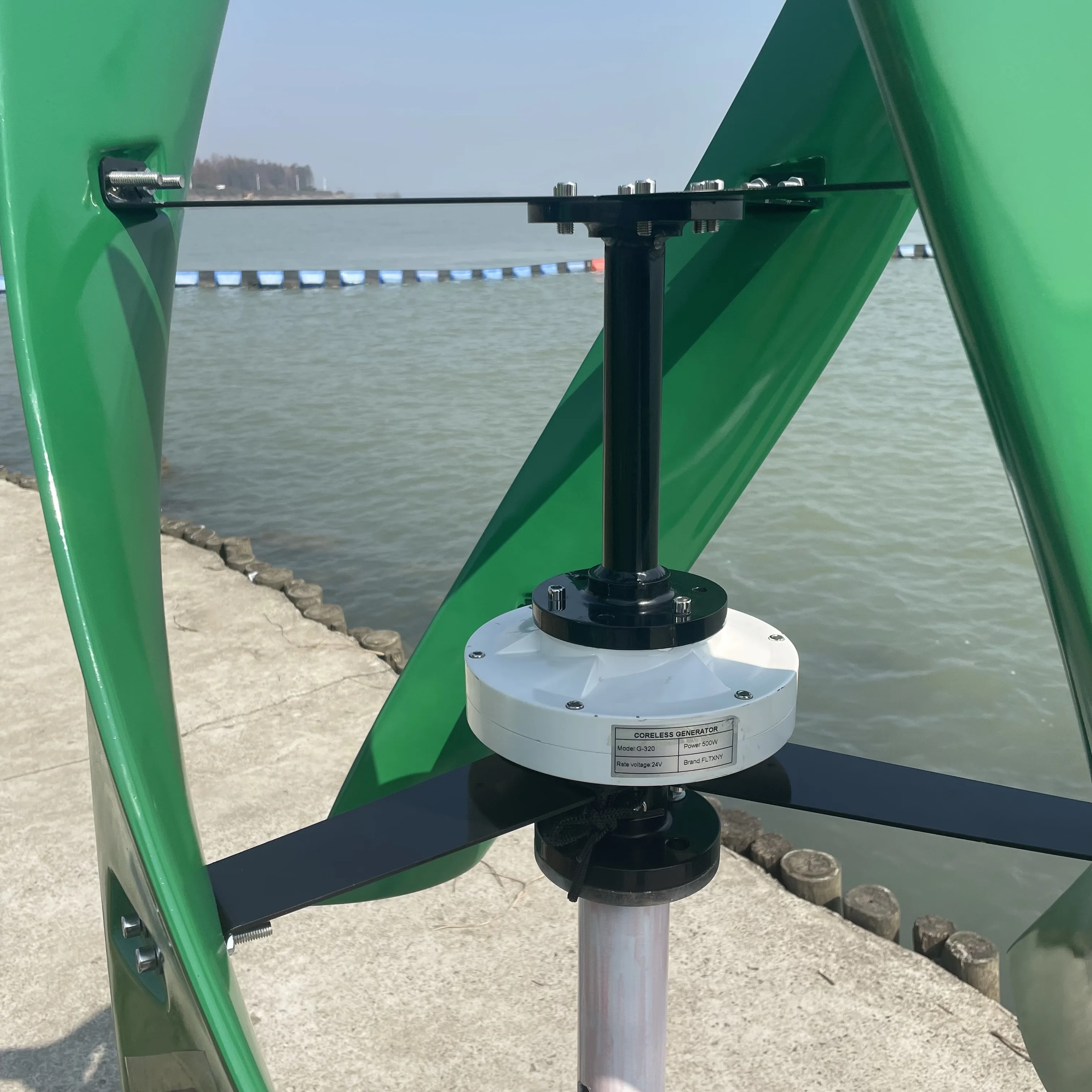

A coreless stator has no iron teeth, so there is no cogging torque resisting the first rotation. In practice the turbine starts in lighter wind and runs more smoothly at low RPM, which is exactly where small residential sites live.

Can I mount this on my roof?

Vertical turbines are commonly roof-mounted because they are short and omnidirectional, but the roof structure must carry both the static weight and the vibration. Have the mounting point checked by a builder, and use a mast that isolates vibration from the building.

How much energy will 1000W actually produce?

Rated power is peak, not average. At a site averaging 5 m/s, expect a fraction of the nameplate figure over a full day. Anyone promising nameplate output around the clock is not describing real wind.

Does it work with a 96V system?

Selected variants support 96V. Choose the voltage variant that matches your battery bank or inverter input before ordering, as the generator winding is configured for it.

Can I add solar later?

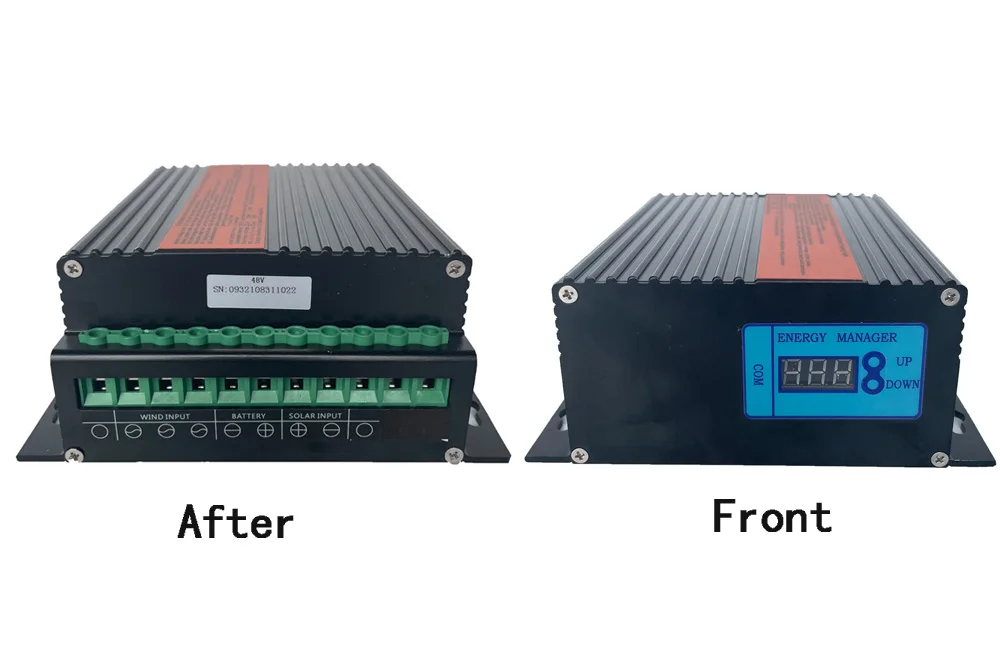

Yes. The MPPT boost hybrid controller has a solar input, 200W by default and up to 1000W optional, so you can start with wind and add panels afterwards.

Do you install it?

No. We supply the hardware, manual and wiring diagram. A certified electrician should handle the final electrical connection.

What is the warranty?

1 year against manufacturing defects, with email support for sizing, wiring and replacement parts.
