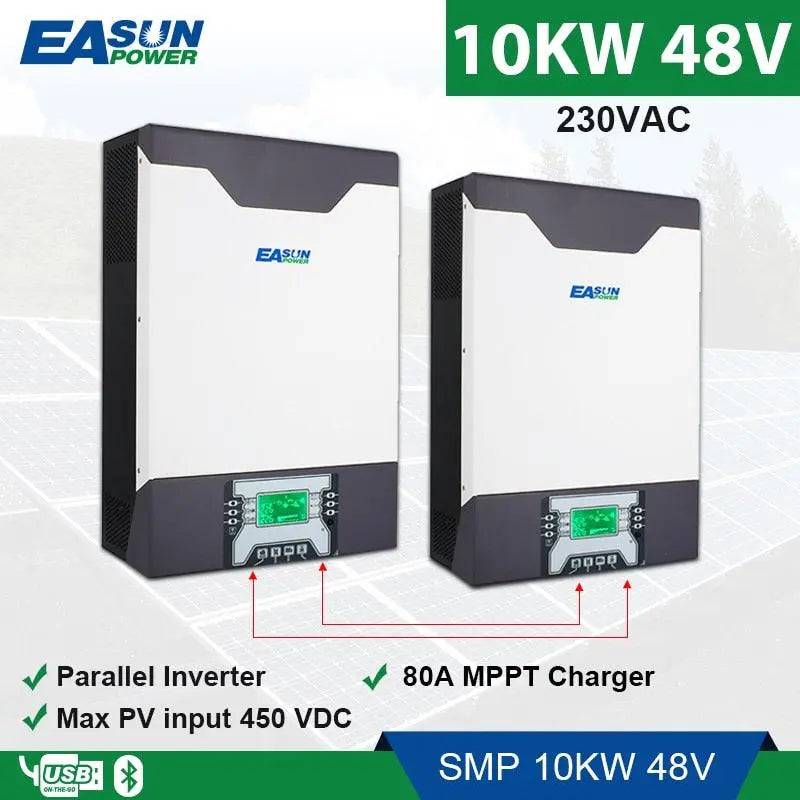

Hybrid Solar Inverter 10KW 80A MPPT Charger PV Input 500VDC Pure Sine Wave 10000W 48V 230VAC 1&3 Phasen Inverter
Hybrid Solar Inverter 10KW 80A MPPT Charger PV Input 500VDC Pure Sine Wave 10000W 48V 230VAC 1&3 Phasen Inverter
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- WiFi function: Yes
- Weight: 27KG
- Size: 59 cmX 39cm X 231cm
- Rated power: 10000VA 10000W

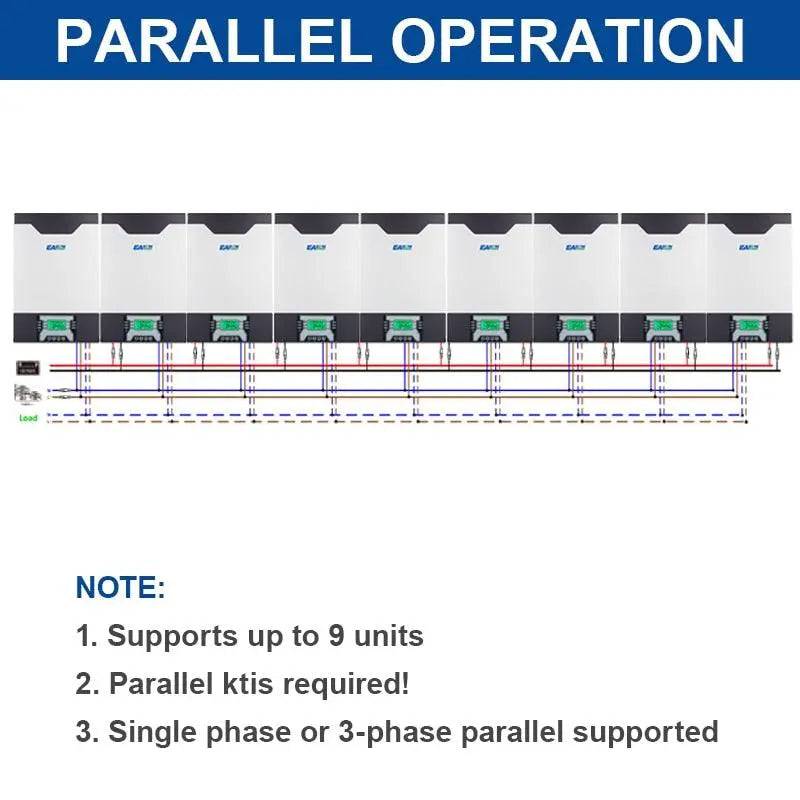

- Parallel function: 9 units
- Parallel Kit: Contains 2 sets
- Overcharge protection: 64V
- Output voltage: 220V-240Vac auto sensing
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50Hz/60Hz auto detect
- Model Number: SMP 10KW

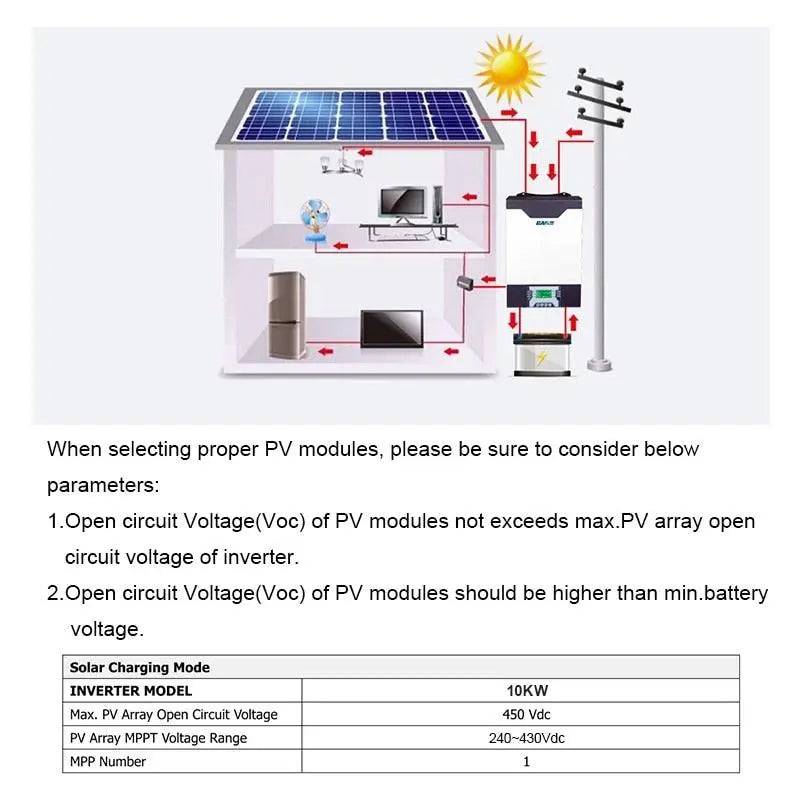

- Maximum open circuit voltage of the PV array: 500 VDC Output
- Maximum charging current: 80A
- MPP range operating voltage: 240 VDC-430VDC
- Is Smart Device: Yes
- Controller type: MPPT
- Certification: CE
- Battery voltage: 48Vdc

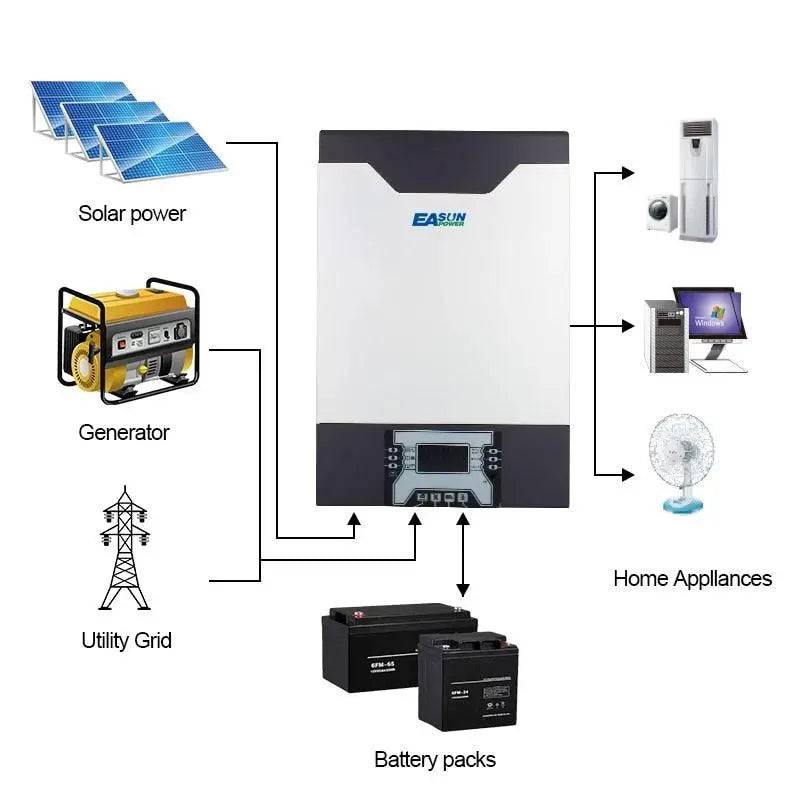

SMP 10K has a grid-connected function, the excess power can be fed to the local grid, On-0f Grid Inverter

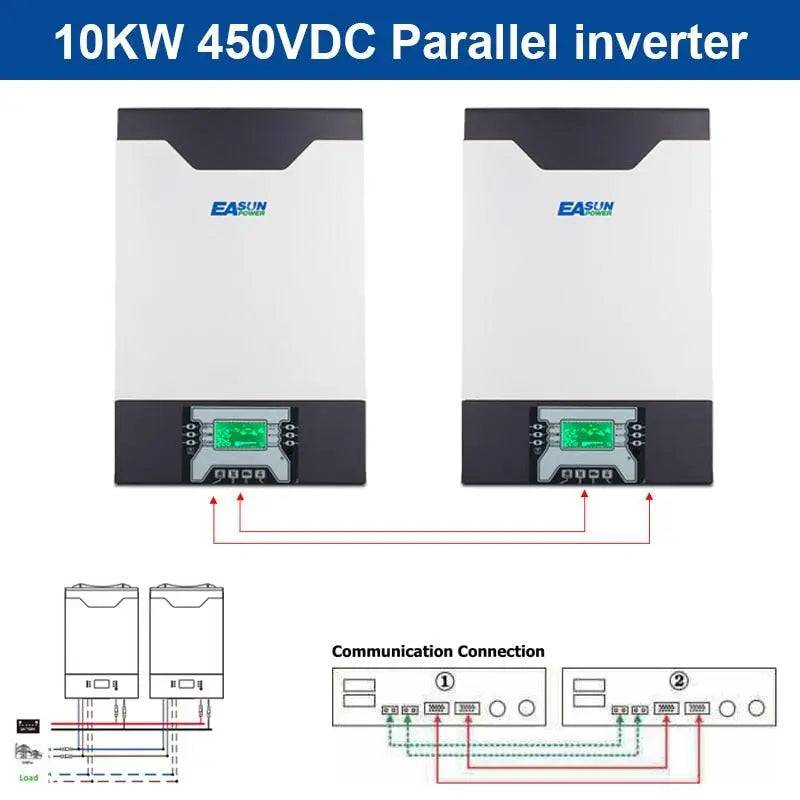

- Max.can be 9 pcs in parallel with optionalkitEfficiently work with or without battery
- MPPT Solar Charge Controller up to5000W solar panel
- Built - in Wifi for mobile monitoring (Requires APP)
- Compatible with (Li-ion,LiFePo4 and etc.)batteries Battery Equalization
|
Model |
SMP 5KW |
|
Rated Power |
5000VA/5000W |
|
INPUT |
|
|
Voltage |
230VAC |
|
Voltage Range |
176-280 VAC at 100% load |
|
Voltage Range |
110-280 VAC at 50% load |
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation(Batt.Mode) |
230VAC±3% |
|
Surge Power |
10400VA for 5 sec |
|
Efficiency(Peak) |
>95% ( Rated R load, battery full charged |
|
Transfer Time |
10ms typical (UPS) |
|
Transfer Time |
20ms typical (Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
|
|
Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
64 VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger Type |
MPPT |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum PV Array Power |
5000W |
|
MPP Range@ Operating Voltage |
120-450VDC |
|
Maxmum Solar Charge Current |
80A |
|
Maximum AC Charge Current |
60A |
|
PHYSICAL |
|
|
Products Dimension,D X W X H(mm) |
456*303*147 |
|
Product Net Weight(kgs) |
12 |
|
Packing Dimension,D X W X H (mm) |
530*377*217,1PC/CTN |
|
Product Net Weight(kgs) |
13.5 |
|
Communication Interface |
Removable OTG USB/RS232/RS458/BLE/Dry-contact |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10℃to 50℃ |
|
Storage Temperature |
-15℃to 60℃ |
|
*Product specifications are subject to change without further notice |
|
