⚡ LED Digital Thermometer With EGT Temperature Sensor Weld Bund Combo Kit In Fahrenheit Celsius Adjustable Universal Use PT100 K

Upgrade your system with our high-performance LED Digital Thermometer With EGT Temperature Sensor Weld Bund Combo Kit In Fahrenheit Celsius Adjustable Universal Use PT100 K. Built for reliability, efficiency and seamless integration with modern setups.

📌 Key Benefits

• ✅ High-efficiency design for superior performance
• ✅ Optimized heat dissipation and durability
• ✅ Plug-and-play compatibility for easy integration
• ✅ Ideal for industrial and residential use

📄 Technical Specifications

This LED Digital Thermometer is the ultimate temperature measuring tool for all your welding needs. With an EGT temperature sensor, you can accurately measure both Fahrenheit and Celsius temperatures. The adjustable design allows for universal use, making it a versatile choice for any project.

SPECIFICATIONS

• POWER: DC12V
• RANGE: -200~1300°C
• Brand Name: EARUELETRIC
• Max Measuring Temperature: 120°C & Above
• Style: Standing and Wall Hanging
• Model Number: T100G T100B T100R
• Theory: Thermocouple Thermometer
• Type: K
• Display Type: DIGITAL
• Measure Type: K
• Cable Length: 2m
• Display Size: 2.0 - 3.9 Inches

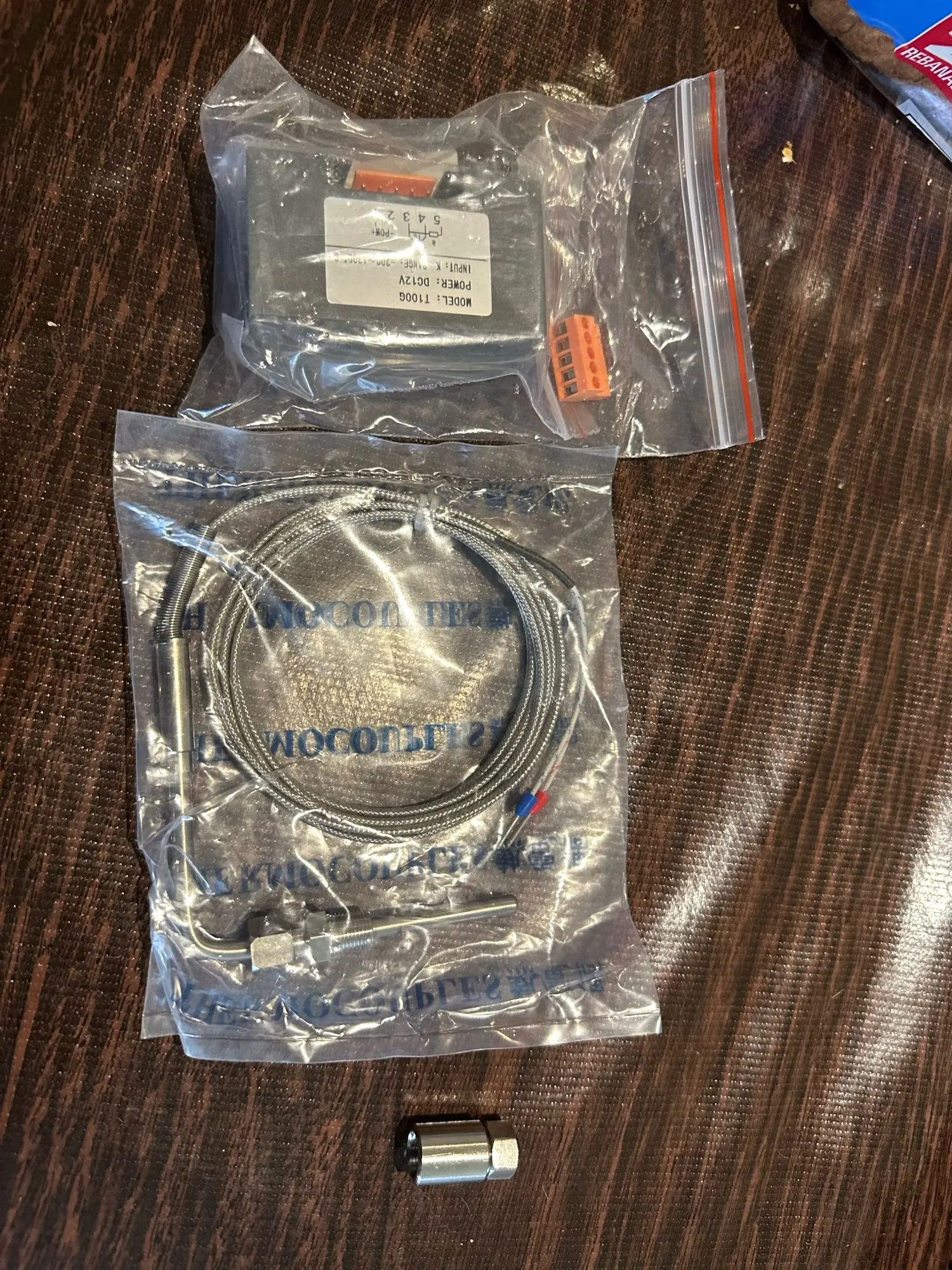

EGT Probe :

• Probe Material : Stainless Steel 304
• Probe Diameter : 5mm (0.2”)
• Probe Length : L1 80mm (3.15”) L2 30mm (1.18”)
• Threads : 1/8” NPT Adjustable Compression Fittings
• Cable Length : 2m (6.6')
• Cable Insulation : Fiberglass braiding with stainless steel overbraiding
• Type : Ungrounded
• Connector : Spade connector
• Temperature Range : -100 ~ 1250 degree Celcius (-150 ~ 2300 F)

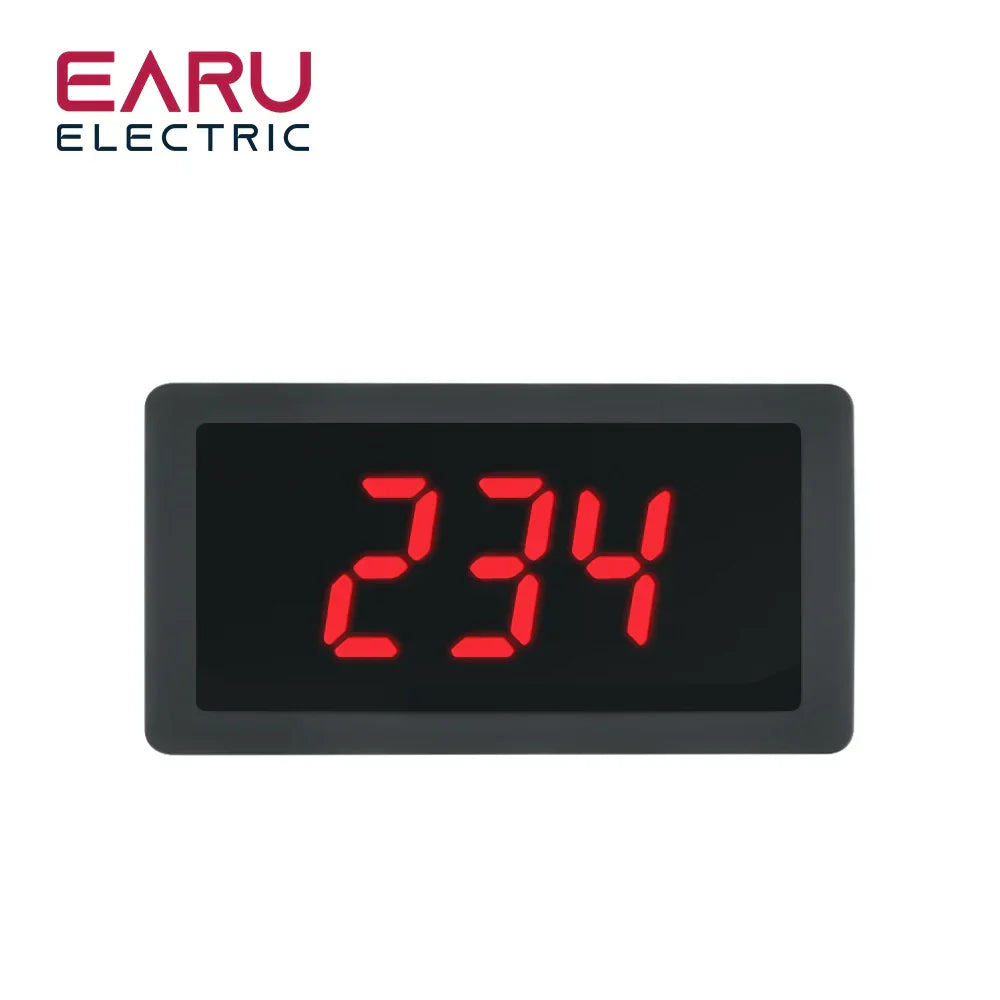

EGT Gauge :

• Power supply:DC5~12V
• Measurement accuracy: ≤0.2%FS ≤1 word
• Power consumption::≤30mA
• Signal range: 10 kinds of thermocouples, 2 kinds of RTDs
• Sampling rate: 5 times / sec.
• Display range:-1999~9999
• Display mode: 0.56 inch LED display, red, blue, green three-colour optional
• Temperature drift:60PPm/°C
• Operating temperature:-10~50°C
• Relative humidity:≤85%RH, no strong corrosive gas
• Mounting hole size:76.5x39.2 mm

Weld Bund with Plug :

• Material : Stainless Steel
• Threads : 1/8” NPT
• Outer Diameter : 0.5" (12mm)
• Length : 0.6" (15mm)
