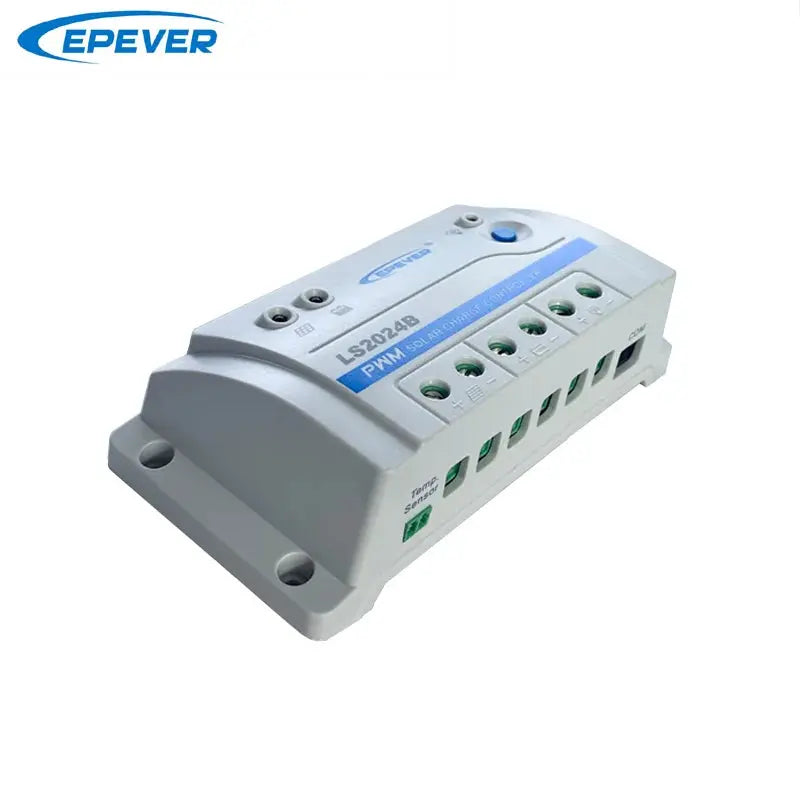

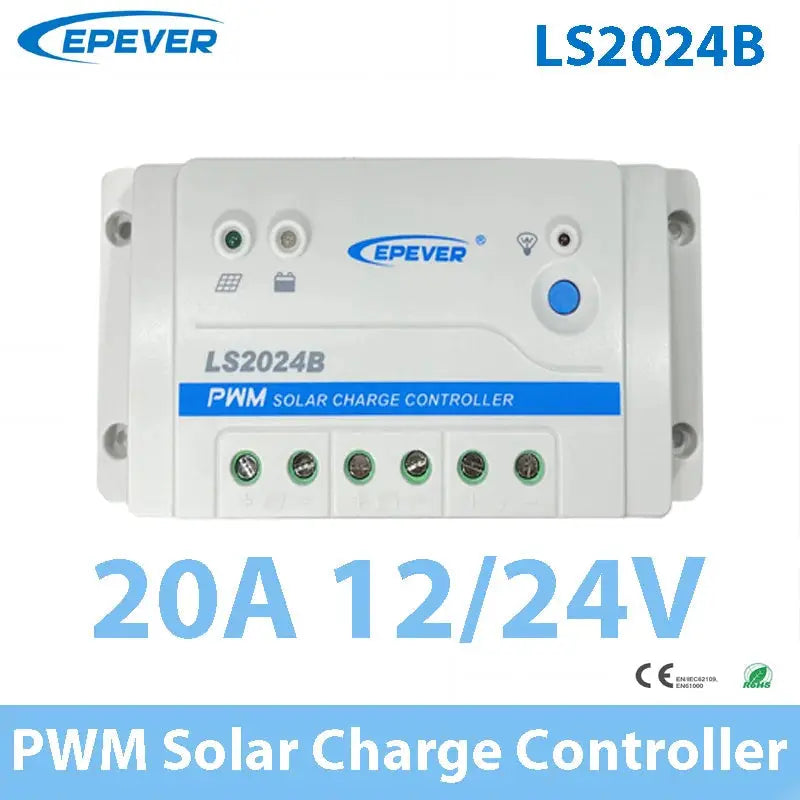

LS2024B 20A 20amp EPSolar EPEVER Solar charger controller apply to solar home system solar lighting and solar road singals
LS2024B 20A 20amp EPSolar EPEVER Solar charger controller apply to solar home system solar lighting and solar road singals
SPECIFICATIONS:
- Maximum Current: 20A
- Certification: CE
- Certification: RoHS
- Application: Lighting Controller
- Application: Solar System Controller
- Application: Charger Controller
- Application: Solar Working Station
- Application: Voltage Controller
- Manufacturer: EPsolar/EPEVER
- Nominal system voltage: 12v/24v auto
- Rated charge current: 20A
- Max. PV open circuit voltage: 50V
- Enclosure: IP30

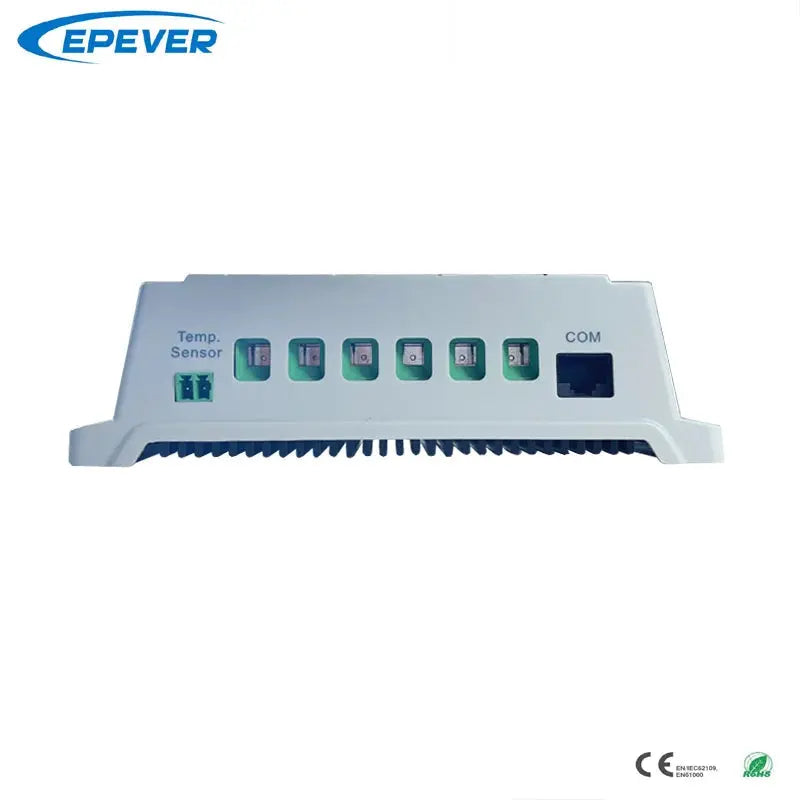

- Communication interface: RS485(RJ45)
- Grounding: Commom Positive
- Operating temperature range: -35℃~50℃
- Dimensions(L*W*H): 159.6*81.4*47.8mm
- Net weight: 0.3kg
LS2024B 20A 20amp EPSolar EPEVER Solar charger controller apply to solar home system solar lighting and solar road singals
Overview:
LS-B series is a common positive PWM charge controller. Thanks to the RS485 interface. The parameters can be configured via com. Port, APP, and PC software. It is widely applied to solar home systems, and surveillance system, etc.
Features:
-
Series PWM charging mode
-
Multiple load control modes
-
Full load operation within the working temperature range
-
Extensive electronic protection
-
Variety optional accessories
-
Standard Modbus communication protocol with RS485 interface
Package List:
-
1 x EPEVER PWM Solar Charge Controller 20A LS2024B
-
1 xUser Manual (English)
More powerful function via MT50 or PC
-
Diversified load control modes: Manual, Light ON/OFF, Light ON+ Timer, Time Control
-
Battery type option: Gel, Sealed, flooded and USER
-
Real-time monitor
-
Programmable parameters
-
LVD or SOC load disconnect function
-
Rnergy statistic function
PC Software:
Model |
LS1024B |
LS2024B |
LS3024B |
Nominal system voltage |
12/24VDC/Auto |
||
Battery type |
Sealed(Default)/Gel/Flooded/User |
||
Battery input voltage range |
8~32V |
||
Rated charge current |
10A |
20A |
30A |
Rated discharge current |
10A |
20A |
30A |
Max. PV open circuit voltage |
50V |
||
Equalization voltage |
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
||
Boost voltage |
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
||
Float voltage |
Gel/Sealed/Foolded:13.8V,User-defined:9-17V |
||
Low voltage reconnect voltage |
Gel/Sealed/Foolded:12.6V,User-defined:9-17V |
||
Low voltage disconnect voltage |
Gel/Sealed/Foolded:11.1V,User-defined:9-17V |
||
Self-consumption |
≤8.4mA/12V;≤7.8mA/24V |
||
Temperature compensation |
-3mV/℃/2V (default) |
||
Relative humidity |
≤95%(N.C.) |
||
Enclosure |
IP30 |
||
Communication interface |
RS485(RJ45) |
||
Grounding |
Common Positive |
||
Operating temperature range |
-30℃~50℃ |
||
Dimensions(LxWxH)(mm) |
138.6 x 69.3 x 37 |
159.6 x 81.4 x 47.8 |
200.6 x 101.3 x 57 |
Net weight |
0.13kg |
0.30kg |
0.50kg |
