SPECIFICATIONS

is_customized: Yes

Weight: 0.9

Type: DC/AC Inverters

Size: 282mmx106mmx41mm

Output Type: Single

Output Power: 500 - 1000W

Output Frequency: 50/60Hz

Origin: CN(Origin)

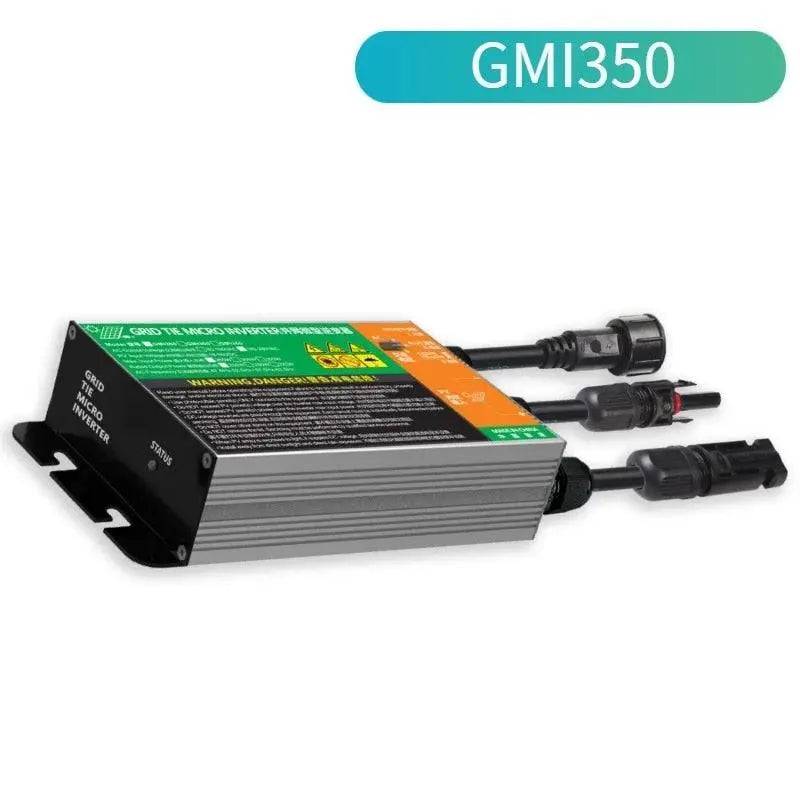

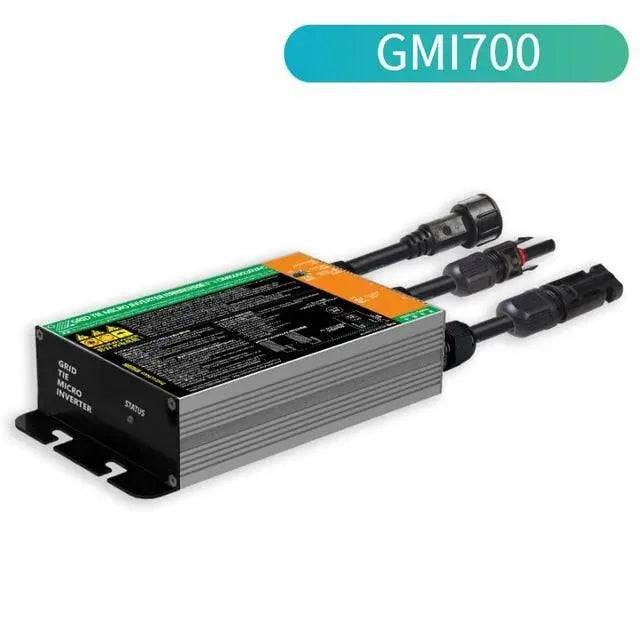

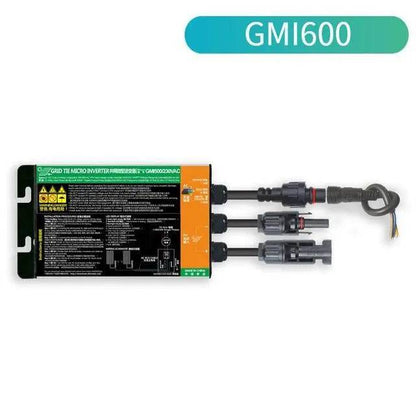

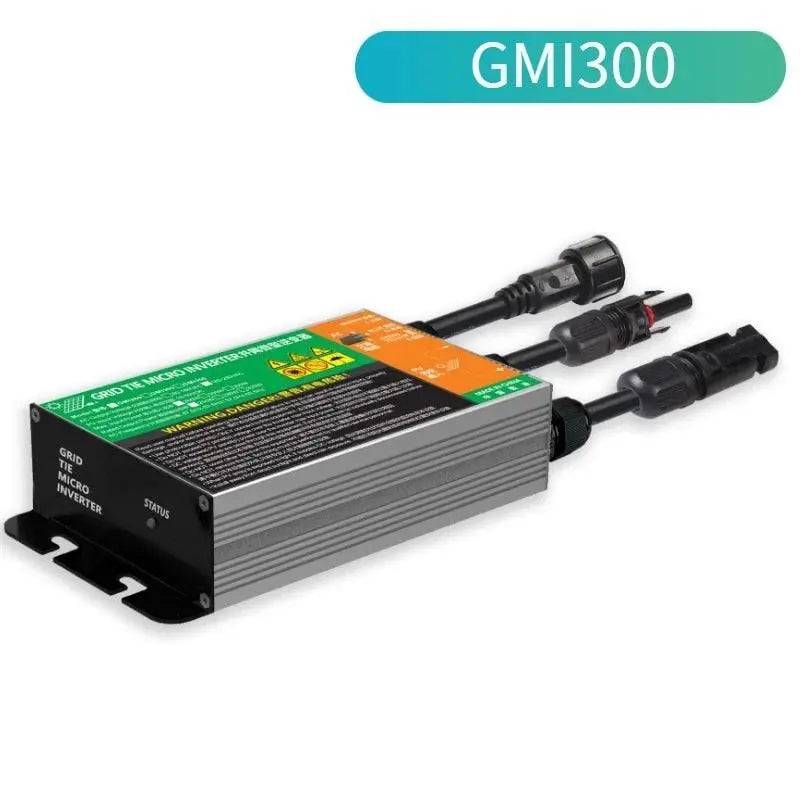

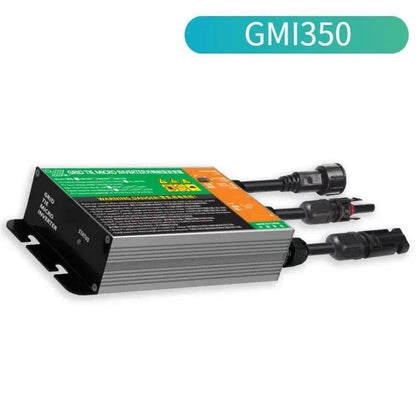

Model Number: GMI500/600/700/350/300

Certification: CE

Brand Name: Tricorpower

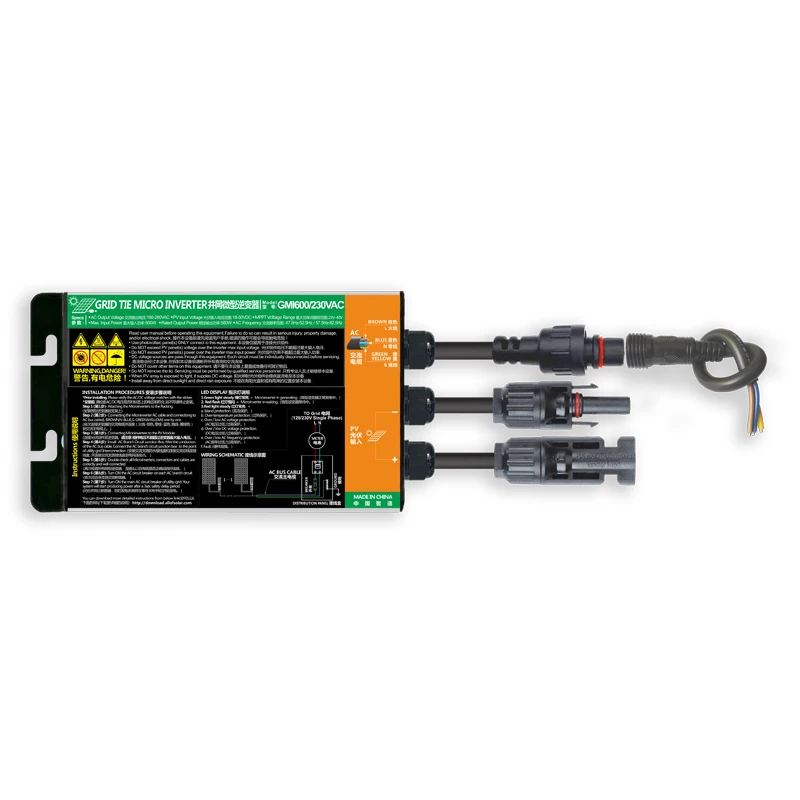

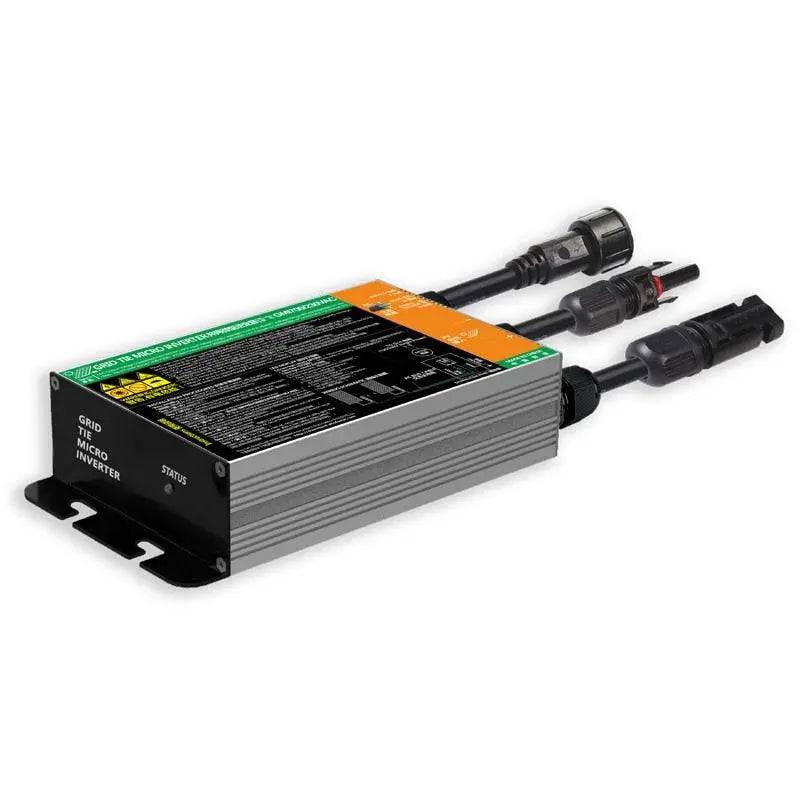

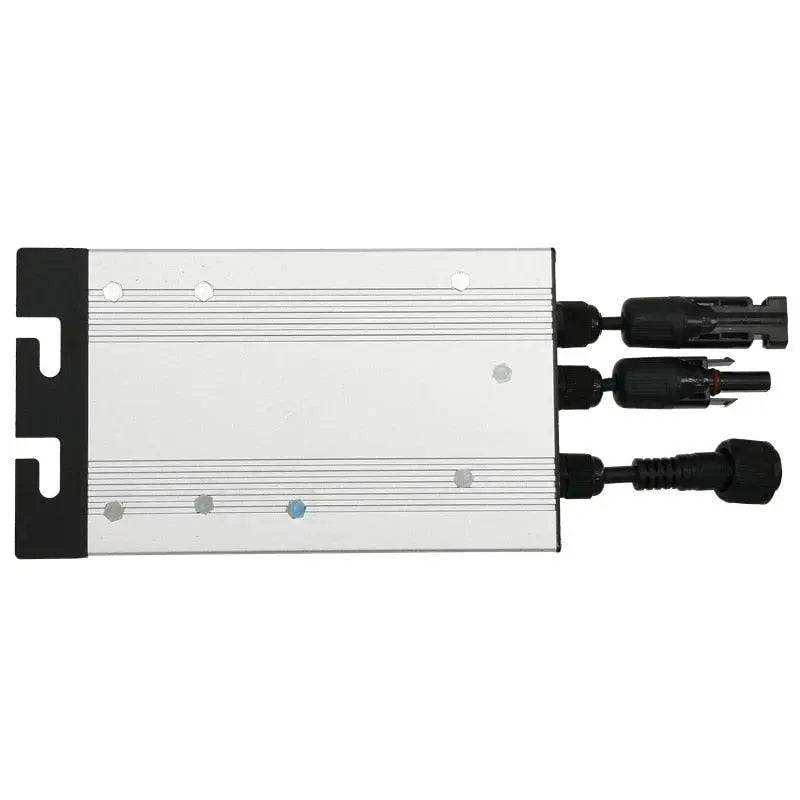

350W 300W 500W 600W 700W Grid Tie Micro Inverter MPPT Solar PV GMI Series Input 18V-50V DC Output 110V-240V AC

LED DISPLAY:

1.Green light steady=Microinverter in generating.

2.Red flash=Microinverter in waiting.

3.Red light steady

a.Island protection.

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

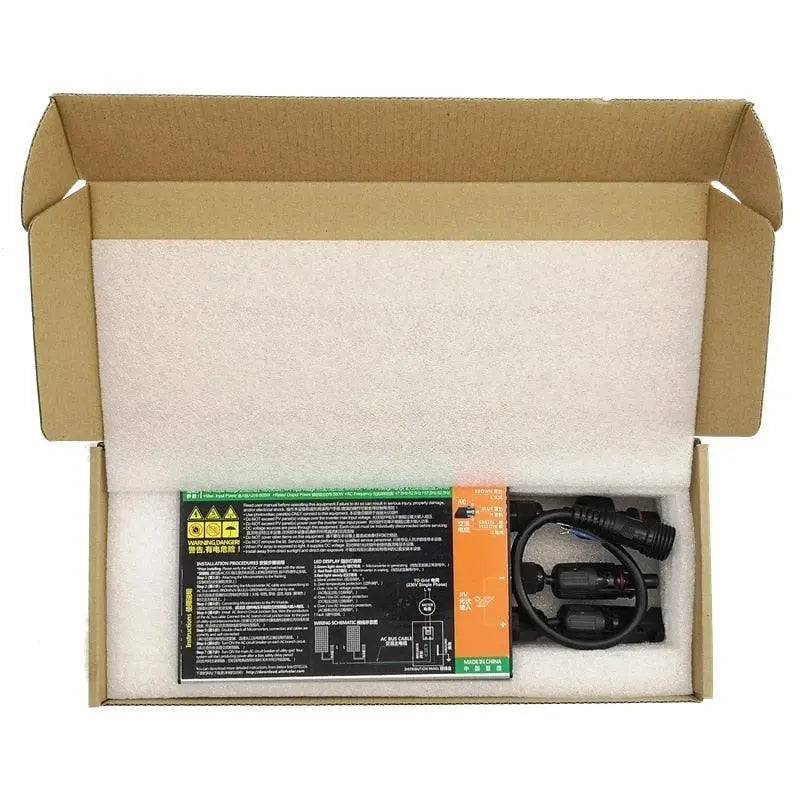

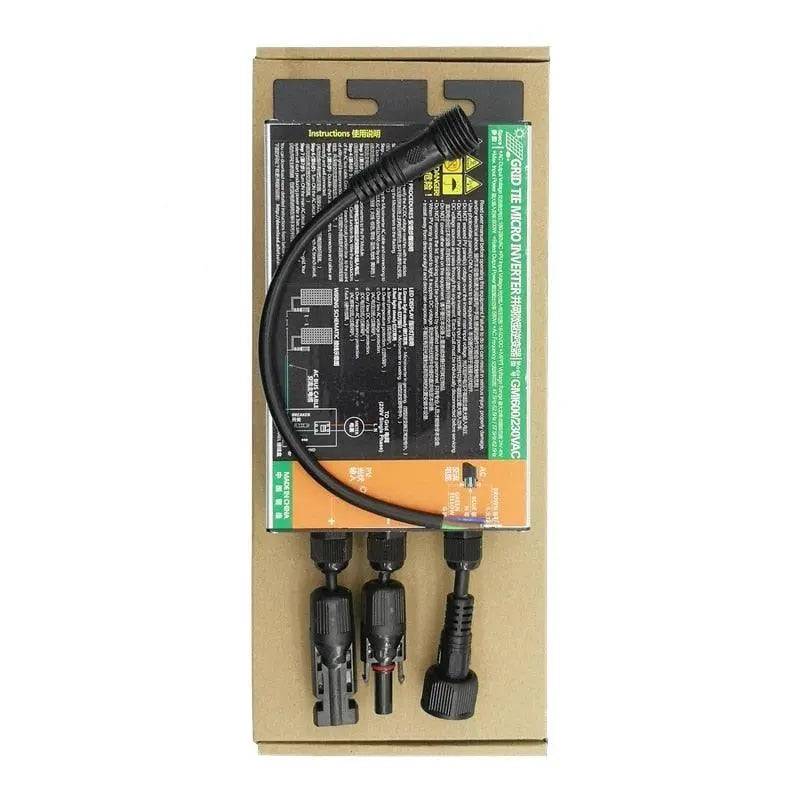

Packing List:

Grid Tie Inverter -----1pcs

AC Cable 30CM-----1Pcs

About 18- 50V DC Input

This grid tie micro inverter will start up at 24V, after starting, the Solar Microinverters can work in 18V-39V (Vmp).Solar Panel Voc cannot be higher than 50V.

Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.

So 50V is max Voc of Panels connected with the Micro Grid Tie Inverter

Why can't use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.

If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make the Solar micro-inverters work unstable, and the inverter will start repeatedly. In this case,micro Grid tie Inverter would be damaged easily!

Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V( Battery is not recommended)

If you have any questions about the Micro Grid Tie Inverter,please feel free to contact us.
