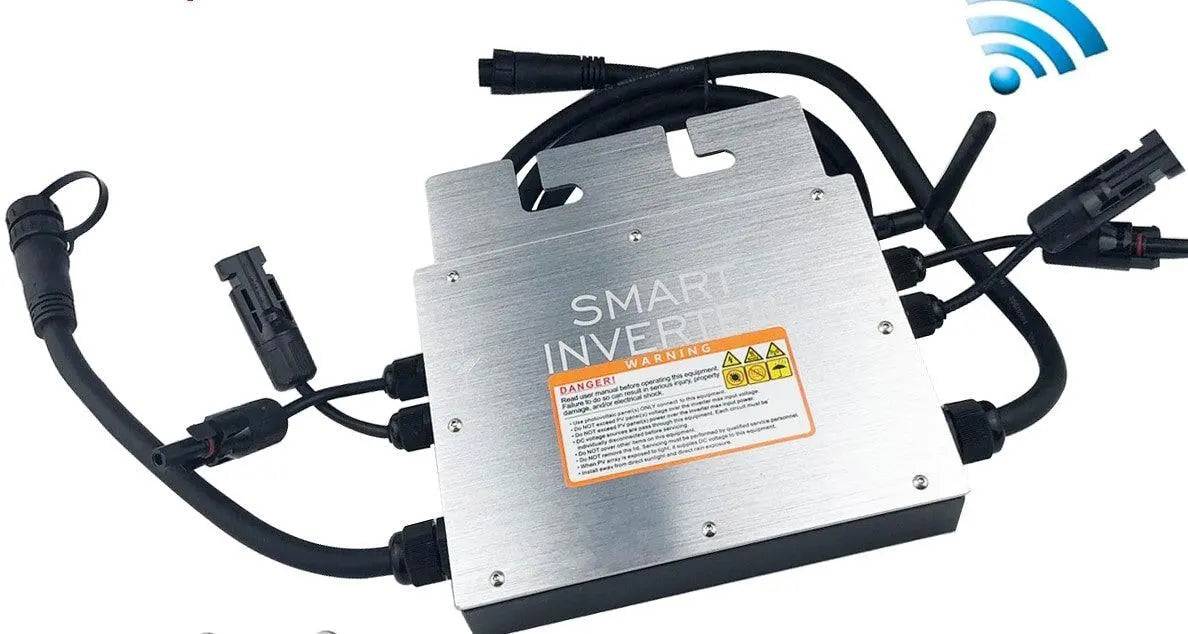

Micro Solar Inverter 800W Grid Tie MPPT 30V 36V DC 110/220V AC For 400/350W

Micro Solar Inverter 800W Grid Tie MPPT 30V 36V DC 110/220V AC For 400/350W

Regular price $282.06
Regular price Sale price $282.06
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Output Voltage
Input Voltage

SPECIFICATIONS

is_customized: Yes

Weight: 2.0KG

Warranty: 2year

Suggestion solar panel voltage: 18V 30V 36V

Size: Size: 185mm x 180mm x 38.5mm

Peak power tracking voltage: 18-50V

Output Voltage: 110V 220V

Output Type: Single

Output Power: 401 - 600KW

Output Frequency: 50HZ/60HZ

Output Current: MAX 17A

Origin: Mainland China

Nominal MPPT Efficiency: 99.9%

Model Number: SG800 Series PV Smart Microinverter

Is Smart Device: YES

Communication(Inverter to DataBox): 2.4G Wireless

Certification: UL

Certification: RoHS

Certification: FCC

Certification: CE


800W PV Solar On Grid Tie Micro Inverter MPPT Smart Microinverter Inversor 30V 36V DC 110V 220V AC For 300W 350W 400W Solar Panel




Feature:

1.Single unit connects to one PV module

2.Maximum 800W AC output power

3.Single-phase output, Flexible 3-phase PV systems
4. 2.4G wireless communication and monitoring
5.Up to 8 units (230V) per branch
6.Customizable various input (DC, PV) voltage range
7.Integrated AC bus cable, Ready-To-Use
8.Low cost, Easy installation

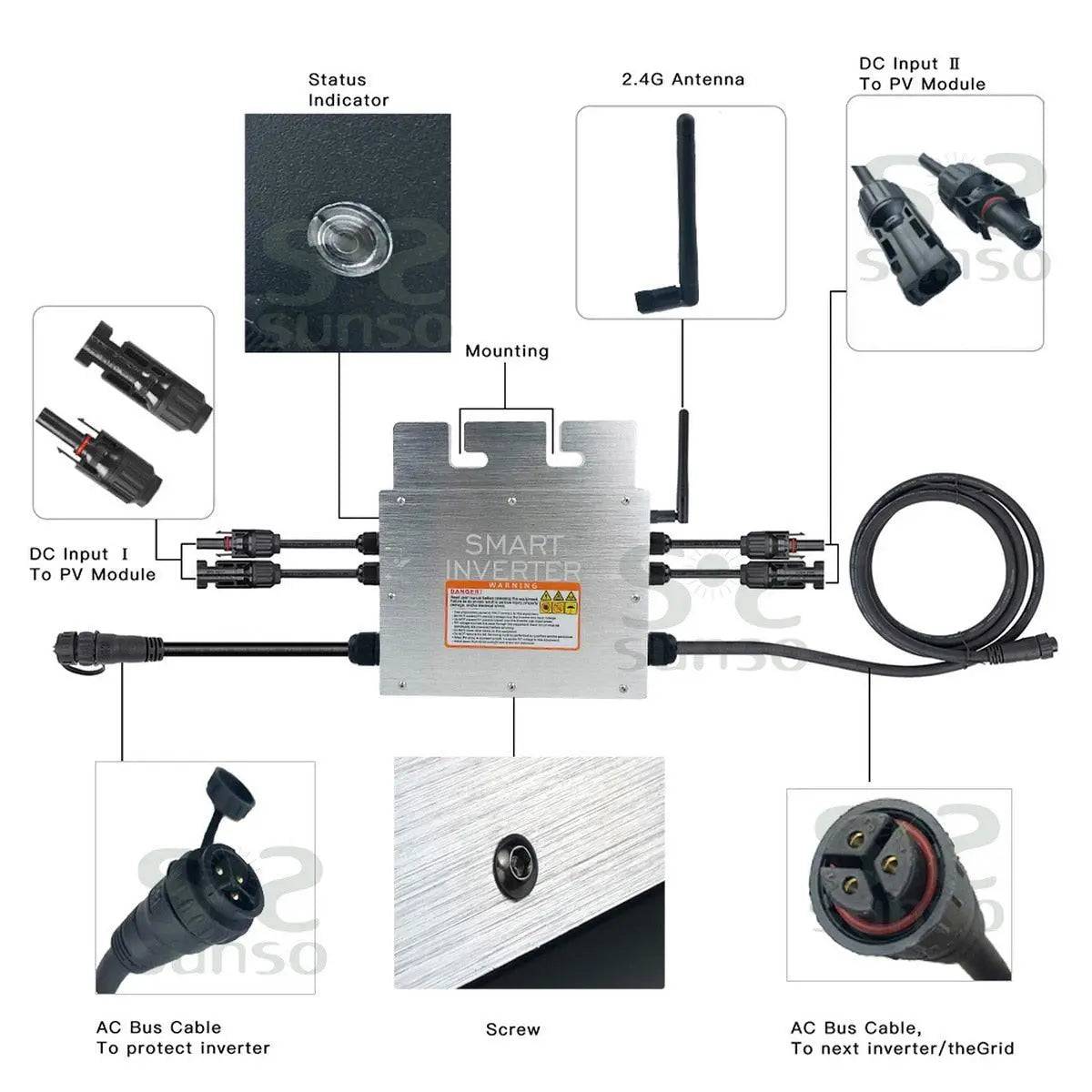

Basic Structure

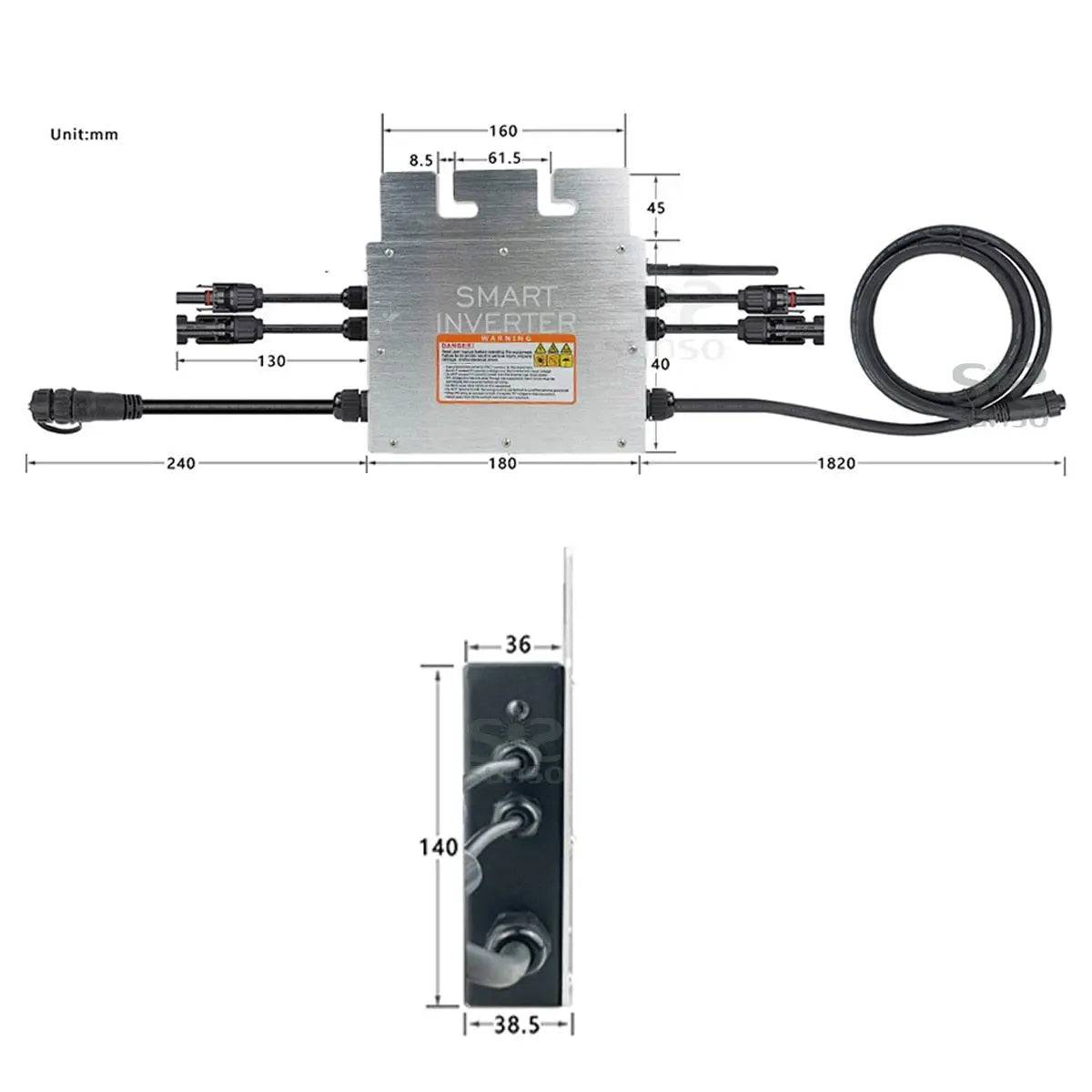

Dimensions


Product Series

SG800 Series

Model

SG800MD

SG800HD

SG800TD

(Regular)

(Custom-made)

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

2 set

2 set

2 set

MPPT Voltage Range

24V-40V

36V-60V

80V-115V

Operation Voltage Range

18V-50V

30V-70V

70V-120V

Maximum Input Voltage

50V

70V

120V

Startup Voltage

18V

30V

70V

Maximum Input Power

2*400W

2*400W

2*400W

Maximum Input Current

2*17A

2*11.2A

2*5.3A

Output Data(AC)

Single-Phase Grid Type

120V  &  230V

Rated Output Power

780W

Maximum Output Power

800W

Nominal Output Current

@120VAC :6.5A  /  @230VAC : 3.4A

Nominal Output Voltage

120VAC  /  230VAC

Default Output Voltage Range

@120VAC : 80V-160V  /  @230VAC : 180V-280V

Nominal Output Frequency

50Hz  /  60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz   /  @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 4 units   /  @230VAC : 7 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5%  /  @230VAC : 93.5%

Nominal MPPT Efficiency

99.90%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

185mm x 180mm x 38.5mm (not include connectors and cable)

Weight

1.5kg

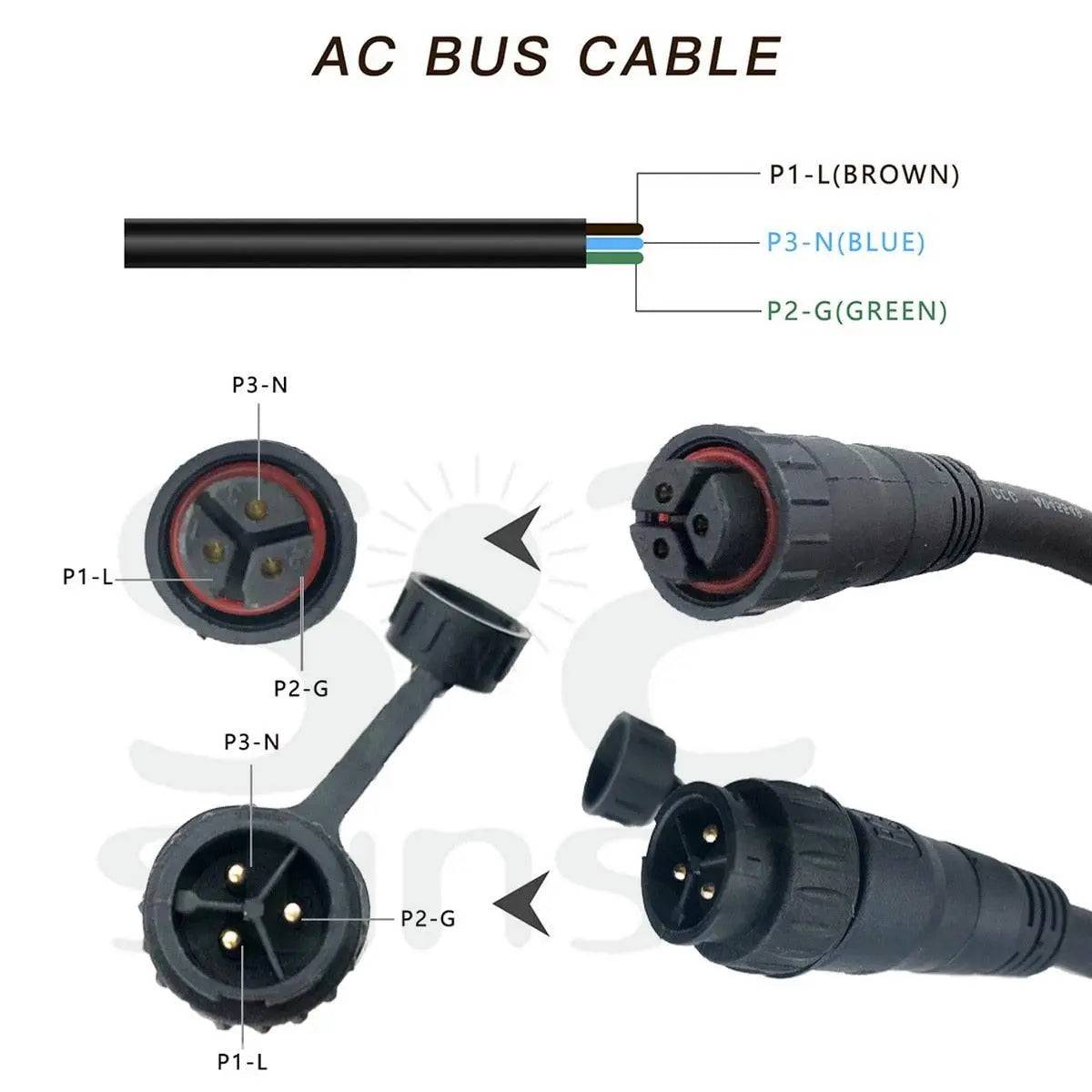

Max Current of AC Bus Cable

20A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

Other Features

Communication(Inverter to DataBox)

2.4G Wireless

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.

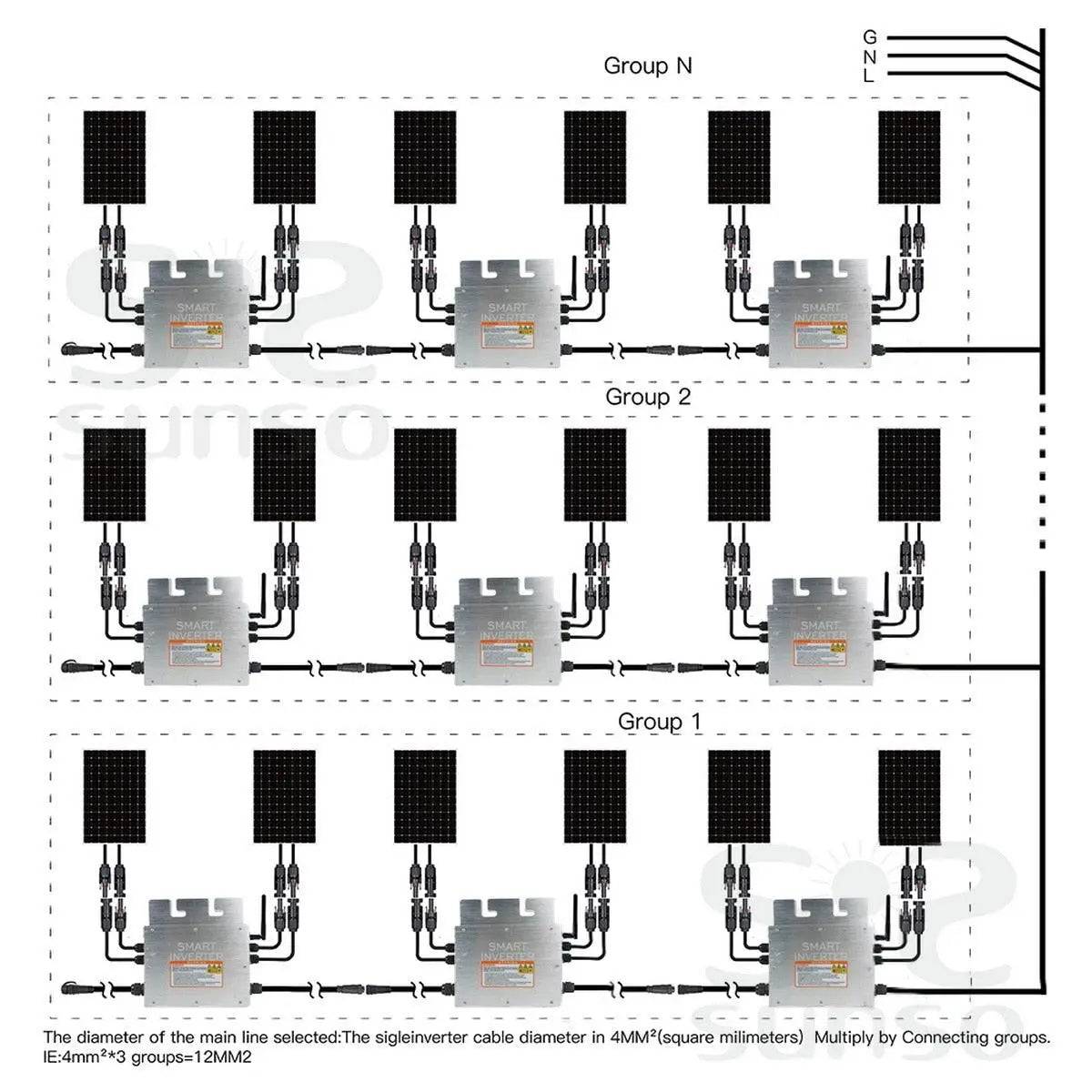

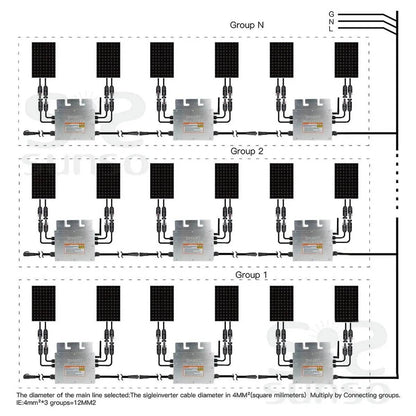

Installation Schematic For SG600

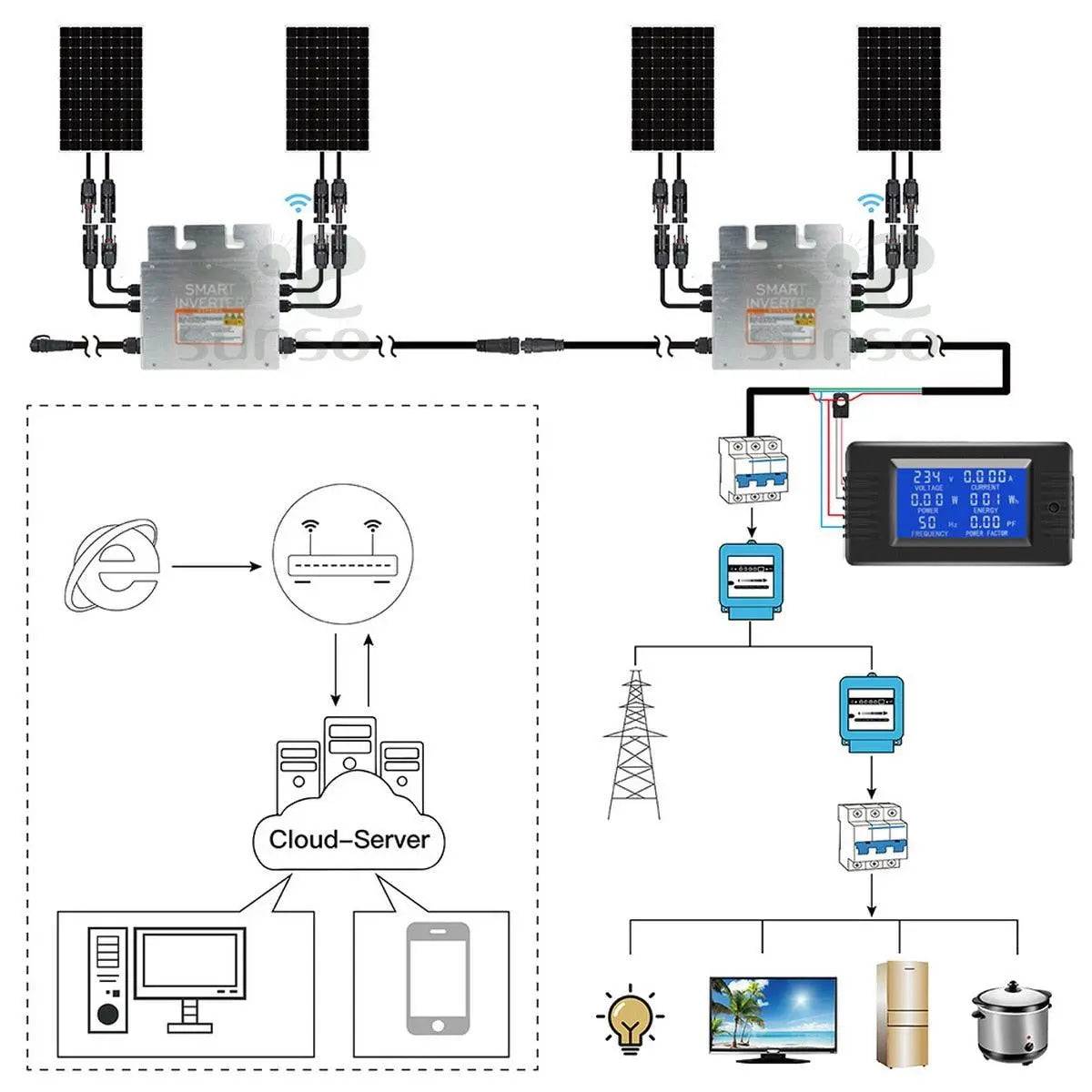

Wiring Schematic For SG600
