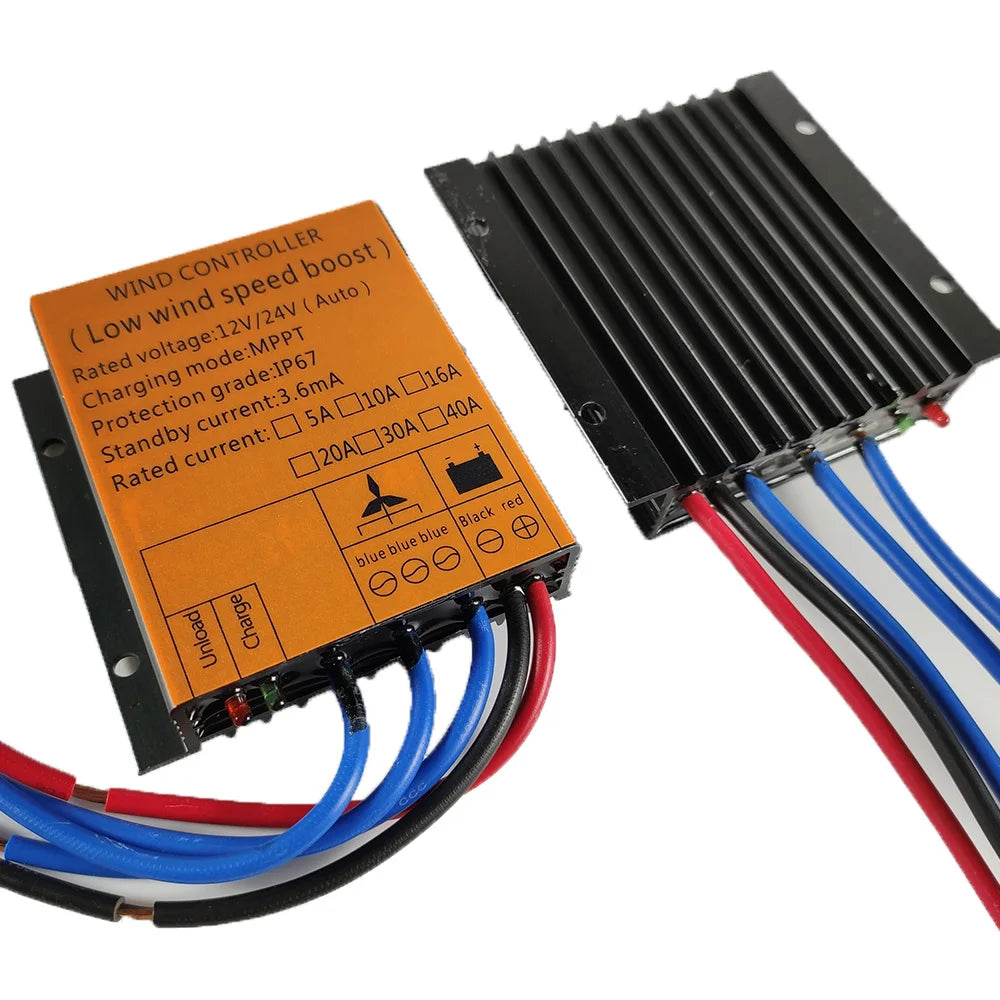

MPPT 100w -1000W Waterproof PWM Wind Turbine Charge Controller 10A 40A Low Wind Speed Regulator Voltage Boost 12V 24V AUTO 48V
MPPT 100w -1000W Waterproof PWM Wind Turbine Charge Controller 10A 40A Low Wind Speed Regulator Voltage Boost 12V 24V AUTO 48V
Couldn't load pickup availability
Efficiently regulate charging for wind turbines with the MPPT 100w-1000W PWM Charge Controller. Waterproof and suitable for low wind speeds, this controller boosts voltage for 12V, 24V, and 48V systems. With a range of 10A-40A, this controller is a reliable addition to any wind turbine setup.
Specifications
- Brand Name: FLTXNY POWER
- Type: Wind Power Generator
- Mounting Base: Without Mounting Base
- Shaft Material: IRON
- Model Number: MAX-AUTO1224-WI
- Application: Voltage Controller
- 100W~1000W: 10A/20A/30A/40A
- Input: AC 3 phase
- Taxture: For Wind turbine generator
- Function: PWM charging,BOOST
MPPT 100w -1000W Waterproof PWM Wind Turbine Charge Controller 10A 40A Low Wind Speed Regulator Voltage Boost 12V 24V AUTO 48V
Features
- Good quality technical components guarantee its stability and reliability.
- Complete electrical protection features that make the system more reliable.
- Anti-water,anti-dust shell make it applicable in various outdoor environment.
- Voltage/current control charging make sure storage batteries are
- Alloy design,small size,good for heat dissipation.
1. Safety Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION OR OPERATION OF THIS PRODUCT.
1.1 Please make sure the output voltage of wind generator is consistent with rated battery voltage.
1.2 Please connect the cables of plus-n-minus of battery firstly and then connect the three cables of wind generator.
1.3 Please make sure you connect battery and wind generator with controller according to this instruction, opposite polarity or wrong position connection will result in abnormal operation of system or damage of system components.
2. Wiring

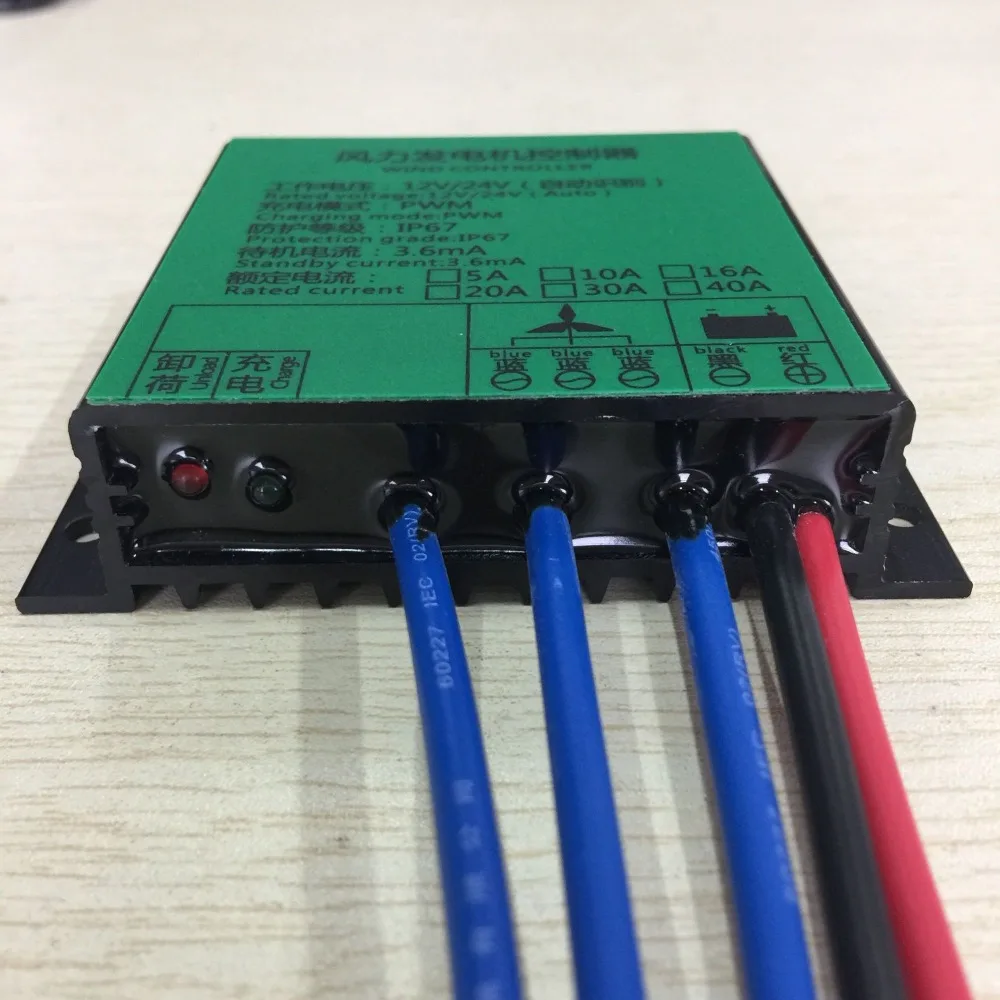

2.1 Connect the "+" and "-"of battery with red and black input wires of controller.
2.2 Connect the three cables of wind generator with three blue wires of controller.

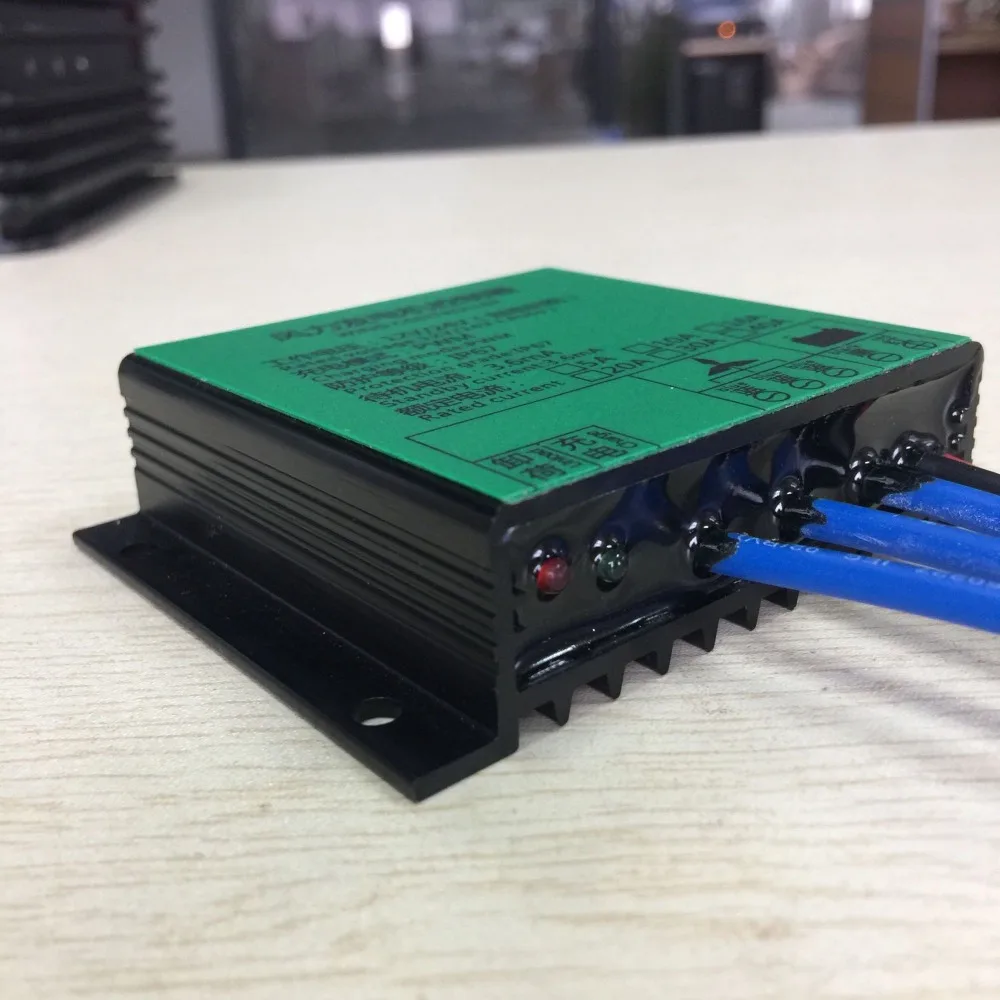

3. Lights
3.1When wind generator light (green) is on, it indicates wind generator connection is normal and it shows the rotation speed of wind generator by twinkle speed.
3.2 When brake light (red) is on, it indicates controller is braking automatically due to battery full charged or over-current protection function operation of controller.

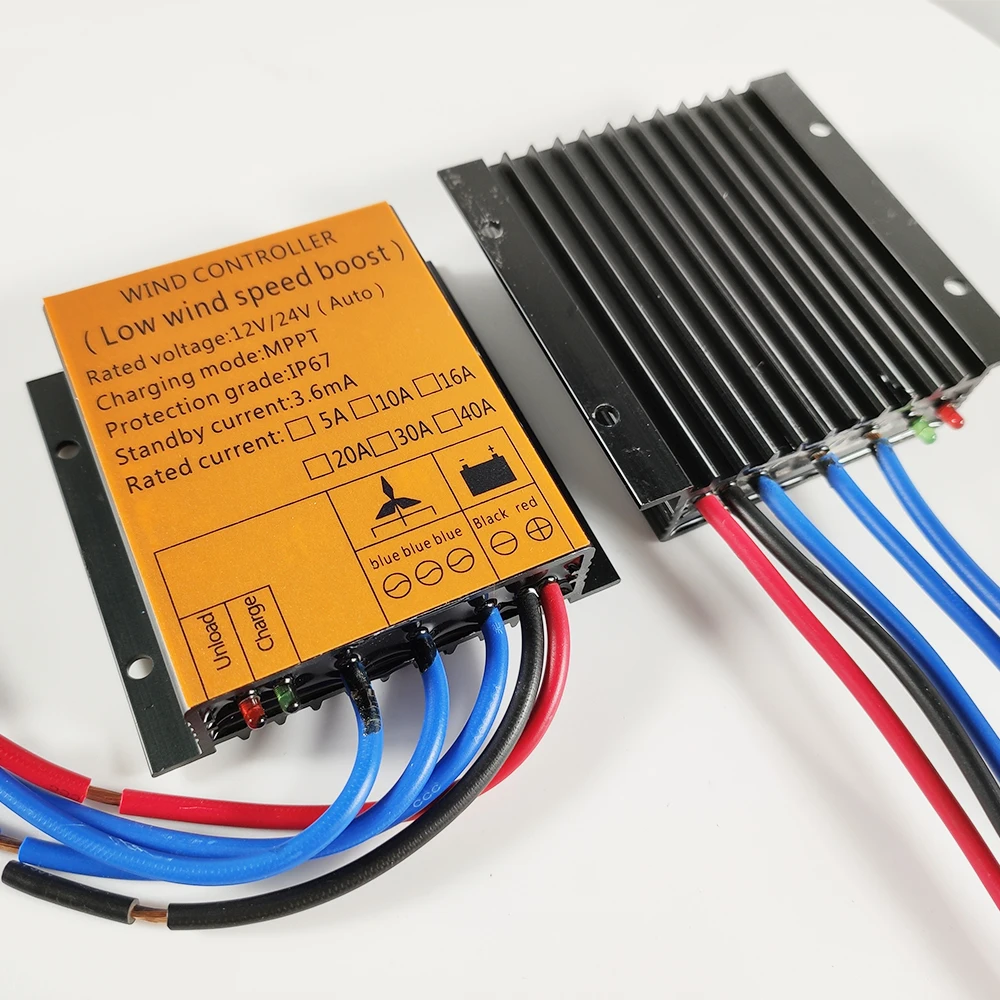

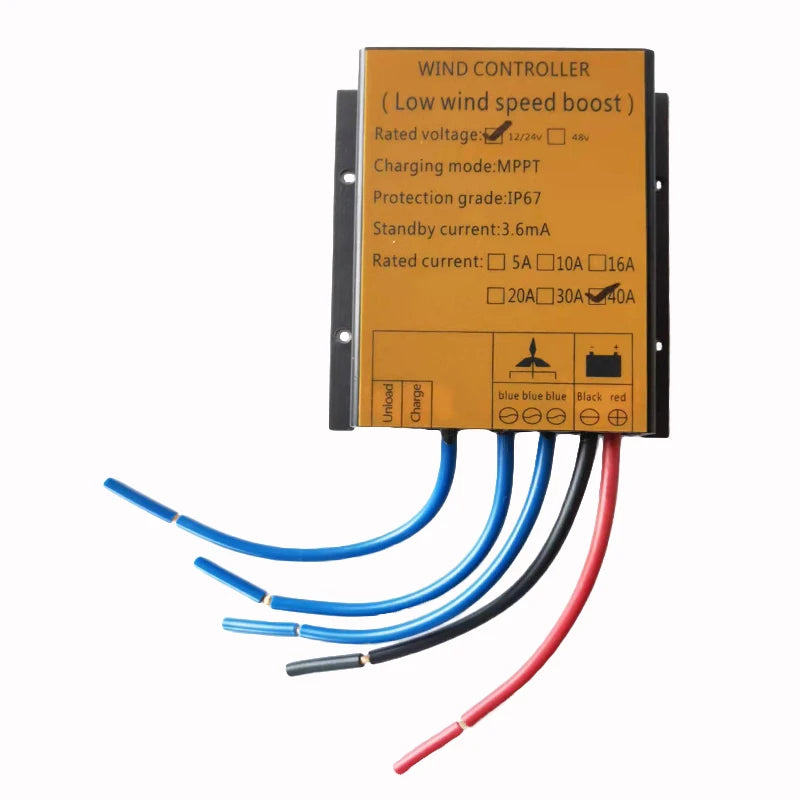

MPPT Wind Controller

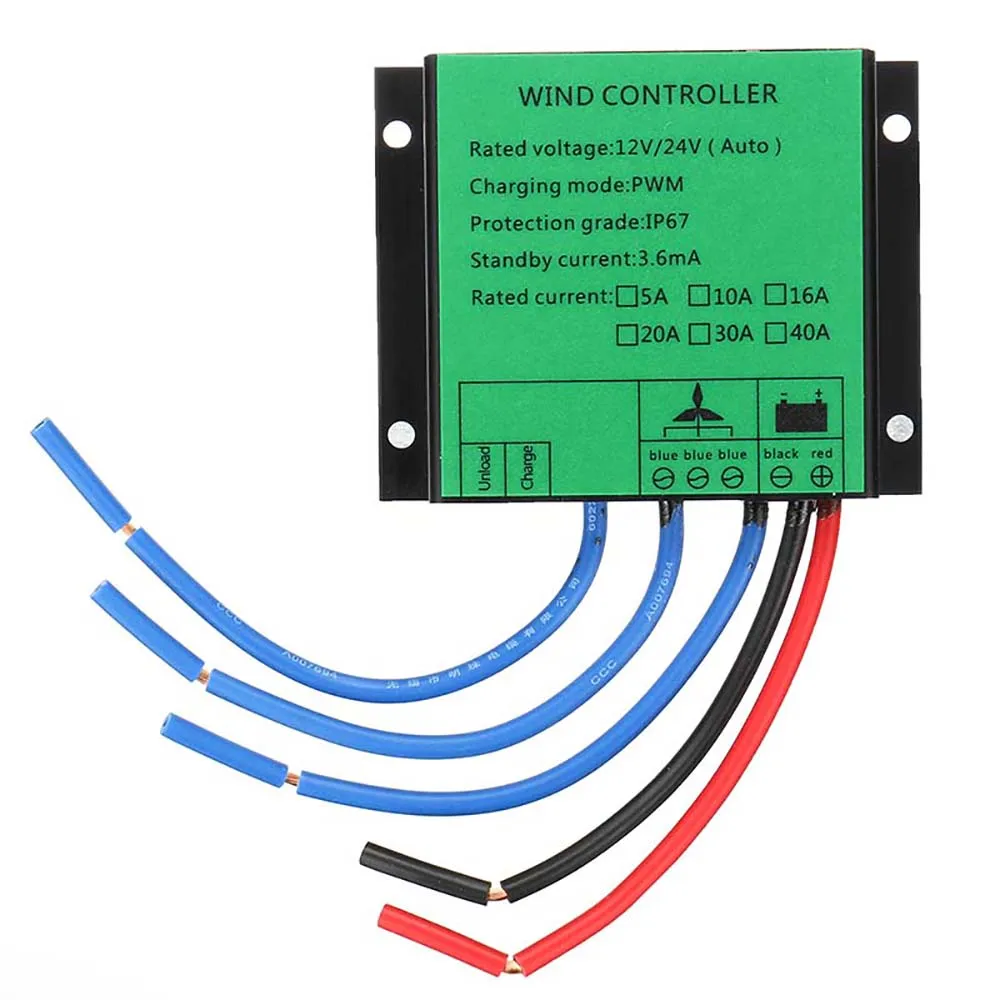

PWM Wind Controller
