54 Energy - Renewable Energy Store

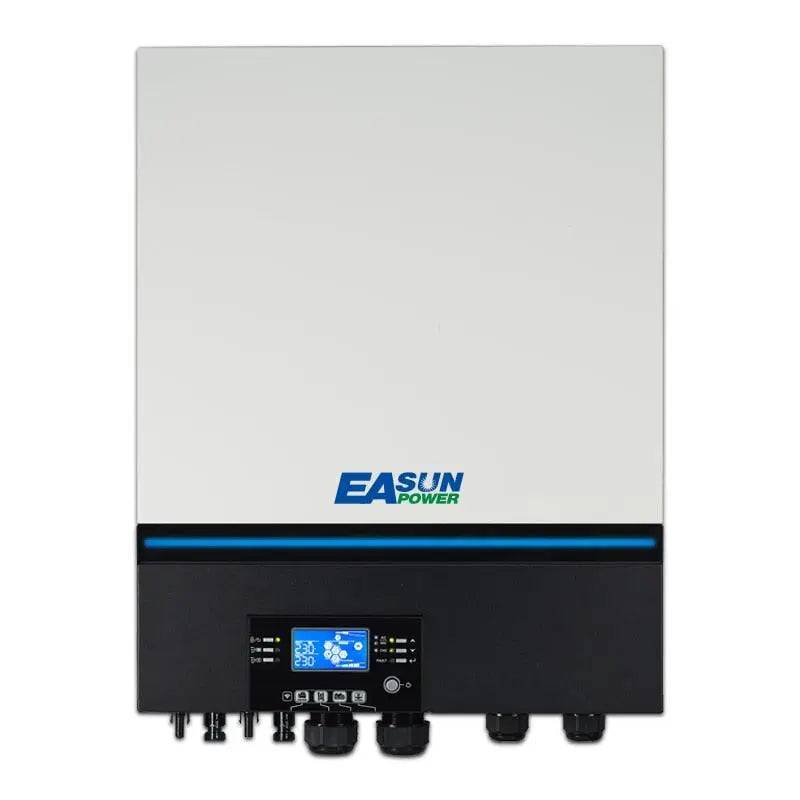

MPPT Solar Inverter EASUN POWER 8000W 230V 48V 50/60hz 500vdc PV Input 80A Charger Built-in WIFI

MPPT Solar Inverter EASUN POWER 8000W 230V 48V 50/60hz 500vdc PV Input 80A Charger Built-in WIFI

Regular price $1,870.40
Regular price $1,169.00 Sale price $1,870.40
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Ships From


SPECIFICATIONS

Weight: 22KG

Waveform: 90%-- 93%

Surge Power: 16000VA

Size: 70x57x25cm

Parallel Capability: Yes, up to 6 units

Output Type: Single

Output Power: 1 - 200KW

Output Frequency: 50Hz/60Hz

Output Current: 31.3A

Origin: CN(Origin)

Nominal Voltage: 230VAC

Model Number: ISOLAR-SMW-8KW

Maxmum Solar Charge: 80A

Max.PV Array Power: 8000W(4000W*2)

Max. PV Array Open Circuit Voltage: 500 VDC

Is Smart Device: YES

Frequency: 50/60 Hz (Auto sensing)

Dimensions, D x W x H(mm): 147.4 * 432.5 * 553.6

Communication Interface: USB/RS232/RS485/Wifi/Dry-contact

Certification: RoHS

Certification: CE

CAPACITY: 8KVA/8KW

Brand Name: EASUN POWER

Battery Voltage: 48VDC


MPPT Solar Inverter EASUN POWER 8000W 230V 48V 50hz/60hz 500vdc PV Input 80A MPPT Solar Charger Built-in WIFI Support Lithium


Main Features:

*Buint-in Wifi For Mobile Monitoring(Android/IOS Apps Are Available)

*Supports USB On-the-Go function

*Lithium battery BMS support (Pylontech, Weco, Soltaro)

*Replaceable fan design for ease of maintenance

*Batteryless operation (single unit mode only)

*Configurable AC/PV Outout Usage Timer And Prioritization

*Selectable high power charging current Selectable input voltage range for home appliances and personal

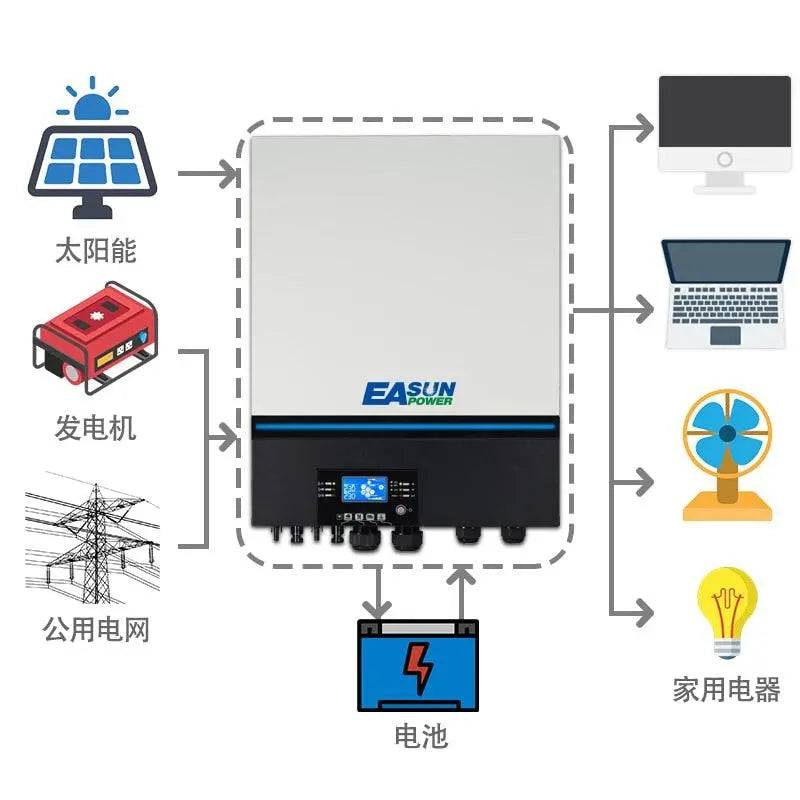

*Compatible to Utility Mains or generator input

*Built-in anti-dust kit

*Optional DC output for DC fan, LED bulb,router and so on

*Parallel operation up to 6 units,Built-in parallel kit

*Detachable LCD remote display

*High PV input design, 500V (Voc) max input



MODEL

ISolar SMW 8K

The rated power 8KVA/8KW

Parallel Capability


INPUT

Nominal Voltage: 230VAC

Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)

Frequency:50/60 Hz (Auto sensing)



OUTPUT

Nominal Voltage: 230VAC±5%

Surge Power:16000VA

Efficiency (Peak):90% ~ 93%

Waveform: Pure Sinewave

Transfer Time:15ms(For personal Computer);20ms(For Home Appliances)

No Load Power Consumption: < 70W

DC Voltage (Optional): 12 VDC ± 5%, 100W



BATTERY

Battery Voltage:48VDC

Floating Charge Voltage:54VDC

OverCharge Protection:66VDC

Solar Charger & AC Charger

Solar Charger TYPE


MPPT

Max.PV Array Power: 8000W(4000Wx2)

Max. PV Array Open Circuit Voltage: 500 VDC

MPPT Range @ Operating Voltage: 90VDC~230VDC

Maxmum Solar Charge Current: 80A

Maximum AC Charge Current: 80A

Maximum Charge Current:80A


PHYSICAL

Dimensions, D x W x H(mm): 147.4 x 432.5 x 553.6

Net Weight (Kgs): 18.4

Communication Interface: USB/RS232/RS485/Wifi/Dry-contact


OPERATING ENVIRONMENT

Operating Temperature: -10°C to 50°C

Storage temperature: -15°C~ 60°C


Humidity

5% to 95% Relative Humidity (Non-condensing)
