⚡ Multifunction 230V 100A Bi-Directional Energy Meter Reset Zero Kwh Solar PV Power Voltage Current Frequency RS485 Communication

Upgrade your system with our high-performance Multifunction 230V 100A Bi-Directional Energy Meter Reset Zero Kwh Solar PV Power Voltage Current Frequency RS485 Communication. Built for reliability, efficiency and seamless integration with modern setups.

📌 Key Benefits

• ✅ High-efficiency design for superior performance
• ✅ Optimized heat dissipation and durability
• ✅ Plug-and-play compatibility for easy integration
• ✅ Ideal for industrial and residential use

📄 Technical Specifications

Introducing the Multifunction 230V 100A Bi-Directional Energy Meter with Reset and Zero Kwh functions. This advanced tool allows you to accurately track solar PV power usage, voltage, current, and frequency. With RS485 communication, this meter is ideal for monitoring and optimizing energy consumption. Trust in its domain expertise for precise, scientific results.

SPECIFICATIONS

• Storage Temperature: -25℃- +70℃

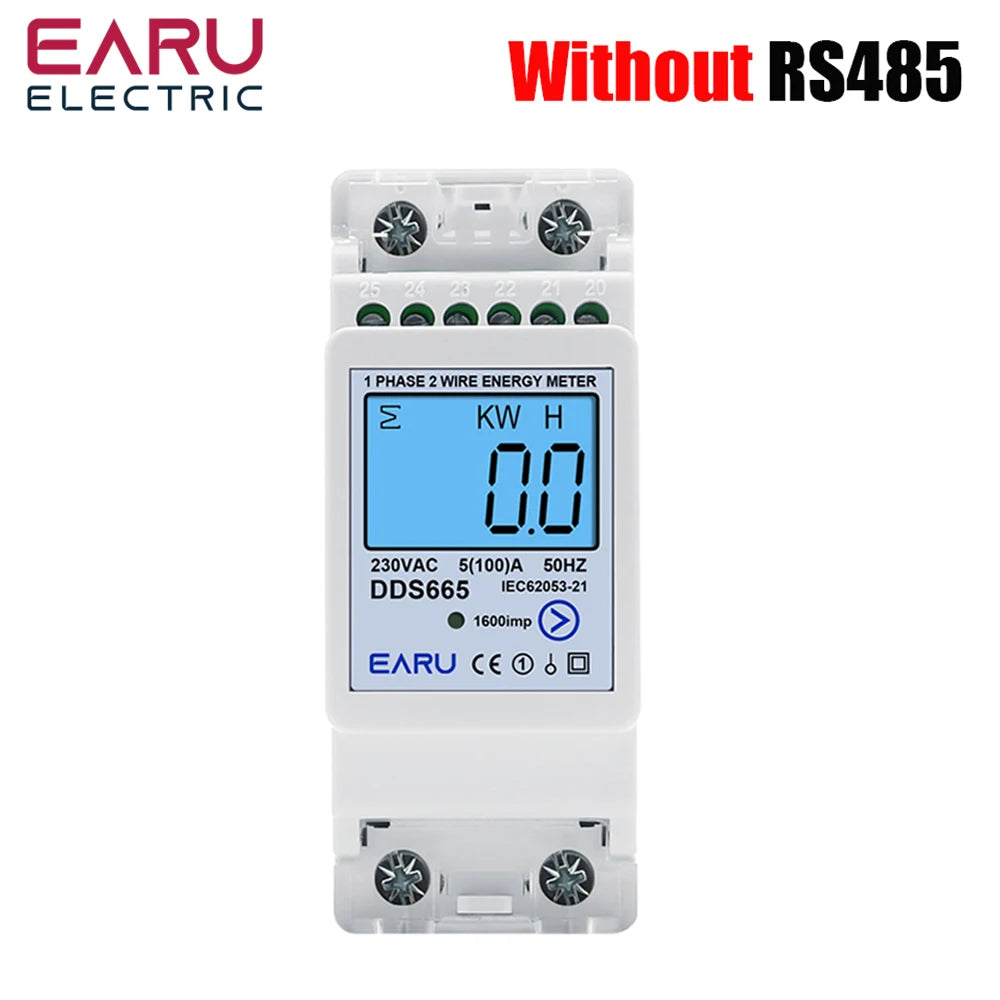

• Type 1: Without RS485
• Type 2: With RS485( Modbus-RTU )
• Starting Current:: 0.004lb
• Frequency: 50Hz
• Constant Pulse: 1600imp / kWh
• Current Range: 5(100)A
• Power Consumption: ≤2W,10VA
• Brand Name: EARUELETRIC
• Power Supply: AC
• Model Number: DDS665
• Display Type: Digital Only
• Accuracy Class: 1.0
• Dimensions: 90mm*45mm*70mm
• Rated Voltage: 230V
• Operating Temperature: -20℃- +55℃
• Phase: single phase
• Max Operating Current: 80A - 99A
• Output Voltage: 230V 50Hz
• DIY Supplies: ELECTRICAL

Bi-directional Measure

• This meter measure city power energy ,also can measure negative power energy, like the solar PV and Generator
• Real-time display of Total Active Energy KWh, Positive Active Energy KWH, Negative Active Energy KWH, Temporary Active Energy KWH
• Voltage, Current, Active Power, Power factor ,Frequency
• Reference Voltage: AC 220/230V
• Reference Current: 5(100A)
• Accuracy Level: 1.0
• Rated Frequency: 50Hz
• Constant Pulse: 1600imp / kWh
• Power Consumption: ≤2W, 10VA
• Starting Current: 0.004Ib
• Operating Temperature: -20 ~ 55°
• Storage Temperature: -25 ~ 70°
• LCD display with Backlight

Note:

• Hold the button for 6 seconds to Reset the temporary kWh to 0
• The Total kWh can not be Reset.
