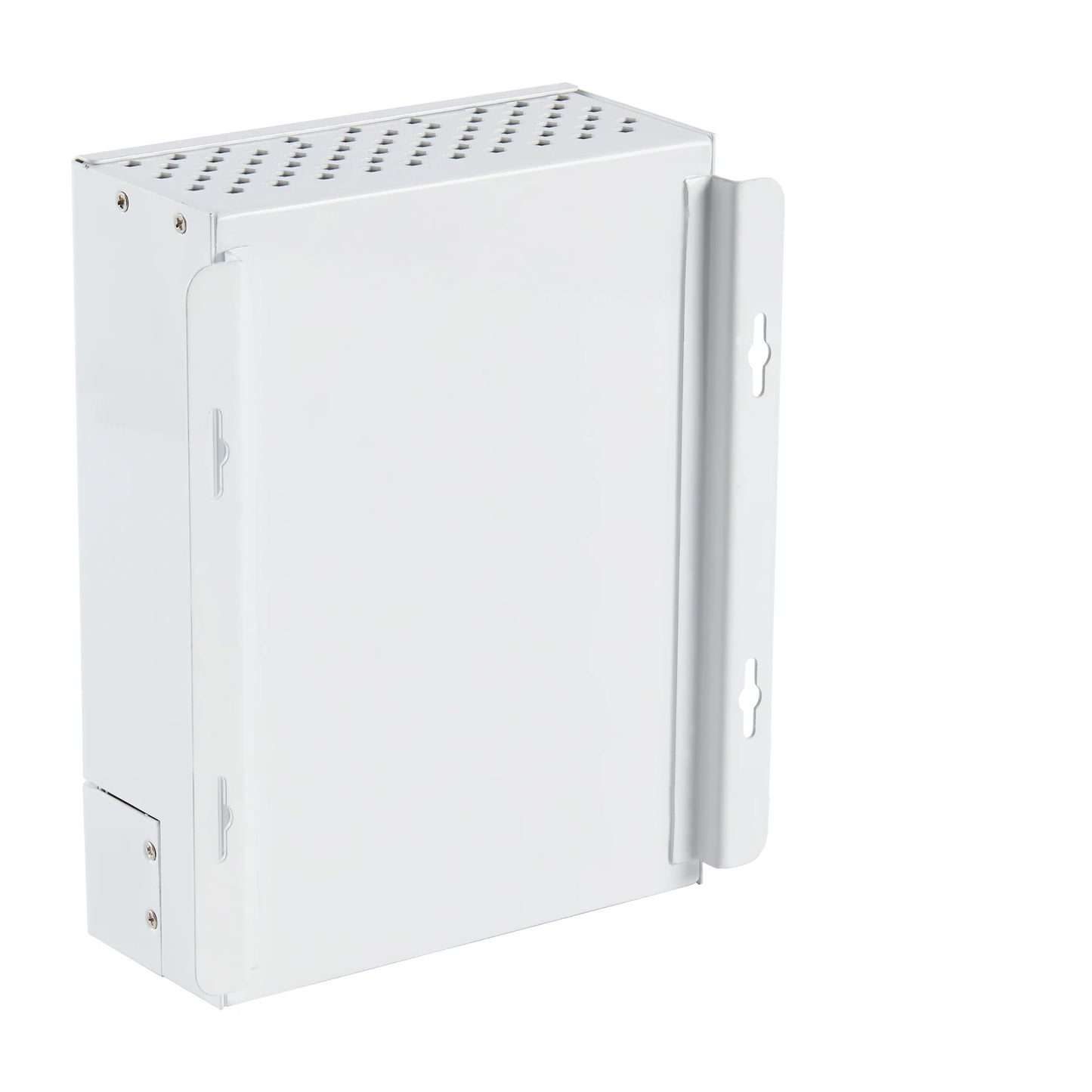

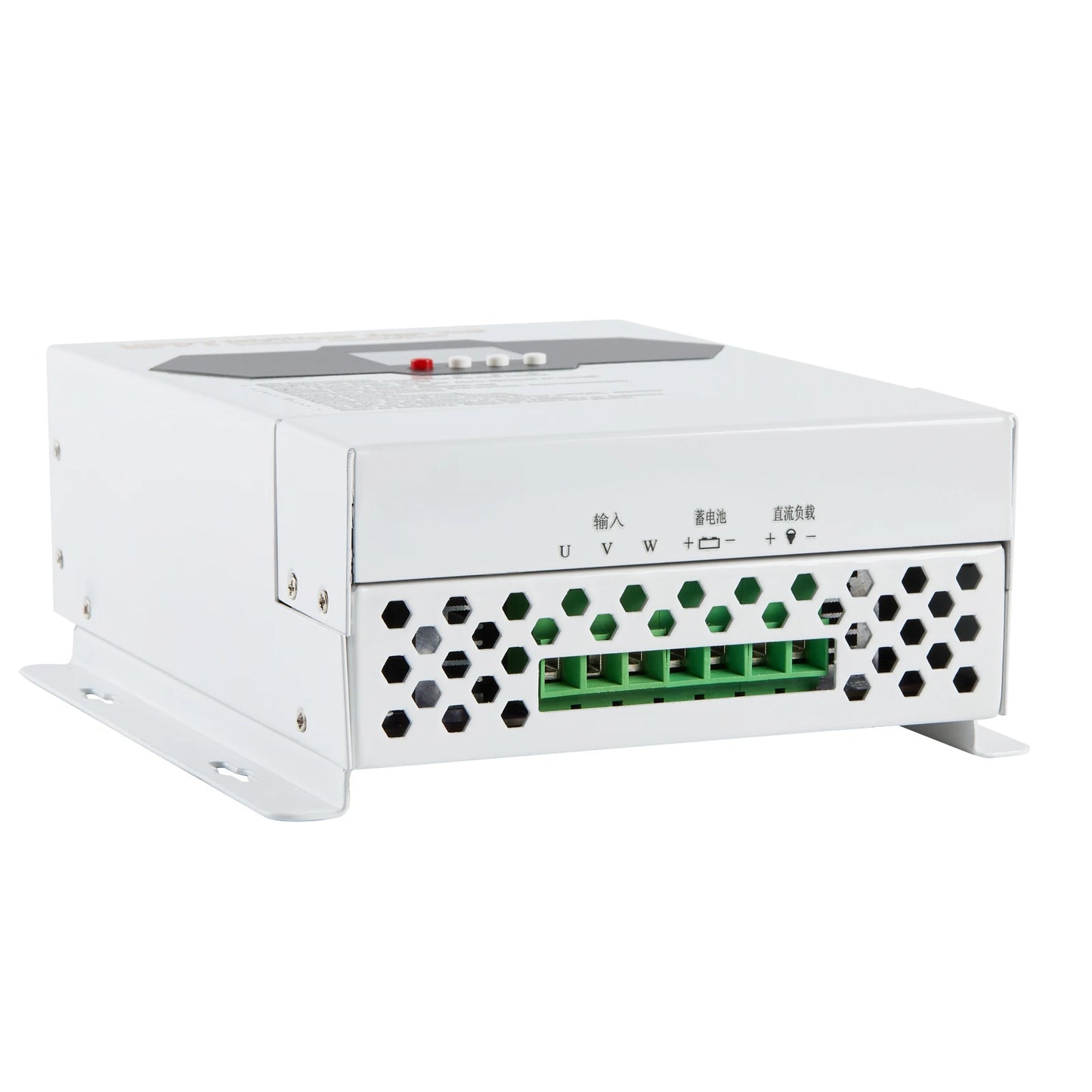

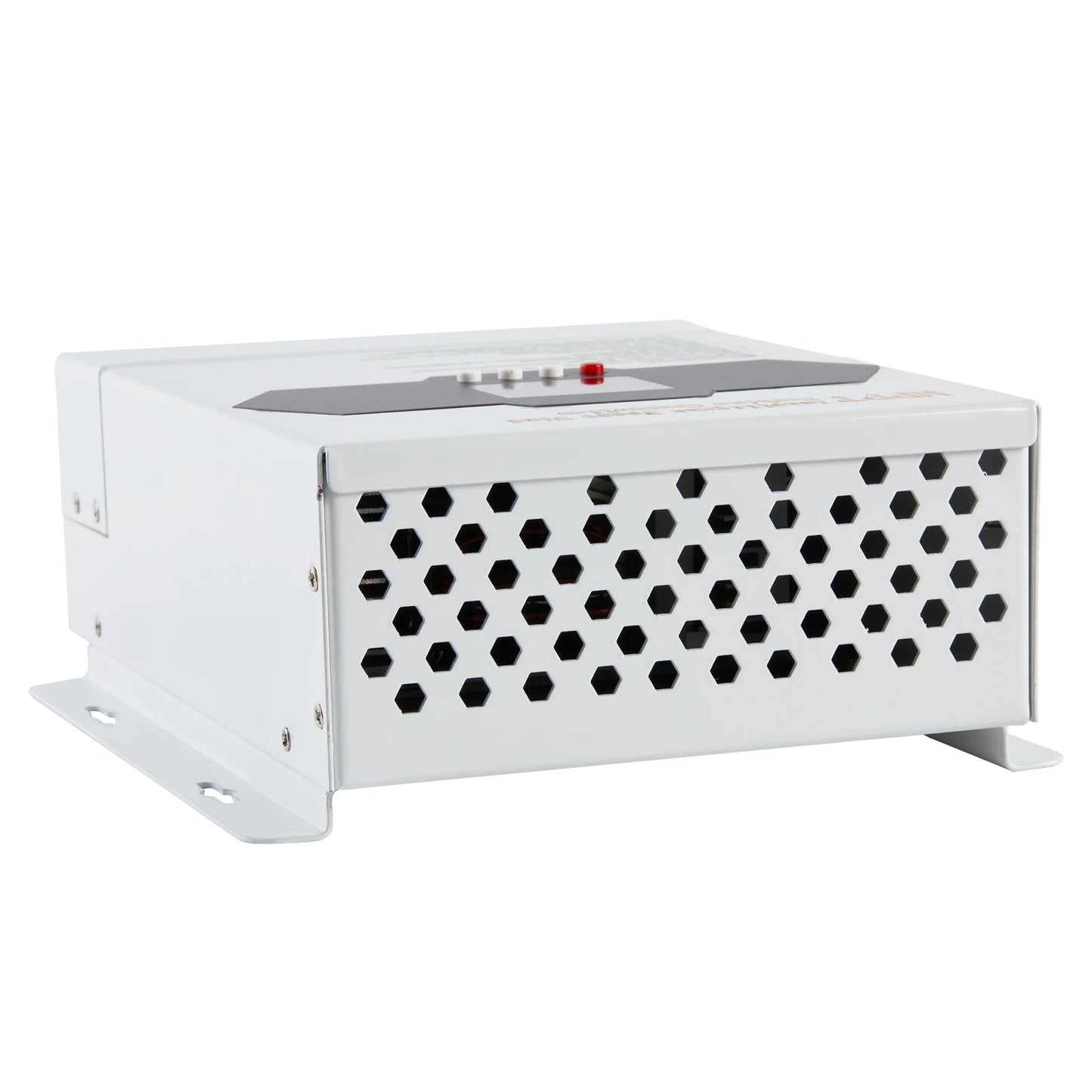

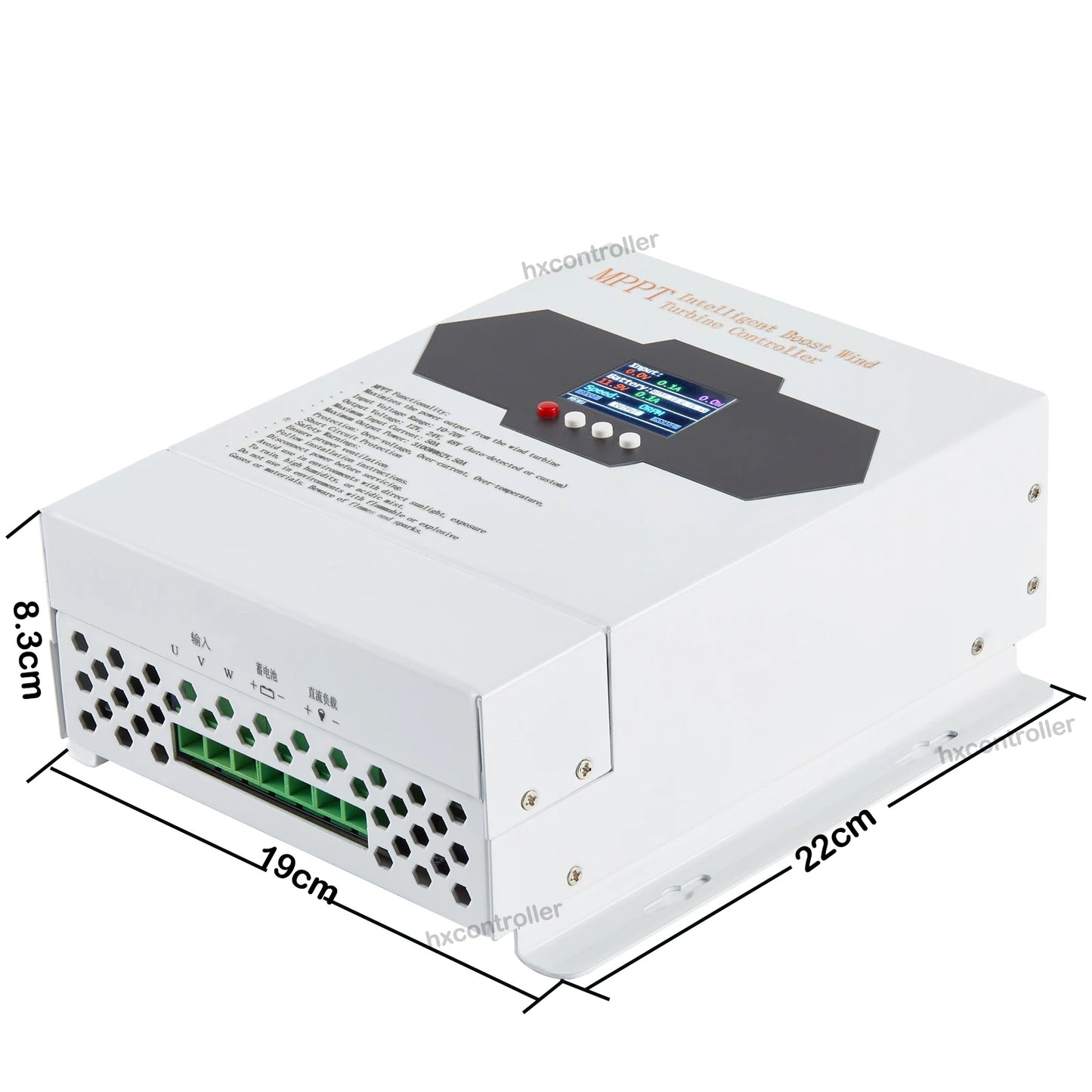

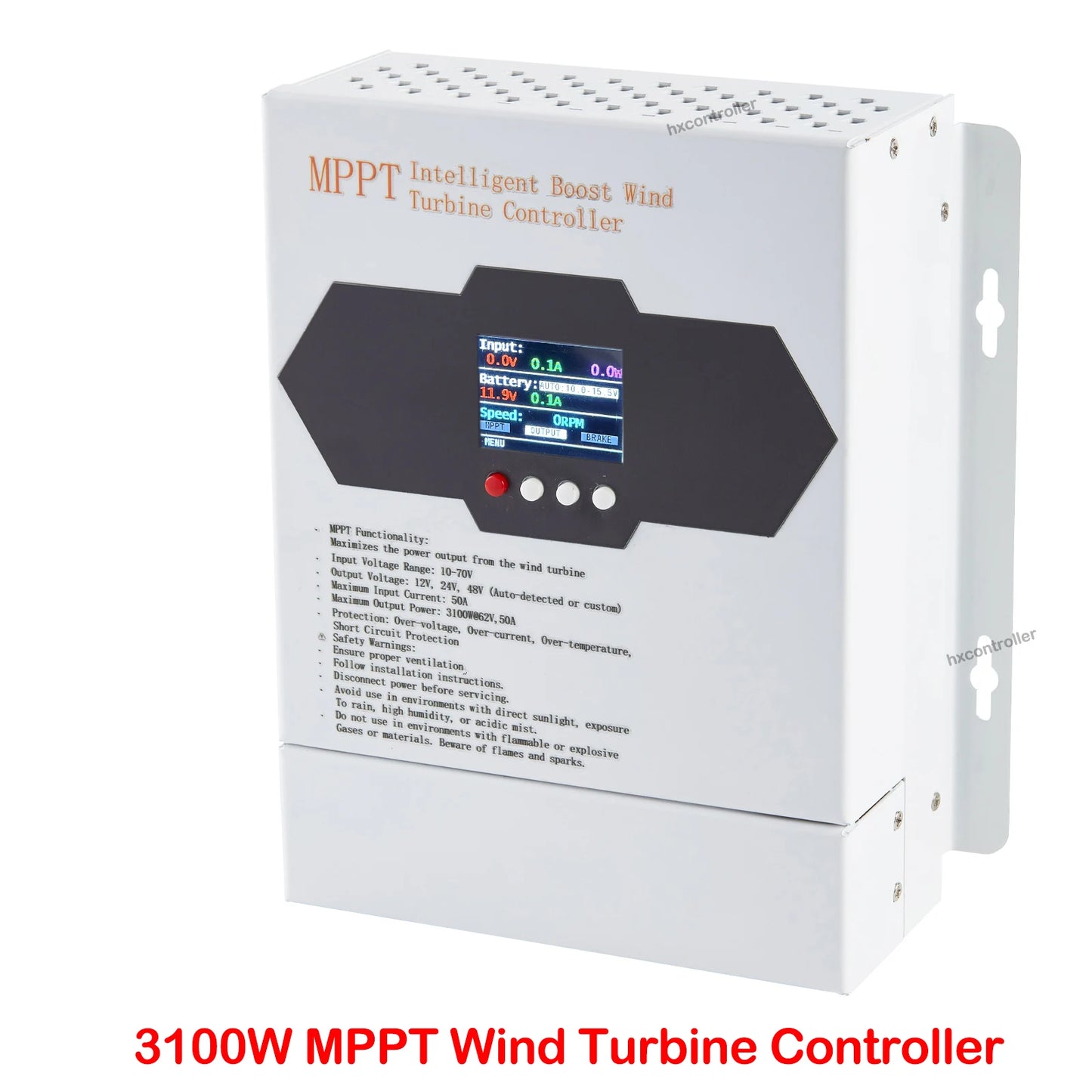

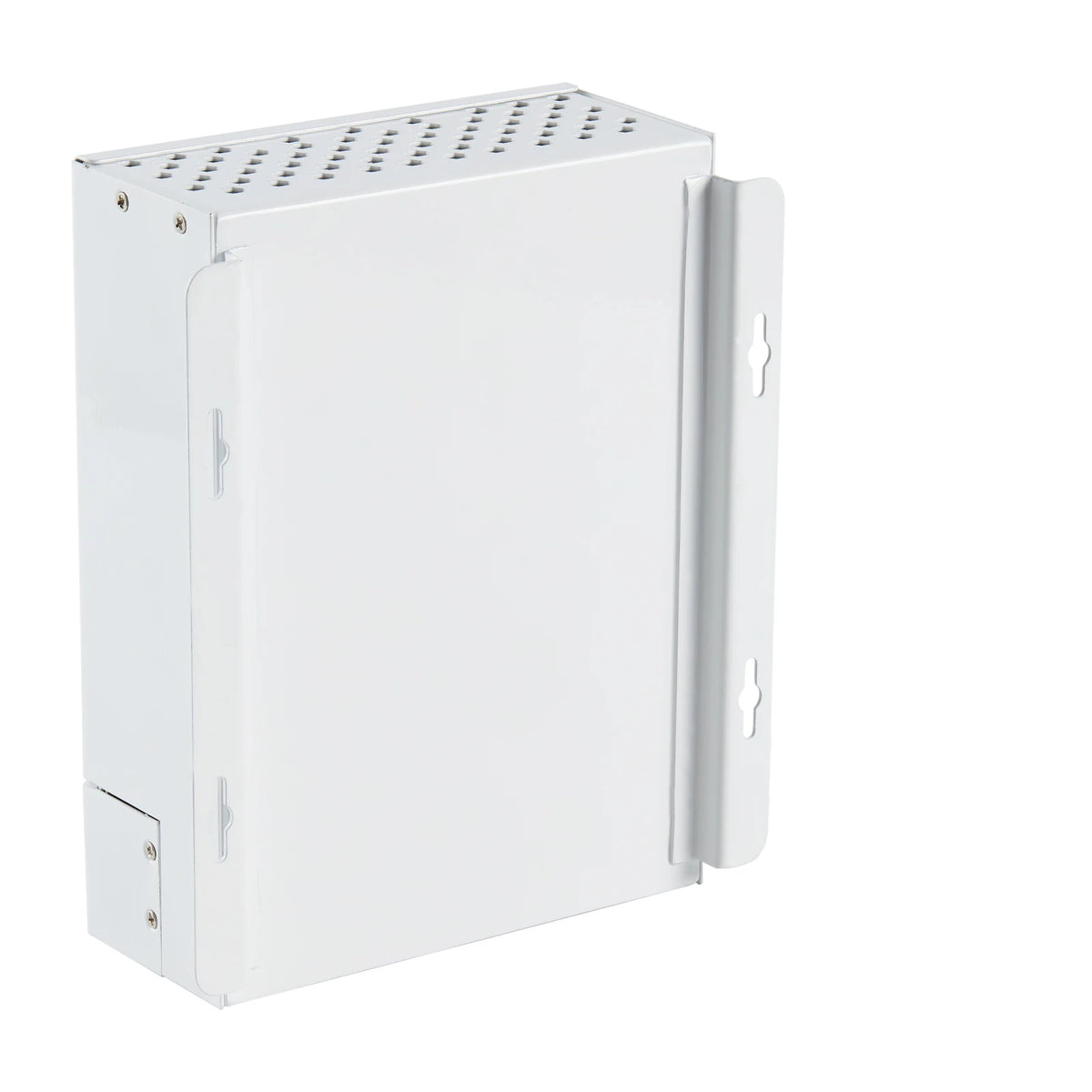

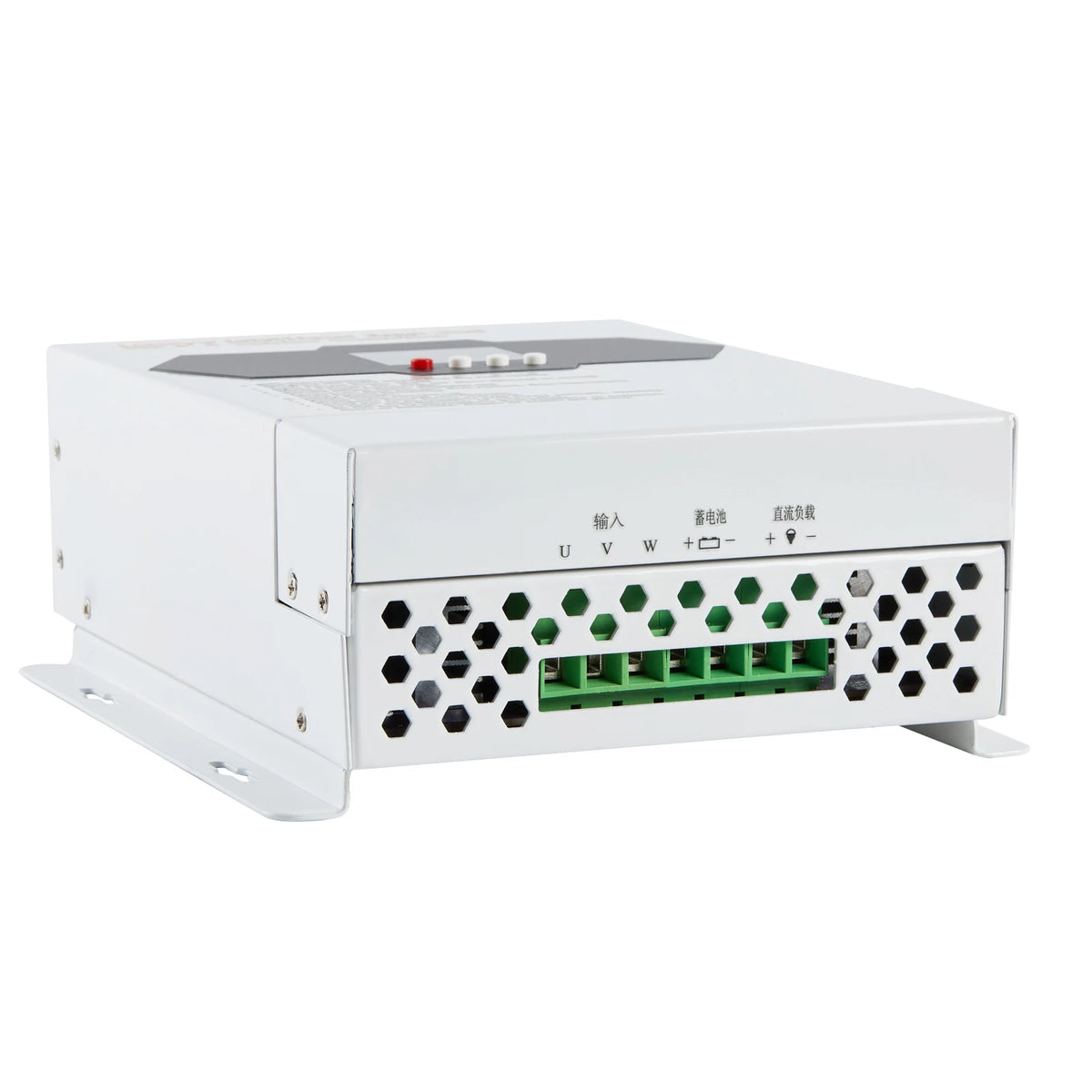

NEW 3100W MPPT Wind Turbine Charge Controller With LCD Display

NEW 3100W 1550W 775W MPPT Wind Turbine Booster Charge Controller Auto 12V 24V 48V Wind Power Charging Regulator With LCD Screen

Unlock the potential of wind energy with the NEW 3100W 1550W 775W MPPT Wind Turbine Booster Charge Controller. This cutting-edge device is designed for use with 12V, 24V, and 48V systems, providing you with an efficient and reliable way to harness wind power. Engineered with advanced features, this controller ensures optimal performance for your wind turbine, maximizing energy output.

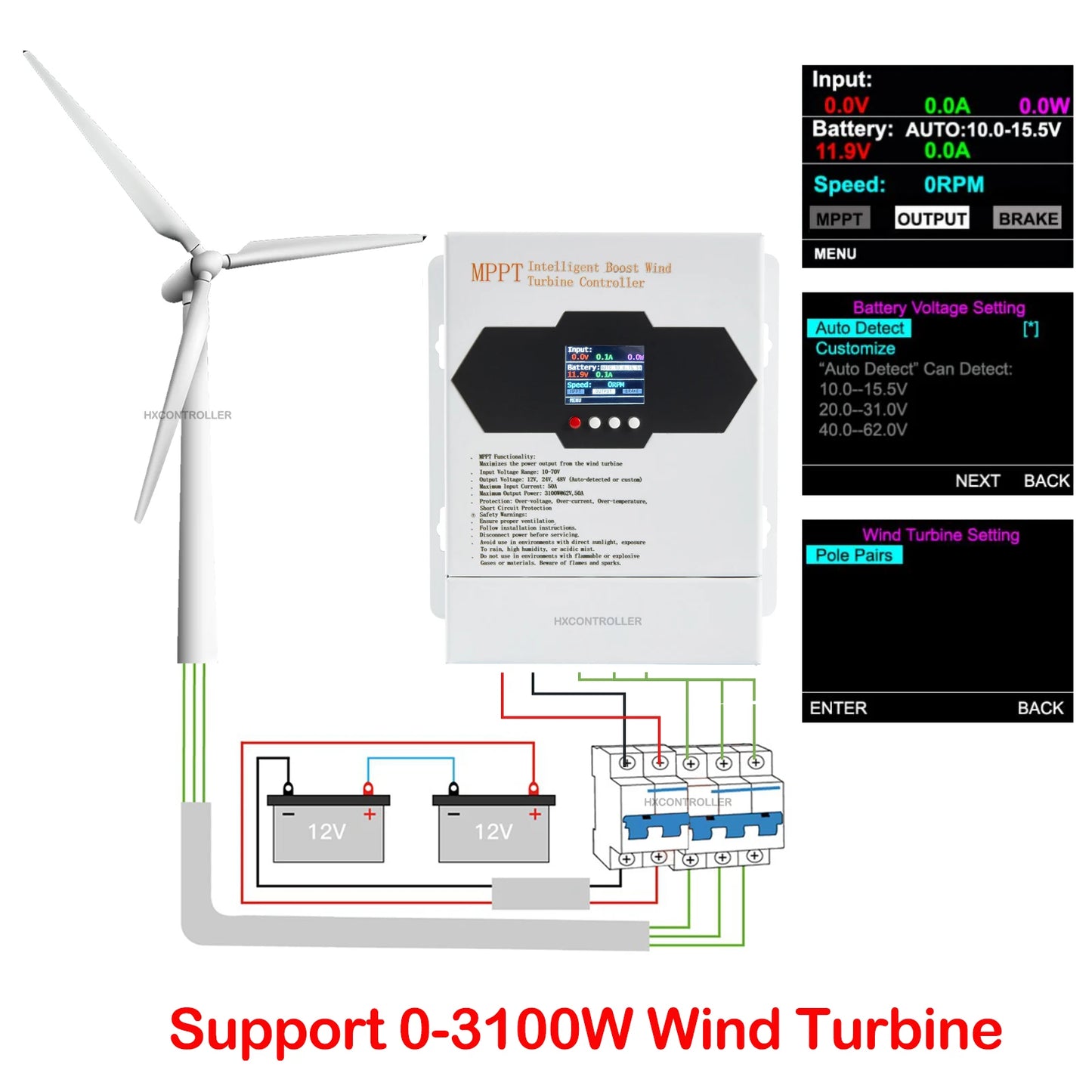

Featuring a 2.0 IPS TFT LCD screen, you can easily monitor real-time data including input voltage, current, battery status, and MPPT functionality. The user-friendly interface allows simple adjustments, making it perfect for both novices and experts alike.

Key Features:

• Boost Converter Structure: Enhances voltage for optimal power conversion.
• ARM Processor: Provides fast and reliable performance.
• MPPT Functionality: Maximizes power output from your wind turbine.
• Comprehensive Monitoring: Displays critical system statuses.
• Automatic Battery Voltage Detection: Adapts to 12V, 24V, or 48V systems.
• Brake System: Protects against high wind and fully charged batteries.

Technical Specifications:

• Input Voltage Range: 10-70V
• Output Voltage: 12V, 24V, 48V (Auto-detected or custom)
• Maximum Input Current: 50A
• Maximum Output Power: 3100W (48V), 1550W (24V), 775W (12V)
• Display: 2.0 IPS TFT LCD
• Control Buttons: 4
• Brake Resistor: Included
• Processor: ARM

Transform the way you power your home or business with the NEW 3100W 1550W 775W MPPT Wind Turbine Booster Charge Controller. Don’t miss out on this opportunity to optimize your wind energy system.
