New Intelligen Digital PID Thermostat SSR Relay Output Universal Input Heating Cool Temperature Controller Regulator 110V 220VAC

Intelligen Digital PID Thermostat - Universal Input, SSR Relay Output, 110V/220VAC Compatible, High-Precision Temperature Control

📦 Why Choose the Intelligen PID Thermostat?

• ✅ High-Precision Temperature Control: Manage both heating and cooling with SSR relay output for reliable, accurate temperature regulation.
• 💡 Universal Input Compatibility: Supports various input types, including thermocouples (K, J, R, S, B, E, N, T) and RTD sensors, making it adaptable for different systems.
• 🔌 Dual Voltage (110V/220V): Works seamlessly with both 110V and 220V power supplies, offering flexibility for different installations.
• 🖥️ Easy to Monitor: The 8-segment, 4-digital display provides clear and real-time feedback on temperature settings and system status.
• 🔒 Guaranteed Satisfaction: Backed by a 1-year warranty for peace of mind.

Specifications:

• Output Type: Relay+SSR
• Max Measure Temperature: 1372℃ (Default 400℃ K)
• Power Supply: AC/DC 100-240V

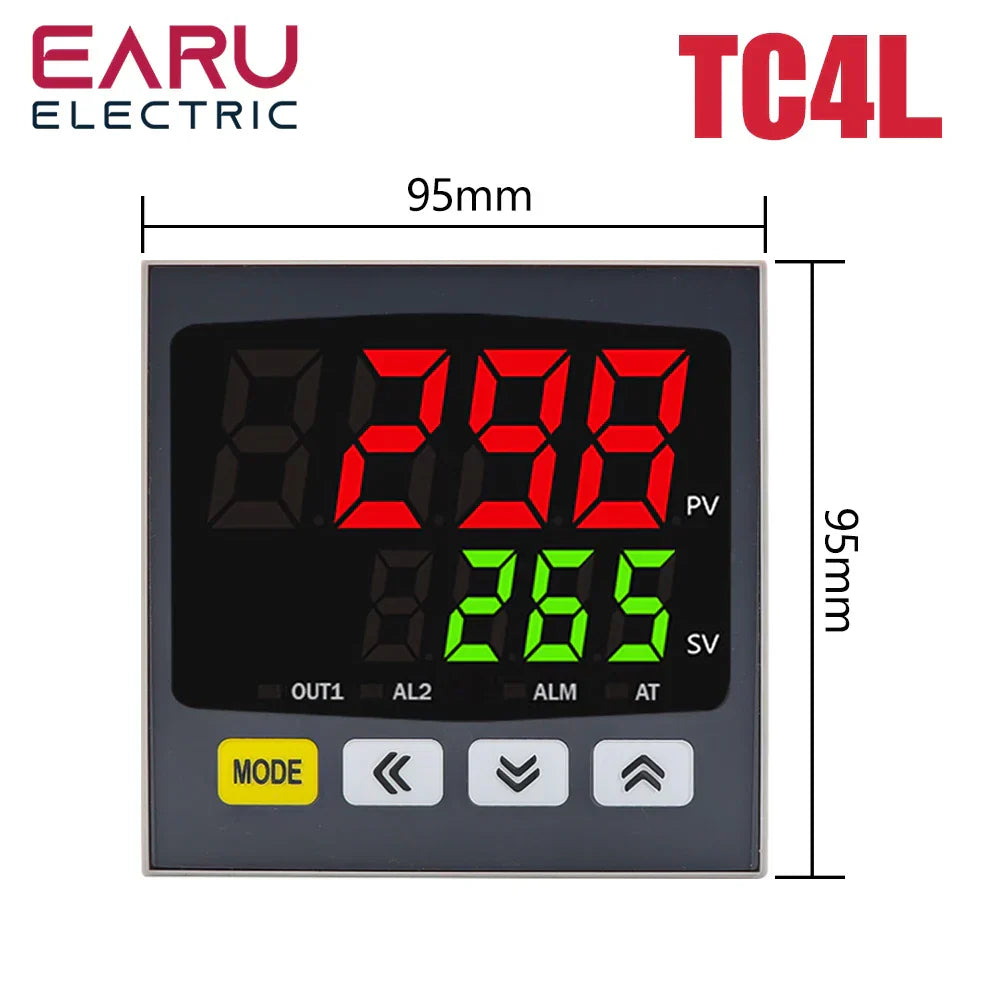

• Model: TC4S, TC4H, TC4M, TC4L
• Brand Name: EARUELETRIC
• Max Measuring Temperature: 120°C & Above
• Style: Standing and Wall Hanging
• Model Number: TC4S
• Theory: Temperature Controller
• Power Type: Charger
• Display Type: DIGITAL
• Usage: Household
• Cable Length: 1m
• Display Size: 1.9 Inches & Under

Product Introduction:

• Model: TC4S, TC4H, TC4M, TC4L
• Accuracy: ±0.5% FS
• Sampling period: 0.5 seconds
• Max Measure Temperature: 1372℃ (Default 400℃ K)
• Input Types: Thermocouple (K, J, R, S, B, E, N, T), RTD (Pt100, JPt100)
• Output: Relay+SSR
• Power Supply: AC/DC 100-240V, 50/60Hz
• Power Consumption: Under 10VA
• Control Method: PID, or ON/OFF
• Setting Method: Touch switch
• Indication Method: 8-segment, 4-digit display with LED indicators
• Operating Humidity: 30-85% RH max, non-condensing

K Thermocouple Probe Cable/Pt100 Thermocouple Probe Cable:

• Length: 1M
• Sensor Diameter: 5mm
• Temperature Range: 0-400℃
• Internal Insulation: Fiberglass
• External Shielding: Insulated Shielding
