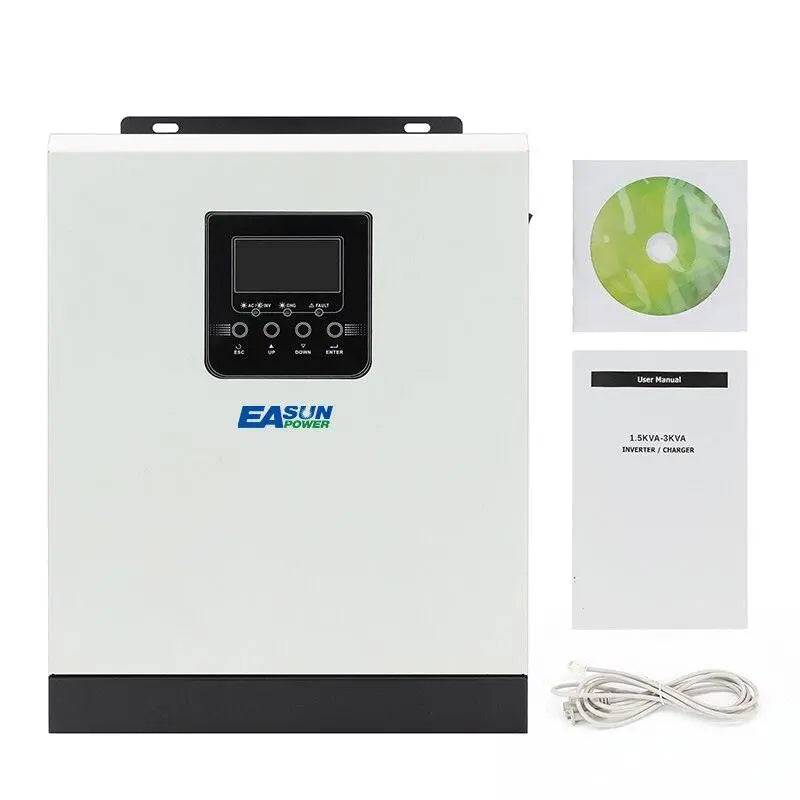

Hybrid Inverter Off Grid Pure Sine Wave 3KVA 2400W 230VAC Battery Charger 40A 24V 50/60Hz
Hybrid Inverter Off Grid Pure Sine Wave 3KVA 2400W 230VAC Battery Charger 40A 24V 50/60Hz
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- Weight: 6.5kg
- Wave form: Pure Sine Wave
- Voltage: 230VAC
- Usage1: inverter 2400W
- Usage: Solar Inverter 24V
- Type: MPPT Solar Charge Controller
- Surge power: 6000VA
- Storage Temperature: -15℃to 60℃
- Standby Power Consumption: 2W
- Solar Charging Current: 40A
- Size: 305*272*100mm
- Rated Power: 3000VA/2400W
- PV Open Circuit Voltage: 102VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50Hz/60Hz
- Operating Temperature: 0℃ to 55℃
- Model Number: HMS-24V-220A
- Maximum PV Array Power: 1000W
- Maximum Efficiency: 98%
- Maximum Charging Current: 70A
- Maximum AC Charging Current: 20A or 30A
- MPPT Range @ Operating Voltage: 30-80VDC
- Is Smart Device: Yes
- Efficiency(Peak): 93%
- Description: inverter Solar charger
- Certification: CE
- Battery Voltage: 24VDC
Feature:
1.Pure sine wave inverter
2.Buit-in MPPT solor charge controlier
3.Selectable input voltage range for home appliances and personalcomouters.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltoge or generotor power
7.Auto restart while AC is recovering
8.Overfoad ond short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start funtion
|

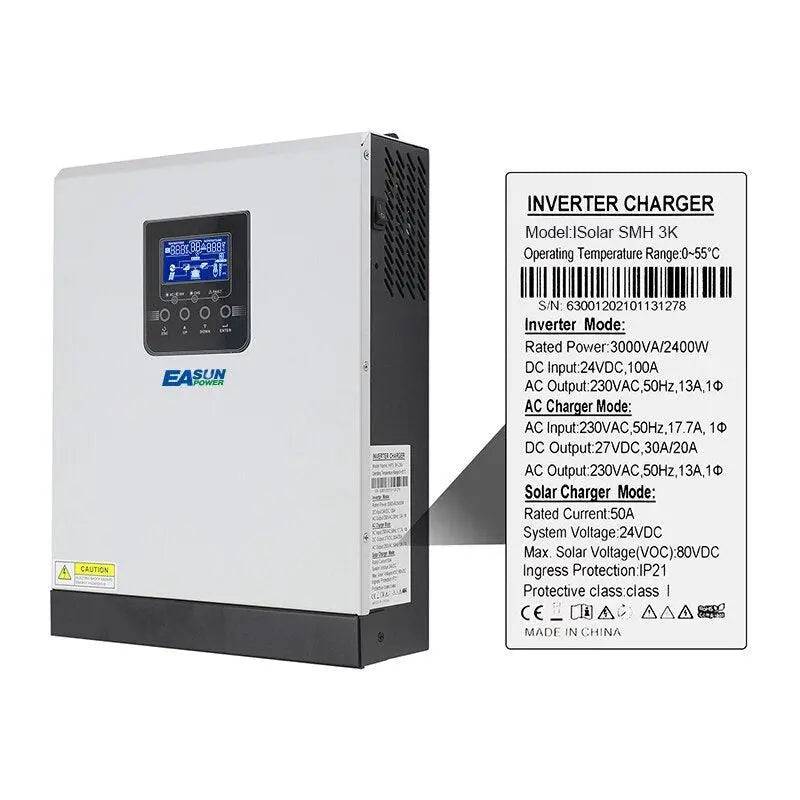

MODEL |
Isolar SMH 3K |
|
RatedPower |
3000VA/2400W |
|
INPUT |
|
|
Voltage |
230VAC |
|
SelectableVoltageRange |
170-280VAC(forpersonalcomputers) 90-280VAC(forhomeappliances) |
|
FrequencyRange |
50Hz/60Hz(Autosensing) |
|
OUTPUT |
|
|
ACVoltageRegulation(Batt.Mode) |
230VAC±5% |
|
Surgepower |
6000VA |
|
Efficiency(Peak) |
93% |
|
TransferTime |
10ms(forpersonalcomputers) 20ms(forhomeappliances) |
|
Waveform |
PureSineWave |
|
BATTERY |
|
|
BatteryVoltage |
24VDC |
|
FloatingChargeVoltage |
27VDC |
|
OverchargeProtection |
31VDC |
|
SOLARCHARGER |
|
|
MaximumPVArrayPower |
1000W |
|
MaximumPVArrayOpenCircuitVoltage |
102VDC |
|
MPPTRange@OperatingVoltage |
30-80VDC |
|
MaximumSolarChargingCurrent |
40A |
|
MaximumACChargingCurrent |
20Aor30A |
|
Maximum Charging Current(UtilityCharging+Solar Charging) |
70A |
|
StandbyPowerConsumption |
2W |
|
MaximumEfficiency |
98% |
|
PHYSICAL |
|
|
Dimension.D*W*H(mm) |
305*272*100 |
|
NetWeight(kgs) |
5.2kg |
|
OPERATINGENVIRONMENT |
|
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
OperatingTemperature |
0°Cto55°C |
|
StorageTemperature |
-15°Cto60°C |
