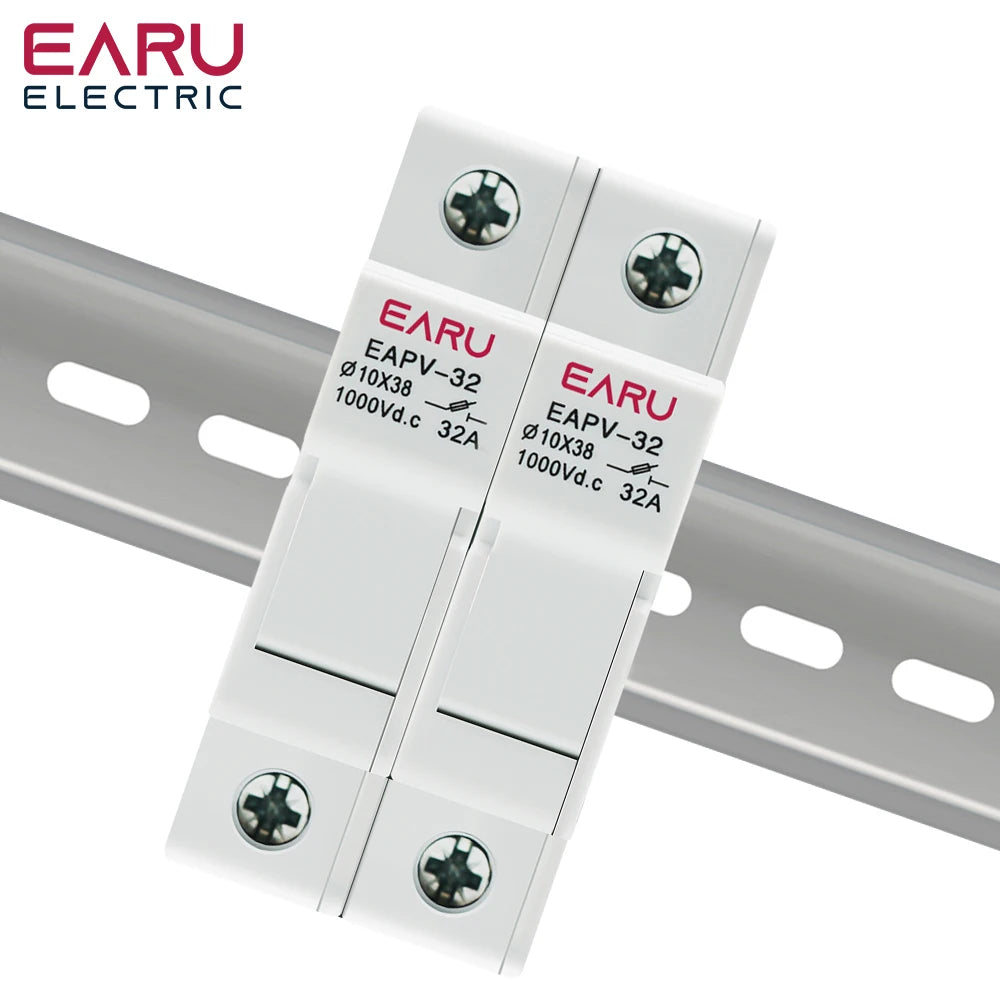

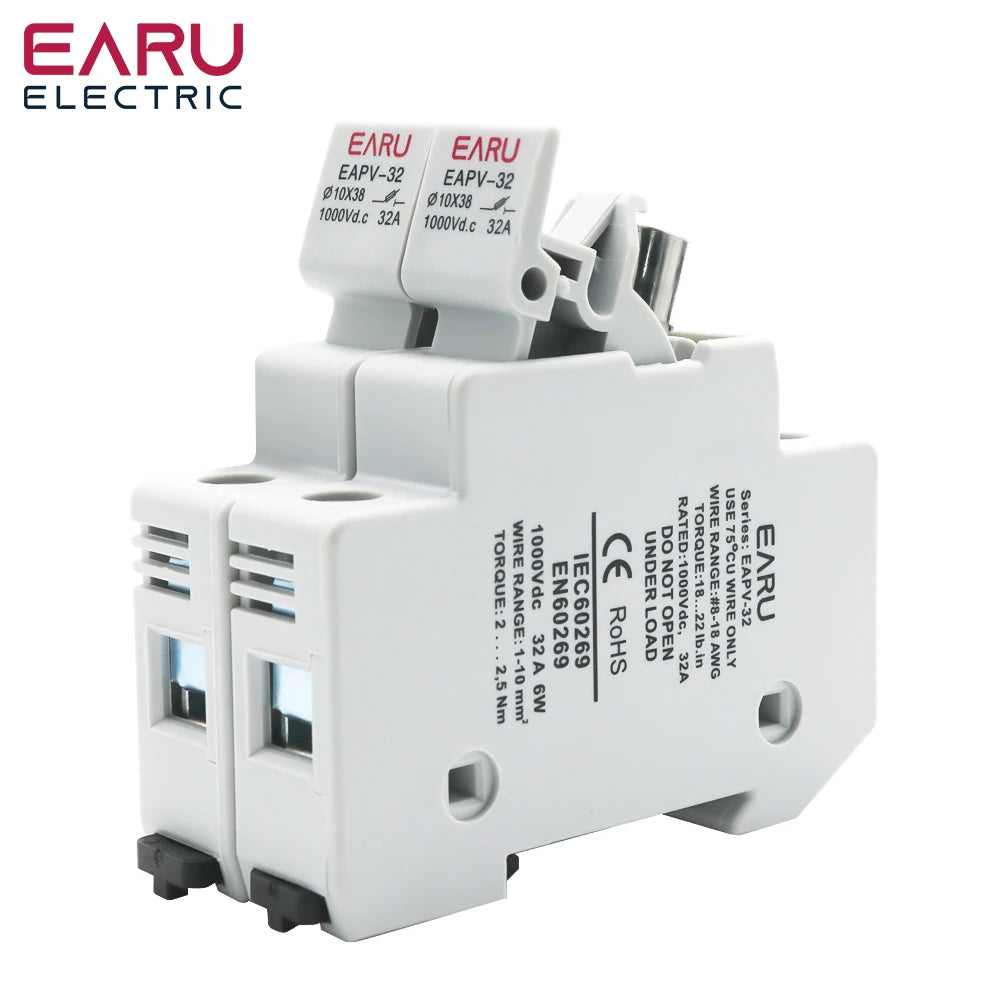

This is a 2-pole DIN-rail-mount DC fuse holder for solar PV string protection, rated 1000 V DC, designed to accept standard 10x38 mm gPV photovoltaic fuses from 6 A through 32 A. Two product configurations: the holder alone (paired with separately-sold PV fuses), or the complete set (holder + matched fuse). 35 mm DIN rail mount, 17.5 mm modular width per pole, IEC compliant, high-temperature plastic body.
Product Description
This is a 2-pole DC fuse holder engineered for solar photovoltaic string protection. PV string fuses are mandatory in any solar array of three or more parallel strings: when one string develops a fault, the parallel-connected healthy strings can deliver back-fed current into the fault, exceeding the cable's rated current and creating a fire hazard. The string fuse interrupts this fault current before damage occurs.
This holder accepts the industry-standard 10x38 mm cylindrical gPV photovoltaic fuse cartridge. The 1000 V DC rating means it suits virtually all residential and small-commercial solar arrays where the string open-circuit voltage stays below 1000 V (most installations). The 2-pole format breaks both positive and negative conductors of one string simultaneously, which is required by IEC standards for ungrounded PV systems.

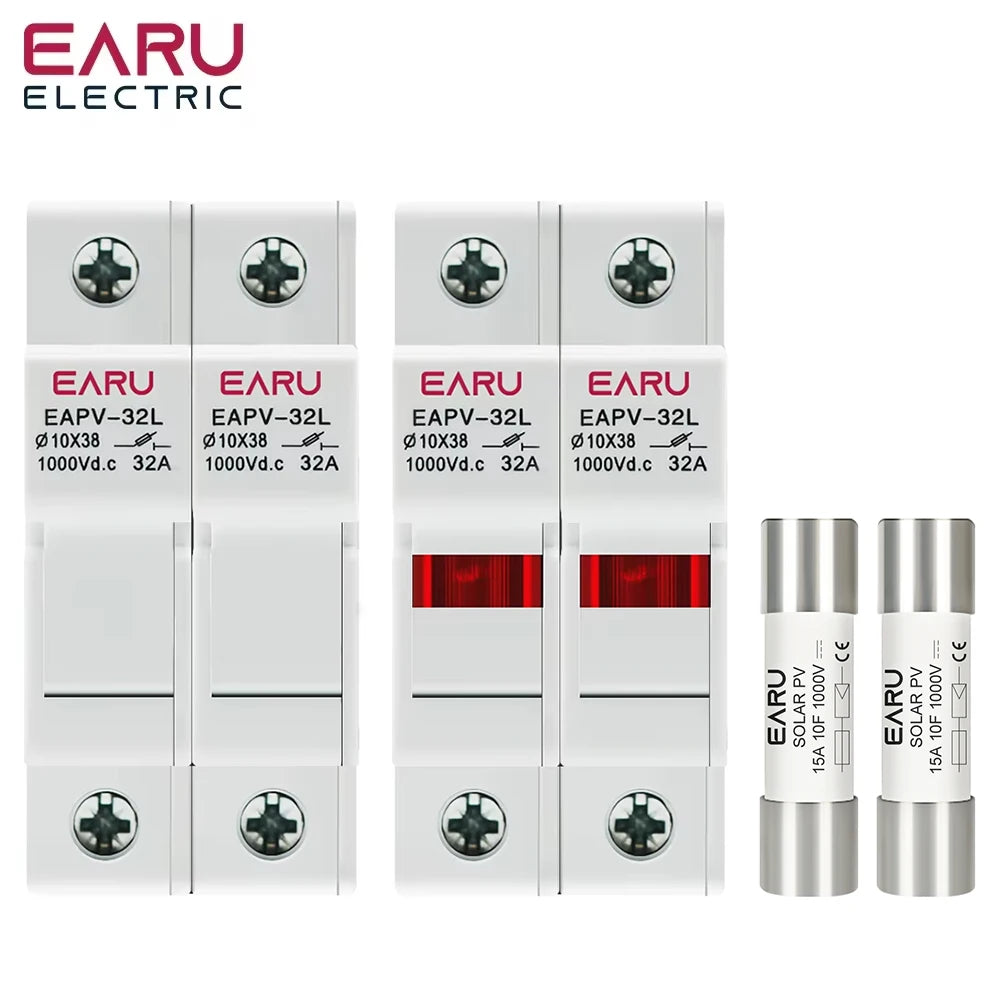

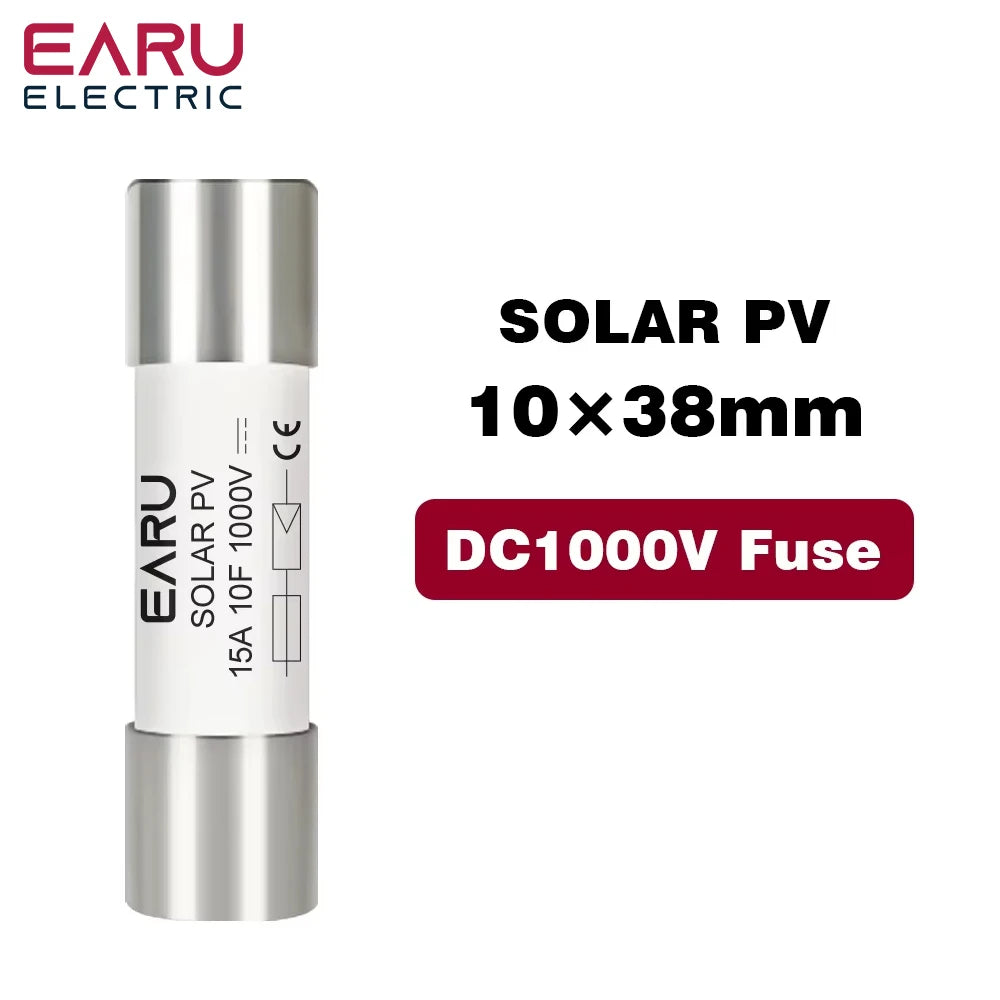

Two purchase options are available: the holder shipped without a fuse cartridge (when you already have your fuses, or are sizing them at install time), or the complete set with both holder AND a matched fuse pre-selected by amperage. Available fuse current ratings are 6 A, 10 A, 15 A, 20 A, 25 A, 30 A, and 32 A.
Key Benefits
- 1000 V DC rating fits most residential and small commercial solar PV arrays
- 2-pole format breaks positive AND negative simultaneously — required for ungrounded PV
- Accepts standard 10x38 mm gPV fuse cartridges (industry standard, widely available)
- Sold as holder alone OR as matched holder+fuse set for fast deployment
- Standard 35 mm DIN rail mounting fits any solar combiner box or control panel
- 17.5 mm modular width per pole — same footprint as standard MCBs in the same panel
Key Features

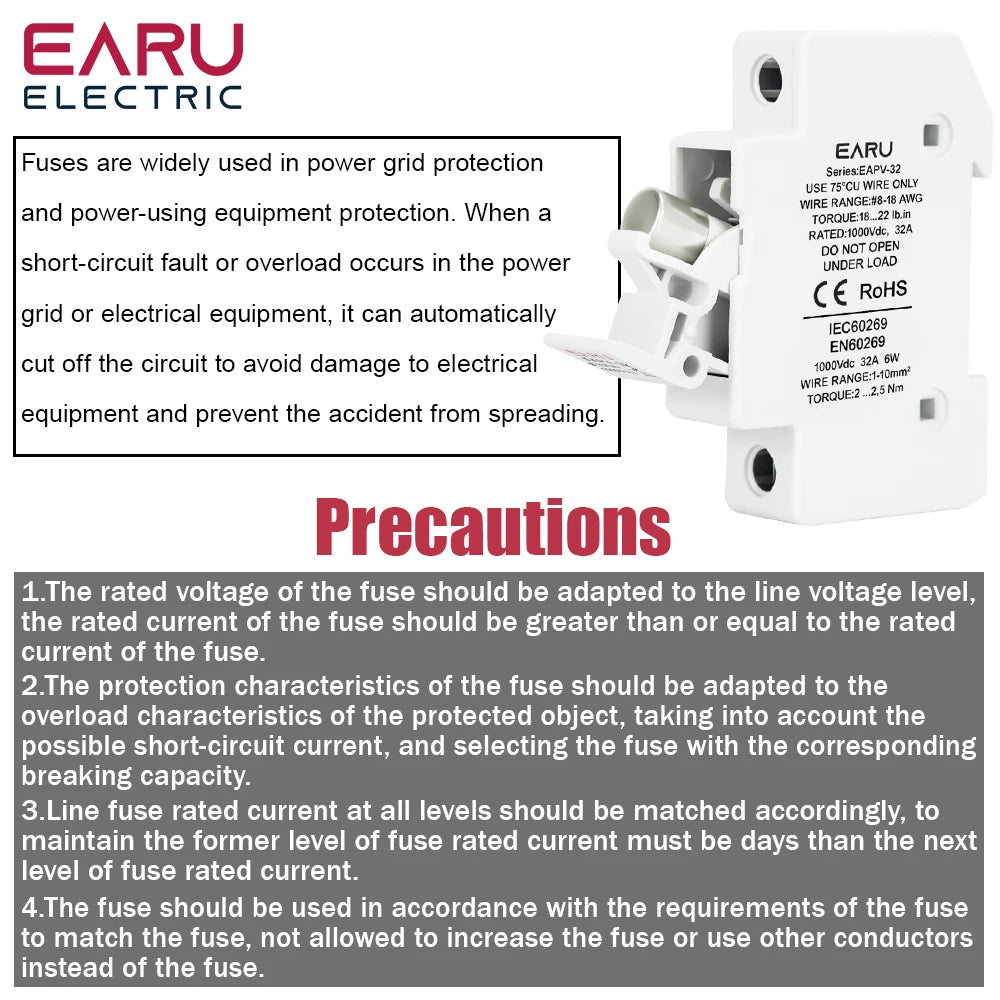

The defining feature is the combination of 1000 V DC rating, 2-pole format, and 10x38 mm gPV fuse compatibility. PV string fuse holders need significantly higher arc-quenching capability than AC fuse holders because DC arcs do not self-extinguish at zero crossings. The 1000 V DC-20B rating means this holder is qualified for the high-energy DC interruption found in PV applications. The high-temperature plastic body resists thermal runaway in the event of fuse degradation, which is the dominant failure mode in older PV installations.
Technical Specifications
The defining parameters are the 1000 V DC rating, the 2-pole format, the 10x38 mm gPV fuse compatibility, and the 35 mm DIN rail mounting. Full specs below.

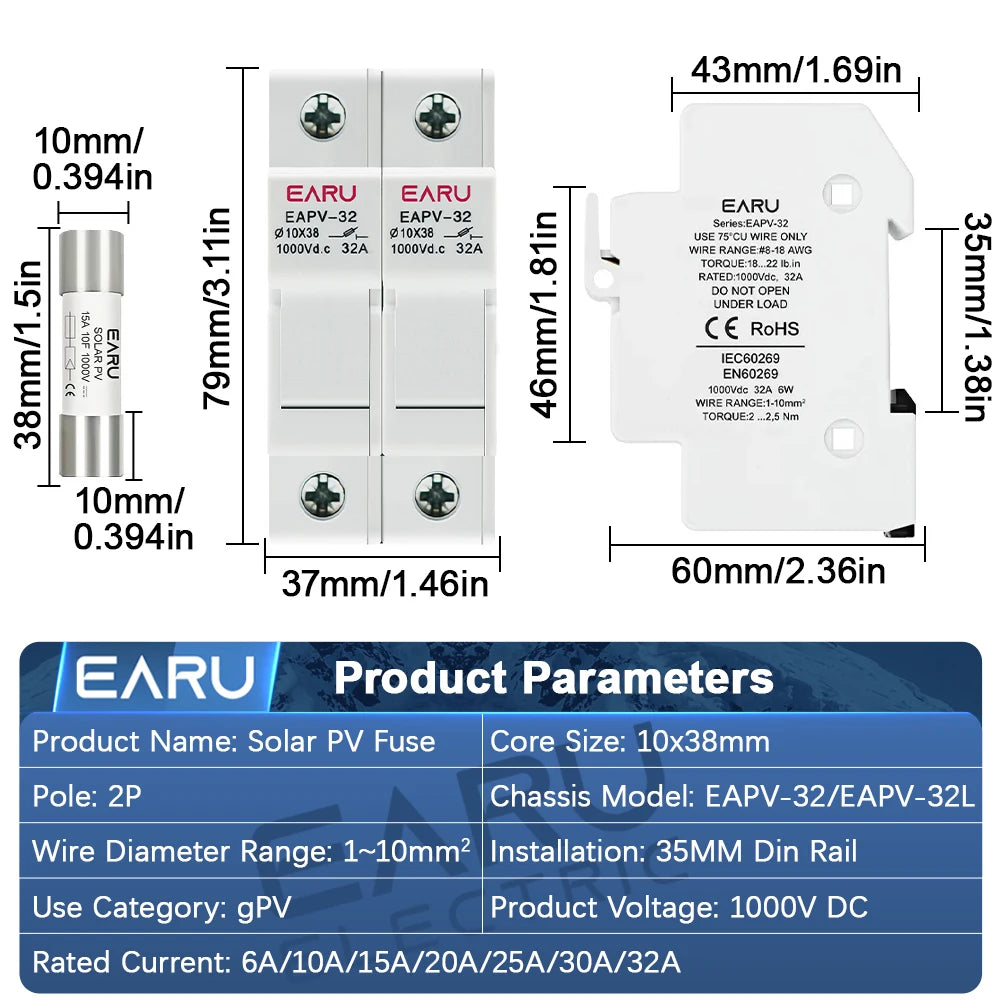

| Parameter | Value |
|---|---|
| Pole configuration | 2P (breaks positive + negative simultaneously) |
| Rated voltage | 1000 V DC |
| DC utilization category | DC-20B |
| Fuse cartridge size | 10 x 38 mm cylindrical |
| Fuse type | gPV (photovoltaic) |
| Fuse current ratings (set option) | 6 A, 10 A, 15 A, 20 A, 25 A, 30 A, 32 A |
| Mounting | 35 mm DIN rail (TH35) |
| Modular width | 17.5 mm per pole (35 mm total for 2-pole) |
| Body material | High-temperature flame-retardant plastic |
| Safety standard | IEC compliant |
| Certification | CE |
| Form factor | EAPV-32 / EAPV-32L |
| Internal SKU | 54G-PV-FUSE-001 |
Technical data sourced from manufacturer documentation.
What's Included
- Holder-only variants: 1 x 2-pole DC fuse holder (no fuse — buy the fuse separately)

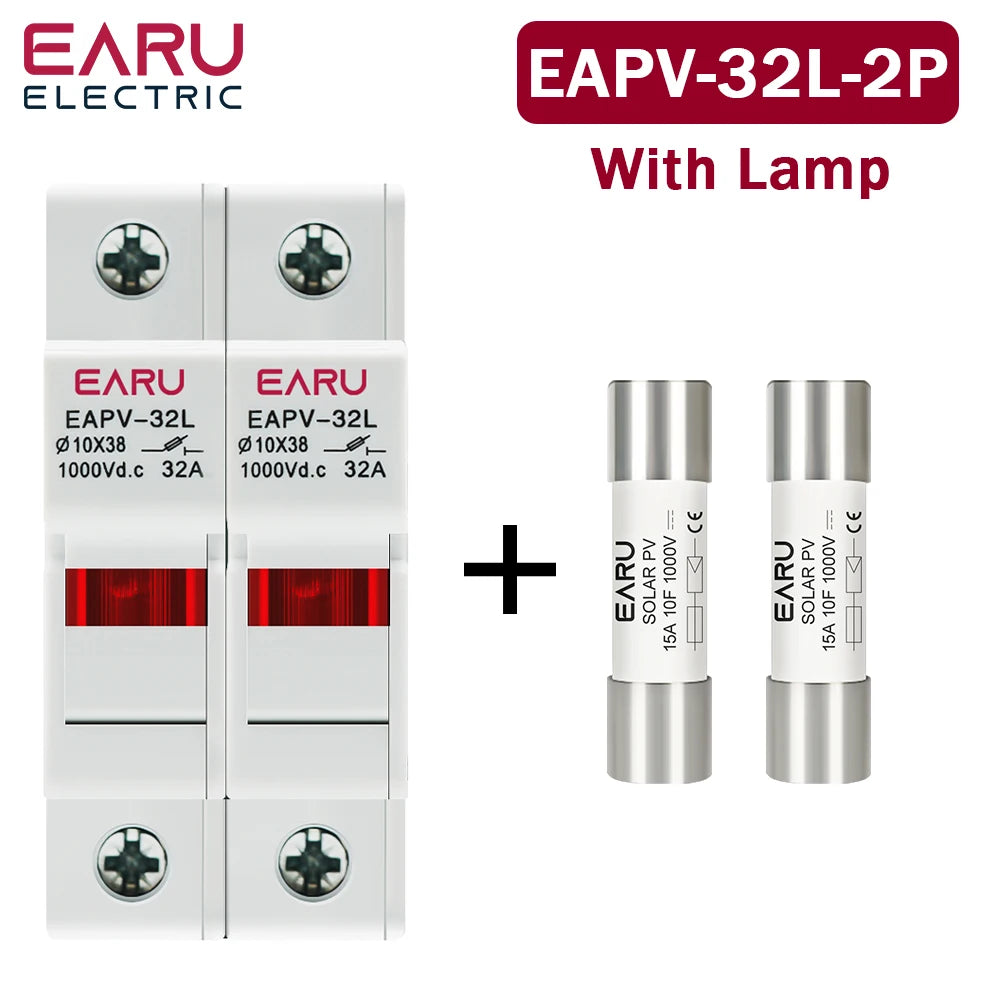

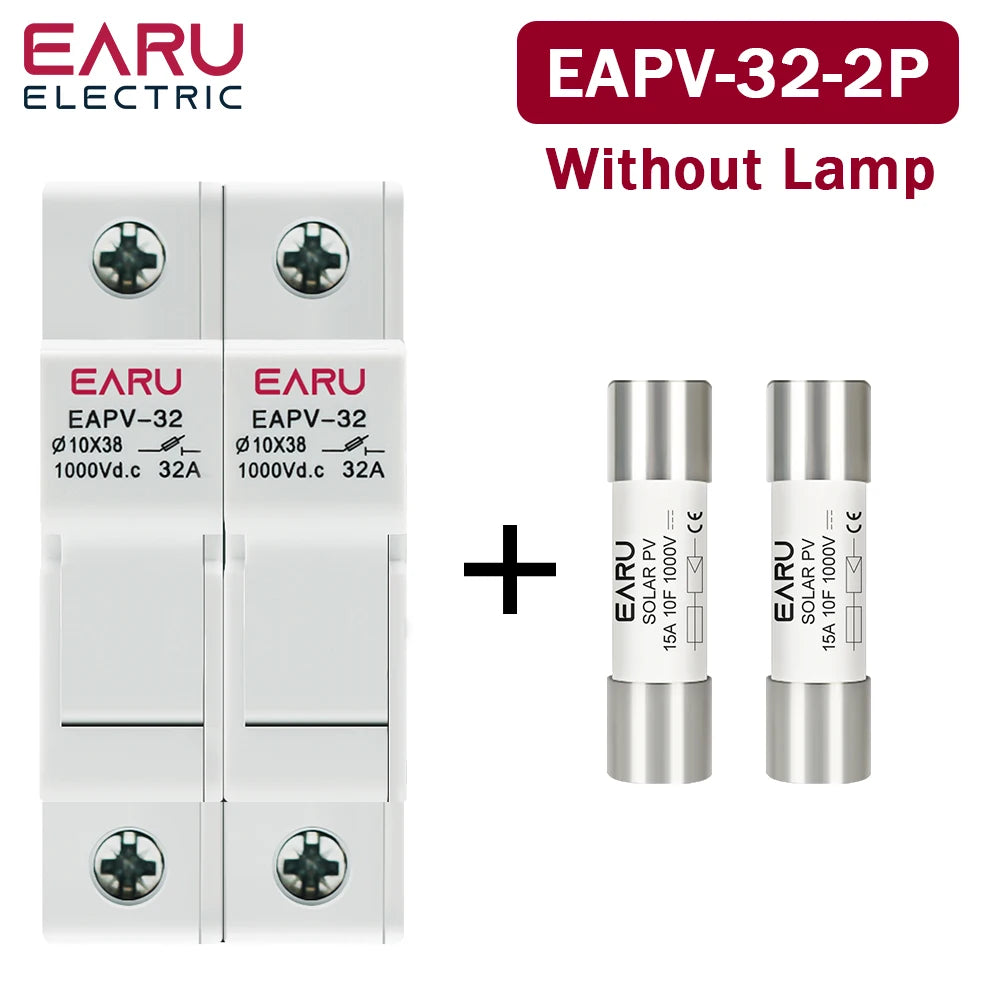

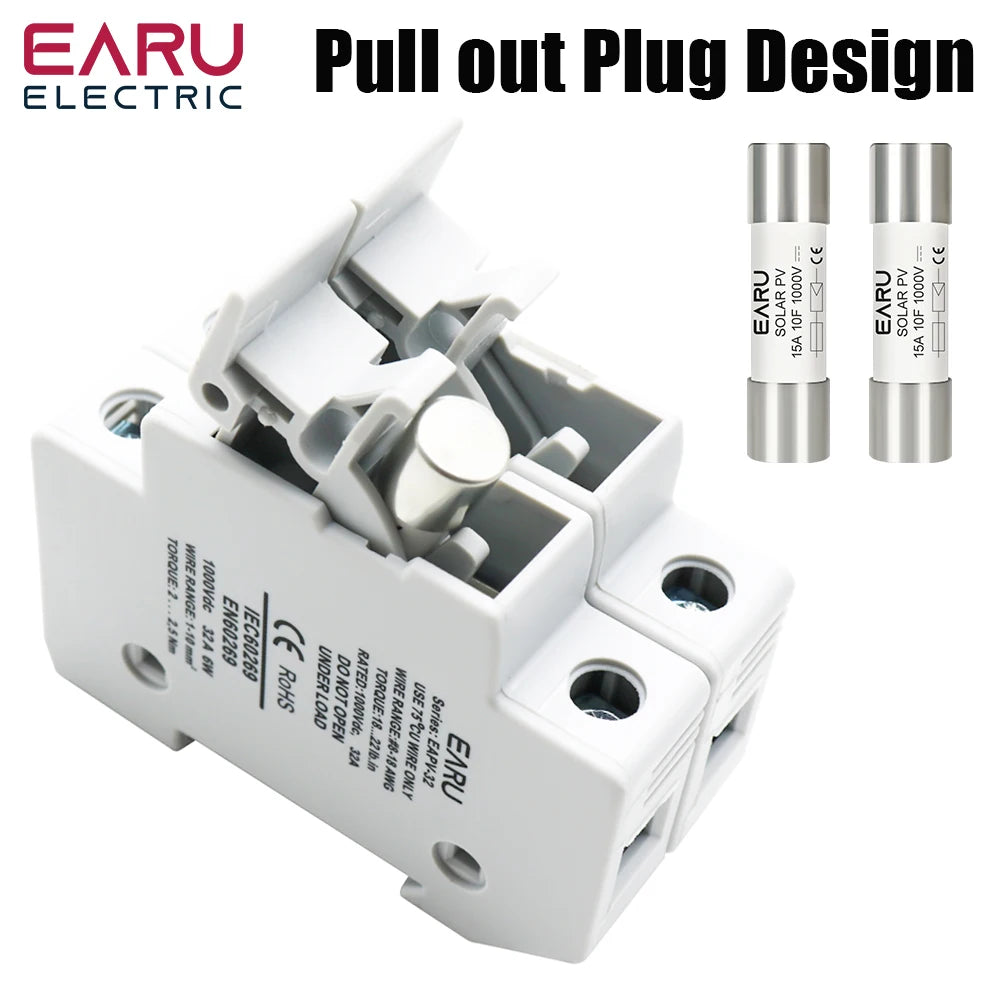

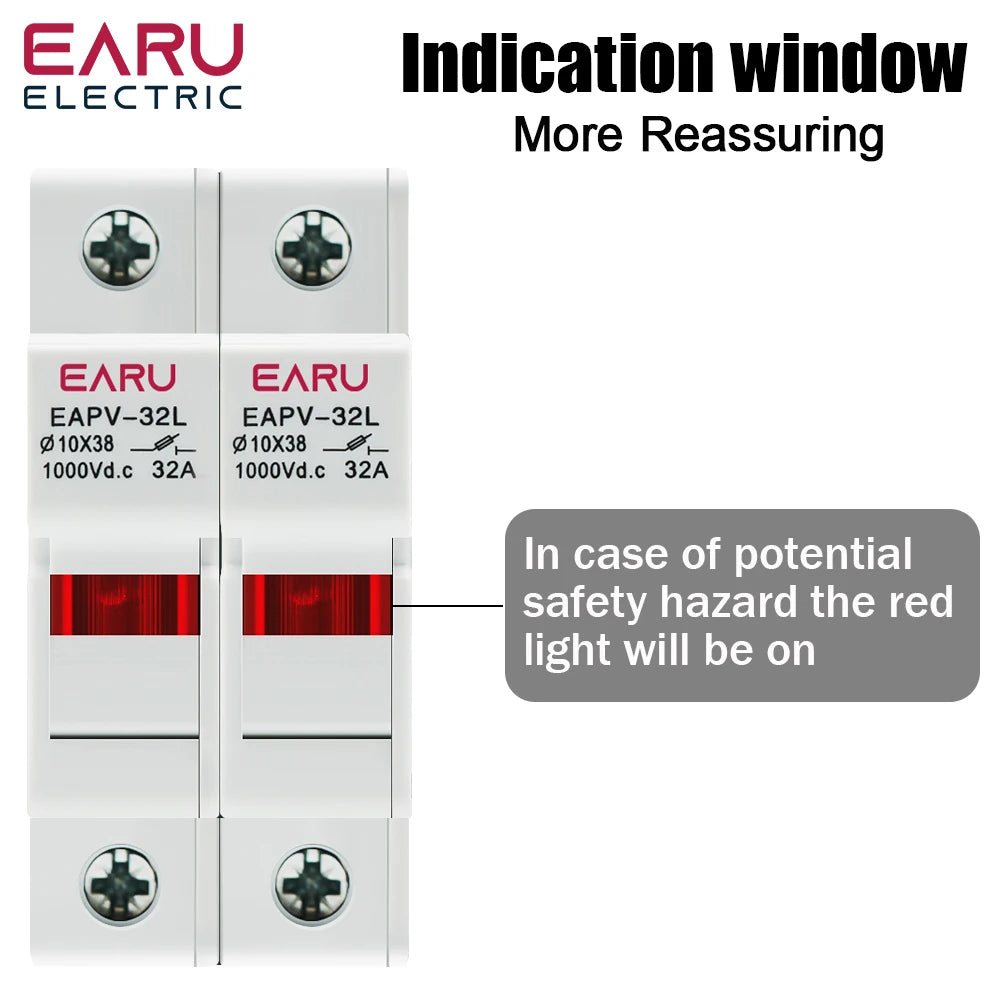

- Set variants (EAPV-32-2P or EAPV-32L-2P): 1 x 2-pole holder + 2 x matched 10x38 mm gPV fuses at the selected amperage
Compatibility & Applications
This holder fits any 35 mm DIN rail in a solar combiner box, PV junction box, or distribution panel. Typical applications include:
- Residential rooftop solar PV string protection
- Small commercial solar array combiner boxes
- Off-grid solar systems with multiple parallel strings
- Solar PV system retrofits adding string-level protection where it was missing
- DIY solar installations following IEC and local electrical code
Not suitable for: AC circuit protection (this is DC-only, the AC arc-extinguishing characteristic is different), system voltages above 1000 V DC (use 1500 V DC-rated holders for utility-scale arrays), single-pole protection where IEC requires 2-pole break, or fuse cartridge sizes other than 10x38 mm.
Why Trust Us
Operated for 5+ years across 35+ countries by a UK-incorporated company specializing in renewable energy and small-electronics components. Every order ships with tracked delivery, a 30-day return window, and a manufacturer-backed warranty against defects. Technical questions are answered by email at info@54energy.net. Last updated: May 2026.
Important safety note: solar PV system protection components must be installed by a qualified electrician in accordance with IEC 60269 and local electrical codes. Incorrectly sized or omitted PV string fuses are a recognized fire risk in solar installations.
