Power Surge Protective Device SPD Arrester Low Voltage House 1/2/3/4 Pole Surge Voltage Protection DC 500V 800V 1000V 40KA 60KA
Power Surge Protective Device SPD Arrester Low Voltage House 1/2/3/4 Pole Surge Voltage Protection DC 500V 800V 1000V 40KA 60KA
Couldn't load pickup availability
Protect your home from power surges with our Power Surge Protective Device. Available in 1/2/3/4 pole options and offering low voltage protection up to 1000V, this device can handle surge voltages of up to 60KA. Keep your electronics and appliances safe with the added protection of our SPD Arrester.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Type: Mini
- Type: Circuit breaker
Electric ratings: 230/400V, AC50/60Hz, 3-phase;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1

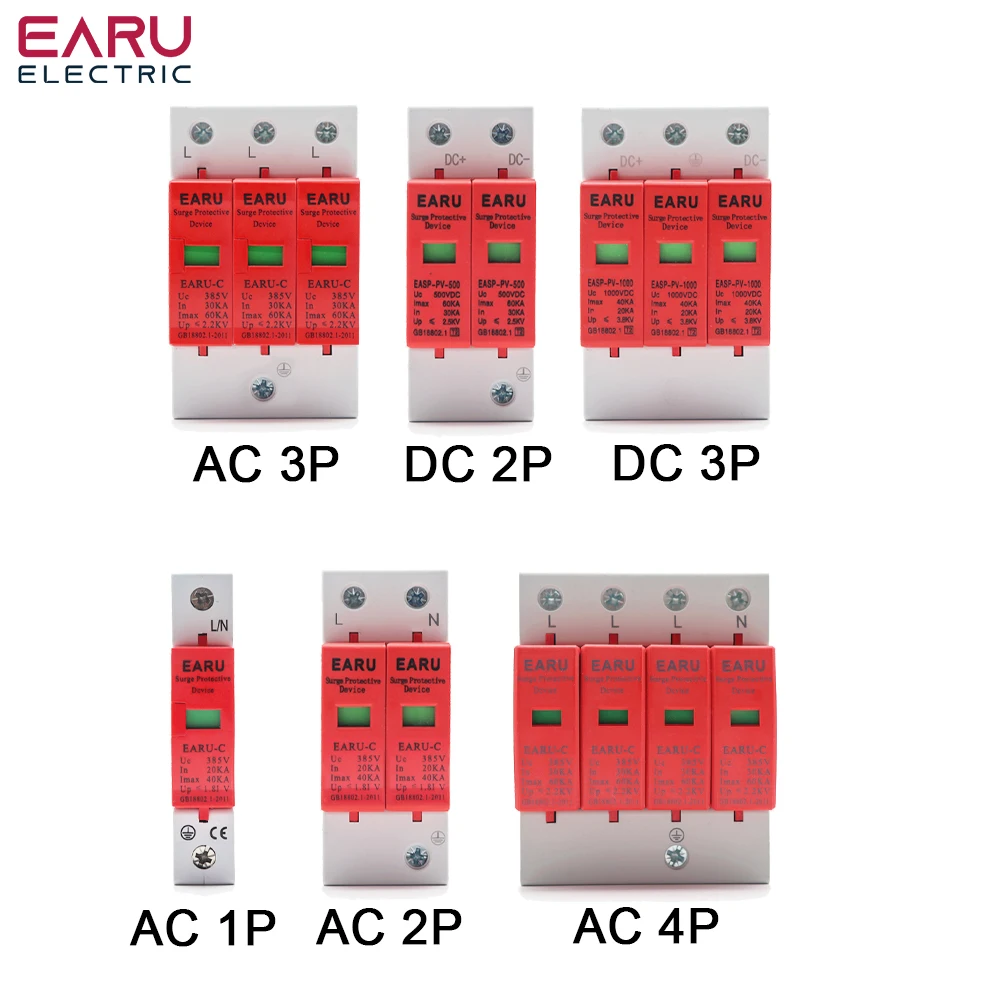

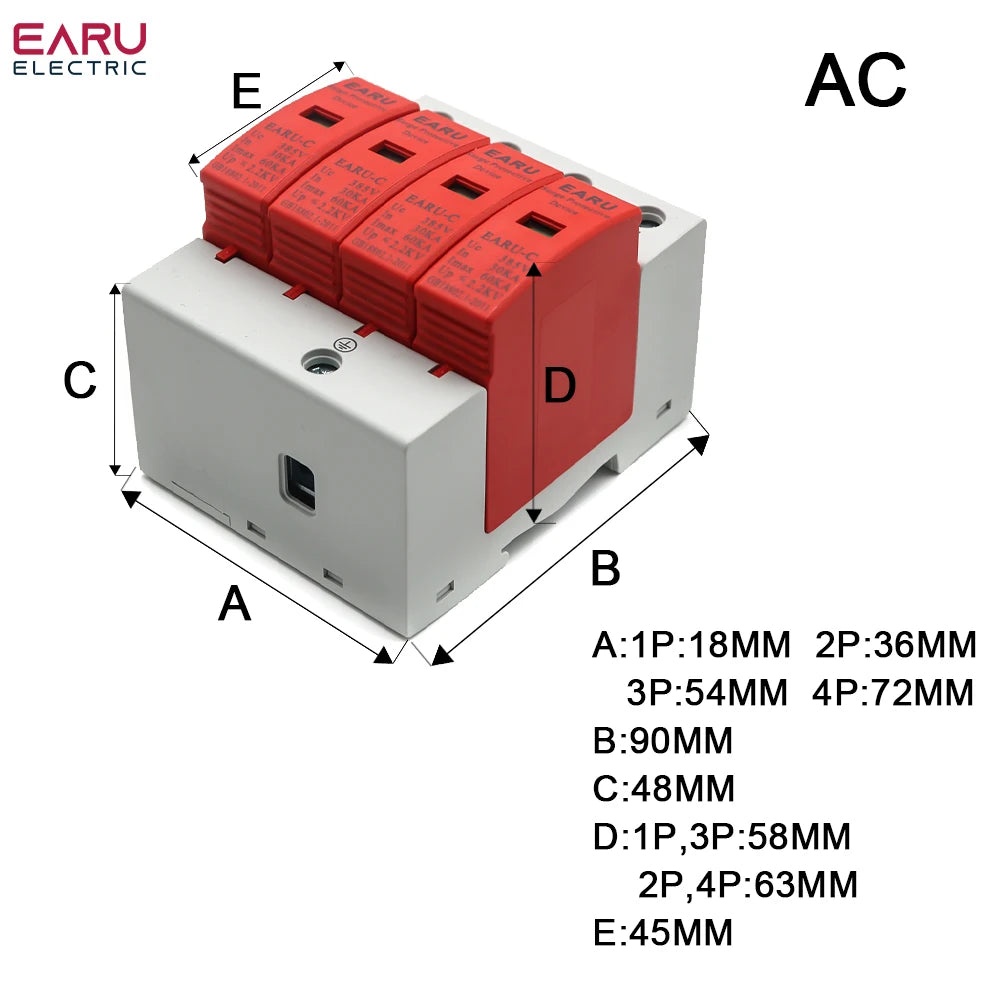

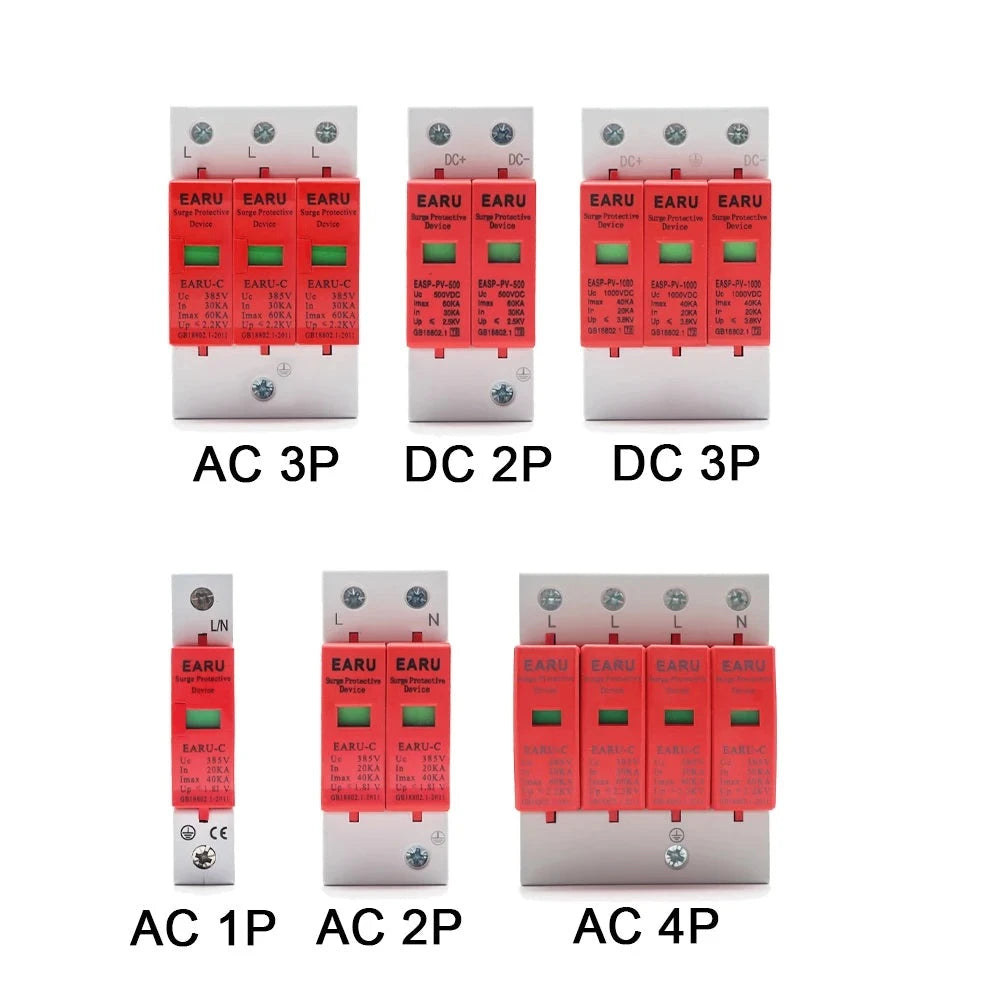

Number of poles: 1, 2,3, 4;
Electric ratings: 230/400V, AC50/60Hz;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Electric ratings: Single phase power distribution and control system of AC50/60Hz, 230V;
Short circuit current: up to 10kA (8/20μs);
Application: Protect electric system and on-loading electrical apparatus from lightening and instantaneous over-voltage;

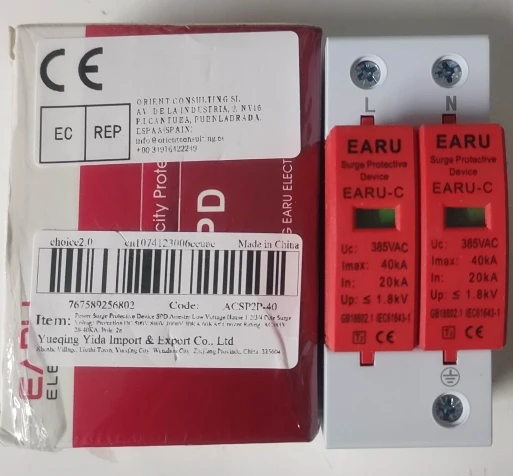

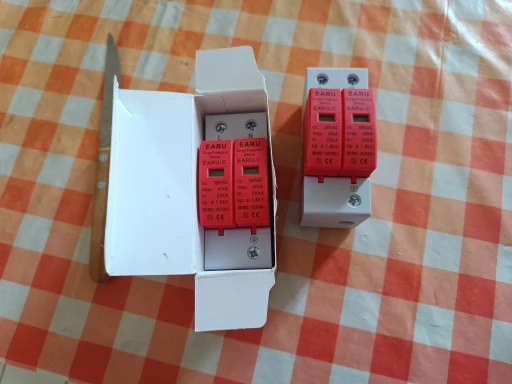

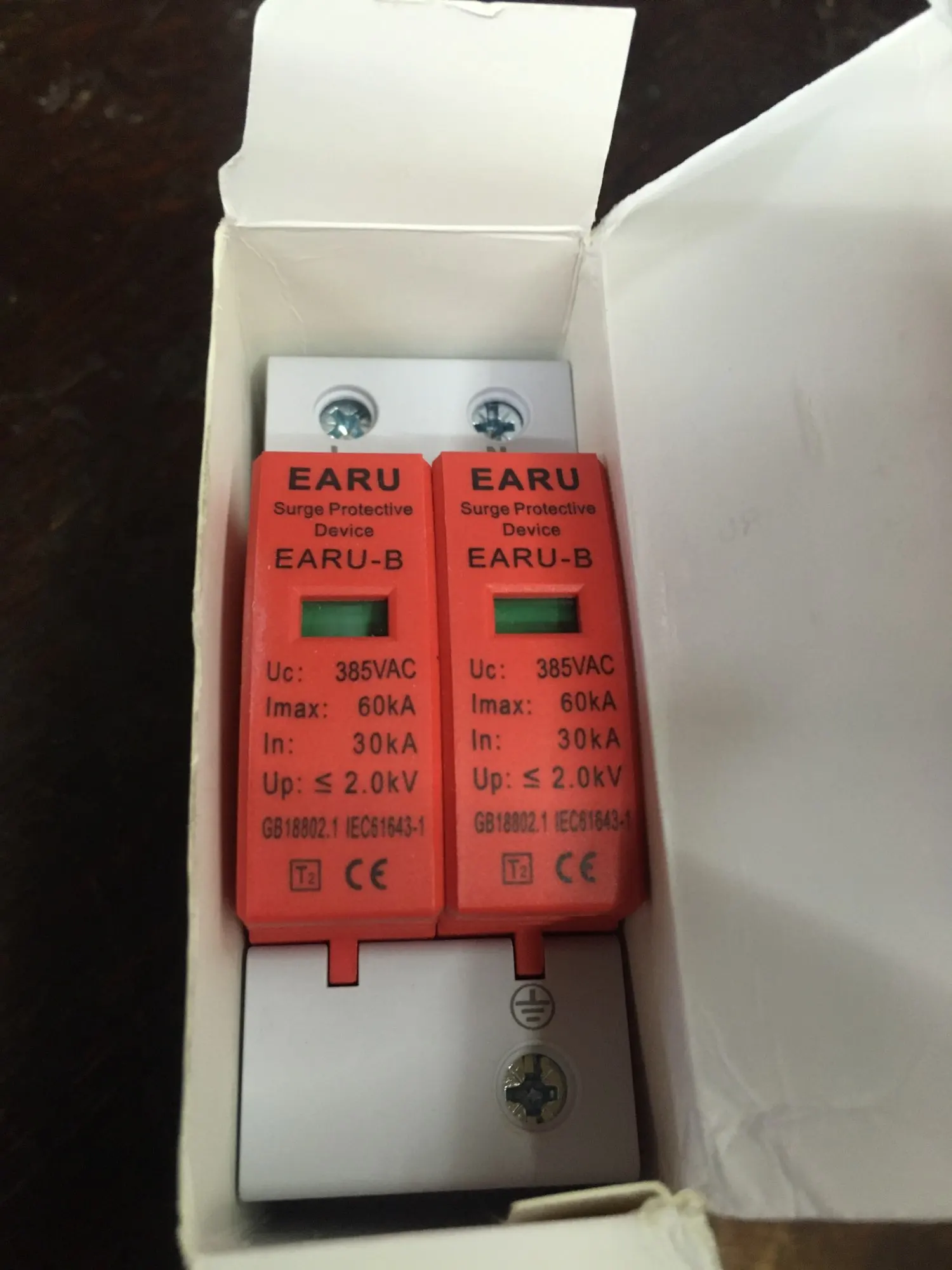

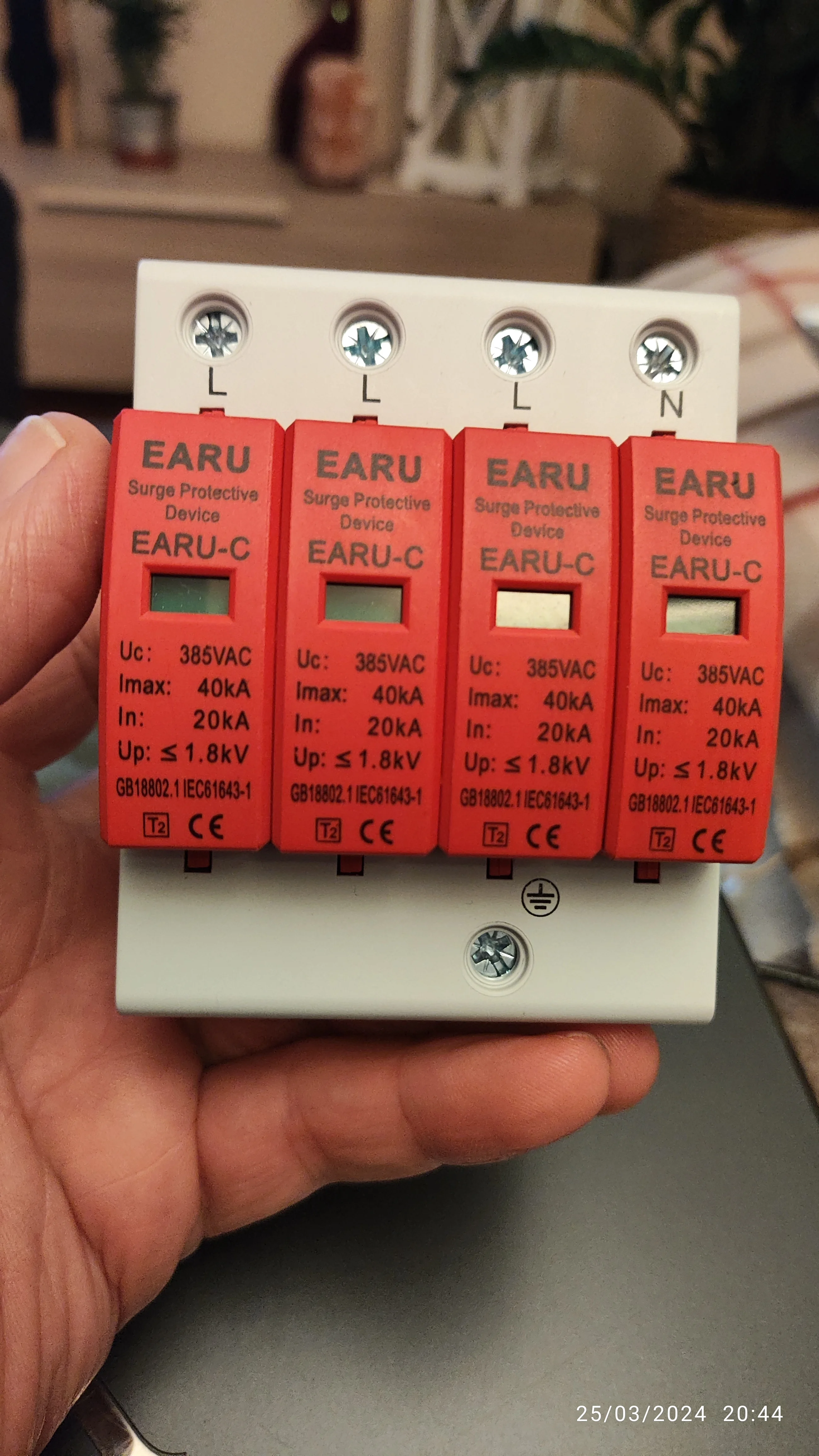

Technical parameters:
|
TYPE |
EASP-40 |
EASP-60 |
EASP-20 |
|
Protection Class: |
C |
B |
D |
|
Max.Continuous Operating Voltage (Uc): |
~385VAC |
~385VAC |
~385VAC |
|
Nominal Discharge Current (8/20μs) (In): |
20KA |
30KA |
20KA |
|
Max. Discharge Current (8/20μs) (Imax.): |
40KA |
60KA |
10KA |
|
Voltage Protection Level( Up): |
≤1.8KV |
≤2.2KV |
≤1.8KV |
|
Response Time: |
< 25ns |
||
|
Leakage current: |
≤20μA |
||
|
Working Environment: |
Temperature -40°C +80°C; |
||
|
Relative humidity<95%; |
|||
|
indicate deterioration: |
green(normal),red(malfunction) |
||
|
Protection Mode: |
L-PE,N-PE (1P, 2P,3P,3P+N) |
||
|
Material of Outer Shell: |
Flame retardant materials |
||

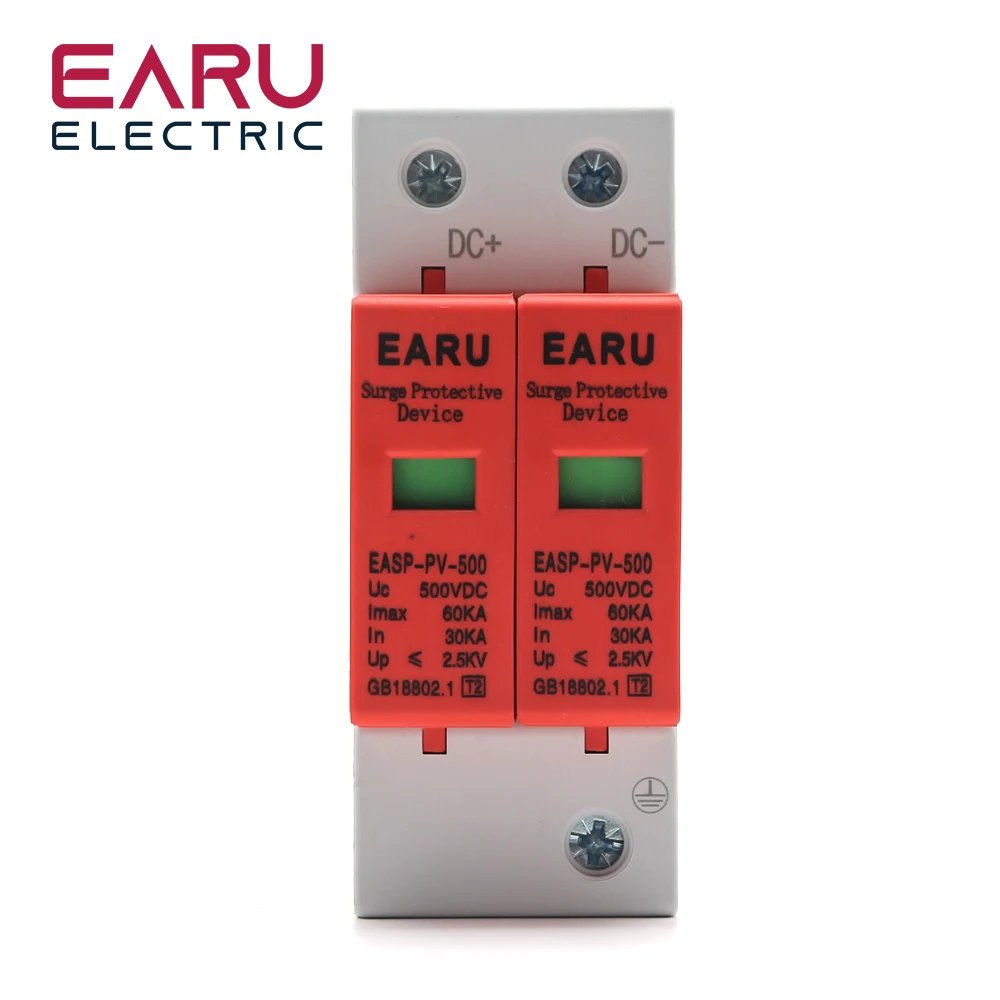

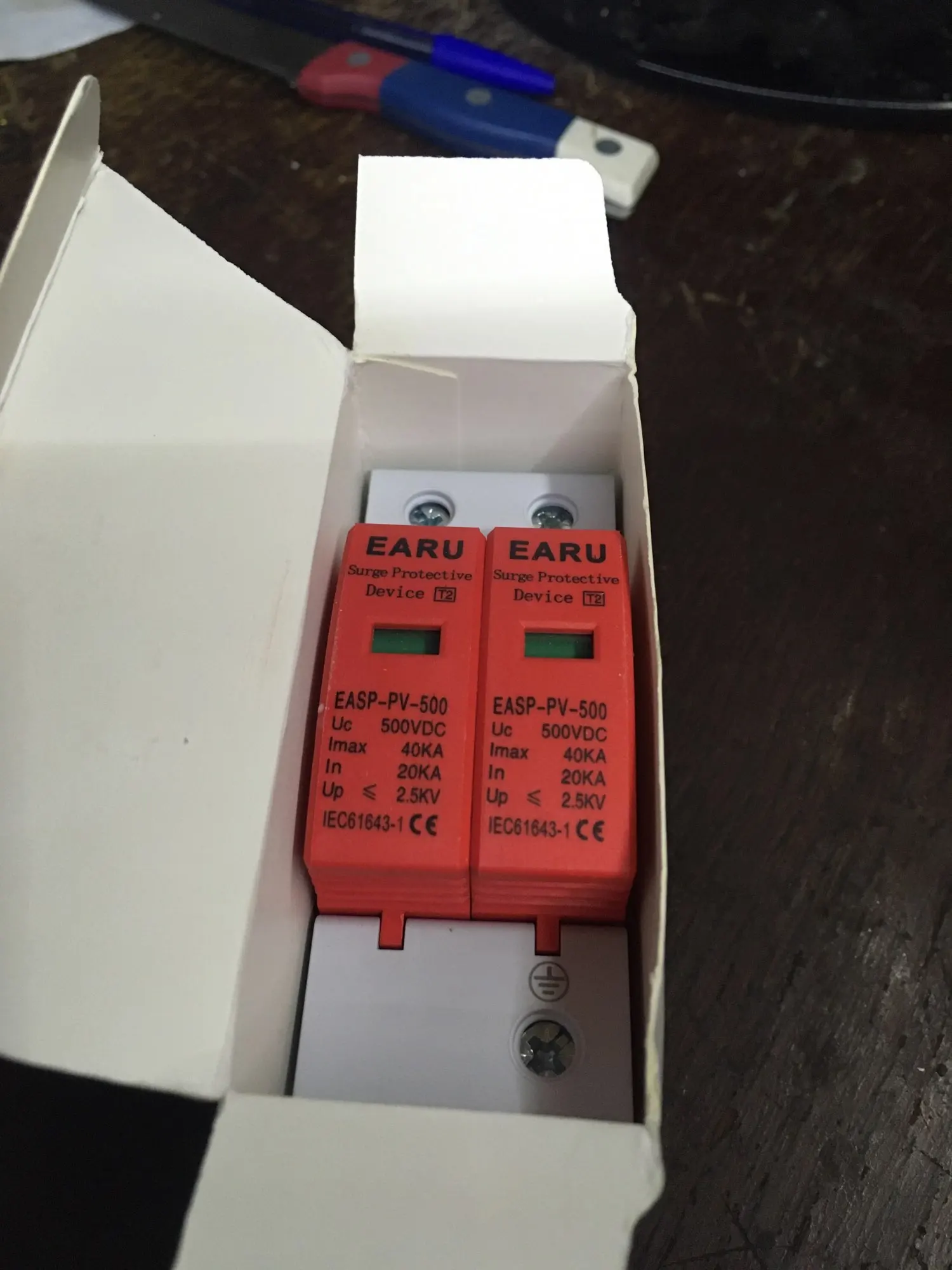

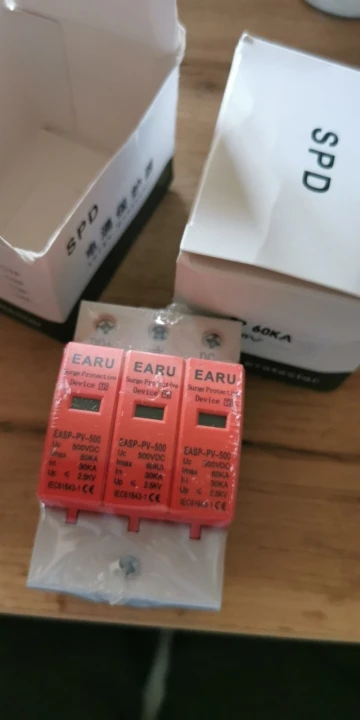

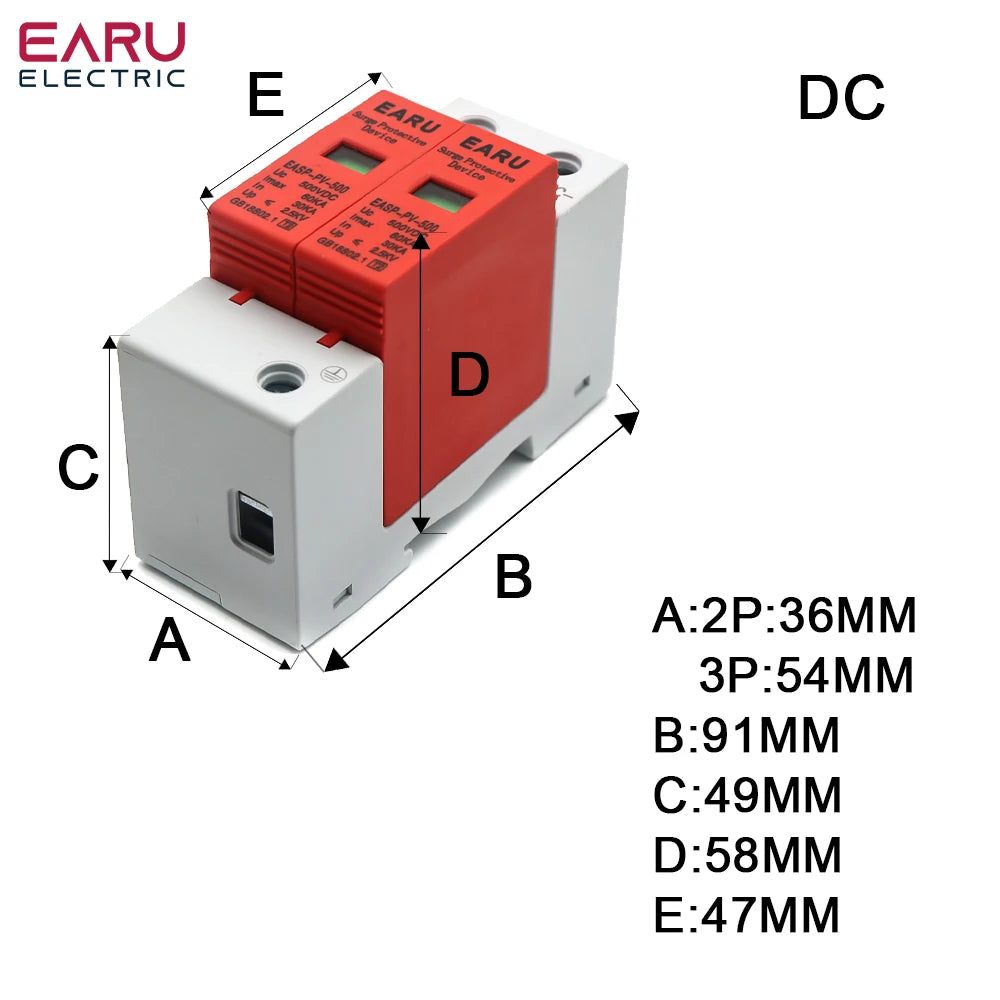

Electric ratings: DC 500V/800V/1000V
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage
Number of poles: 2
Electric ratings:DC 500V/800V/1000V
20-40KA/30-60KA
UP<2.2KV
|
Nominal Voltage |
UN |
500/800/1000V DC |
|
|
Max.continuous d.c. voltage |
Uc pv |
500/800/1000V DC |
|
|
Protection mode |
|
CM/DM |
|
|
Maximum discharge current (8/20μs) |
Imax |
40kA/60KA |
|
|
Nominal discharge current (8/20μs) |
In |
20kA/30KA |
|
|
Voltage protective level CM/DM at In |
Up |
≤2.2kV |
|
|
Isolation resistance |
Risol |
>102MΩ |
|
|
Response time |
tA |
≤25ns |
|
|
I/O Connections |
By screw terminal:10-35mm2 |
||
|
By connection bus |
|||
|

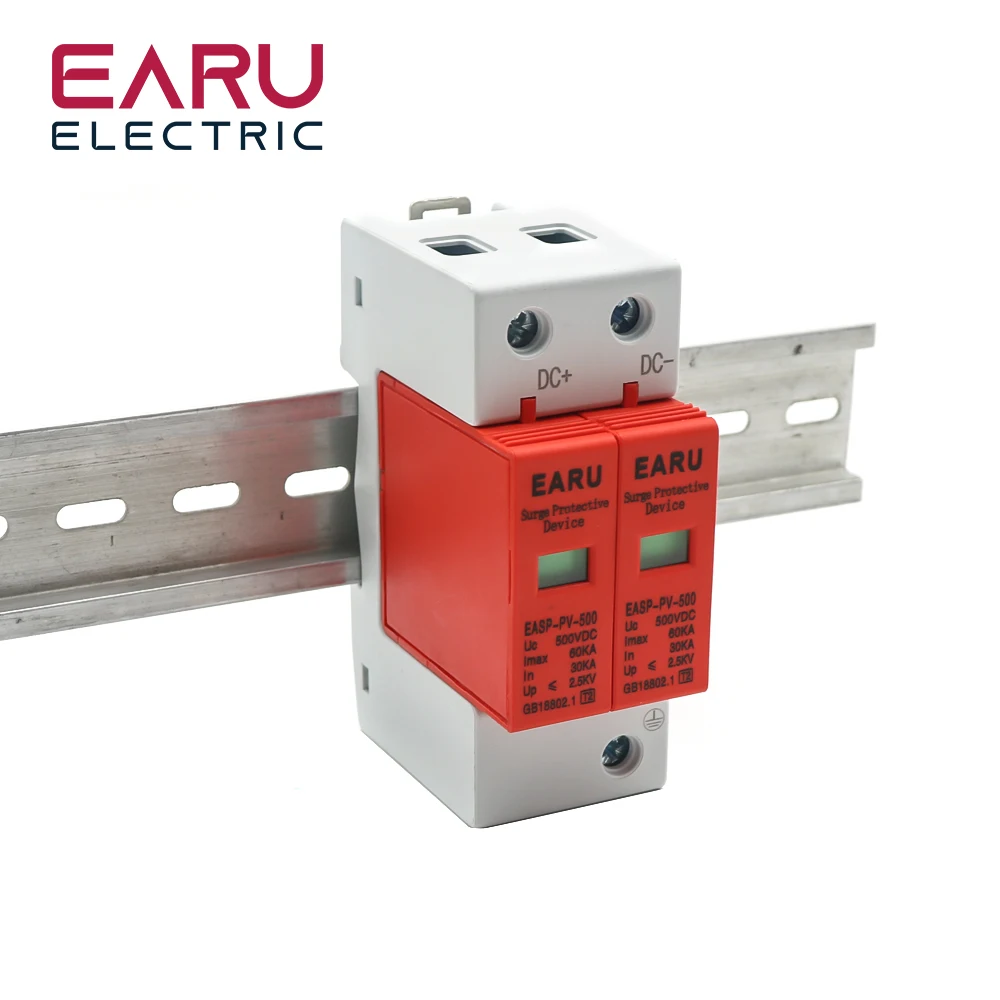

Mounting |
Symmetrical rail (EN50022/DIN46277-3) |
||
|
Operation temperature range |
-40c~+85c |
||
|
Degree of protection |
IP20 |
||
|
Housing material |
UL94V0 |
||
|
Disconnection indicator |
Mechanical indicator |
||
|
Remote control contact |
No |
||
|
Color |
Gray |
||
|
Isolation resistance |
By screw terminal:10-35mm2 |
||
|
By connection bus |
|||
|
Response time |
Symmetrical rail (EN50022/DIN46277-3) |
||
