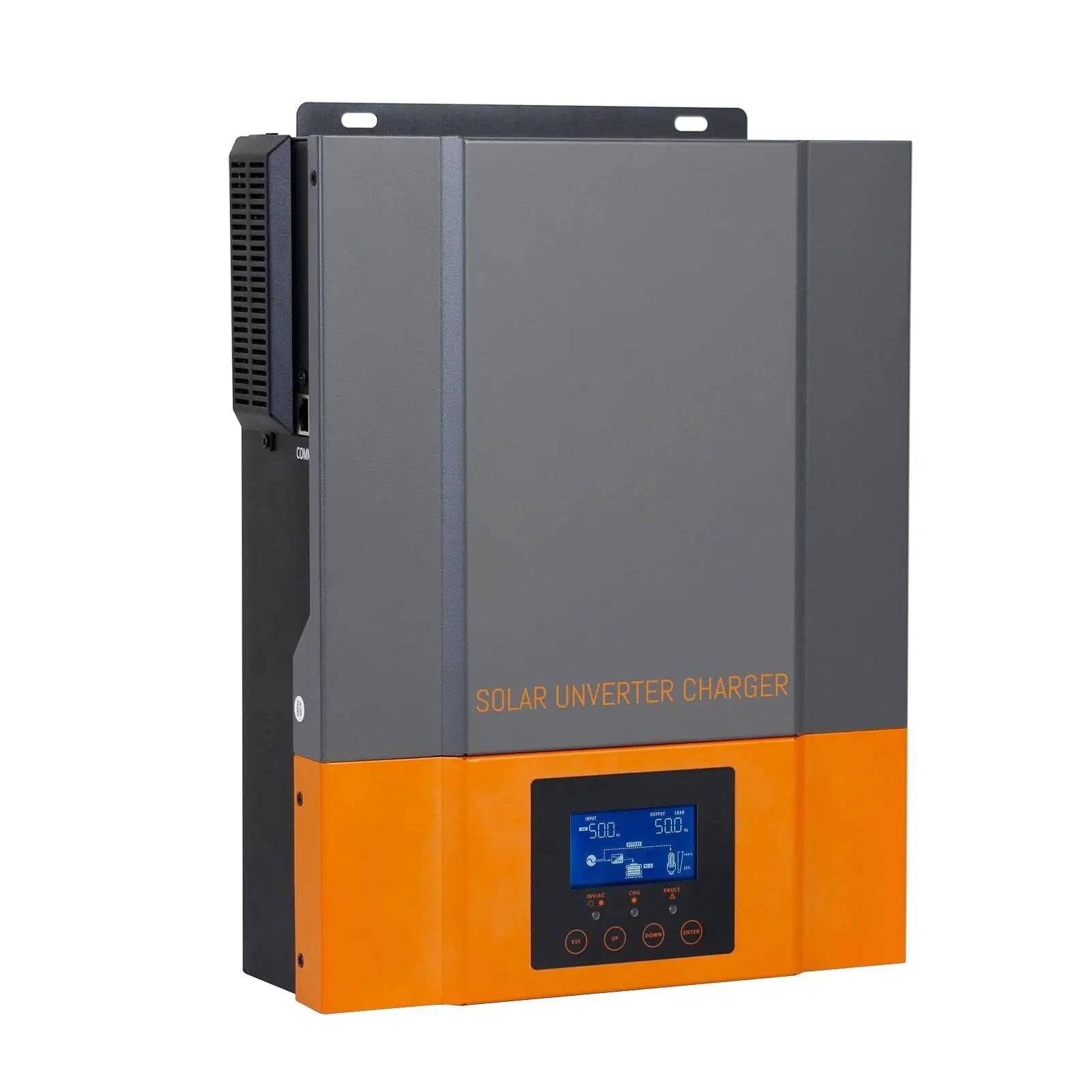

Hybrid Inverter POWMR MPPT 80A Solar Charger 24V 2400W 230V Output Max PV 450VDC Support WIFI

Inverter Use Note: The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature

1. Pure sine wave inverter

2. Configurable input voltage range for home appliances and personal computers via LCD setting

3. Configurable battery charging current based on applications via LCD setting

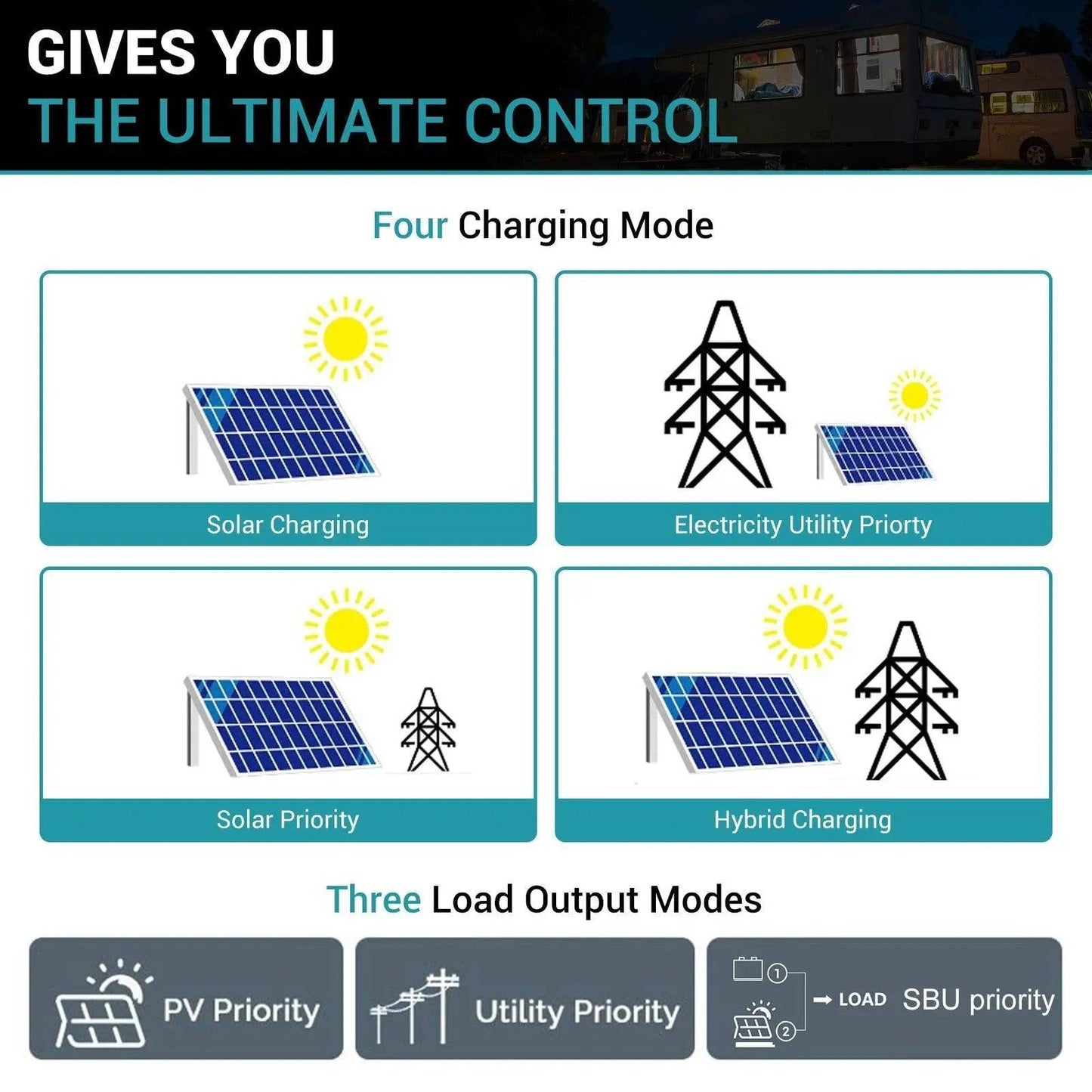

4. Configurable AC/Solar Charger priority via LCD setting

5. Compatible with mains voltage or generator power

6. Auto restart while AC is recovering

7. Overload/ Over temperature/ short circuit protection

8. Smart battery charger design for optimized battery performance

9. Cold start function

10. WIFI/GPRS(Option)

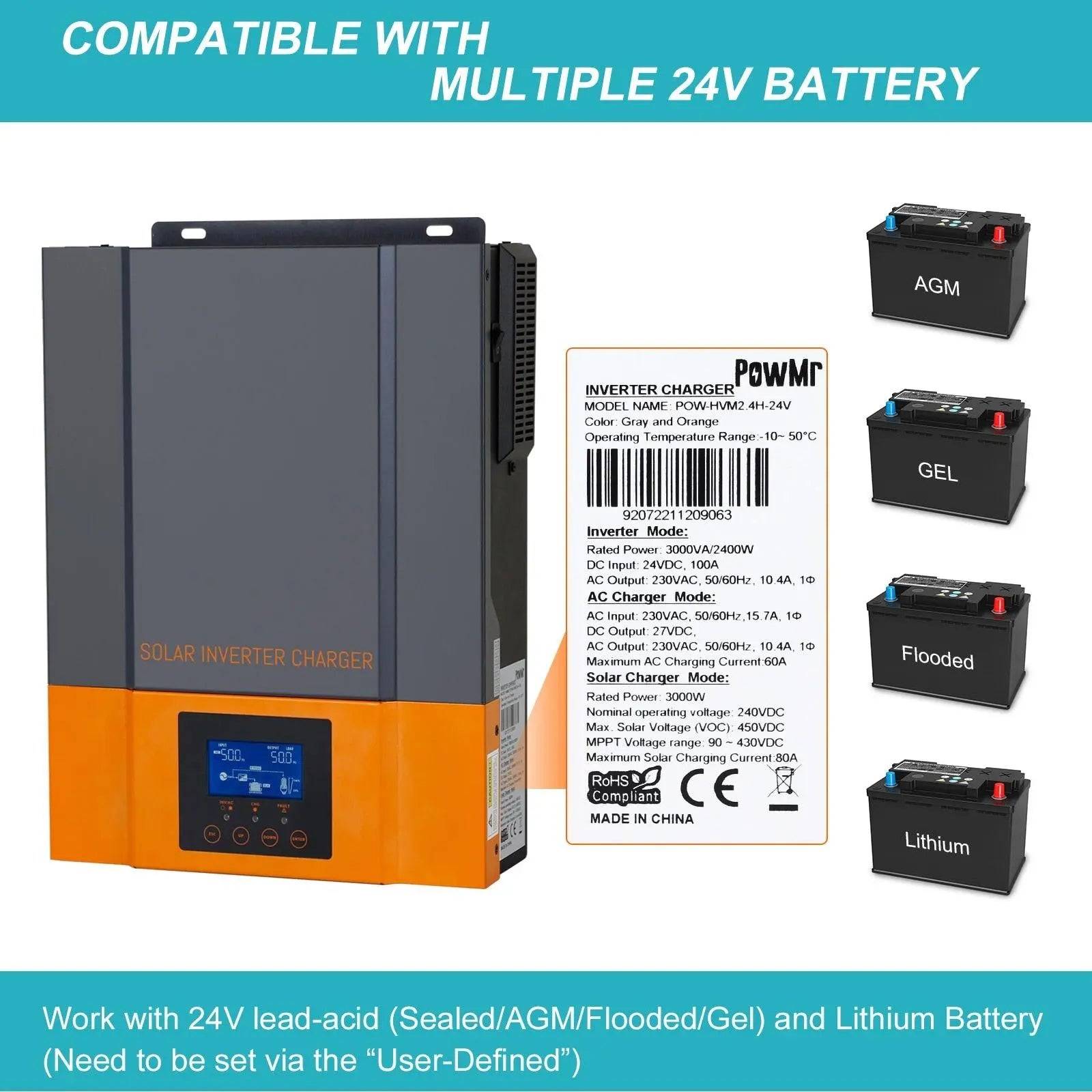

11. Can connect to lithium battery

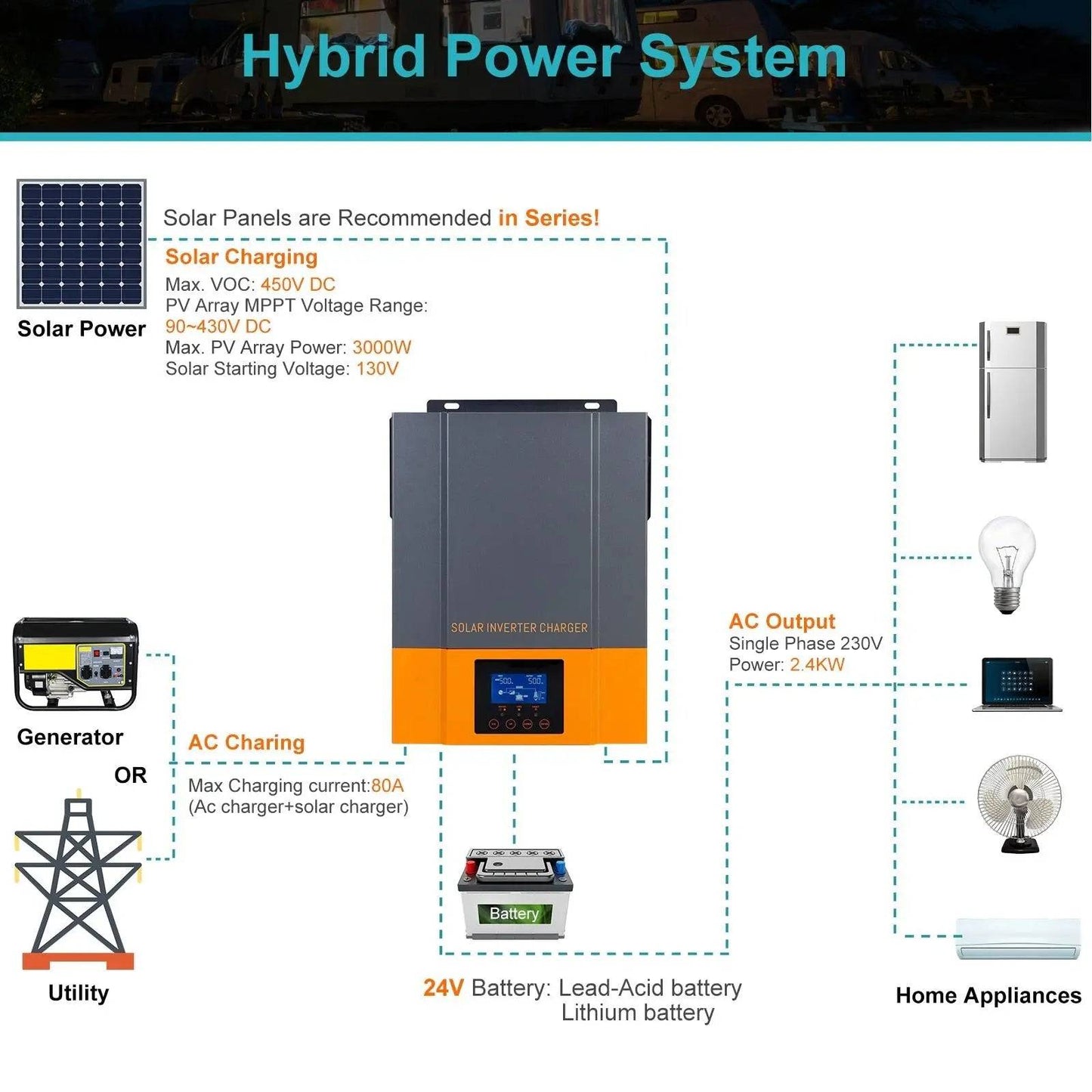

Basic System Architecture

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:

• Generator or Utility.

• PV modules

Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
