Wind Turbine Generator 800W Rated HAWT 12V/24V Blades 3/5/6 Windmill
Wind Turbine Generator 800W Rated HAWT 12V/24V Blades 3/5/6 Windmill
Couldn't load pickup availability
SPECIFICATIONS:
- Is_customized: Yes
- Type: Wind Power Generator
- Start up speed: 2m/s
- Shaft Material: Stainless steel
- Mounting Base: With Mounting Base
- Model Number: RX-800H3
- Certification: CE
- Certification: RoHS , CE, ISO9001:2000
- Application: Wind power system

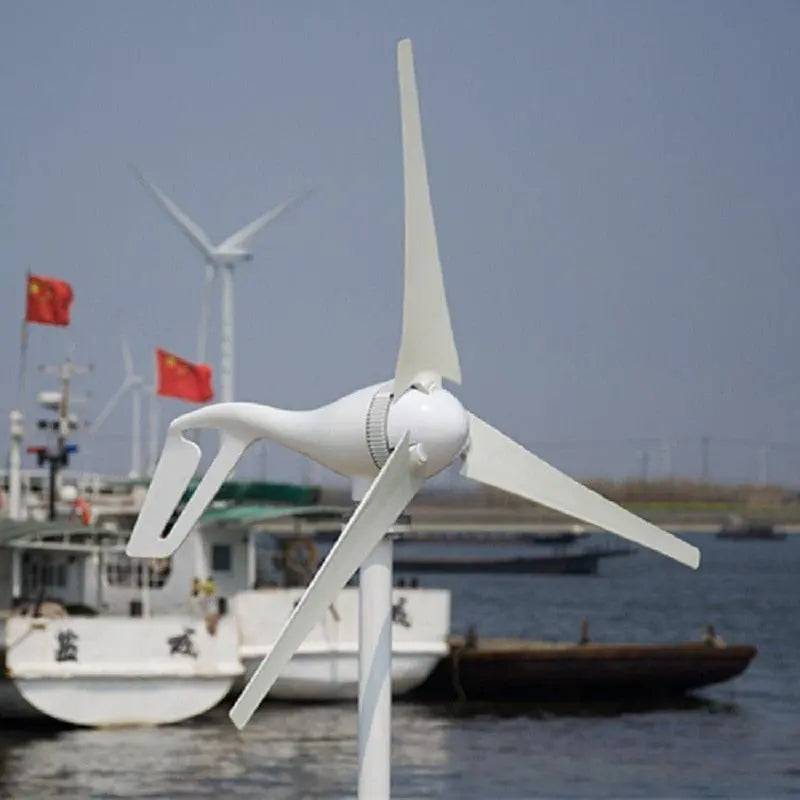

R&X Wind Turbine Generator 12V/24V 800W Rated HAWT 3/5/6 Blades Windmill With CE&ROHS
Introduction:
1.low start up speed; high wind energy utilization; beautiful appearance; low vibration
2.Human friendly design, easy installation, maintenance and repair.
3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4.the generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability
Technical Data:
|
Rated watt |
800W |
|
Rated voltage |
12/24V |
|
Start-up wind speed |
2.0m/s |
|
Rated wind speed |
13m/s |
|
Survival wind speed |
50m/s |
|
Weight |
9.5kg |
|
Blade quantity |

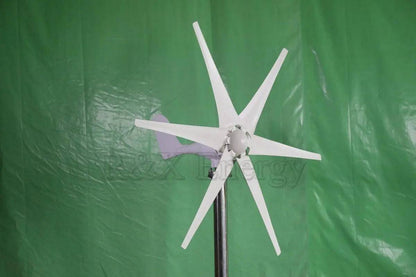

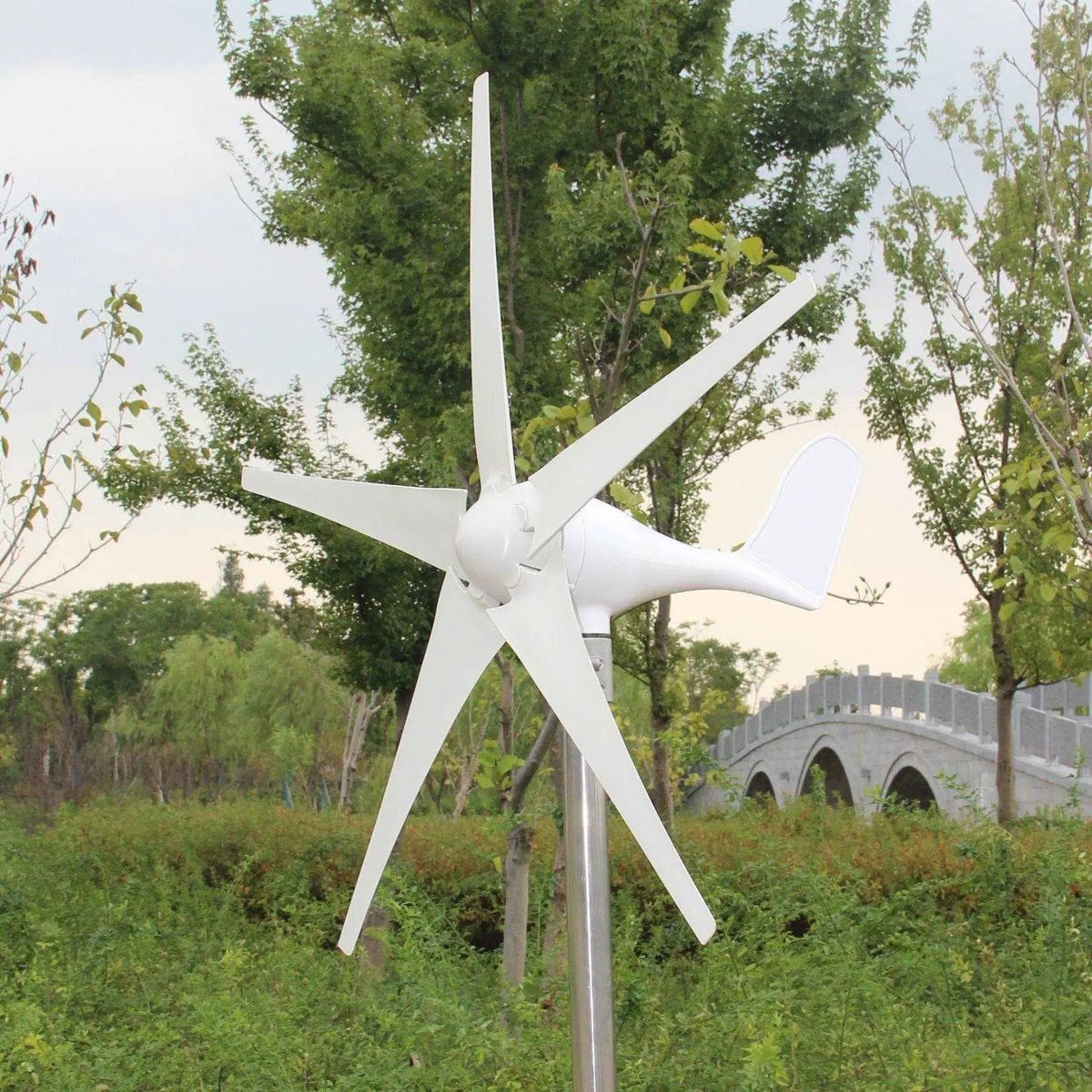

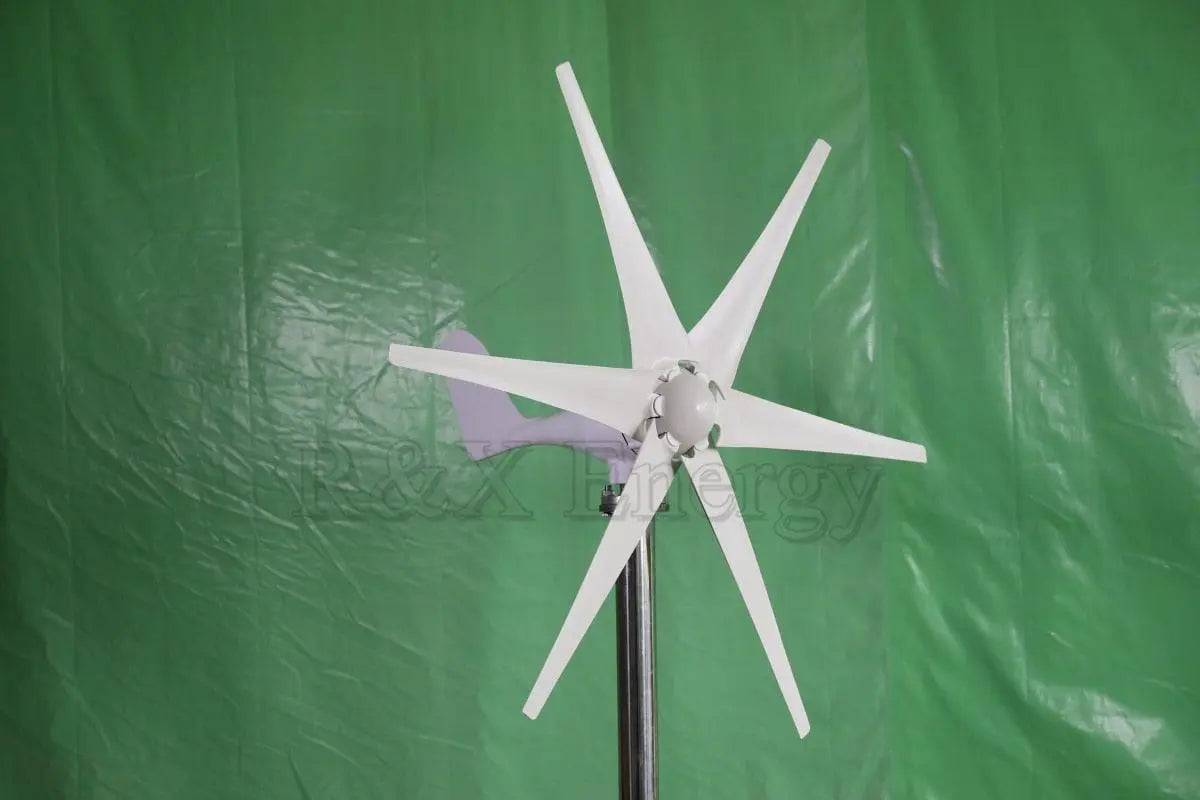

3/5/6 pieces |
|
Blade lengths |
3 blades: 600mm 5 blades: 550mm 6 blades: 530mm |
|
Blade material |
Nylon fiber |
|
Generator |
Permanent magnet synchronous generator with three-phase alternating current |
|
Controller system |
Electromagnetic/yaw |
|
Regulating way |
Automatic adjustment of wind angle |
|
Working temperature |
-40°C~80°C |

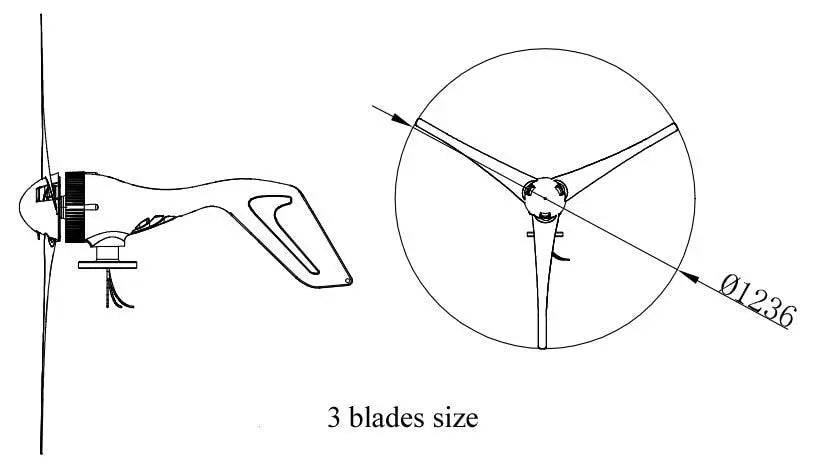

Drawing

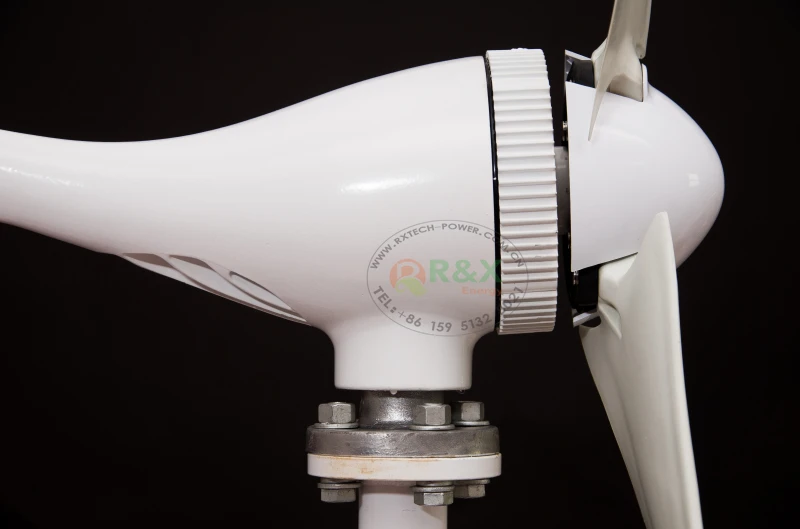

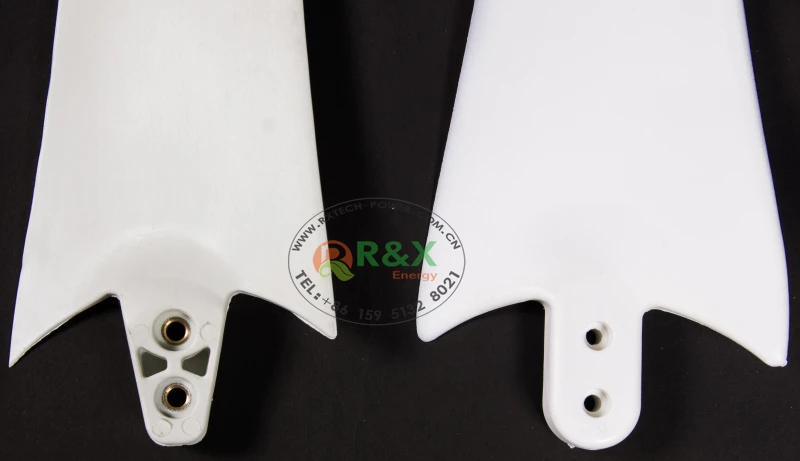

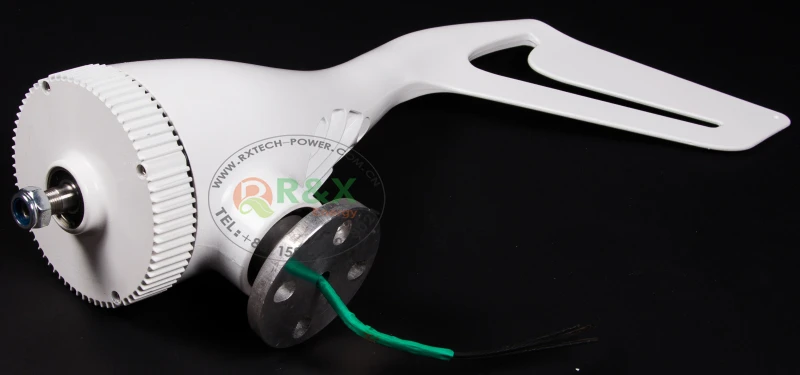

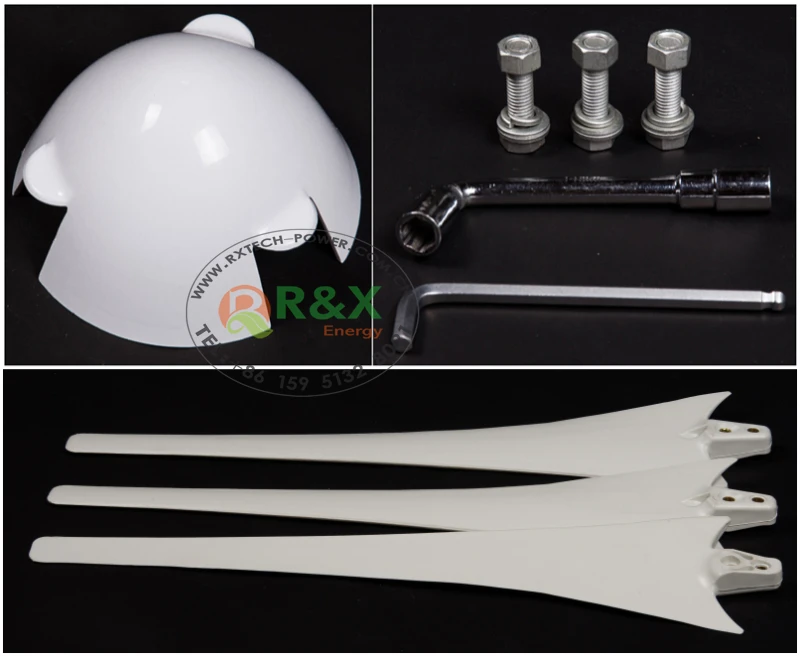

Detail Image
Include free controller
Advanced Wind Charge controller
Wind Solar Hybrid Controller
Application
