SPECIFICATIONS

• Solar panel power: 3m SOLAR Battery Cable ; red and black
• is_customized: Yes
• Type: Solar Panel
• Solar Controller: Connect lead-acid battery
• Size: 1050*530*2.5mm
• PV Cable: 3M extension solar cable
• Origin: CN(Origin)
• Number of Panels: 3
• Number of Cells: 32
• Nominal Capacity: 100 watt/200 watt/300 watt
• Model Number: Solar Panel Kit 100w/200w/300w
• Max. Power: 100w,200w,300w
• Material: Monocrystalline Silicon
• Foldable Solar Panel: No
• Flexible Solar Panel with: 0.5M extension solar cable
• Flexible Solar Panel: Yes
• Certification: CE
• Certification: RoHS
• Brand Name: dgsunlight
• 300w solar panel kit Voltage output: 12V / 24V / 5v
• 200w solar panel kit Voltage output: 12V / 24V / 5v
• 200w solar panel Voltage output: 16V / 32V
• 100w solar panel kit Voltage output: 12v / 5V
• 100w solar panel Voltage output: 16V

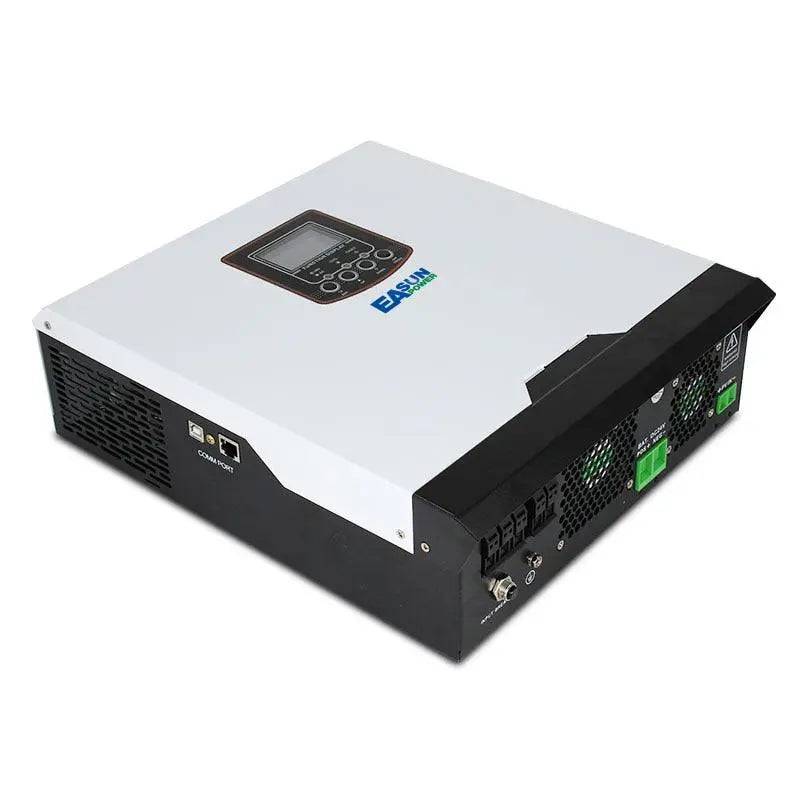

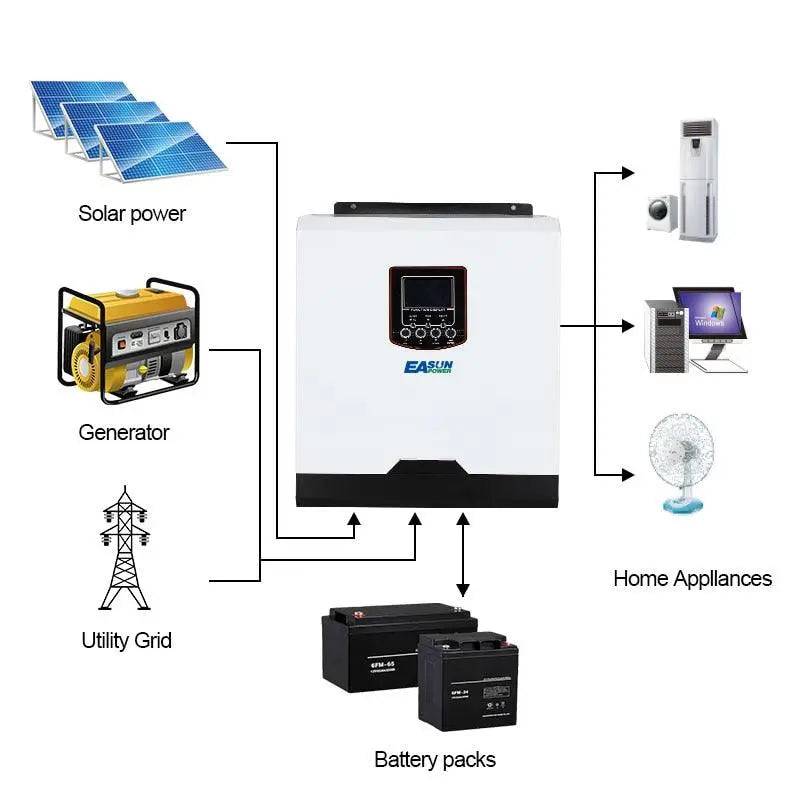

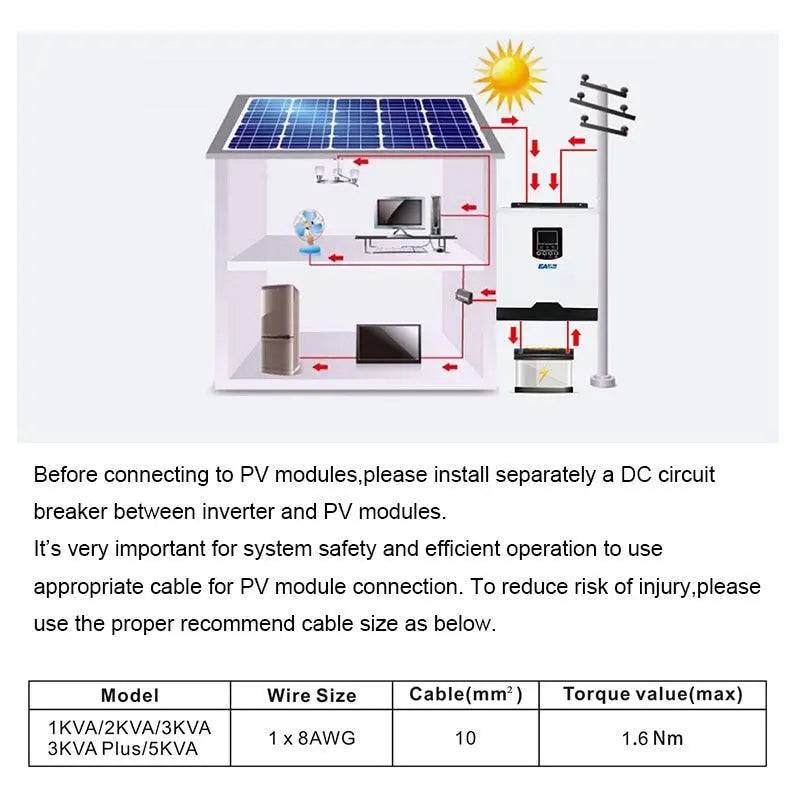

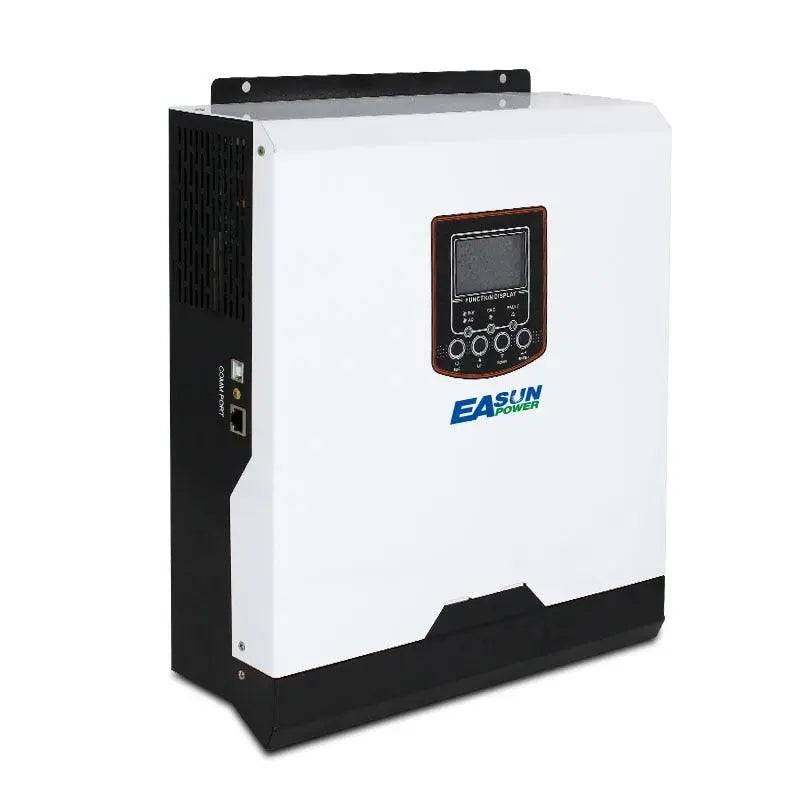

Solar Inverter 3KVA 24V 50Hz/60Hz Hybrid Inverter 230VAC Pure Sine Wave 50A PWM Battery Charge inversor

Dear Buyer, pls kindly notice:

1.The Plastic Cover on Solar cell is not for use, it is protect the solar cell while transportation,so when you use the solar panel, pls remove it!

2.We recommend not to bend more than 20 degrees when install the panel.

Product Description

1)This product is a multifunctional solar charger, which can charge for big battery,like boat,yacht,car;

2)Semi flexible design,Graceful appearance, delicate and cabinet;

3)Convenience to take , fashionable elegance. male and female connector can be suitable to connect controller.

4)Especially suitable for anywhere can obtain sunshine, realize high-efficient charging, use convenient and safe, environmental protection, energy saving.It is good for promotion, sales, gifts etc.

5)Waterproof for outside anywhere.

Performance Under Standard Test

Conditions(STC*)

Maximum power(Pmax): 100 Wp

Open circuit voltage(Voc): 19.2 V

Maximum power point voltage(Vmpp): 16.0 V

Short-circuit current(I sc): 6.68A

Maximum power point current(I mpp): 6.25A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.

Wonderful details design:

100W kit (1pcs 100w solar panel kits)

Packing listing：

1. 1 pcs 100w solar panel

2. 10A 12v/24v charge controller

3. 1 set Extension cable with PV connector

4. 1 set cable with alligator clip （connect to battery）

200W kit

Packing listing：

1. 2pcs 100w solar panel

2. 20A 12v/24v charge controller

3. 1 set Extension cable with PV connector

4. 1 set cable with alligator clip （connect to battery）

5. 1 set 2 in 1 PV connector （in parallel solar panel

300W kit (3pcs 100w solar panel kits)

Packing listing：

1. 3pcs 100w solar panel

2. 30A 12v/24v charge controller

3. 1 set Extension cable with PV connector

4. 1 set cable with alligator clip （connect to battery）

5. 1 set 3 in 1 PV connector （in parallel solar panel

100W Panel Display

Panel Test

1, Under strong sunshine to test panel va Multi-meter, the output voltage can reach more than 19VDC.

2, The output Current Is Based on Angle From Panel to Sunshine.

3, Different Angle Will with Different Output Current Under sunshine.

4, In Cloudy Day or Rainy Day, Output Voltage will be Very Lower-- not Quality Problem.
