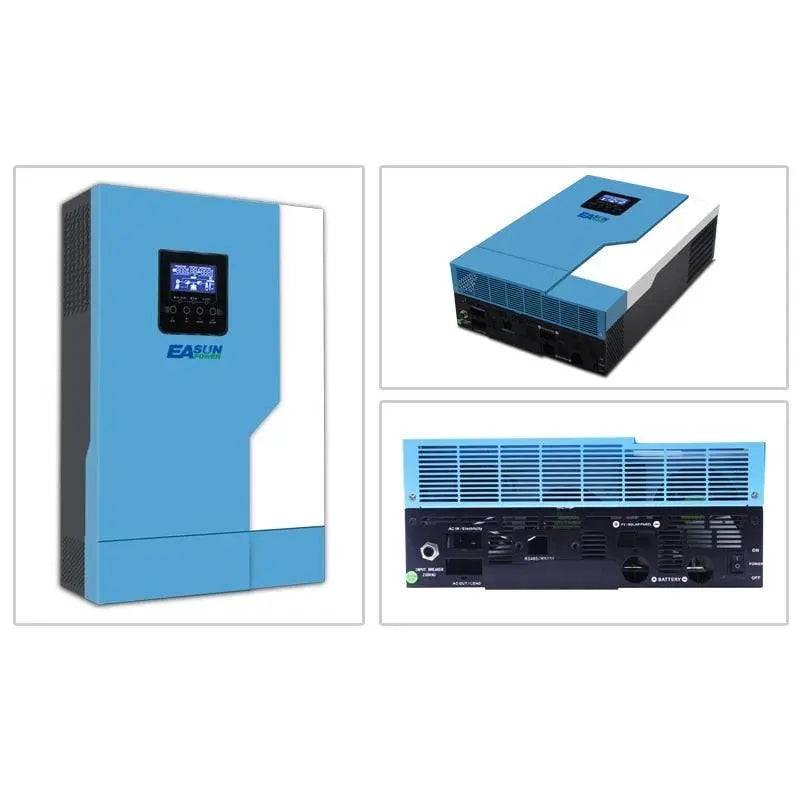

Soalr Inverter 5.5KW 500Vdc MPPT 100A Pure Sine Wave hybrid inverter PV input 220VAC 48VDC 5.5KW With WiFI
Soalr Inverter 5.5KW 500Vdc MPPT 100A Pure Sine Wave hybrid inverter PV input 220VAC 48VDC 5.5KW With WiFI
Couldn't load pickup availability
SPECIFICATIONS
- Wave form: pure sine wave
- Is_customized: Yes
- Grid type: off-grid inverter
- Weight: 13KG
- Type: DC/AC Inverters
- Transfer Time: 10ms
- Surge Power: 11000VA
- Size: 100*300*440mm
- Rated Power: 5500VA/5500W
- PV Array Power: 6000W
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 60HZ/50Hz
- Output Current: 11A

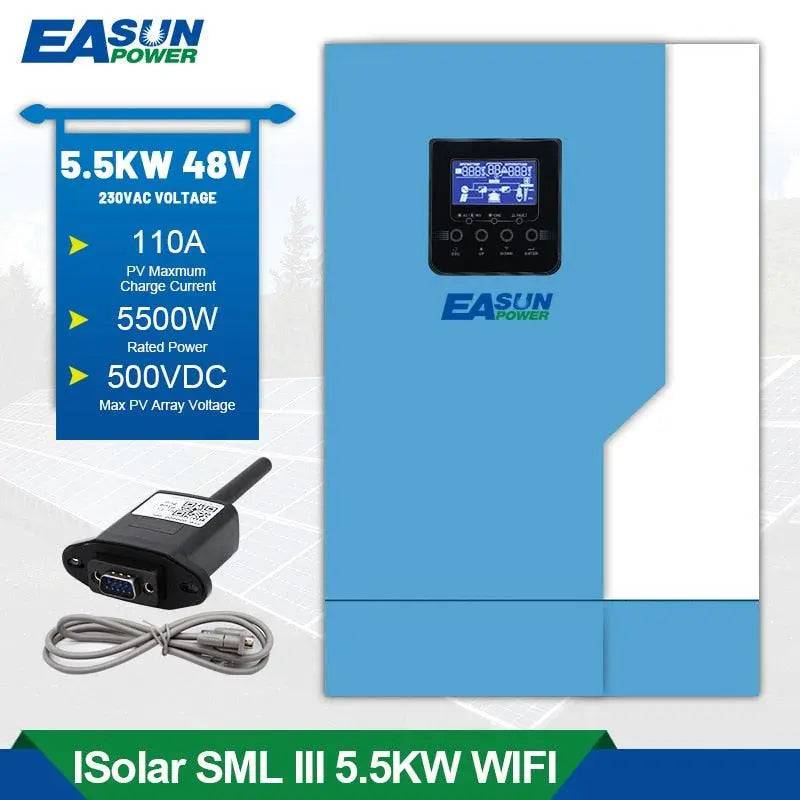

- Model Number: ISolar SML III 5.5kW
- Maximum Charge Current: 80A
- Input Voltage: 48Vdc
- Function: Solar inverter 48V 220V
- Description 2: Pure sine wave inverter charger
- Communication Interface: USB/RS232/WIFI
- Certification: CE,RoHS
Features:
|
MODEL |
SML-III-3500W |
SML-III-5500W |
|
RatedPower |
3500VA/3500W |
5500VA/5500W |
|
INPUT |
||
|
Voltage |
230VAC |
|
|
SelectableVoltageRange |
170-280VAC(for personal computers)90-280VAC(forhomeappliances) |
|
|
FrequencyRange |
50Hz/60Hz (Autosensing) |
|
|
OUTPUT |
||
|
AC VoltageRegulation(Batt.Mode) |
230VAC±5% |
|
|
Surgepower |
7000VA |
11000VA |
|
Efficiency(Peak)PVtoINV |
97% |
|
|
Efficiency(Peak)BATtoINV |
94% |
|
|
TransferTime |
10ms (forpersonalcomputers) 20ms(forhomeappliances) |
|
|
Waveform |
PureSineWave |
|
|
BATTERY&ACCHARGER |
||
|
BatteryVoltage |
24VDC |
48VDC |
|
FloatingChargeVoltage |
27VDC |
54VDC |
|
OverchargeProtection |
31VDC |
61VDC |
|
Maximumchargecurrent |
80A |
80A |
|
SOLARCHARGER |
||
|
MAX.PVArrayPower |
5000W |
6000W |
|
MPPTRange@OperatingVoltage |
120-500VDC |
|
|
MaximumPVArrayOpenCircuitVoltage |
500VDC |
|
|
MaximumChargingCurrent |
110A |
|
|
MaximumEfficiency |
98% |
|
|
PHYSICAL |
||
|
Dimension.D*W*H(mm) |
472*297*129 |
|
|
NetWeight(kgs) |
9.5kg |
10.5kg |
|
CommunicationInterface |
RS485/RS232(Standard) LCDremote/WIFI(Optional) |
|
|
OPERATINGENVIRONMENT |
||
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
OperatingTemperature |
0°Cto55°C |
|
|
StorageTemperature |
-15°Cto60°C |
|
