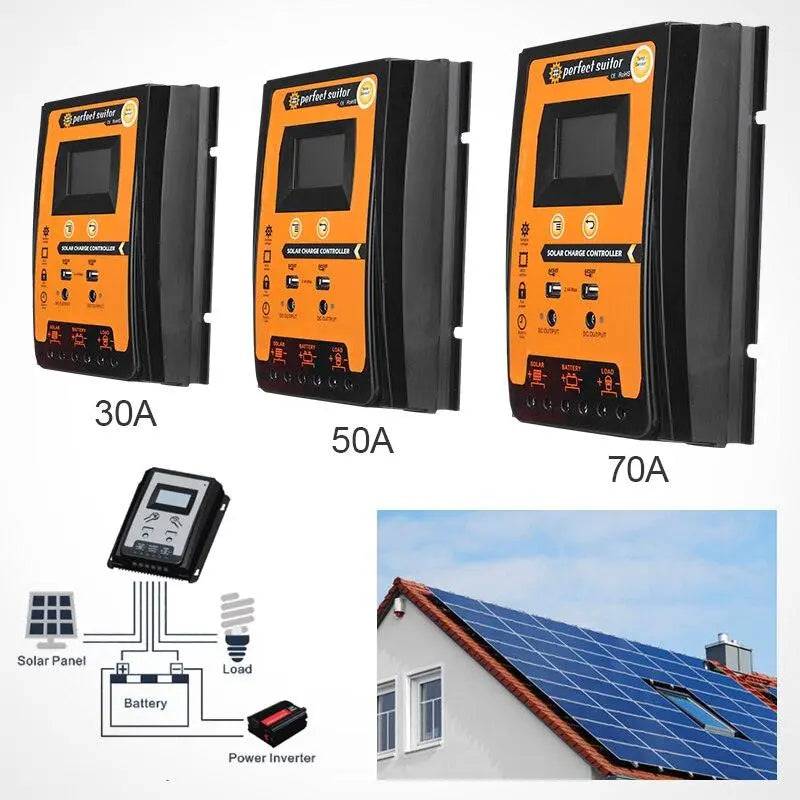

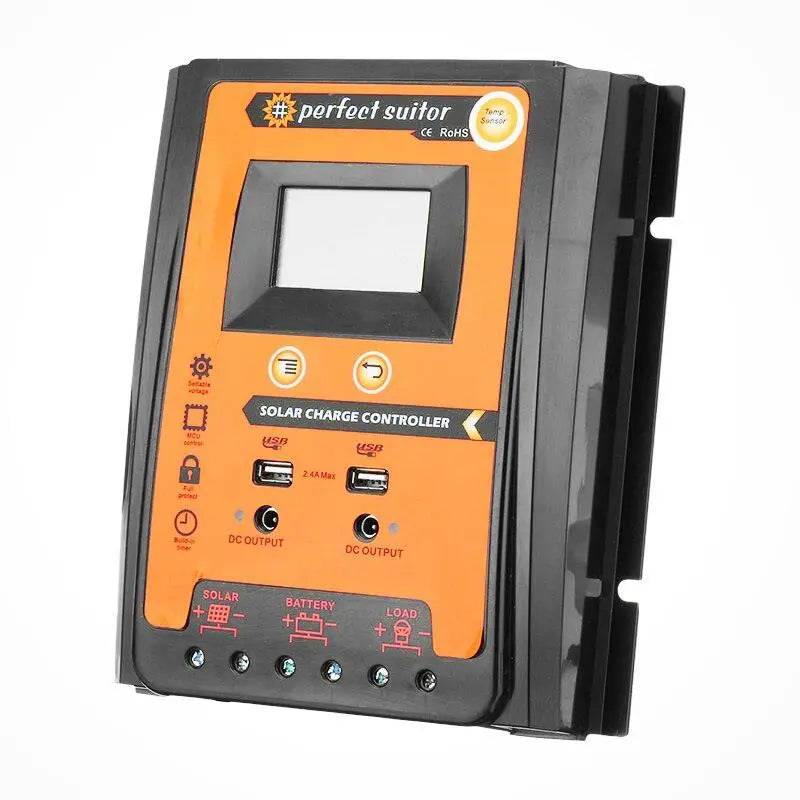

Solar Charge Controller 12/24V 70A Panel Battery Regulator Dual USB 5V LCD Display
Solar Charge Controller 12/24V 70A Panel Battery Regulator Dual USB 5V LCD Display
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- Waterproof grade: IP32
- USB output: 5V 2.1A
- Self-consume: ≤10mA

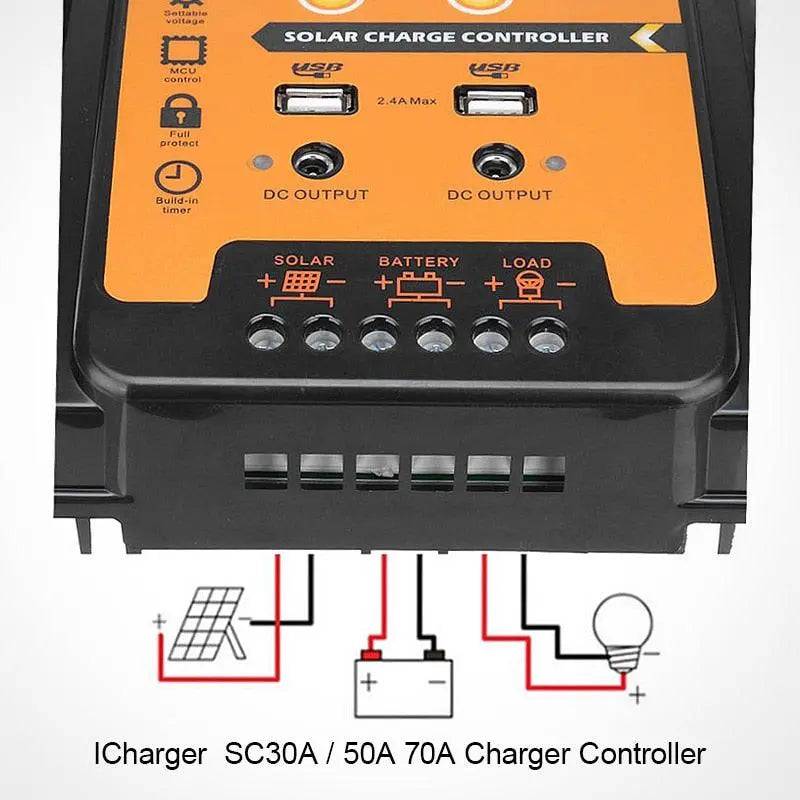

- Model Number: ICharger MPPT SC30A/SC50A/SC70A
- Maximum Current: 70A/50A/30A
- Max. Input Voltage of sola panel: 55V
- Is Smart Device: Yes
- Float Voltage: 13.8V
- DC output: 12V / 24V
- Charging current: 30A/50A/70A
- Battery Ovev Voltage Protection: 16.5V
Application:
Charger Controller,Lighting Controller,Solar System Controller
Specifications:
- Current: 30A, 50A, 70A
- MAX.PV Input power12v:30A 390W 50A 650W 70A 910W
- 24v:30A 390W 50A 650W 70A 910W
- Rated Voltage: 12/24V
- USB Output: 2.4A x2
- Over Charge Current(V): 13.7V/x2 24V
- Over Discharge Current(V): 10.5-11V/*2 24V
- Temperature Compensation: -3mv/°/cell
- Empty Load Wastage: <45mA
- Loop Voltage Drop: <200mv
- Display: LCD Display
- Charging Type: MPPT
- Waterproof Grade: IP32
- Material: Plastic
- Color: Black + Orange
- Size: 17.5 x14 x 4cm/6.9 x 5.5 x 1.6in(30A), 21 x 19.2 x 5.5cm/8.3 x 7.6 x 2.2in(50A), 22.8 x 20 x 5.5cm/9 x 7.9 x 2.2in(70A)
- Package Weight: 480g-1284g
- Package List:
- 1x Solar Charge Controller
- 1x User Manual
|
Model |
ICharger MPPT SC30A |
ICharger MPPT SC50A |
ICharger MPPT SC70A |
|
System Voltage |
12V / 24V |
||
|
Max. Input Voltage of sola panel |
55V |
||
|
Self-consumptlon |
≤10mA |
||
|
Max. charge current |
30A |
50A |
70A |
|
Max. discharge current |
|||
|
LVD |
11.0V ADJ 9V ┈ 12V; ×2/24V |
||
|
LVR |
12.6V ADJ 11V ┈ 13.5V; ×2/24V |
||
|
Float Voltage |
13.8V ADJ 11V ┈ 13V; ×2/24V |
||
|
Boost charging |
14.4V; ×2/24V Batler Voltage less than 12V start boost charging 2 hours |
||
|
Battery Ovev Voltage Protection |
16.5V;×2/24V |
||
|
Reverse Connection Protection |
yes |
||
|
Load Over Current Protection |
Yes,each two minutes restart once |
||
|
Temperature Compensation |
-24 mV/℃ for 12V system;×2/24V |
||
|
Working Temperature |
-20℃ ┈ +55℃ |
||
|
Waterproof grade |
IP32 |
||
|
Size (mm) |
175.9×139×40.1 |
209.3×191.7×52.9 |
229.4×201×54.7 |
|
USB |
5V 2.1A |
||
|
DC output |
12V / 24V |
||
|
Net weight (kg) |
0.38 |
0.75 |
1.16 |
