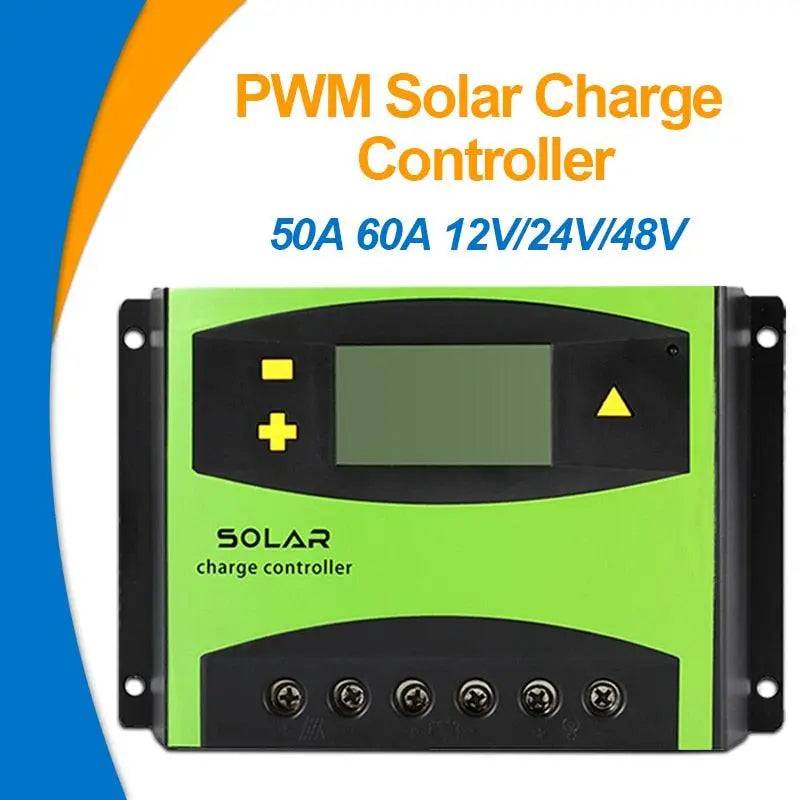

⚡ Solar Charge Regulators 50A 60A PWM Solar PV Charger Controller 12V 24V Dual USB Battery Automatic Identification LCD Display
Upgrade your system with our high-performance Solar Charge Regulators 50A 60A PWM Solar PV Charger Controller 12V 24V Dual USB Battery Automatic Identification LCD Display. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
SPECIFICATIONS
- Solar panel input: 50V(12V /24V)
- Overpressure protection: 15V/30V/60V
- Is_customized: Yes
- Weight: 680g
- Waterproof level: IP 32
- System voltage: 12V/24V
- Self loss: 13MA
- Product Size(mm): 187*122*57
- Packing size(mm): 200*132*63
- Operating temperature: -20°C-+55°C
- Model Number: ICharger-PWM-LS50A60A
- Maximum charge current: 50A 60A
- Maximum Current: 50A 60A
- Charging mode: PWM

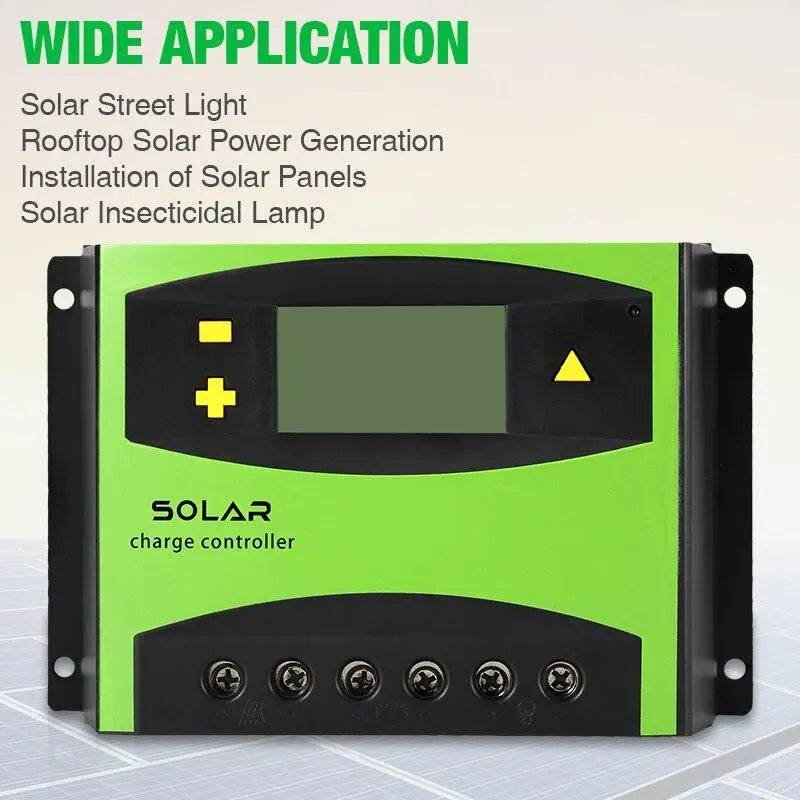

- Application: Charger Controller,Lighting Controller,Solar System Controller
|

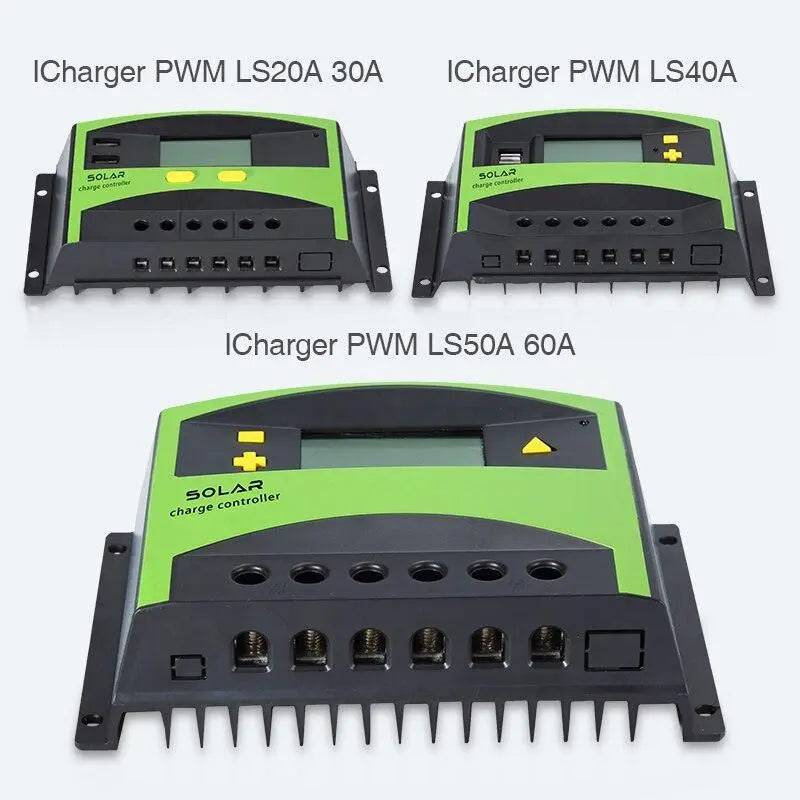

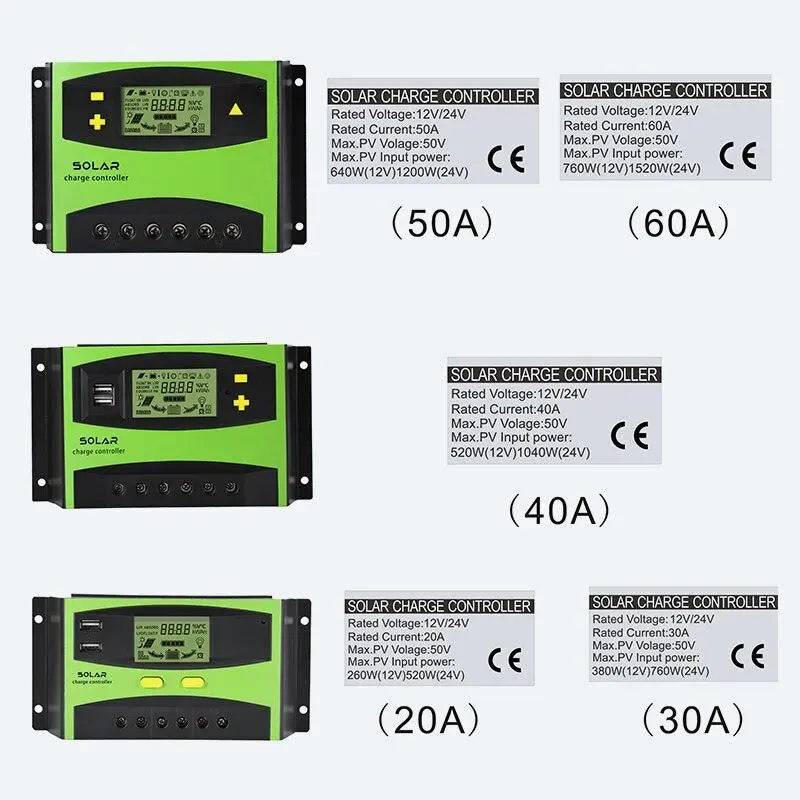

Model |
Icharger pwm LS20A |
Icharger pwm LS30A |
Icharger pwm LS40A |
Icharger pwm LS50A |
Icharger pwm LS60A |
|
System voltage |
12V /24 V,24V/48V,(Automatica Ily switch) |
||||
|
The maximum voltage of the solar panel input |
50V(12V /24V),100v(24V/48V) |
||||
|
Self loss |
13MA |
||||
|
Maximum charge current |
20A |
30A |
40A |
50A |
60A |
|
Maximum discharge current |
20A |
30A |
40A |
50A |
60A |
|
LVD |
10.8V(9-11V),21V(18-22V),42V(36-44V) |
||||
|
LVR |
12.6V(11-13.5V),2 5.2V (2 2-27V), 50.4V(44-54V) |
||||
|
Floating voltage |
13 .8V (13-15V),27.6V(2 6-30V), 5 5.2V (5 2-60V) |
||||
|
Increase the charge |
14.4V/28.8V/57.6V The battery voltage is below 12V/24V/48V Start extra charge for 2 hours. |
||||
|

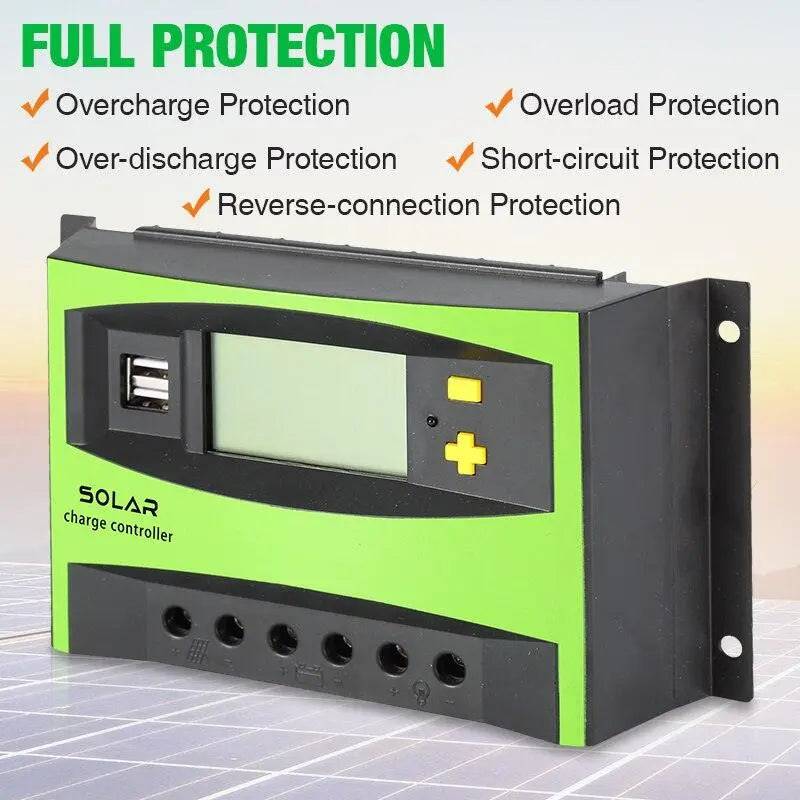

Battery overpressure protection |
15V/30V/60V |
||||
|
Input reverse connection protection |
Yes |
||||
|
Load over current protection |
Yes, every two seconds to restart |
||||
|
Charging mode |
PWM |
||||
|
Temperature compensation |
-24mv/°C,-48mv /°C,-96mv /°C, Relative to 12V/24V/48V sy st em |
||||
|
Operating temperature |
- 20°C-+55°C |
||||
|
Terminal scale |
28-lOAWG |
||||
|
Waterproof level |
IP 32 |
||||
|
Product Size(mm) |
20-30A(187×90×47mm) |
40A(195×107×50mm) |
50-60A(187×122×57mm) |
||
|
Packing size(mm) |
200×102×53mm |
210×118×59mm |
200×132×63mm |
||
|
Weight |
780g |
850g |
|||
