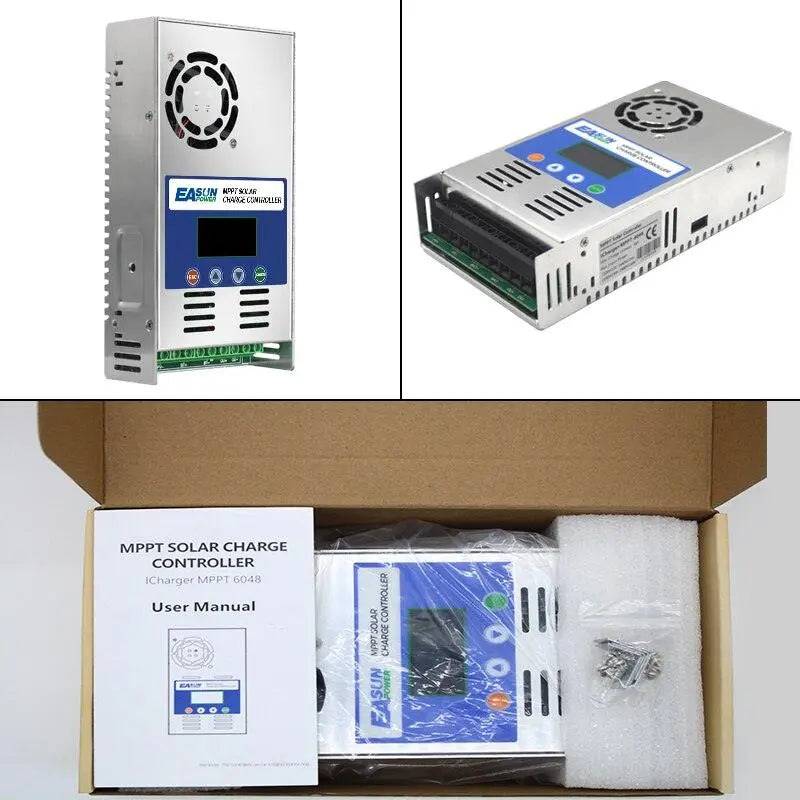

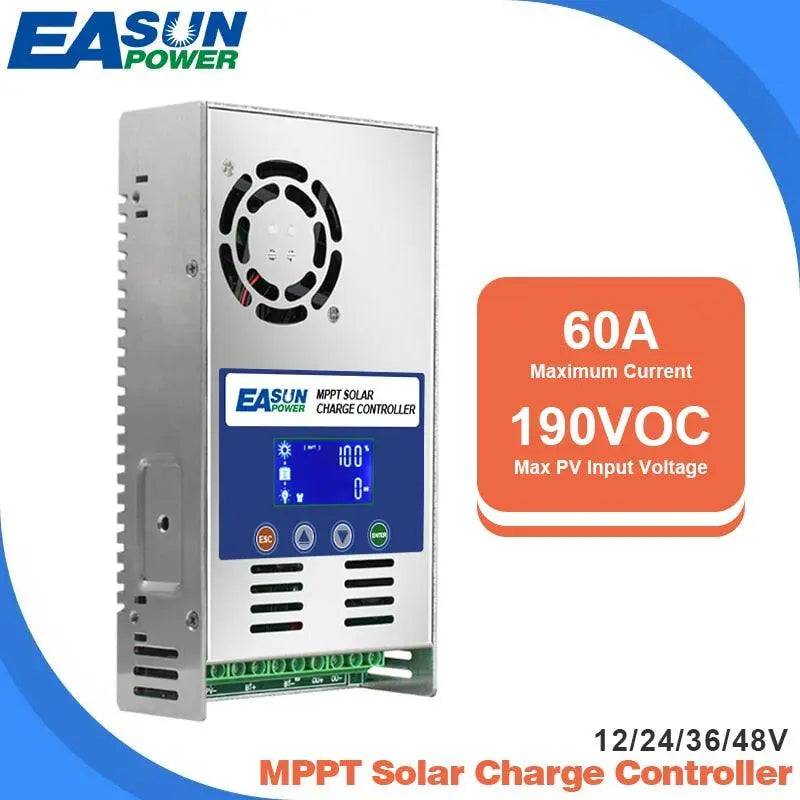

Solar Charger Controller MPPT 60A and solar panel solar charge regulator 12V 24V 36V 48V Battery PV Input 190VOC
Solar Charger Controller MPPT 60A and solar panel solar charge regulator 12V 24V 36V 48V Battery PV Input 190VOC
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- The maximum PV input voltage (Voc): DC190V
- The maximum PV input power: 12V system (720W) 24V system(1440W)36V system(2100W)48V system(2880W)
- Temperature protection: 75℃
- Rated Solar Charge Current: 60A
- Quality: 100% genuine
- PV utilization: 99%
- Origin: Mainland China
- Model Number: ICharger-4860
- Maximum Current: 60A
- Max Solar Input Voltage: 190VOC
- Is Smart Device: Yes
- Gross weight (Kg): 1.2KG
- Fan-on temperature: >45℃
- Fan-off temperature: <40℃
- Enclosure: IP21
- Certification: CE
- Brand Name: EASUN POWER
- Battery System Voltage: 12V 24V 36V 48V
- Application: Solar System Controller,Charger Controller,Lighting Controller,Voltage Controller,Solar Working Station
- 100% MPPT controller
- Intelligent Maximum Power Point Tracking technology
- Built-in DSP controller with high performance
- Automatic battery voltage detection 12V/24V/36V/48V
- Three-stage charging optimizes battery performance

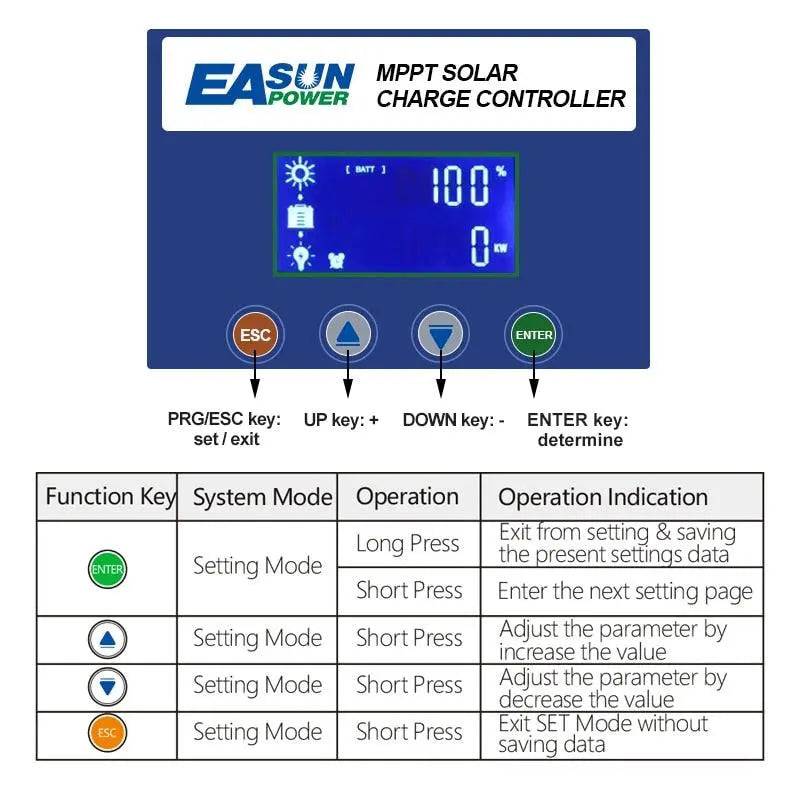

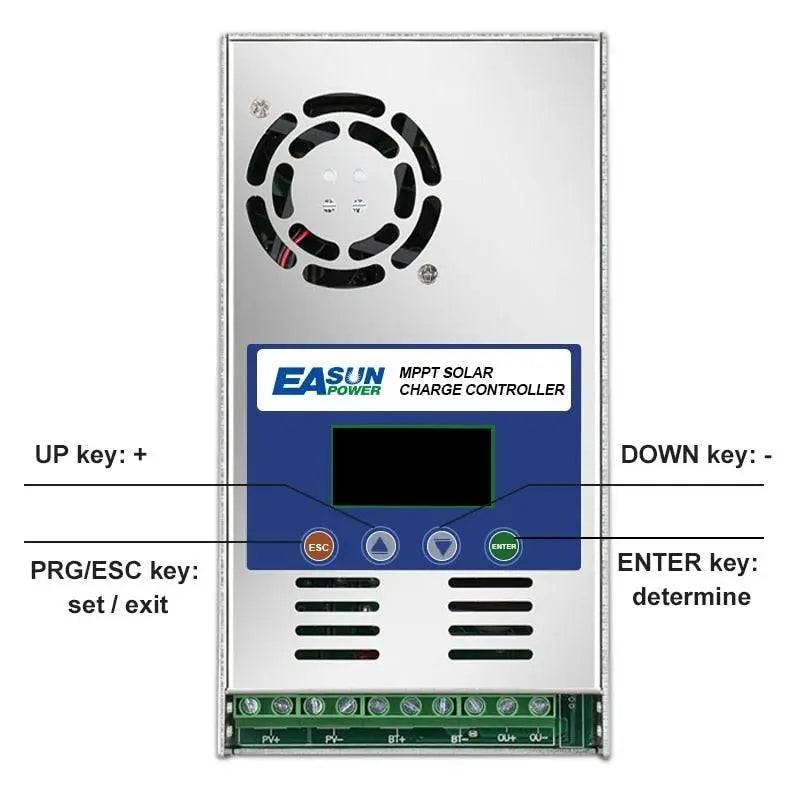

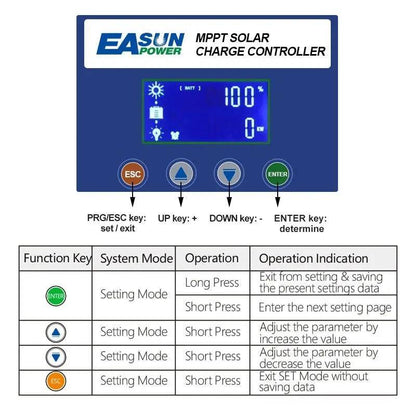

- Multi-function LCD displays
- Reverse polarity protection of solar panel
- Overcharge protection
- Can be mounted easily
|
Item |
Parameter |
||||||
|
Models |
IChargerMPPT6048 |
||||||
|
Chargingmode |
3-stage:constantcurrent(MPPT),constantvoltage,floating |
||||||
|
SystemVoltage |
12/24/36/48/Auto |
||||||
|
MaxPVInputPower |
720W/12V; 1440W/24V2160W/36V; 2880W/48V |
||||||
|
MaxPVInput Voltage |
190Voc |
||||||
|
Batteryvoltageautomaticrecognition |
12Vsystem(DC8.7V-DC15.5V)；24Vsystem(DC16V-DC31V) 36Vsystem(DC33V-DC41V)；48Vsystem(DC42V-DC64V) |
||||||
|
Overchargingprotectionvoltage |
12V system (16V)；24V system (32V)36Vsystem(48V)；48Vsystem(64V) |
||||||
|
Limitedcurrentprotection |
61A |
||||||
|
Maxefficiency |
≥98.1% |
||||||
|
PVutilization |
≥99% |
||||||
|
AutoTemperatureCompensation |
-3mV/2V/ºC |
||||||
|
ProtectionFunction |
|||||||
|
Temperatureprotection |
75℃ |
||||||
|
Fan-ontemperature |
>45℃ |
||||||
|
Fan-offtemperature |
<40℃ |
||||||
|
Properties |
|||||||
|
Size(mm) |
214x115x50 |
||||||
|
Netweight(Kg) |
1.1 |
||||||
|
Grossweight(Kg) |
1.2 |
||||||
|
Electromagneticcompatibility |
AccordtoEN61000,EN55022,EN55024 |
||||||
|
Enclosure |
IP21 |
||||||
|
Environmentaltemperature |
-20℃~+55℃ |
||||||
|
Storagetemperature |
-40℃~+75℃ |
||||||
|
BatteryParameters |
|||||||
|
BatteryType |
SystemVolt |
EQU |
BST |
FLD |
BST_R |
LRV |
LDV |
|
GEL |
Auto |
14.2V |
14.2V |
13.8V |
13.2V |
12.6V |
12.0V |
|
SEL |
Auto |
14.6V |
14.4V |
13.8V |
13.2V |
12.6V |
12.0V |
|
FLD |
Auto |
14.8V |
14.6V |
13.8V |
13.2V |
12.6V |
12.0V |
|
USE |
Auto/12/24/36/48V |
Definedbyusers |
|||||
|
LI |
12/24/36/48V |
--- |
Definedbyusers |
--- |
--- |
Definedbyusers |
|
|
ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe controller.) |
12Vsystem(360W) |
12Vsystem(480W) |
12Vsystem(600W) |
12Vsystem(720W) |
|||
|
24Vsystem(720W) |
24Vsystem(960W) |
24Vsystem(1200W) |
24Vsystem(1440W) |
||||
|
36Vsystem(1080W) |
36Vsystem(1400W) |
36Vsystem(1800W) |
36Vsystem(2100W) |
||||
|
48Vsystem(1440W) |
48Vsystem(1700W) |
48Vsystem(2200W) |
48Vsystem(2800W) |
||||
