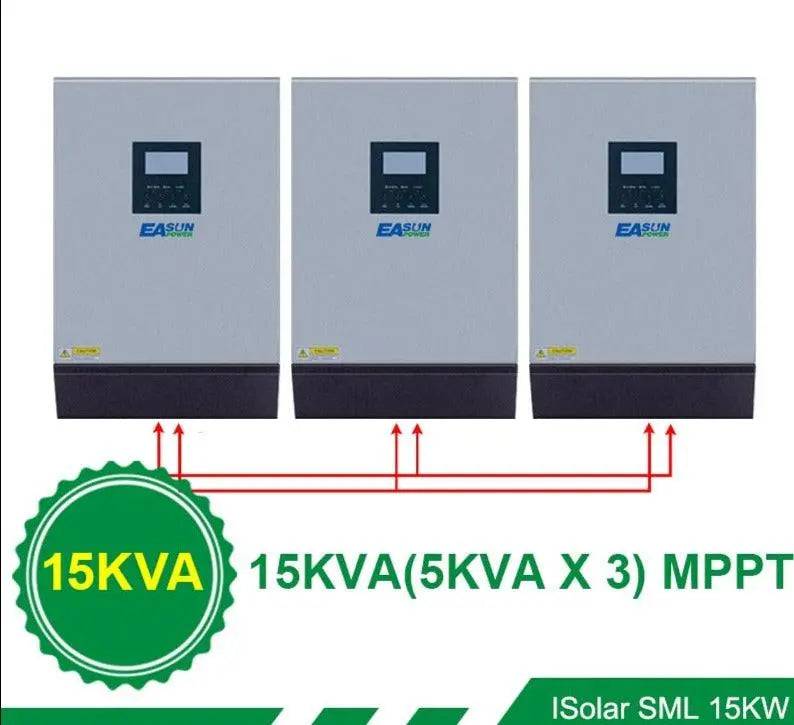

Solar Inverter 15KVA Pure Sine Wave 3-phase 380V 60A MPPT 3 x 5KVA Off Grid Parallel Inverter 48V 220V 50/60HZ
Solar Inverter 15KVA Pure Sine Wave 3-phase 380V 60A MPPT 3 x 5KVA Off Grid Parallel Inverter 48V 220V 50/60HZ
Couldn't load pickup availability
SPECIFICATIONS
- Output voltage: 220V ~ 240Vac auto sensing
- Nominal power: 15kva / 12000w
- is_customized: Yes
- Weight: 40KG
- Surge Power: 10000VA
- Standby power consumption: 2W
- Size: 140X295X540mm
- Parallel function: Yes, 6 units
- Overcharge protection: 60VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50Hz/60Hz auto detect
- Output Current: 21.73A
- Model Number: SML 5KVA Parallel
- Maximum open circuit voltage of the PV array: 145VDC
- Maximum efficiency: 98%
- Maximum charging current: 60A

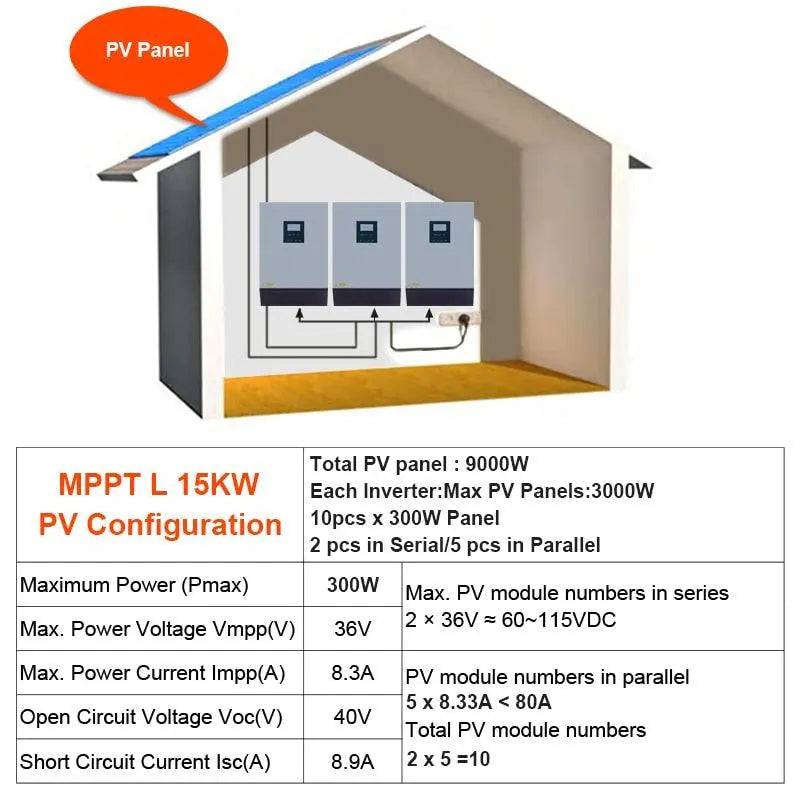

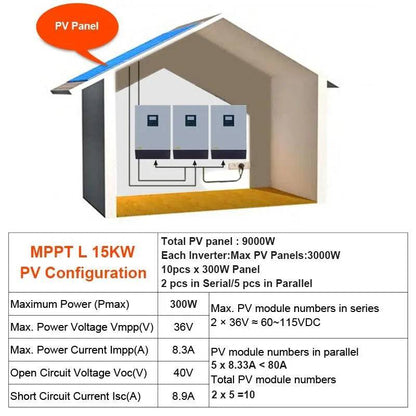

- Maximum PV array power: 3000W
- MPP range @ operating voltage: 60VDC ~ 115VDC
- Is Smart Device: Yes
- Certification: CE
- Battery voltage: 48Vdc
- 15KVA Solar Inverter 3-phase 380V 60A MPPT Pure Sine Wave Off Grid Inverter 48V 220V 50/60HZ Contains Parallel Card
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range and frequency according to city power in your country
- Charging current is setable according to your battery type
- Configurable AC/Solar input priority via LCD setting

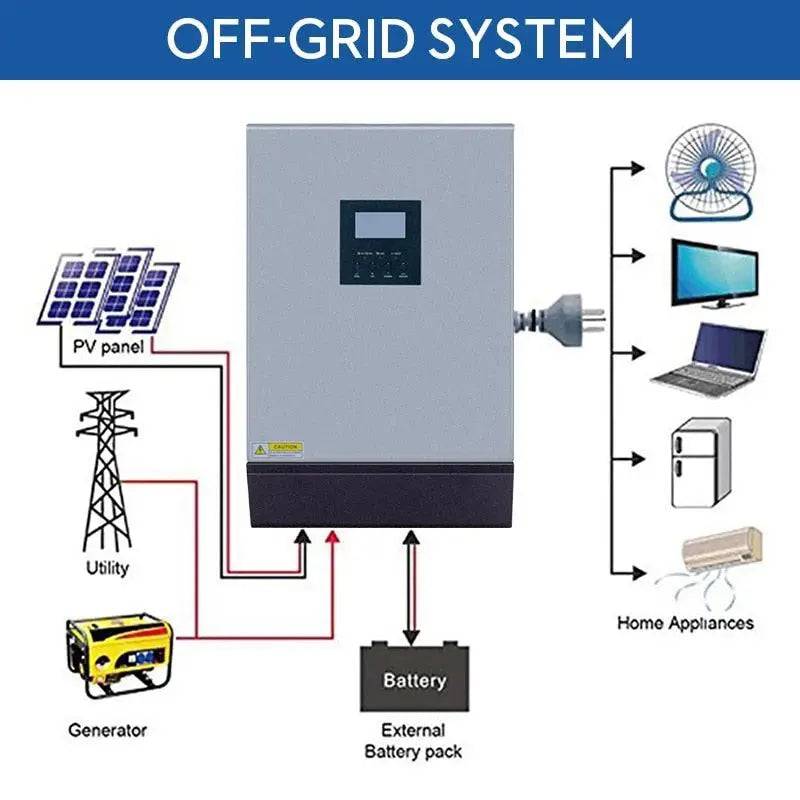

- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart charging system optimizes battery performance
- Cold start function

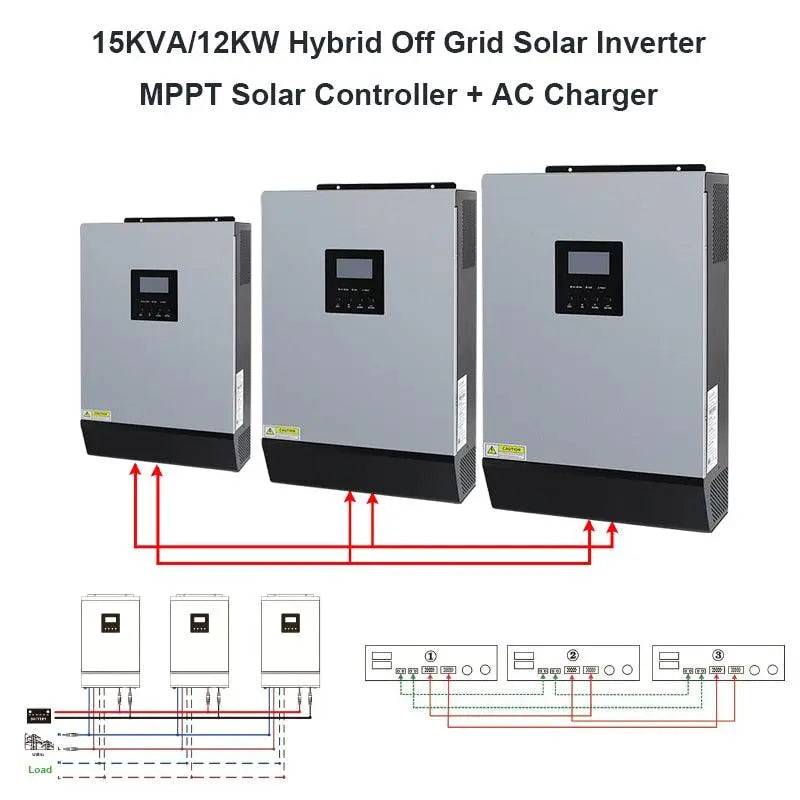

- Parallelable up to 6 units which available on 4K/5Kva only

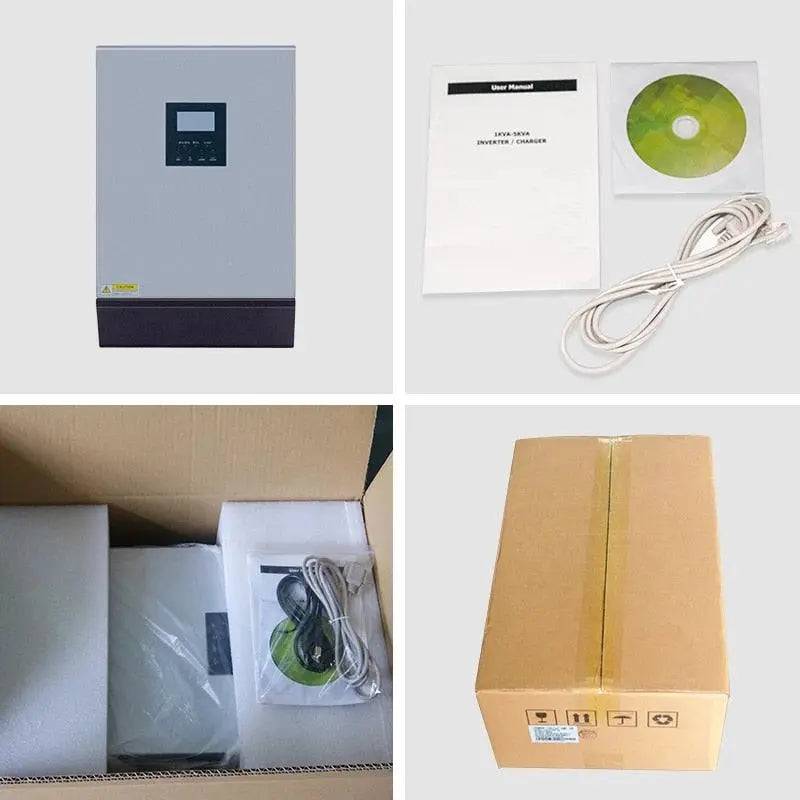

- The unit x 1
- User Manual(English) x 1
- Communication cable x 1
- Software CD x
|
Model |
MPPT L 5KW |
|
Rated power |
5000VA / 4000W |
|
INPUT |
|
|
Voltage |
230VAC |
|
Slectable Voltage Range |
170-280 VAC (For Personal Computers) 90-280 VAC (For Home Applicances) |
|
Frequency Range |
50Hz/60Hz (Auto Sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Mode) |
230VAC±5% |
|
Surge Power |
10000VA |
|
Efficiency(Peak) |
93% |
|
Transfer Time |
10ms (For Personal Computer) 20ms (For Home Applicances) |
|
Waveform |
Pure sine wave |
|
BATTERY&AC CHARGER |
|
|
Battery voltage |
48VDC |
|
Floating Charge Voltage |
54VDC |
|
Overcharge Protection |
60VDC |
|
Maximum Charge Current |
20A or 30A |
|
Maximum PV Array Power |
3000W |
|
MPPT Range@Operating Voltage |
60VDC~115VDC |
|
Maximum PV Array Open Circut Voltage |
145VDC |
|
Maximum Charging Current |
60A |
|
Maximum Efficiency |
98% |
|
Standby Power Consumption |
2W |
|
PHYSICAL |
|
|
Dimension,D×W×H(mm) |
128×272×355 |
|
Net Weight(kgs) |
13.5 |
