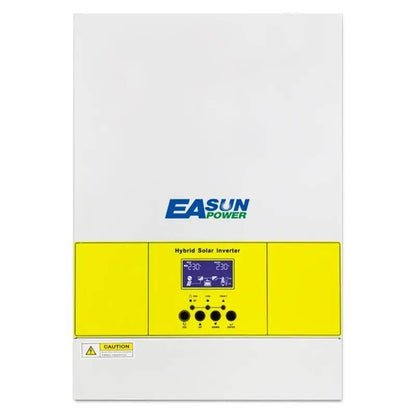

Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery
Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery
Couldn't load pickup availability

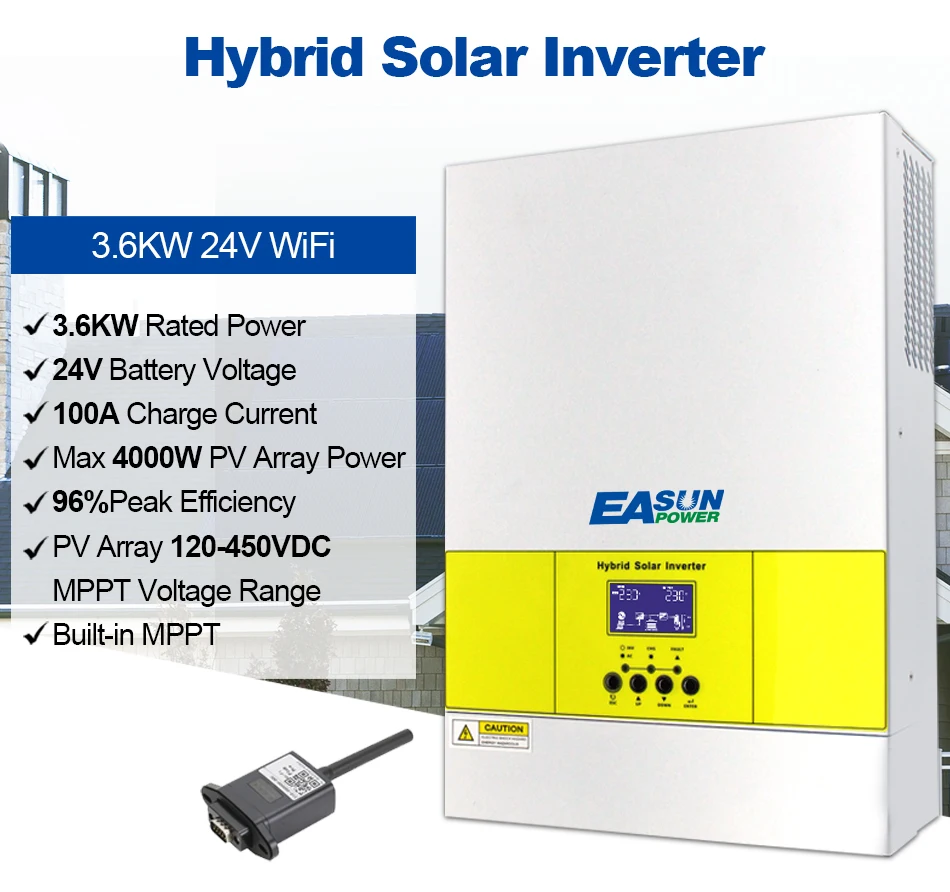

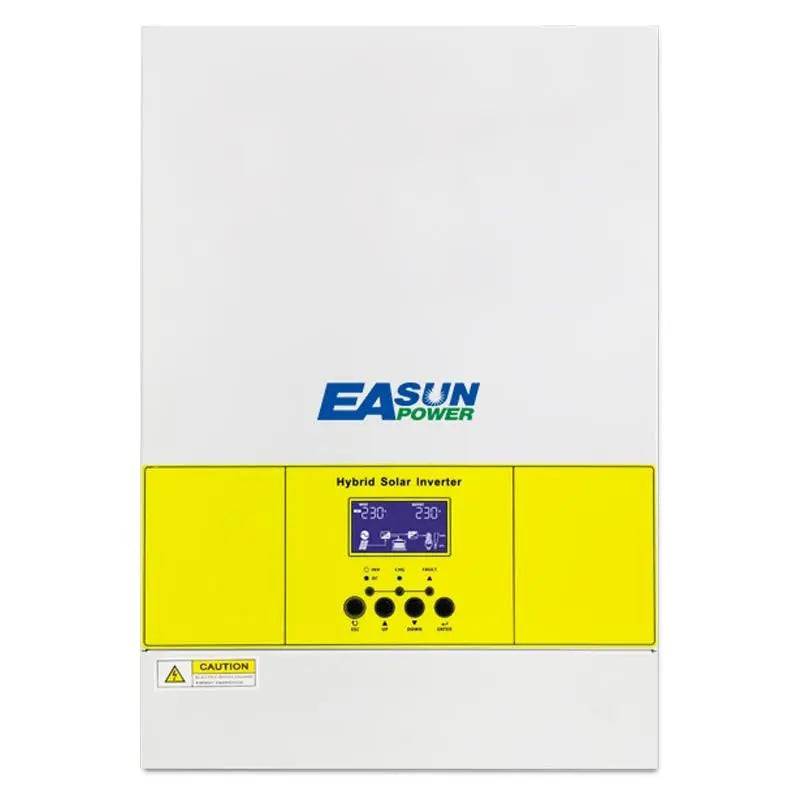

⚡ Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery
Upgrade your system with our high-performance Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
SPECIFICATIONS
- Is_customized: Yes
- Weight: 10KG
- Wave form: Pure sine wave
- Surge Power: 7000VA
- Solar Charger Type: MPPT
- Size: 565x380x190mm
- Power factor: PF1.0
- PV Array MPPT Voltage: 120VDC~450VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50Hz/60Hz
- Output Current: 15.6A
- Nominal Voltage: 220VAC 230VAC
- Model Number: SMG-II-3.6K-WIFI
- Maxmum solar Charge Current: 100A
- Maximum PV Array Power: 4000W
- Maximum PV Array Open Circuit Voltage: 500VDC
- Is Smart Device: Yes
- Communication Interface: USB/RS232/Dry-contact
- Certification: CE
- Capacity: 3.6KVA/3.6KW
- Battery voltage: 24VDC
- AC Charge Current: 60A

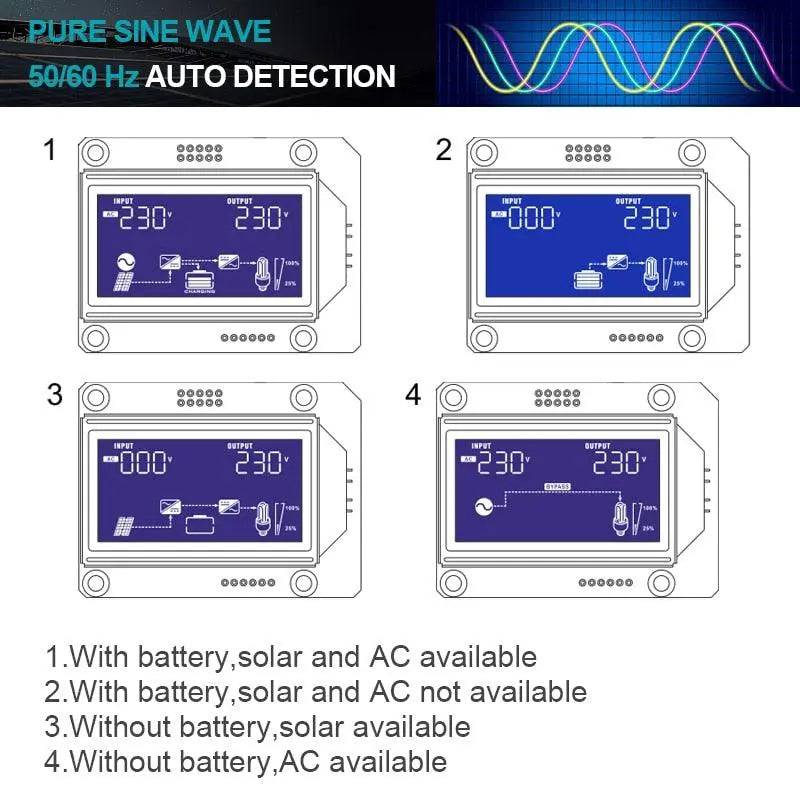

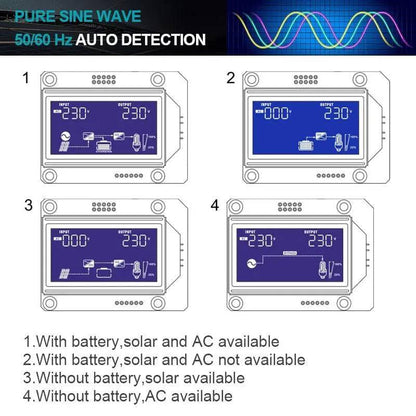

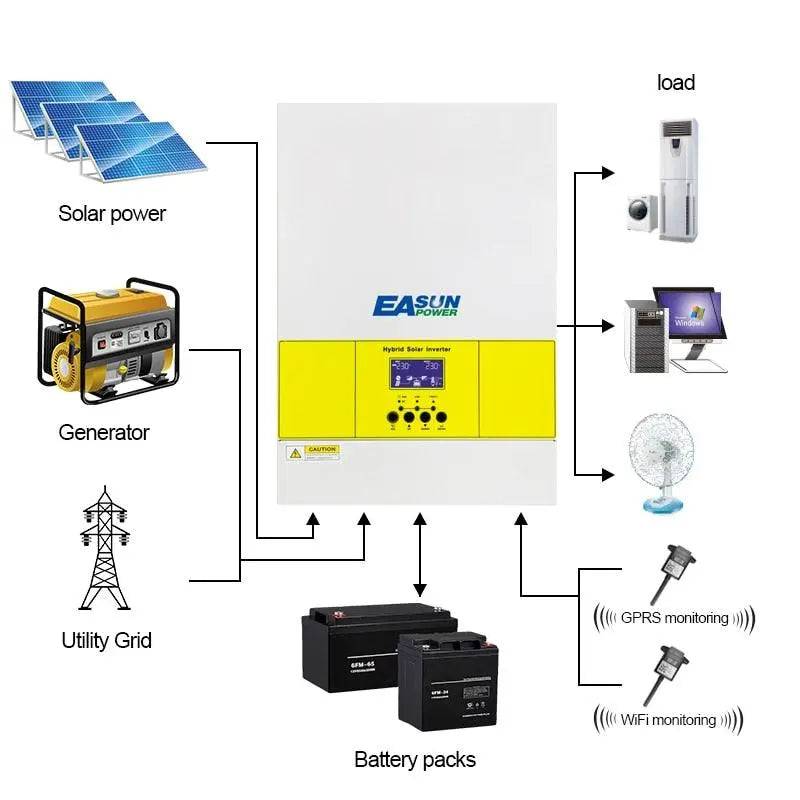

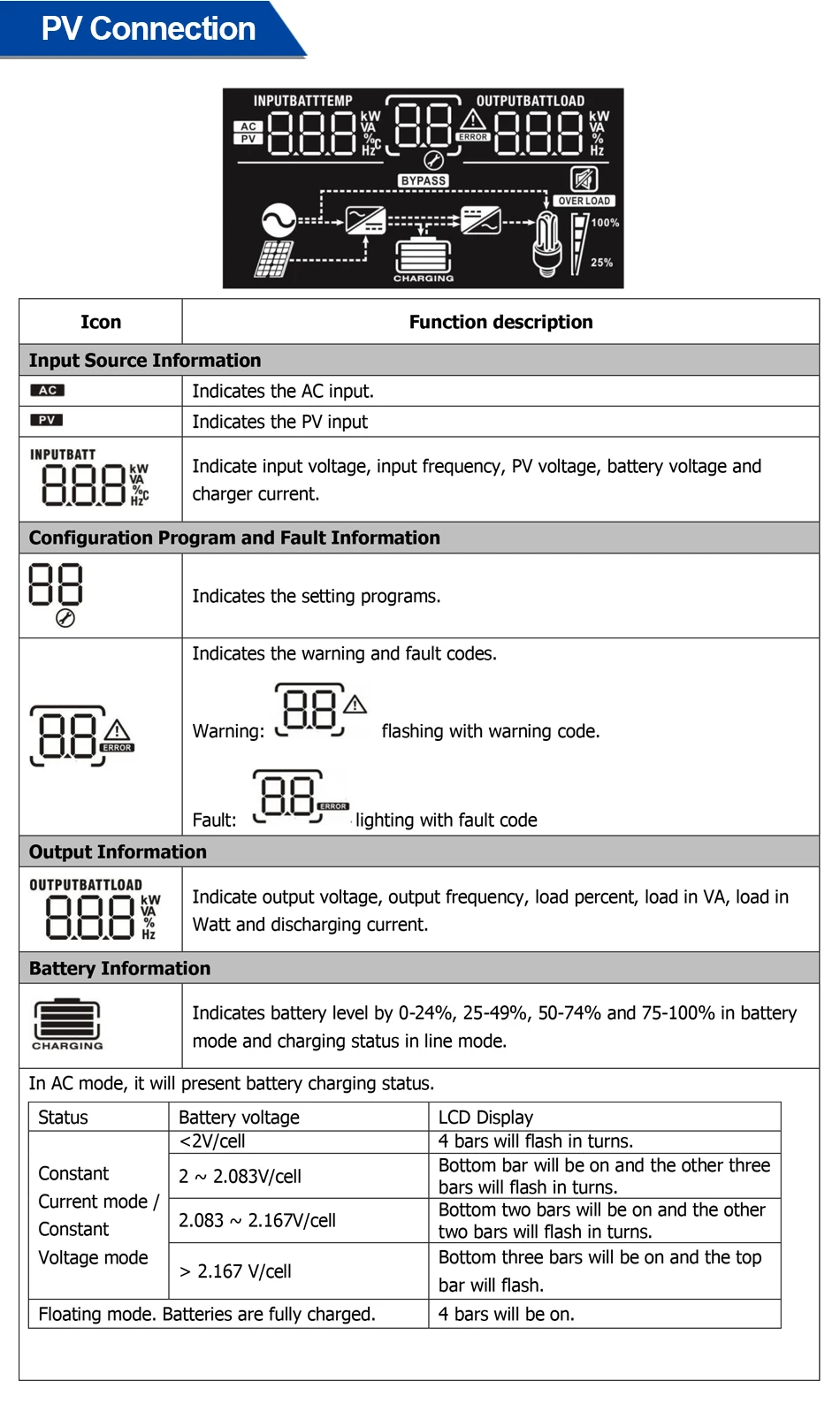

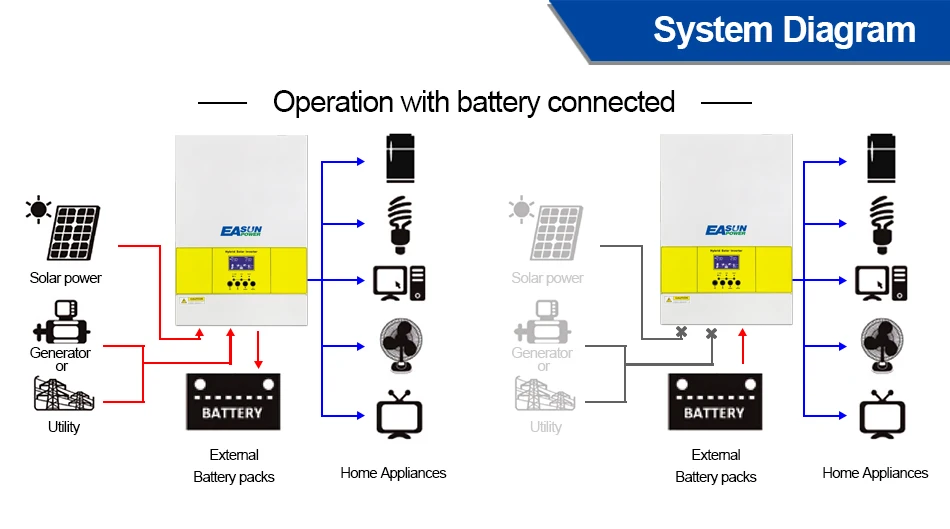

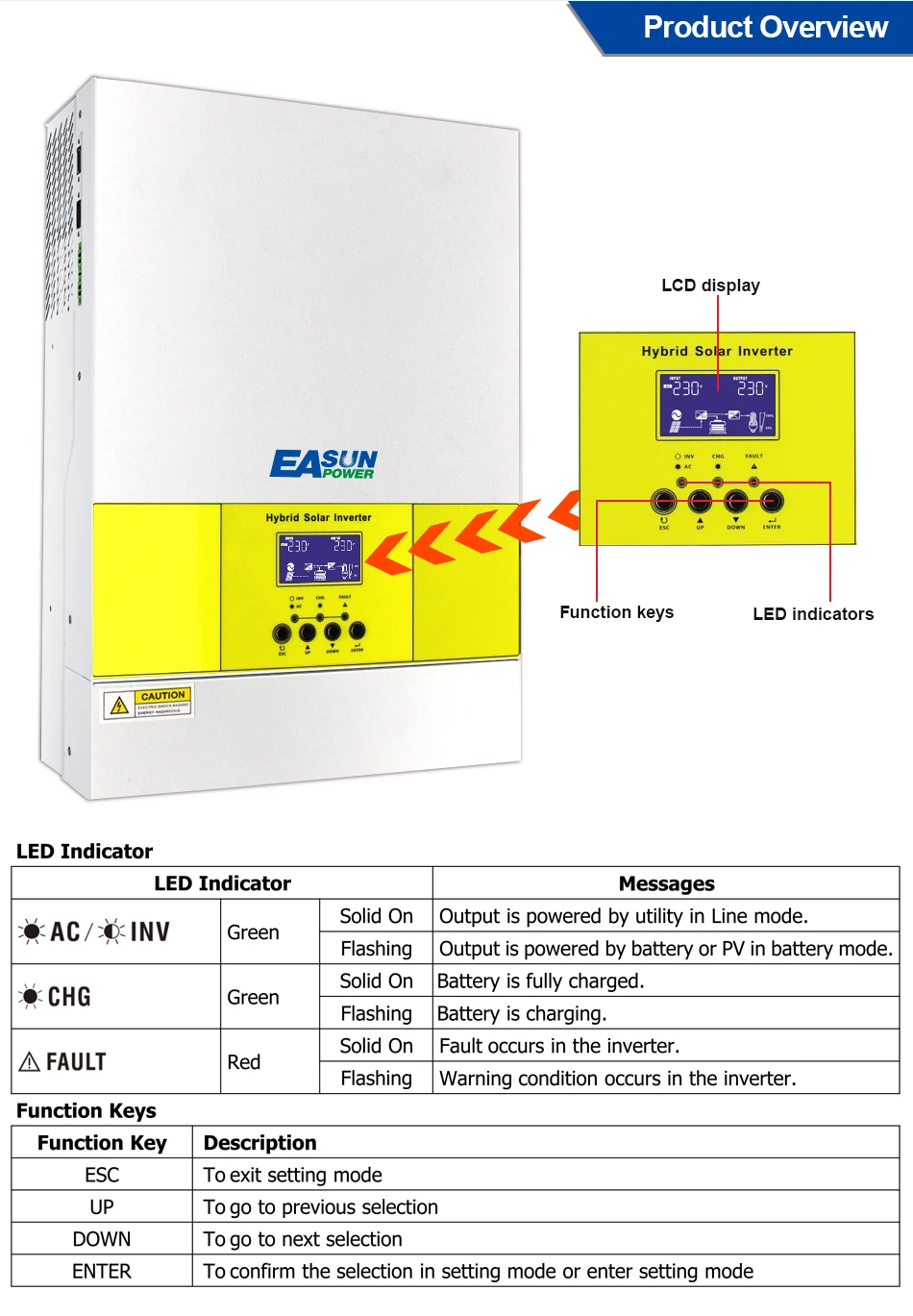

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- *pure sine wave soalr inverter
- *Output power factor 1
- *High PV input voltage range
- *Built-in MPPT soalr controller
- *Battery equalization function to optimize
- Battery performance and extend lifecycle
- *Inverter running without barrery
- *Built-in anti-dusk kit for harsh environment
- *WIFI-GPRS remote monitoring(Optional)
- *Detachable LCD(Optional)
|
MODEL |
IsolarSMG II 3.6K |
IsolarSMG II 5.6K |
|
CAPACITY |
3.6KVA/3.6KW |
5.6KVA/5.6KW |
|
ParallelCapability |
NO |
NO |
|
INPUT |
||
|
NominalVoltage |
230VAC |
|
|
AcceptableVoltageRange |
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances) |
|
|
Frequency |
50/60Hz(Autosensing) |
|
|
OUTPUT |
||
|
NominalVoltage |
220/230VAC±5% |
|
|
SurgePower |
7000VA |
11000VA |
|
Frequency |
50/60Hz |
|
|
Waveform |
PureSinewave |
|
|
TransferTime |
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances) |
|
|
PeakEfficiency(PVtoINV) |
96% |
|
|
PeakEfficiency(BatterytoINV) |
93% |
|
|
OverloadProtection |
5s@>=150%load;10s@110%-150%load |
|
|
CrestFactor |
3:1 |
|
|
AdmissiblePowerFactor |
0.6-1(inductiveorcapacitive) |
|
|

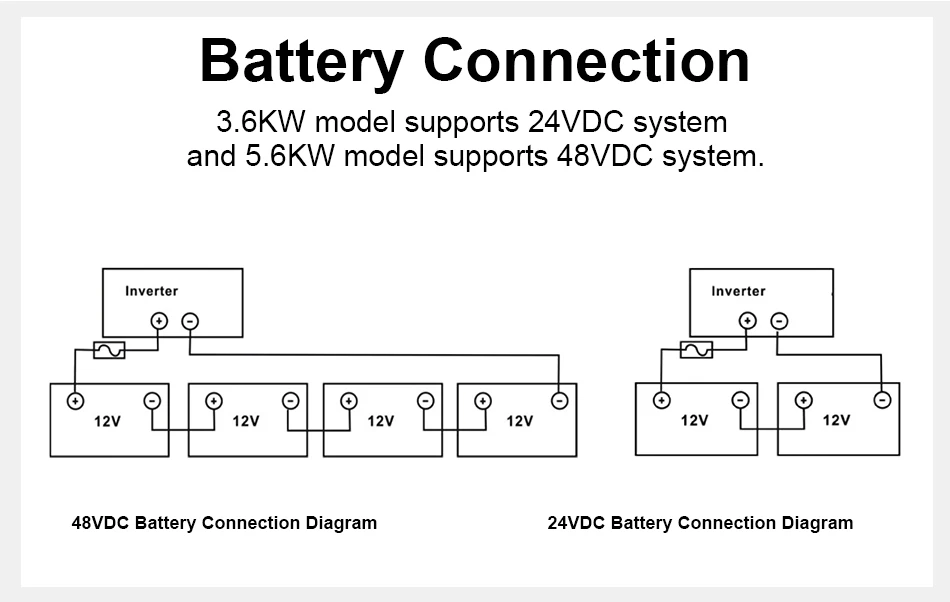

BATTERY |
||
|
BatteryVoltage |
24VDC |
48VDC |
|
FloatinghargeVoltage |
27VDC |
54VDC |
|
OverChargeProtection |
33VDC |
63VDC |
|
ChargingMethod |
CC/CV |
|
|
SolarCharger&ACCharger |
||
|
SolarChargerTYPE |
MPPT |
|
|

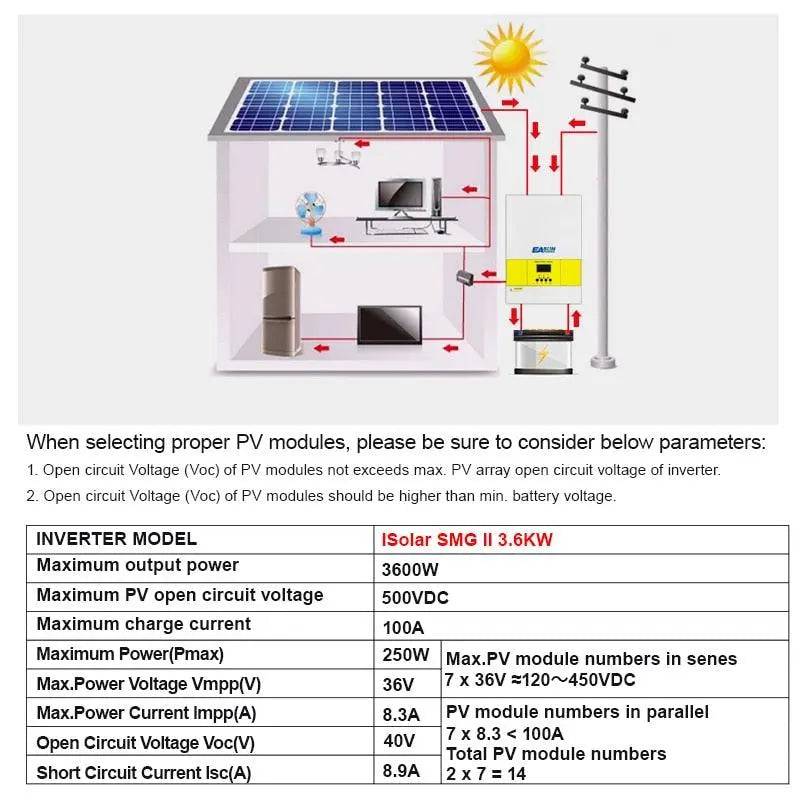

Max.PVArraypower |
4000W |
5500W |
|
Max.PVArrayOpenCircuitVoltage |
500VDC |
|
|
PVArrayMPPTVoltageRange |
120VDC-450VDC |
|
|
Max.SolarlnputCurrent |
15A |
18A |
|
Max.SolarChargeCurrent |
100A |
100A |
|
Max.AC ChargeCurrent |
60A |
60A |
|
Max.ChargeCurrent |
100 |
100A |
|
PHYSICAL |
||
|
Dimensions,DxWxH(mm) |
482x290x113 |
|
|
PackageDimensions,DxWxH(mm) |
565x380x190 |
|
|
NetWeight(Kgs) |
9 |
10 |
|

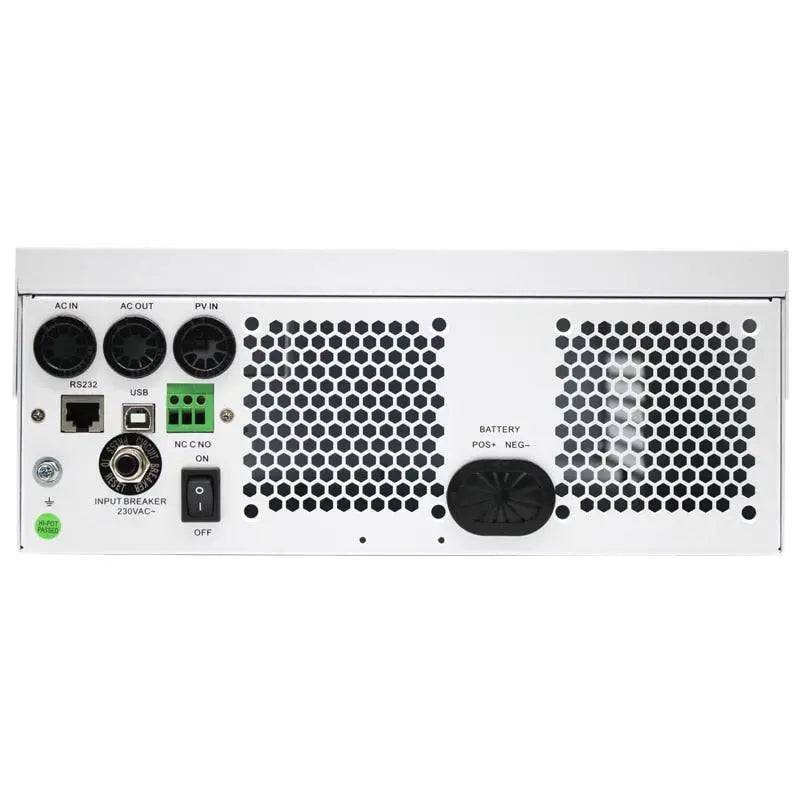

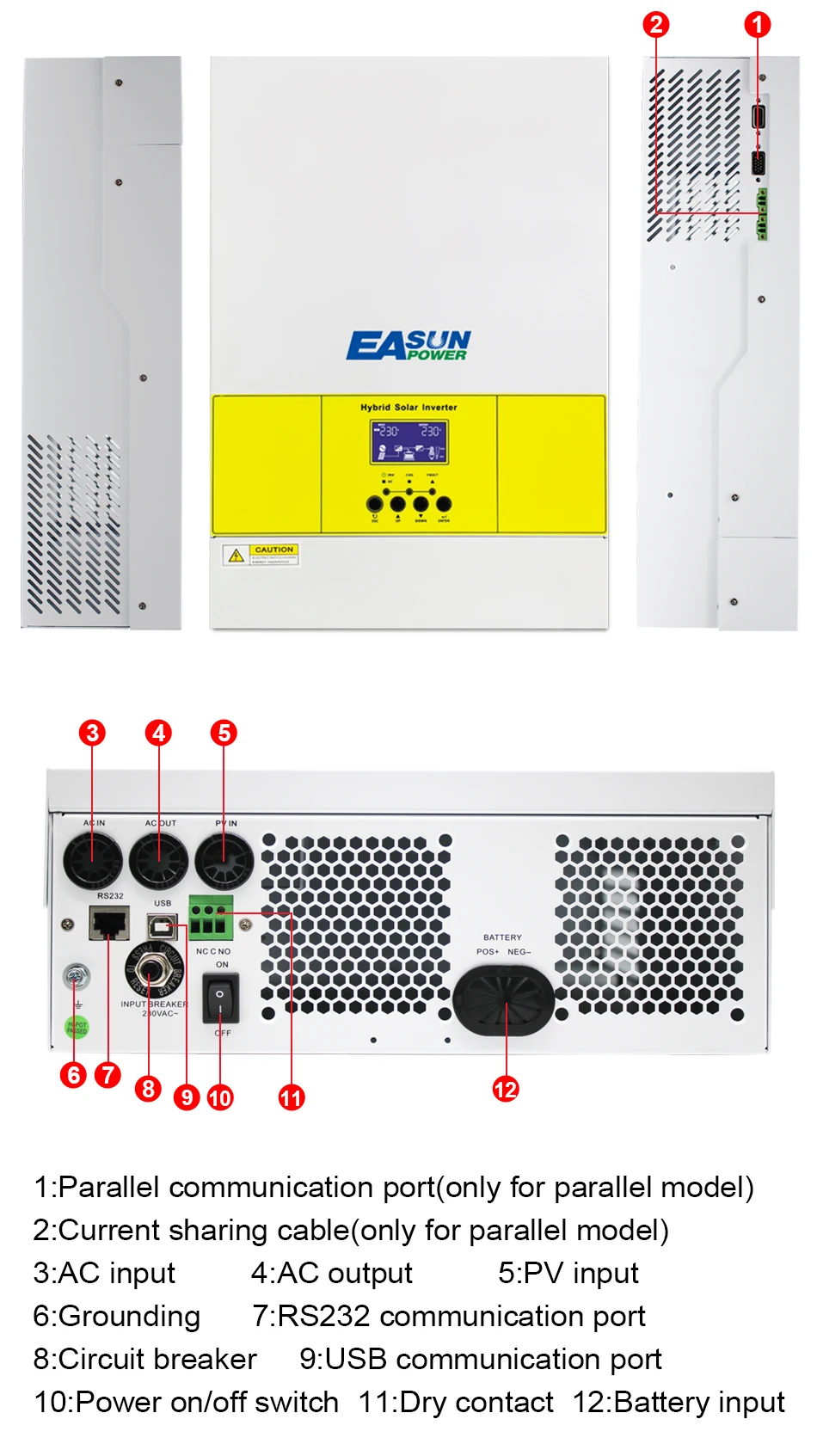

Communicationlnterface |
USB/RS232/Dry-contact |
|
|
ENVIRONMENT |
||
|
OperatingTemperatureRange |
-10℃to50℃ |
|
|
Storagetemperature |
-15℃to60℃ |
|
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
