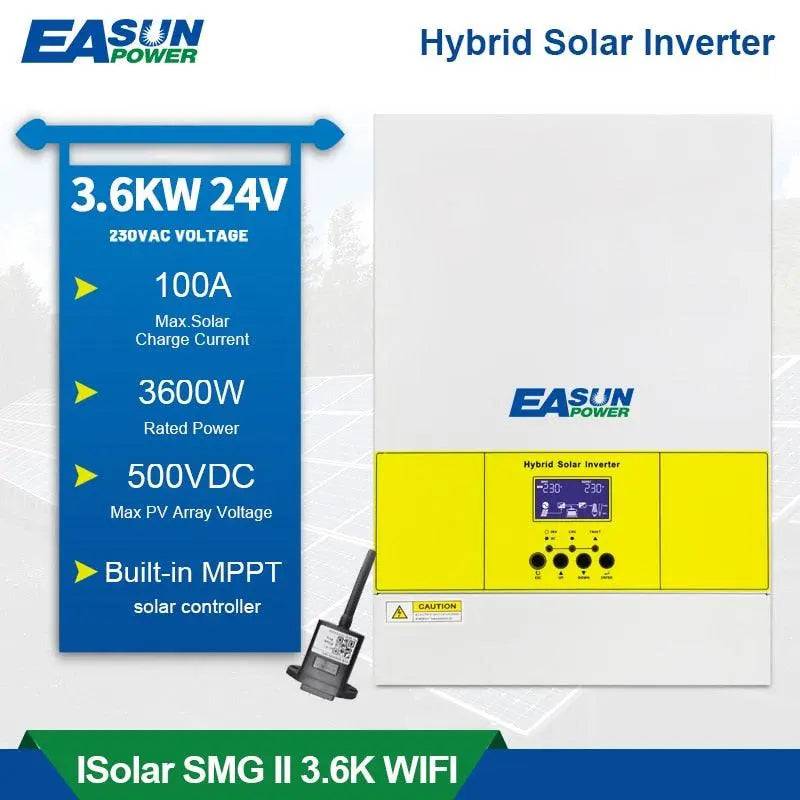

Solar Inverter 3600W Pure Sine Wave 500Vdc PV Input 230Vac 24Vdc Built-in 100A MPPT Solar Charger 4000W PV Power
Solar Inverter 3600W Pure Sine Wave 500Vdc PV Input 230Vac 24Vdc Built-in 100A MPPT Solar Charger 4000W PV Power
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- Weight: 10KG
- Waveform: Pure Sine wave
- Voltage: 220VAC/230VAC
- Type: DC/AC Inverters
- Transfer Time: 10Ms(For personal Computer)
- Surge Power: 7000VA
- Solar Charger TYPE: MPPT
- Solar Charge Current: 100A
- Size: 59x39x22cm
- Peak Efficiency(PV to INV): 96%
- Peak Efficiency(Battery to INV): 93%

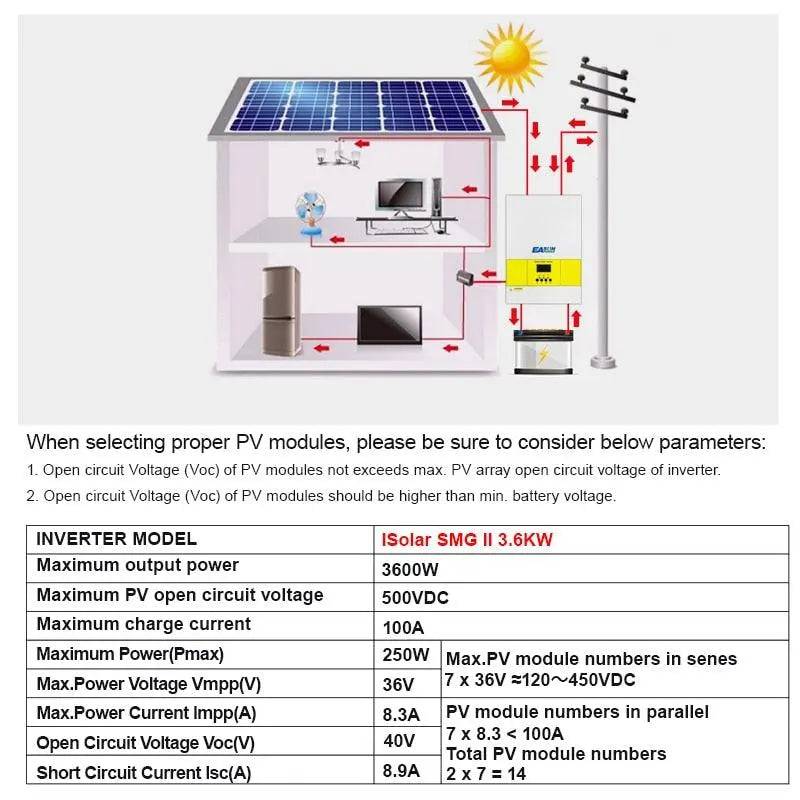

- PV Array power: 4000W
- PV Array Open Circuit Voltage: 500VDC
- PV Array MPPT Voltage Range: 120VDC-450VDC
- OverCharge Protection: 33VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50HZ/60HZ
- Output Current: 16.36A

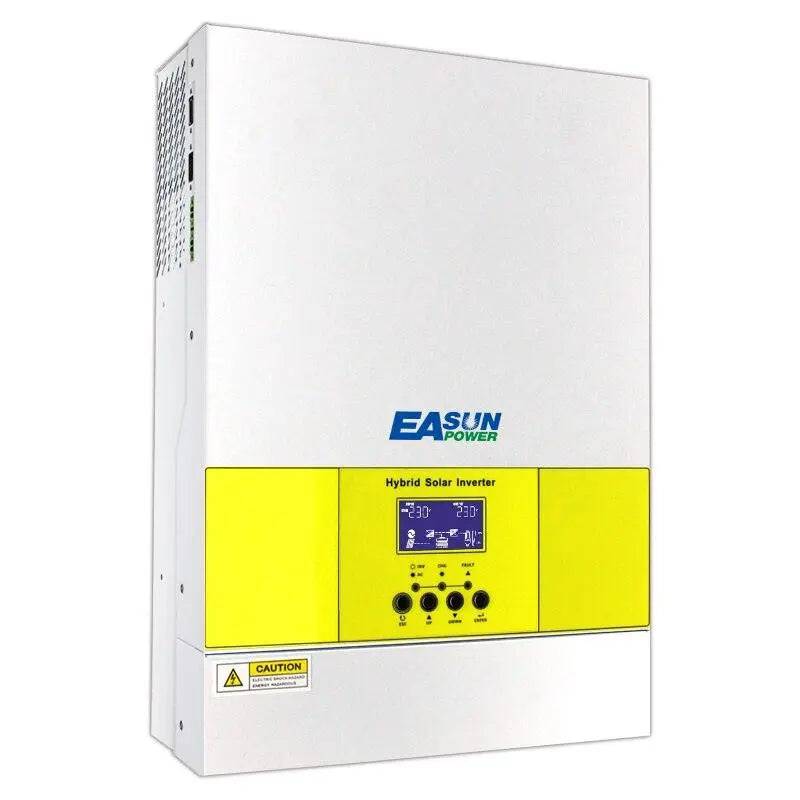

- Model Number: ISolar SMG II 3.6KW

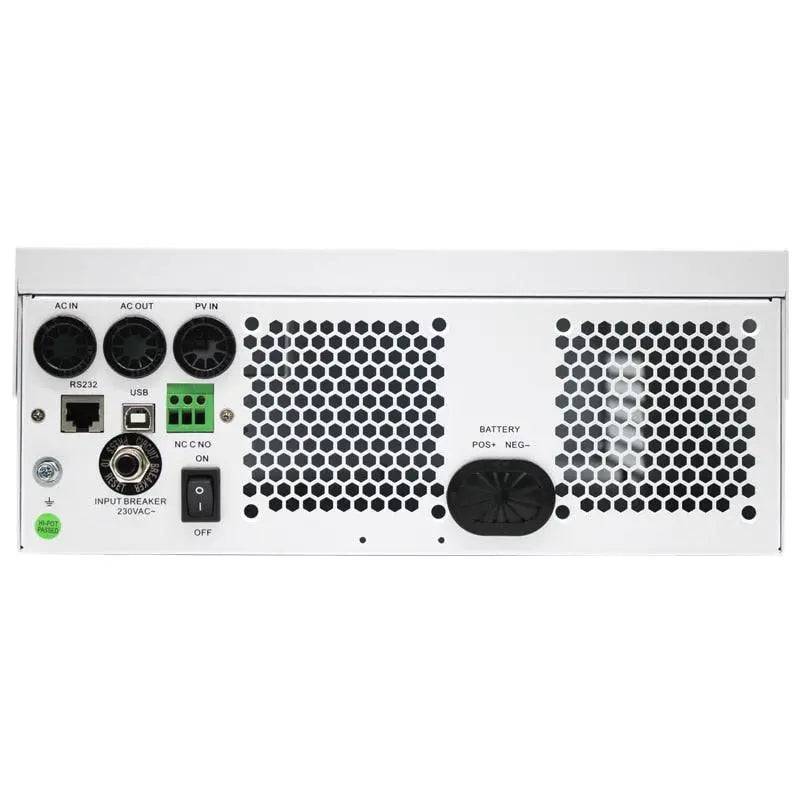

- Communication lnterface: USB/RS232/Dry-contact
- Certification: CE,RoHS
- Battery Voltage: 24VDC
Features:
- *pure sine wave soalr inverter
- *Output power factor 1
- *High PV input voltage range
- *Built-in MPPT soalr controller
- *Battery equalization function to optimize
- Battery performance and extend lifecycle
- *Inverter running without barrery
- *Built-in anti-dusk kit for harsh environment
- *WIFI-GPRS remote monitoring(Optional)
- *Detachable LCD(Optional)
|
MODEL |
IsolarSMG II 3.6K |
IsolarSMG II 5.6K |
|
CAPACITY |
3.6KVA/3.6KW |
5.6KVA/5.6KW |
|
ParallelCapability |
NO |
NO |
|
INPUT |
||
|
NominalVoltage |
230VAC |
|
|
AcceptableVoltageRange |
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances) |
|
|
Frequency |
50/60Hz(Autosensing) |
|
|
OUTPUT |
||
|
NominalVoltage |
220/230VAC±5% |
|
|
SurgePower |
7000VA |
11000VA |
|
Frequency |
50/60Hz |
|
|
Waveform |
PureSinewave |
|
|
TransferTime |
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances) |
|
|
PeakEfficiency(PVtoINV) |
96% |
|
|
PeakEfficiency(BatterytoINV) |
93% |
|
|
OverloadProtection |
5s@>=150%load;10s@110%-150%load |
|
|
CrestFactor |
3:1 |
|
|
AdmissiblePowerFactor |
0.6-1(inductiveorcapacitive) |
|
|
BATTERY |
||
|
BatteryVoltage |
24VDC |
48VDC |
|
FloatinghargeVoltage |
27VDC |
54VDC |
|
OverChargeProtection |
33VDC |
63VDC |
|
ChargingMethod |
CC/CV |
|
|
SolarCharger&ACCharger |
||
|
SolarChargerTYPE |
MPPT |
|
|
Max.PVArraypower |
4000W |
5500W |
|
Max.PVArrayOpenCircuitVoltage |
500VDC |
|
|
PVArrayMPPTVoltageRange |
120VDC-450VDC |
|
|
Max.SolarlnputCurrent |
15A |
18A |
|
Max.SolarChargeCurrent |
100A |
100A |
|
Max.AC ChargeCurrent |
60A |
60A |
|
Max.ChargeCurrent |
100 |
100A |
|
PHYSICAL |
||
|
Dimensions,DxWxH(mm) |
482x290x113 |
|
|
PackageDimensions,DxWxH(mm) |
565x380x190 |
|
|
NetWeight(Kgs) |
9 |
10 |
|
Communicationlnterface |
USB/RS232/Dry-contact |
|
|
ENVIRONMENT |
||
|
OperatingTemperatureRange |
-10℃to50℃ |
|
|
Storagetemperature |
-15℃to60℃ |
|
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
