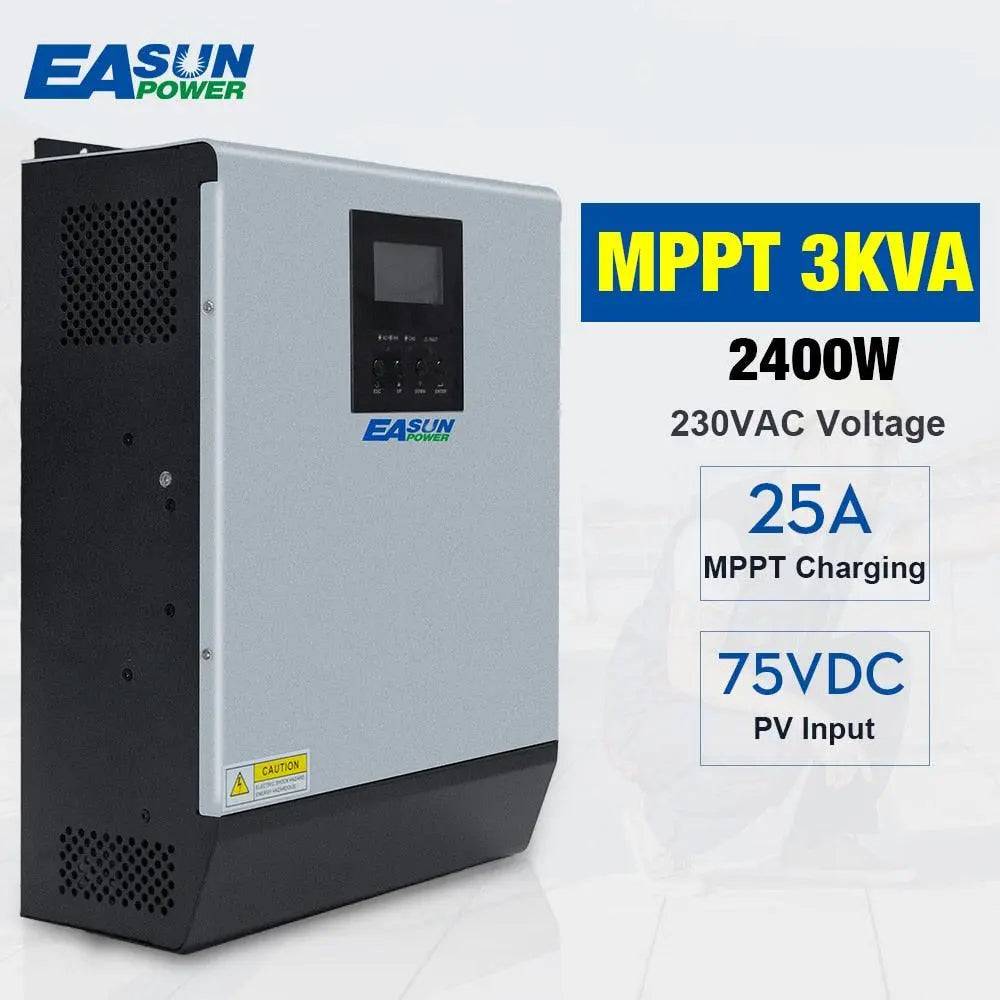

Solar Inverter 3KVA Pure Sine Wave Hybrid Inverter 24V 220V Built-in 25A MPPT PV Charge Controller and AC Charger for Home Use

Solar Inverter 3KVA Pure Sine Wave Hybrid Inverter 24V 220V Built-in 25A MPPT PV Charge Controller and AC Charger for Home Use

Regular price $410.09
Regular price Sale price $410.09
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • ZIs_customized: Yes
  • Weight: 9KG
  • Usage D: pure sine wave inverter
  • Usage B: Solar Inverter 24V
  • Type: DC/AC Inverters
  • Size: 50cm x 40cm x 22cm
  • Output Voltage: 230Vac
  • Output Type: Single
  • Output Power: 1 - 200KW
  • Output Frequency: 60Hz / 50Hz
  • Output Current: 13A
  • Origin: Mainland China
  • Model Number: ISolar SML 3K
  • Input Voltage: 24Vdc
  • Function 1: inverter 24v 220v
  • Feature: Solar Inverter 220V
  • Description 2: 3000VA 2400W
  • Description 1: inverter charger
  • Certification: CE, CCC, ISO9001, UL, RoHS, SAA
  • Brand Name: EASUN POWER



Features:

  • Pure sine wave inverter

  • Built-in MPPT solar charge controller

  • Selectable input voltage range and frequency according to city power in your country

  • Charging current is setable according to your battery type

  • Configurable AC/Solar input priority via LCD setting

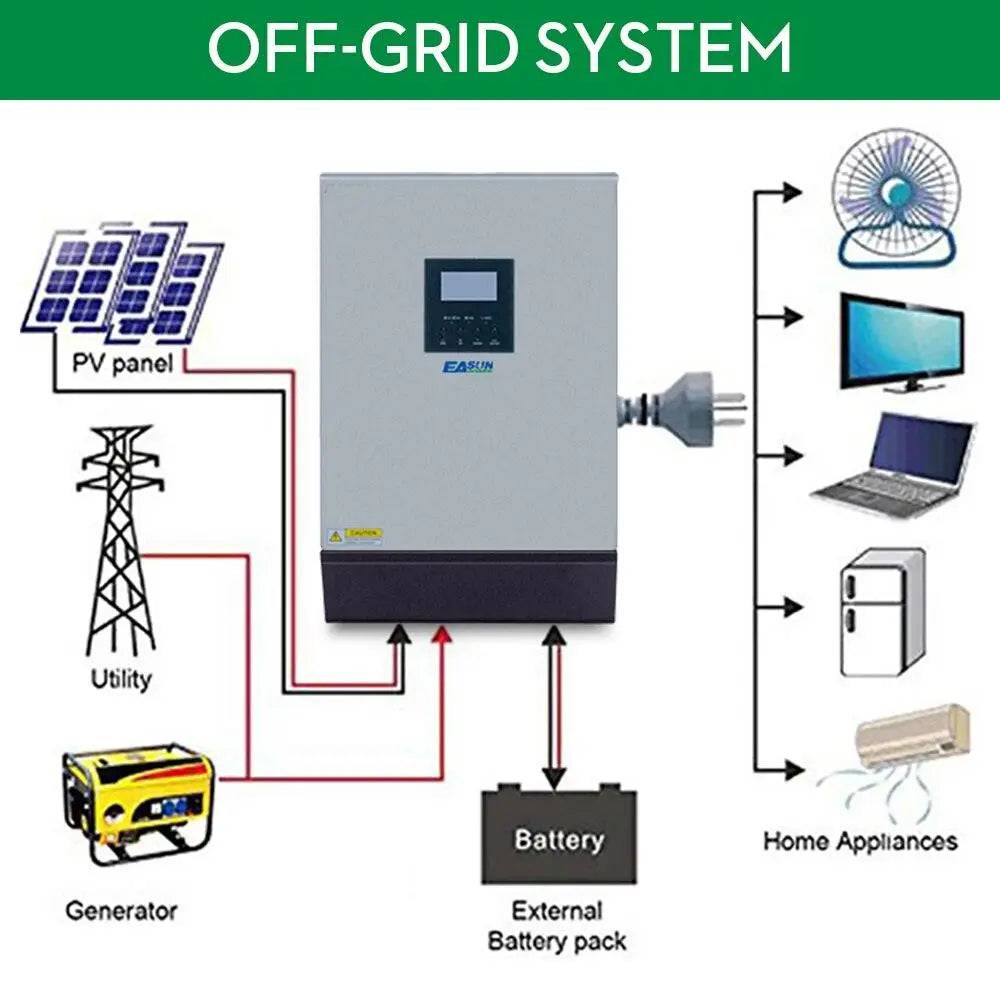

  • Compatible to mains voltage or generator power

  • Auto restart while AC is recovering

  • Overload and short circuit protection

  • Smart charging system optimizes battery performance

  • Cold start function

  • Parallelable up to 6 units which available on 4K/5K only

Model
ISolar SML 3K
Rated power
3000VA / 2400W
INPUT
Voltage
230VAC
Slectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Applicances)
Frequency Range
50Hz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC±5%
Surge Power
6000VA
Efficiency(Peak)
Transfer Time
10ms (For Personal Computer) ; 20ms (For Home Applicances)
Waveform
Pure sine wave
BATTERY&AC CHARGER
Battery voltage
24VDC
Floating Charge Voltage
27VDC
Overcharge Protection
31VDC
Maximum Charge Current
20A or 30A

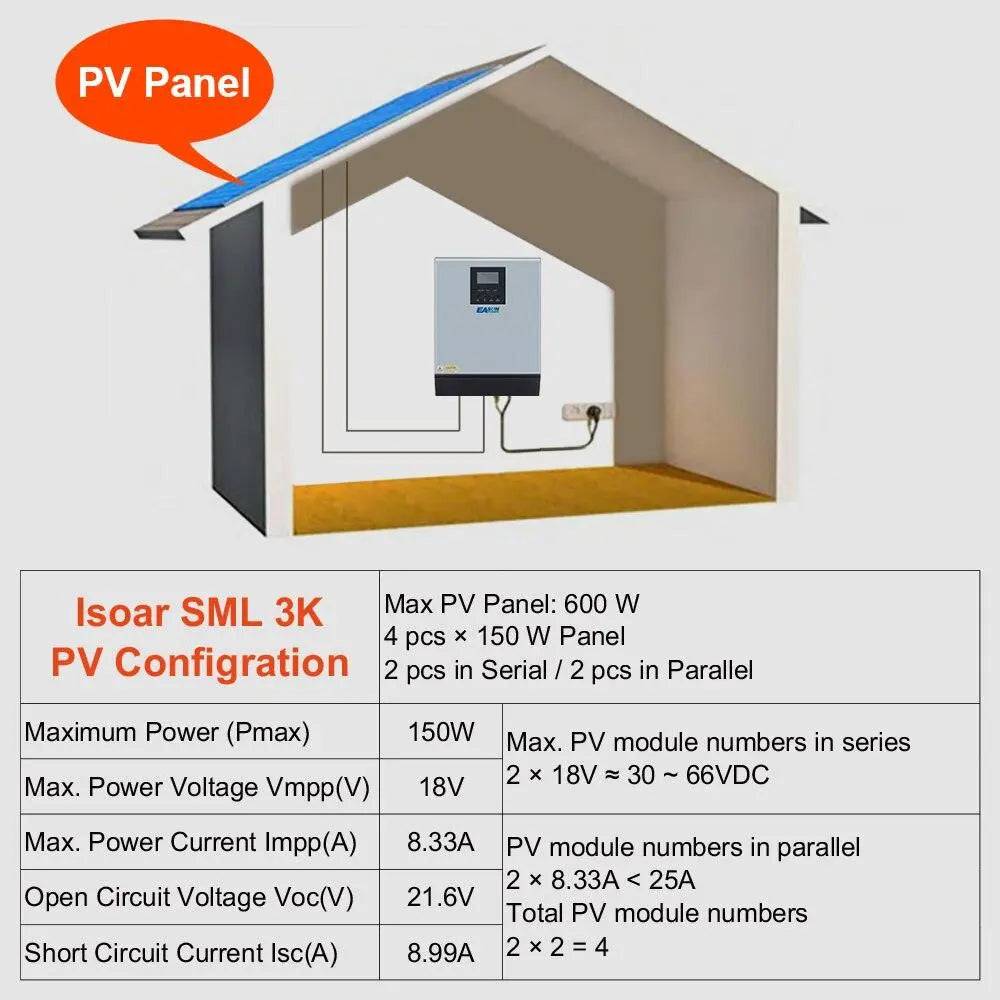

Maximum PV Array Power
600W
MPPT Range@Operating Voltage
30VDC~66VDC
Maximum PV Array Open Circut Voltage
75VDC
Maximum Charging Current
25A
Maximum Efficiency
98%
Standby Power Consumption
2W
PHYSICAL
Dimension,D*W*H(mm)
128 ×272 × 355
Net Weight(kgs)
8

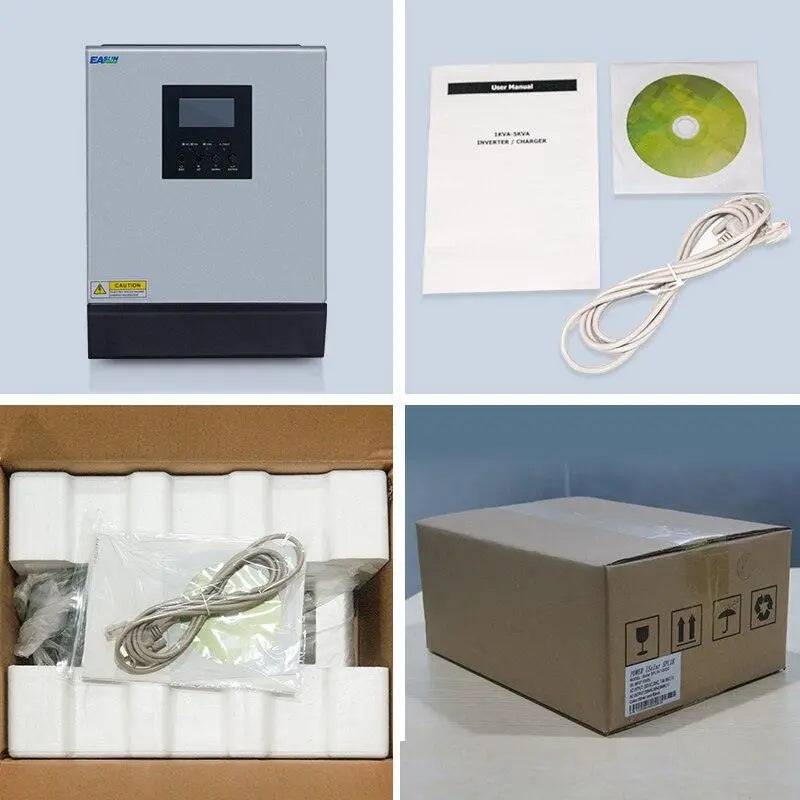

Package Including :
  • The unit x 1

  • User Manual(English) x 1

  • Communication cable x 1

  • Software CD x 1
