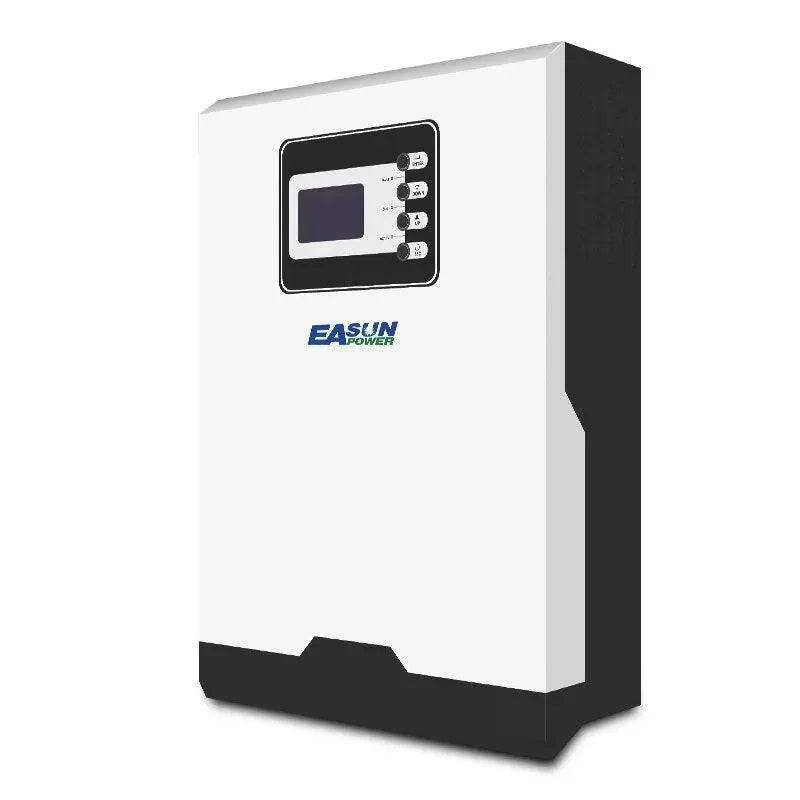

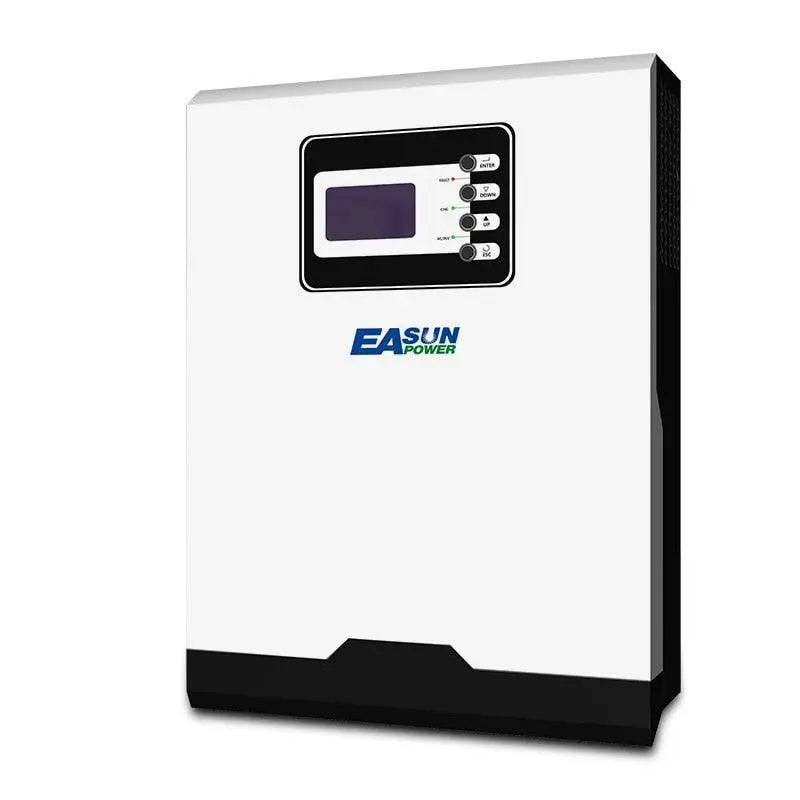

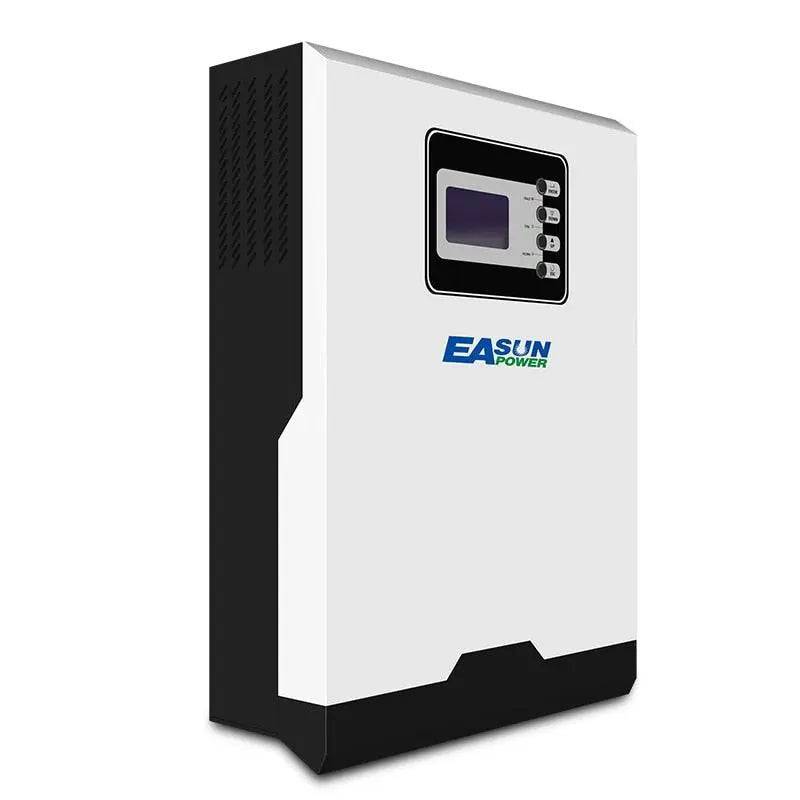

Solar Inverter Charger 5.5KW 500Vdc PV Input 230Vac 48V 100A MPPT Pure Sine Wave
Solar Inverter Charger 5.5KW 500Vdc PV Input 230Vac 48V 100A MPPT Pure Sine Wave
Couldn't load pickup availability
⚡ Solar Inverter Charger 5.5KW 500Vdc PV Input 230Vac 48V 100A MPPT Pure Sine Wave
Upgrade your system with our high-performance Solar Inverter Charger 5.5KW 500Vdc PV Input 230Vac 48V 100A MPPT Pure Sine Wave. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
SPECIFICATIONS
- Is_customized: Yes
- Weight: 11
- Waveform: Pure Sine Wave
- Voltage: 230VAC
- Surge Power: 11000VA
- Size: 100*300*440mm
- Rated Power: 5500VA/5500W
- Overcharge Protection: 63VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50HZ/60HZ
- Net Weight(kgs): 11
- Model Number: ISolar-SMR-II-5.5KW
- Model: ISolar-SMR-II-5.5KW
- Maximum Solar Charge Current: 100A
- Maximum PV Array Power: 5500W
- Maximum PV Array Open Circuit Voltage: 500VDC
- Maximum Charge Current: 100A
- Maximum AC Charge Current: 80A
- MPPT Range @ Operating Voltage: 120-450VDC
- Is Smart Device: Yes
- Frequency Range: 50Hz/60Hz(Auto sensing)
- Floating Charge Voltage: 54VDC
- Efficiency(Peak): Up to 93.5%
- Dimension,D*W*H(mm): 100*300*440
- Communication Interface: USB/RS232
- Certification: CE,RoHS
- Battery Voltage: 48VDC
- AC Voltage Regulation(Batt. Mode): 230VAC±5%
- Pure sine wave solar inverter
- Output power factor 1
- Parallel operation up to 9 units
- High PV input voltage range
- Battery independent design
- Built-in 100A MPPT solar charger
- Battery equalization function to optimize battery performance and extend lifecycle
|
Model |
ISolar-SMR-II-3KW |
ISolar-SMR-II-5.5KW |
|
Rated Power |
3000VA/3000W |
5500VA/5500W |
|
INPUT |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
OUTPUT |
||
|
AC Voltage Regulation(Batt. Mode) |
230VAC±5% |
|
|
Surge Power |
6000VA |
11000VA |
|
Efficiency(Peak) |
Up to 93.5% |
|
|
Transfer Time |
10ms(For Personal Computers);20ms(For Home Appliances) |
|
|
Waveform |
Pure Sine Wave |
|
|
BATTERY |
||
|
Battery Voltage |
24VDC |
48VDC |
|
Floating Charge Voltage |
27VDC |
54VDC |
|
Overcharge Protection |
33VDC |
63VDC |
|
SOLAR CHARGER & AC CHARGER |
||
|
Maximum PV Array Open Circuit Voltage |
500VDC |
500VDC |
|
Maximum PV Array Power |
5500W |
5500W |
|
MPPT Range @ Operating Voltage |
120～450VDC |
120～450VDC |
|
Maximum Solar Charge Current |
100A |
100A |
|
Maximum AC Charge Current |
80A |
80A |
|
Maximum Charge Current |
100A |
100A |
|
PHYSICAL |
||
|
Dimension,D×W×H(mm) |
100×300×440 |
|
|
Net Weight(kgs) |
9 |
10 |
|
Communication Interface |
USB/RS232 |
|
|
ENVIRONMENT |
||
|
Humidity |
5% to 90% Relative Humidity(Non-condensing) |
|
|
Operating Temperature |
-10℃ to 50℃ |
|
|
Storage Temperature |
-15℃ to 60℃ |
|
❓ Frequently Asked Questions
❓ 1 - Do you provide installation services?
❌ No, we do not. Please note that we do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions.
🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers located in North America, Europe, and Asia, with delivery times between 5 to 15 business days.
⏳ 3 - What is the delivery time?
Delivery time is 5 to 15 business days.
💳 4 - How can I pay?
Payments accepted via Stripe: credit card, debit card, and Apple Pay — all directly on our website.
📄 5 - Where can I find technical information?
All technical information is available on the product sales page.
❓ 6 - Can I request a quote or estimate?
🚫 No quote is necessary. You can purchase all products directly through our website with transparent pricing.
